Siirry sivupalkkiinSiirry alaosaanFiatagri 45-66 S – 80-66 S






Here is the translation to English:

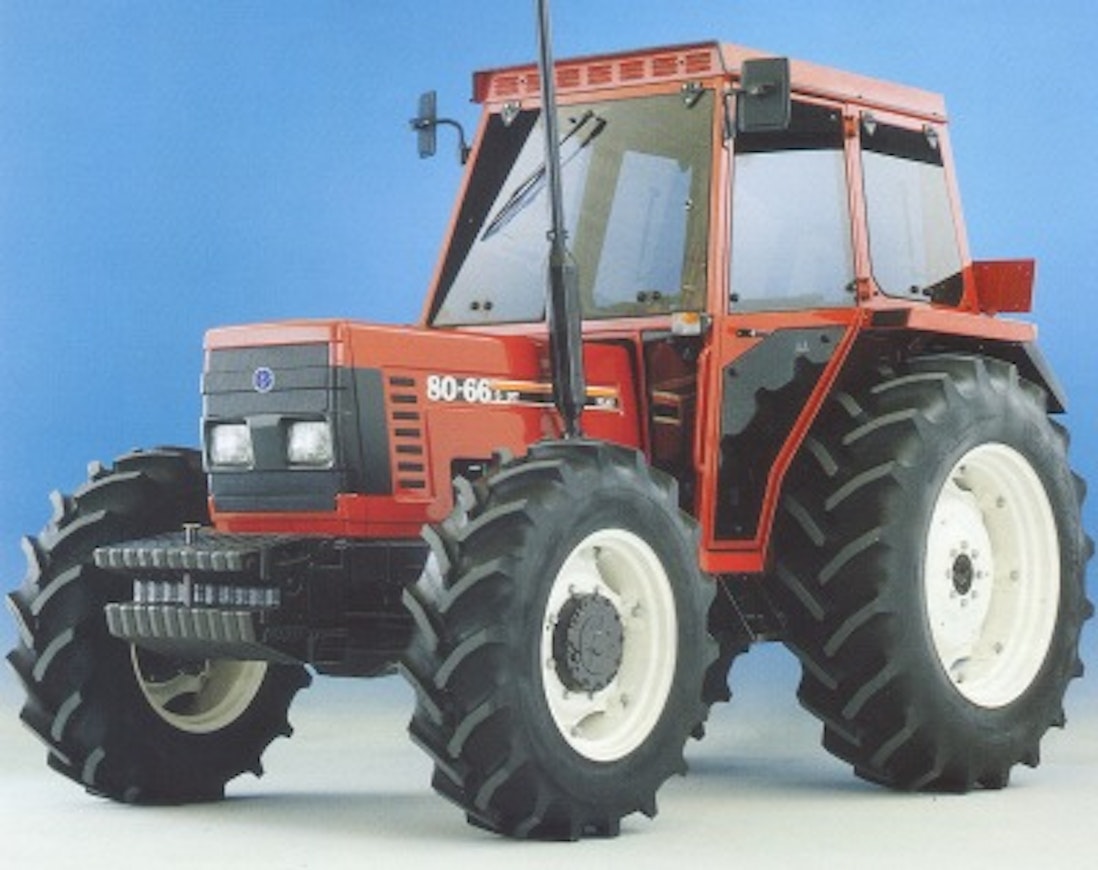

The updated 66-series from 1992 received the designation S after its model number. The most powerful model in the range had become the 80-66 S. The clutch was the same 11″ as in the smaller models (10″ in the 45-66). The 70-66 S and 80-66 S had received a lifting capacity of 3565 kg. The turning circle had been slightly reduced in the 4-cylinder models thanks to a 50-degree steering angle, but even so, the figure was still large in relation to the tractor’s external dimensions.

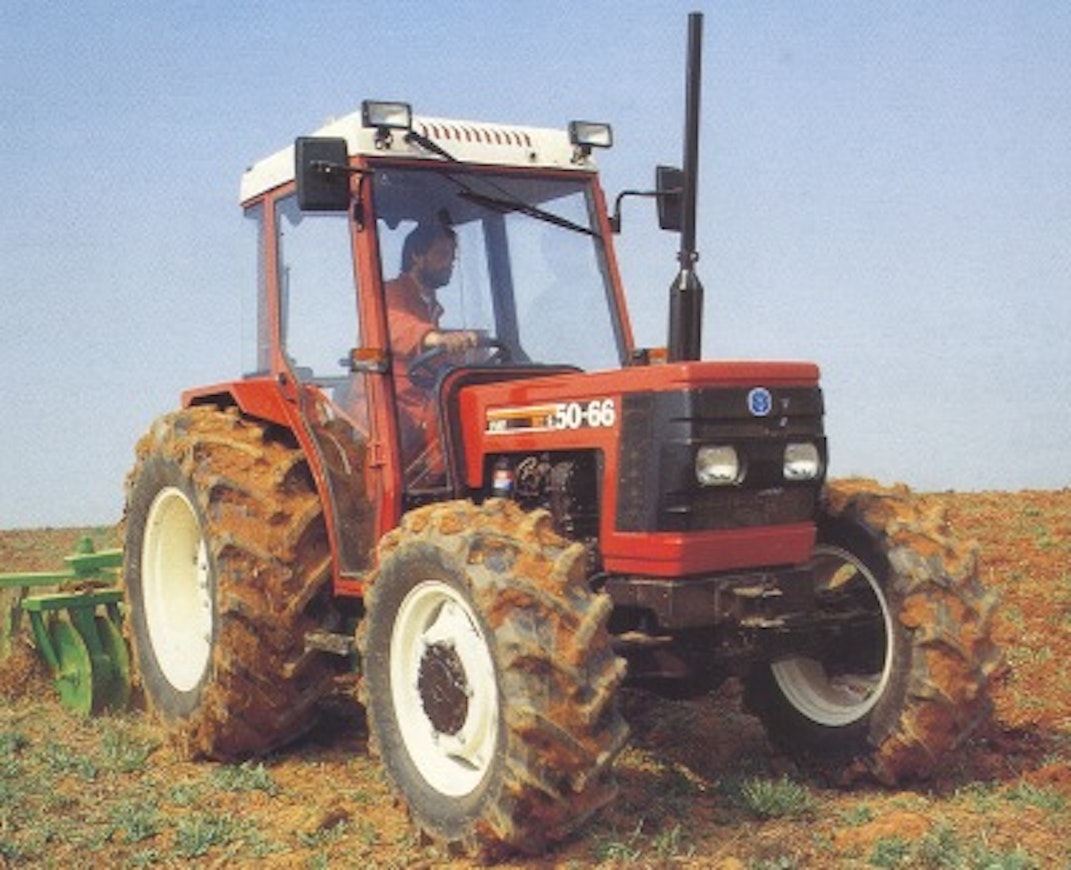

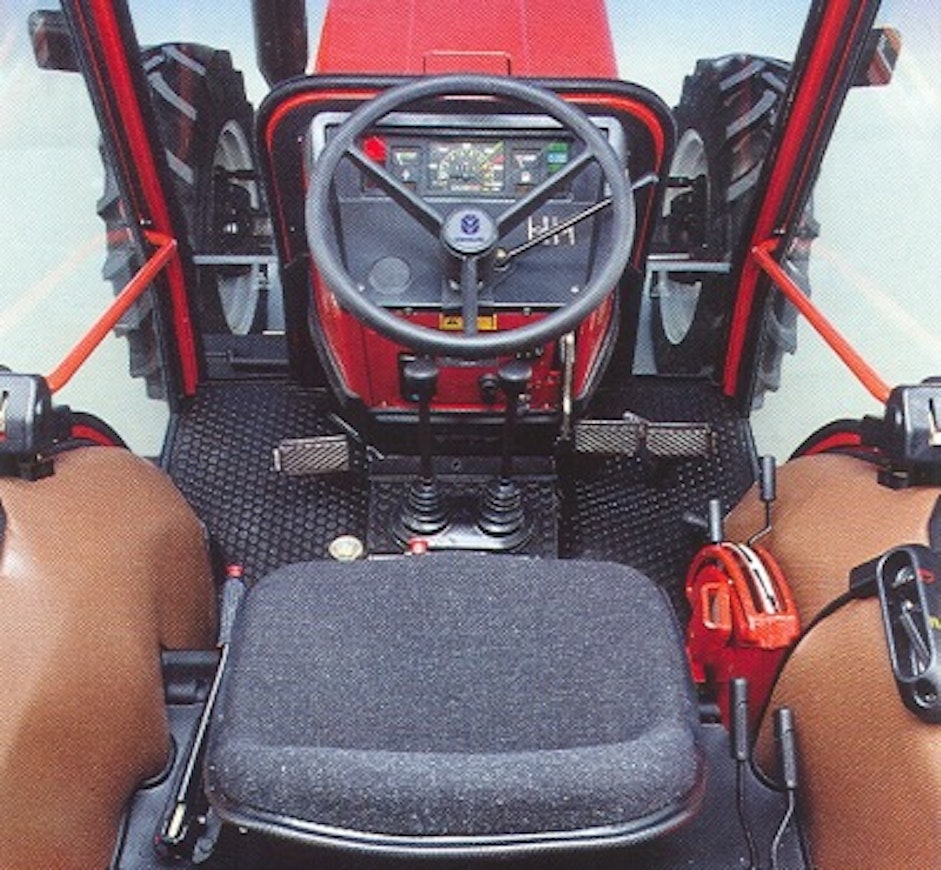

Four-wheel drive models could now also be equipped for a 40 km/h transmission. In this case, the front axle had separate disc brakes. A front axle differential lock was still an optional extra. PTO speed was standard only at 540, but 750 or 1000 rpm could be added as an option. A low-profile cab was available as a new feature. A sun canopy was still offered instead of a cab. The tire sizes shown in the table are those specified in the international general brochure. At least in Sweden and Germany, wider radial tires were standard. The 50-66 S model was also sold in some countries. It is the same as the 45-66 S, except for engine output.
This is an automated translation. Please report any issues in the translation.
| Model | Fiatagri 45-66 S | Fiatagri 55-66 S | Fiatagri 60-66 S | Fiatagri 65-66 S | Fiatagri 70-66 S | Fiatagri 80-66 S |
|---|---|---|---|---|---|---|
| Manufacturer name | Fiatagri | Fiatagri | Fiatagri | Fiatagri | Fiatagri | Fiatagri |
| Imported to Finland | No | No | No | No | No | No |
| Years | 1992-96 | 1992-95 | 1992-96 | 1992-96 | 1992-96 | 1992-96 |
| Engine model | 8035.06 | 8035.06 | 8035.05 | 8045.05 | 8045.06 | 8045.06 |
| Cyl/Turbo/Intercooler | 3 | 3 | 3 | 4 | 4 | 4 |
| Displacement | 2710 cm³ | 2710 cm³ | 2931 cm³ | 3613 cm³ | 3613 cm³ | 3613 cm³ |
| Bore x stroke | 100×115 mm | 100×115 mm | 104×115 mm | 100×115 mm | 100×115 mm | 100×115 mm |
| Rated power | 45/2500 hp DIN/rpm | 55/2500 hp DIN/rpm | 60/2500 hp DIN/rpm | 65/2500 hp DIN/rpm | 70/2500 hp DIN/rpm | 80/2500 hp DIN/rpm |
| Torque | - | - | - | - | - | - |
| Gears | 12+4 | 12+4 | 12+4 | 12+4 | 12+4 | 12+4 |
| Synchronized gears | 12+4 | 12+4 | 12+4 | 12+4 | 12+4 | 12+4 |
| Reverser | opt. | opt. | opt. | opt. | opt. | opt. |
| Speeds in km/h | 1,4-29,9 | 1,4-29,9 | 1,4-29,9 | 1,4-29,9 | 1,4-29,9 | 1,4-29,9 |
| Max. speed | 30 km/h | 30/40 km/h | 30/40 km/h | 30/40 km/h | 30/40 km/h | 30/40 km/h |
| Hydr. flow l/min | 34.5 l/min | 34.5 l/min | 34.5 l/min | 34.5 l/min | 34.5 l/min | 34.5 l/min |
| Hydraulic pressure | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 2125 kg | 3000 kg | 3000 kg | 3000 kg | 3565 kg | 3565 kg |
| PTO speeds | 540/ajo | 540/ajo | 540/ajo | 540/ajo | 540/ajo | 540/ajo |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 7 | 7.34 | 7.34 | 7.8 | 7.8 | 7.8 |
| Turning circle m 4WD | 8.4 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
| Front tyres 2WD | 6,00-16 | 6,00-16 | 7,50-16 | 7,50-16 | 7,50-18 | 7,50-18 |
| Front tyres 4WD | 300/70R20 | 8.00-20 | 11.2-20 | 11.2-24 | 11.2-24 | 11.2-28 |
| Rear tyres 2WD | 380/70R28 | 13,6-28 | 14,9-30 | 14,9-30 | 13,6-36 | 13,6-38 |
| Rear tyres 4WD | 380/70R28 | 13.6-28 | 14.9-30 | 12.4-36 | 16.9-30 | 13.6-38 |
| Weight 2WD | 1930 kg | 2635 kg | 2770 kg | 2815 kg | 2800 kg | 2800 kg |
| Weight 4WD | 2150 kg | 2925 kg | 3010 kg | 3060 kg | 3150 kg | 3150 kg |
| Height with cab | 225 (214) cm | 239 (225) cm | 240 (233) cm | 240 (233) cm | 241 cm | 243 cm |
| Length (2WD/4WD) | 324 cm | 364 cm | 364/368 cm | 392/401 cm | 392/401 cm | 392/401 cm |
| Wheelbase (2WD/4WD) | 200/190 cm | 218/213 cm | 218/212 cm | 229/225 cm | 231/225 cm | 231/225 cm |
| Fuel tank | 42 l | 73 l | 73 l | 73 l | 73 l | 73 l |
| Cab noise level | 86 dB | 87 dB | 86 dB | 86 dB | 86 dB | 86 dB |
| Solid cab | x | x | x | x | x | x |
| Diff. lock | opt. | opt. | opt. | opt. | opt. | opt. |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. |
