Fiat 780-880

77Fiat780
77Fiat780tehot
77Fiat780pikkukuvat
77Fiat780nopeudet
77Fiat780
77Fiat780tehot
77Fiat780pikkukuvat
77Fiat780nopeudet
Manufacturer
Models
Fiat 780, Fiat 880
Years
1975-78
Info

At the beginning of 1975, the outdated 750 was replaced with an entirely new model, the 780. At the same time, a larger 880 was introduced, while its predecessor, the 850, remained available alongside it for some time. The brand-new design immediately revealed that these new models incorporated a lot of innovative thinking. They were the first Fiats designed from the ground up to be equipped with a safety cab. The factory-installed cab, mounted on rubber cushions, was among the best on the market. The fuel tank was relocated to the rear of the tractor. The clutches had ceramic surfaces. The draft control system was also quite advanced for this size category. The brakes were oil-immersed disc brakes, and the four-wheel drive was implemented via a central axle.

The 3.7- and 4.6-liter four-cylinder engines had a basic structure familiar from the earlier 640 and 750 models but were clearly more powerful. However, they were still high-speed engines, and no torque figures were provided in the brochures. In Finland, the transmission was initially the familiar 8+2-speed from before; later, only the 12+3-speed version was offered. The 780 had synchronized gears in half of the speeds, while the 880 had synchronization in all speeds. The hydraulic pump output (26 liters per minute) was quite low.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelFiat 780Fiat 880
Manufacturer nameFiatFiat
Imported to FinlandYesYes
Years1975-781975-78
Engine model8045OM CO3/130
Cyl/Turbo/Intercooler44
Displacement3670 cm³4562 cm³
Bore x stroke103×110 mm110×120 mm
Rated power78/2440 hp DIN/rpm88/2400 hp DIN/rpm
Torque--
Gears8+2/12+38+2/12+3
Synchronized gears4/68+2/12+3

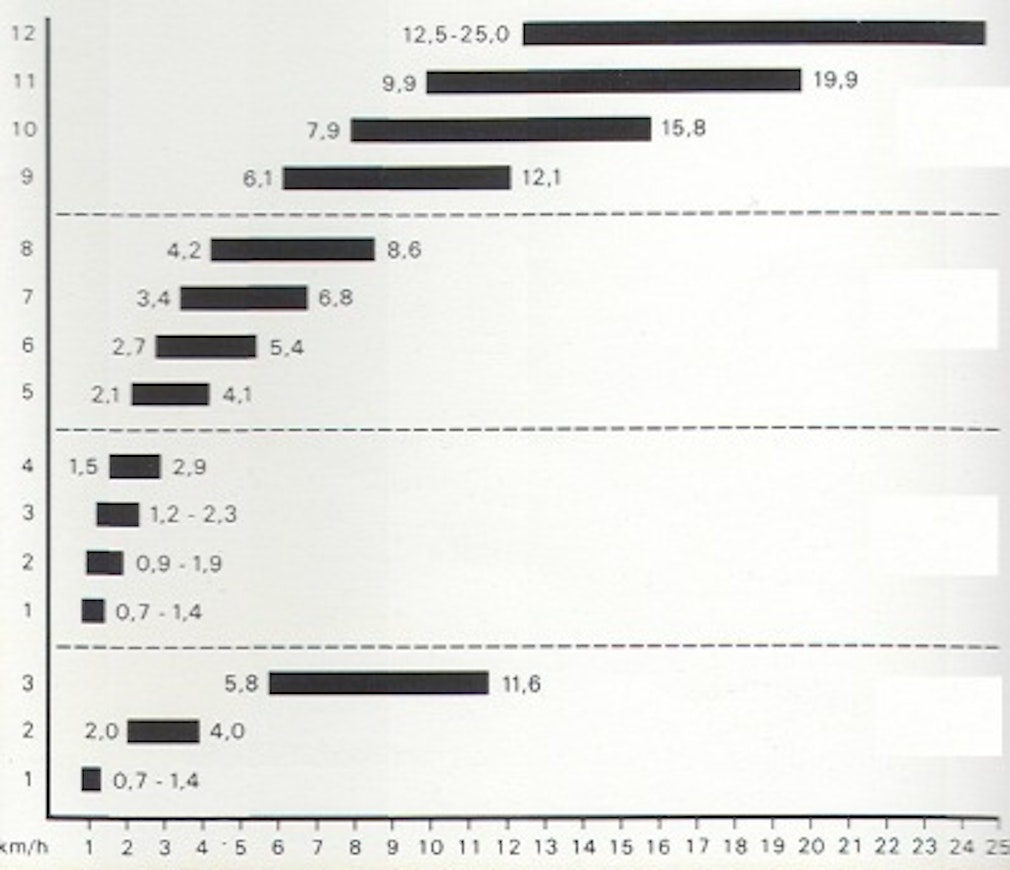

Speeds in km/h1,4-26,21,4-26,5
Hydr. flow l/min25.8 l/min26.8 l/min
Lift controlsmech.mech.
Lift capacity2400 kg2820 kg
PTO speeds540/ajo540/1000/ajo
Brakeswet discwet disc
Steeringhydrost.hydrost.
Turning circle m 2WD7.57.8
Turning circle m 4WD11.412
Front tyres 2WD7,50-187,50-20
Front tyres 4WD11.2-2812.4-28
Rear tyres 2WD16,9-3416,9-38
Rear tyres 4WD16.9-3416.9-38
Weight 2WD2940 kg3220 kg
Weight 4WD3200 kg3600 kg
Height with cab255 cm256 cm
Length (2WD/4WD)349/362 cm373/389 cm
Wheelbase (2WD/4WD)227/227 cm245/242 cm
Fuel tank80 l116 l
Cab noise level89,5/82,5 dB84 dB
Solid cabxx
Creeper gearopt.opt.
