Fiat 44-23 – 44-35

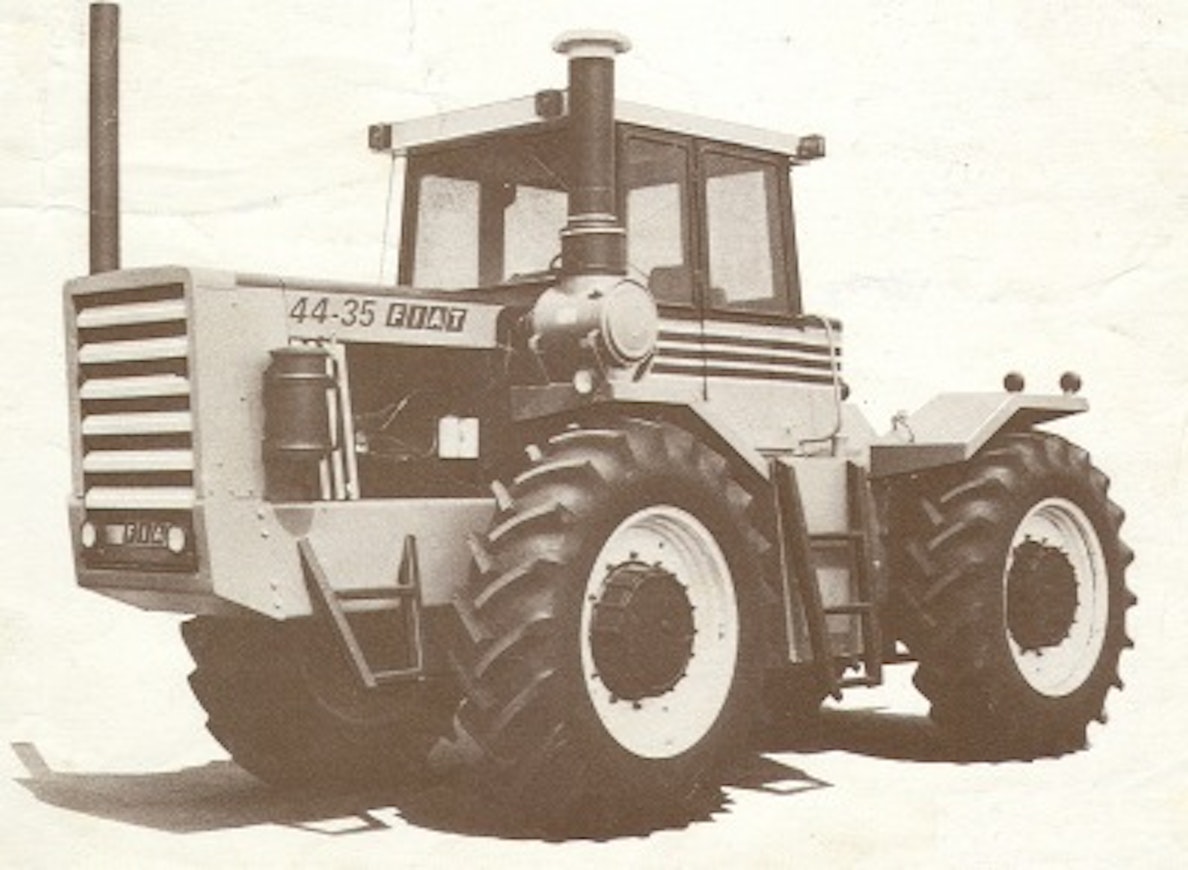

80Fiat44-35
Manufacturer
Models
Fiat 44-23, Fiat 44-28, Fiat 44-33, Fiat 44-35
Years
1979-82
Info

Fiat expanded its lineup at the top end by entering into a cooperation agreement with Versatile, the best-known manufacturer of large tractors. Introduced at the end of 1979, the 44 series corresponded to Versatile models 835, 875, 935, and 950. The power ratings of the Cummins engines were 230, 280, 330, and 350 hp. The engines had constant power in the 500 rpm range, and the torque increase of the smallest model was as much as 39%. The gear transmission had 4 ranges, each with 3+R (forward plus reverse), and the dual-disc clutch was dry. The weights of the articulated tractors ranged from 11,900 to 14,150 kg. The tractors were manufactured at Versatile's plant in Canada, but their orange-white coloring was similar to Fiat's.

The lineup was complemented by the 470-horsepower Versatile 1250 in 1982. Its coloring was Versatile's yellow-black. Soon after this, however, Fiat abandoned its effort to market large tractors in Europe.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelFiat 44-23Fiat 44-28Fiat 44-33Fiat 44-35
Manufacturer nameFiatFiatFiatFiat
Imported to FinlandNoNoNoNo
Years1979-821979-821979-821979-82
Engine modelNT-855-C230NT-855-C280VT-903-C330VT-903-C350
Cyl/Turbo/Intercooler6T6TV8TV8T
Displacement14016 cm³14016 cm³14800 cm³14800 cm³
Bore x stroke139,7×152,4 mm139,7×152,4 mm139,7×120,65 mm139,7×120,65 mm
Rated power230/2100 hp DIN/rpm280/2100 hp DIN/rpm330/2600 hp DIN/rpm350/2400 hp DIN/rpm
Torque----
Gears12+312+312+312+3
Speeds in km/h4,2-23,04,2-23,04,2-23,04,2-23,0
Hydr. flow l/min90/102 l/min90/102 l/min102 l/min102 l/min
Lift controlsmech.mech.mech.mech.
Lift capacity8300 kg8300 kg8300 kg8300 kg
PTO speeds1000100010001000
Steeringhydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD10.9610.9610.9610.96
Front tyres 4WD18.4-3818.4-3820.8-3820.8-38
Rear tyres 4WD18.4-3818.4-3820.8-3820.8-38
Weight 4WD11900 kg12550 kg13300 kg14150 kg
Height with cab330 cm330 cm330 cm330 cm
Length (2WD/4WD)643 cm643 cm643 cm643 cm
Wheelbase (2WD/4WD)330 cm330 cm330 cm330 cm
Fuel tank700 l700 l700 l700 l
Solid cabxxxx
Diff. lockdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogs
Air conditioningxxxx
