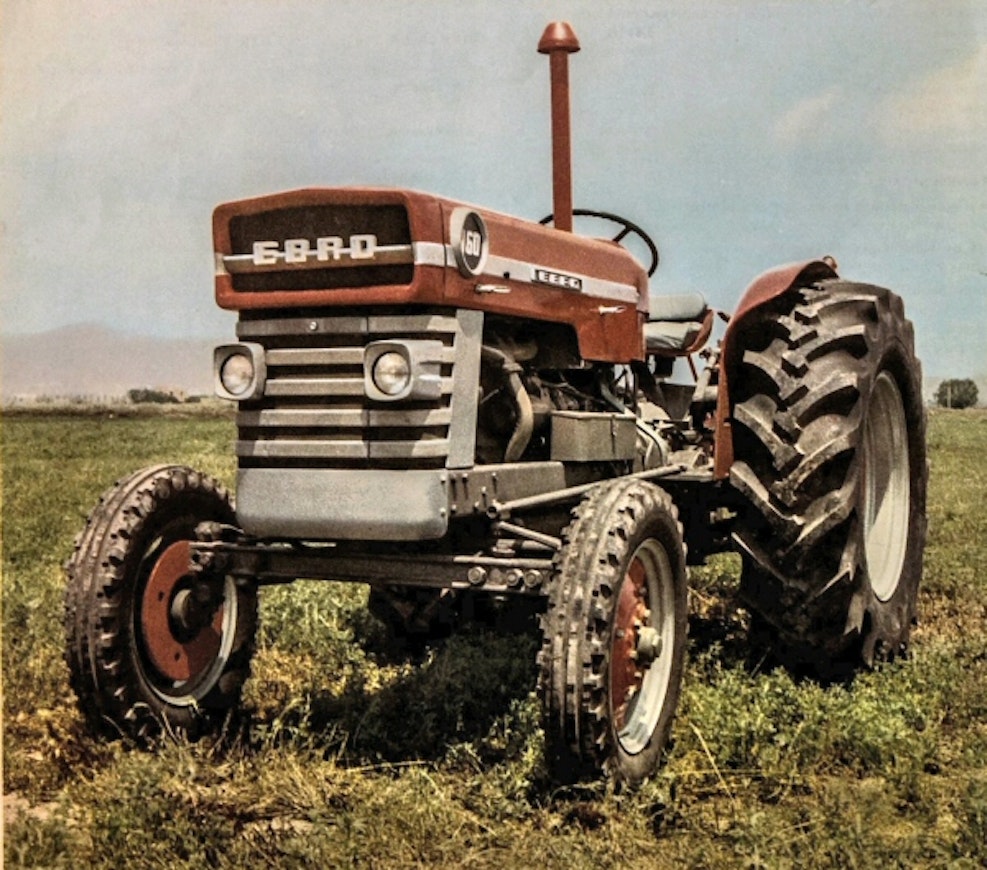

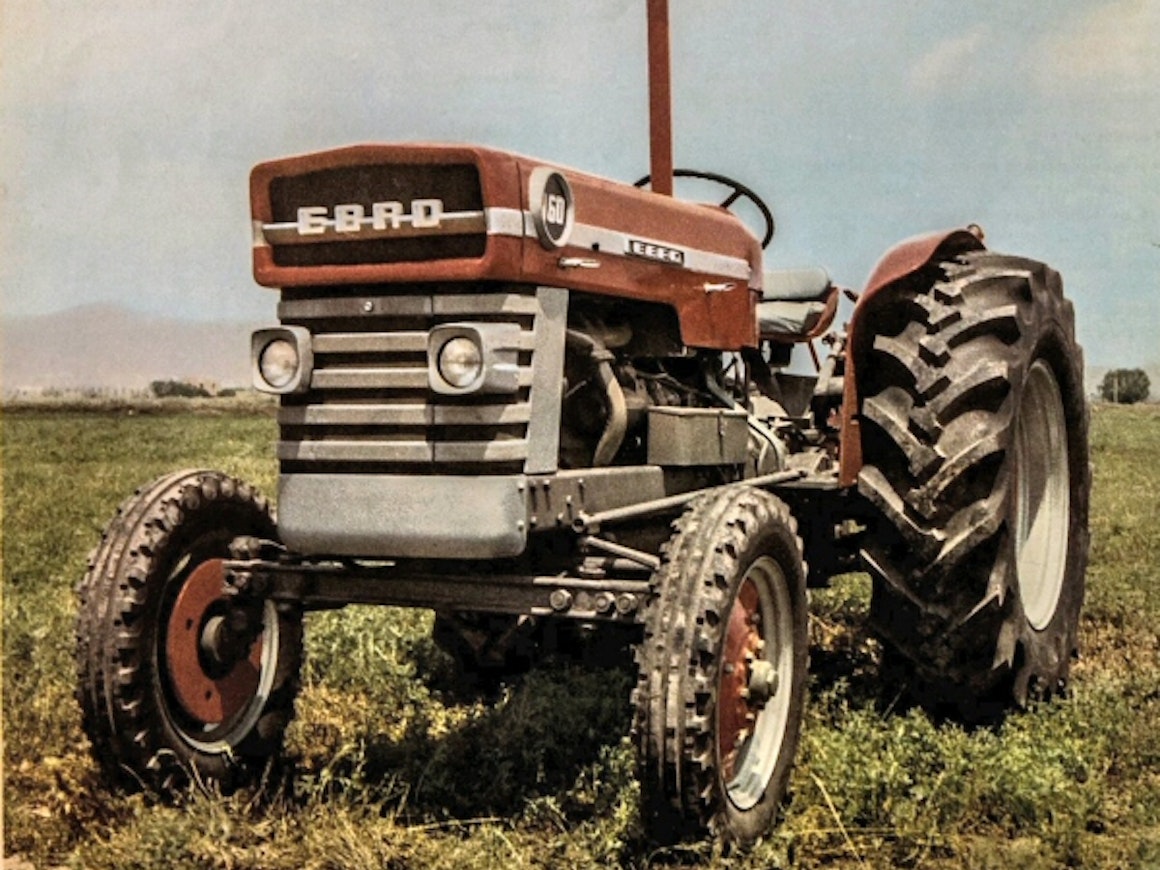

Ebro 155-684

Manufacturer
Models
Ebro 155, Ebro 160, Ebro 183/684
Years
1967-72
Info

Ford decided not to renew its cooperation agreement with Motor Ibérica in 1965. The new partner became Massey Ferguson, which acquired 32% of Motor Ibérica. However, production of the Fordson-based models continued, and the new models were also based on Fordson technology, although the design resembled Massey Ferguson's style. The first was the Ebro 160 in 1967. Compared to the Ebro Super 55, the differences were mainly a more powerful engine and a dual clutch. In 1969, the Ebro 155 was introduced, which was even closer to the original Fordson.

In 1968, the Ebro 183 was introduced, featuring for the first time a Perkins engine: a 6-cylinder, 82-horsepower engine. This Spanish 5.0-liter 6.305 engine was not used in other tractor brands. The transmission was still from Fordson but reinforced where necessary. The dual clutch was standard. New features included power-assisted steering and a weight transfer system based on Massey Ferguson technology.

In 1970, improved models 155D, 160D, and 684 were introduced, the latter replacing the 183. These models had angular fenders, a new front axle, a padded seat, and key ignition start. The dual clutch in the 155D and 160D was still optional. Faster gear ratios for road driving were also available as an option.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelEbro 155Ebro 160Ebro 183/684
Imported to FinlandNoNoNo
Years1969-721967-731968-72
Engine modelSIADDN6003-B592E-6005Perkins 6.305
Cyl/Turbo/Intercooler446
Displacement3610 cm³3610 cm³5000 cm³
Bore x stroke100×115 mm100×115 mm91,49×127 mm
Rated power55 SAE/1800 hp DIN/rpm61 SAE/2100 hp DIN/rpm82 SAE/2100 hp DIN/rpm
Torque---
Gears6+26+26+2
Speeds in km/h2,5-20,72,7-22,2-28.7
Hydr. flow l/min22.4 l/min22.4 l/min30 l/min
Hydraulic pressure175 bar175 bar175 bar
Lift controlsmech.mech.mech.
Lift capacity1400 kg1400 kg1400 kg
PTO speeds540540540
Brakesdry discdry discdry disc
Steeringmech.mech.mech.
Front tyres 2WD6.00-196.00-197.50-16
Rear tyres 2WD12.4/11-3613.6/12-3618.4-30
Weight 2WD(2360) kg(2400) kg(3450) kg
Height with cab(160) cm(163) cm-
Length (2WD/4WD)331 cm332 cm345 cm
Wheelbase (2WD/4WD)203 cm203 cm224 cm
Fuel tank65 l65 l102 l
