Steyr 9080 MT – 9105 MT / Case IH CS 80 Pro – 105 Pro

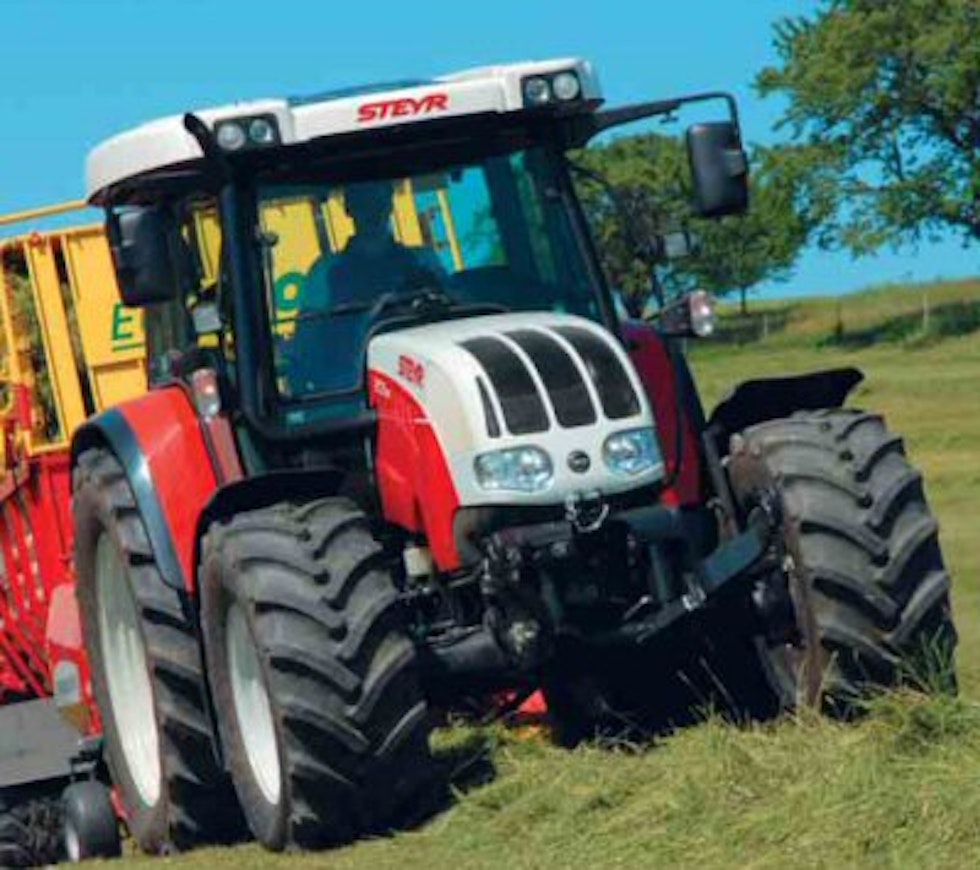

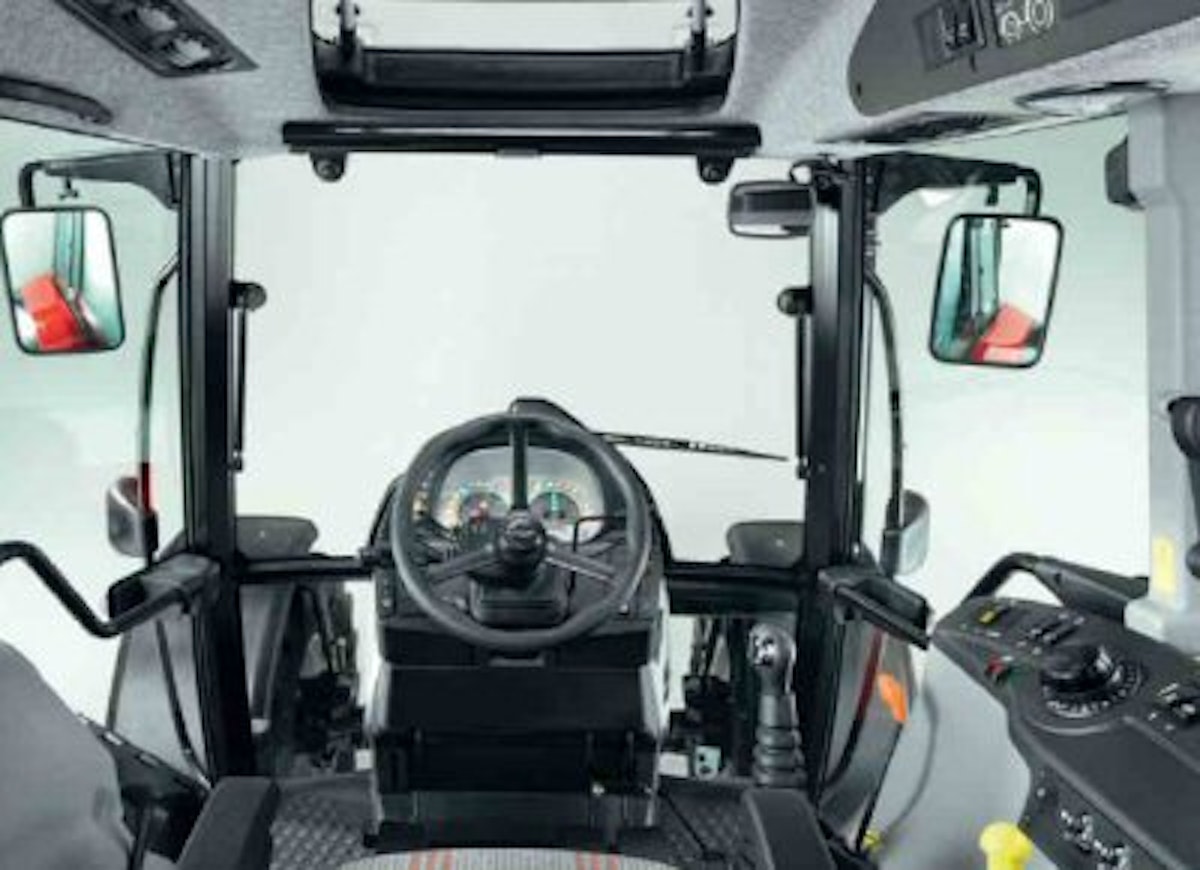

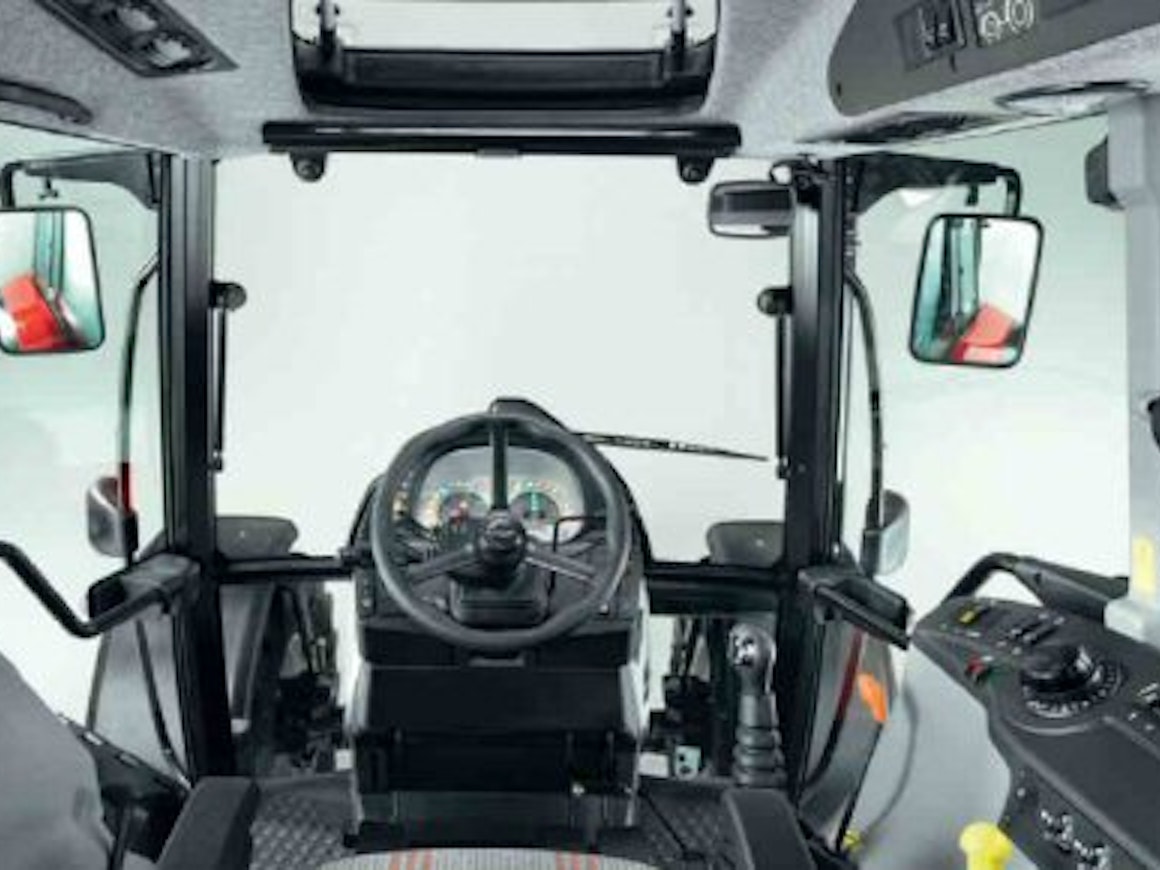

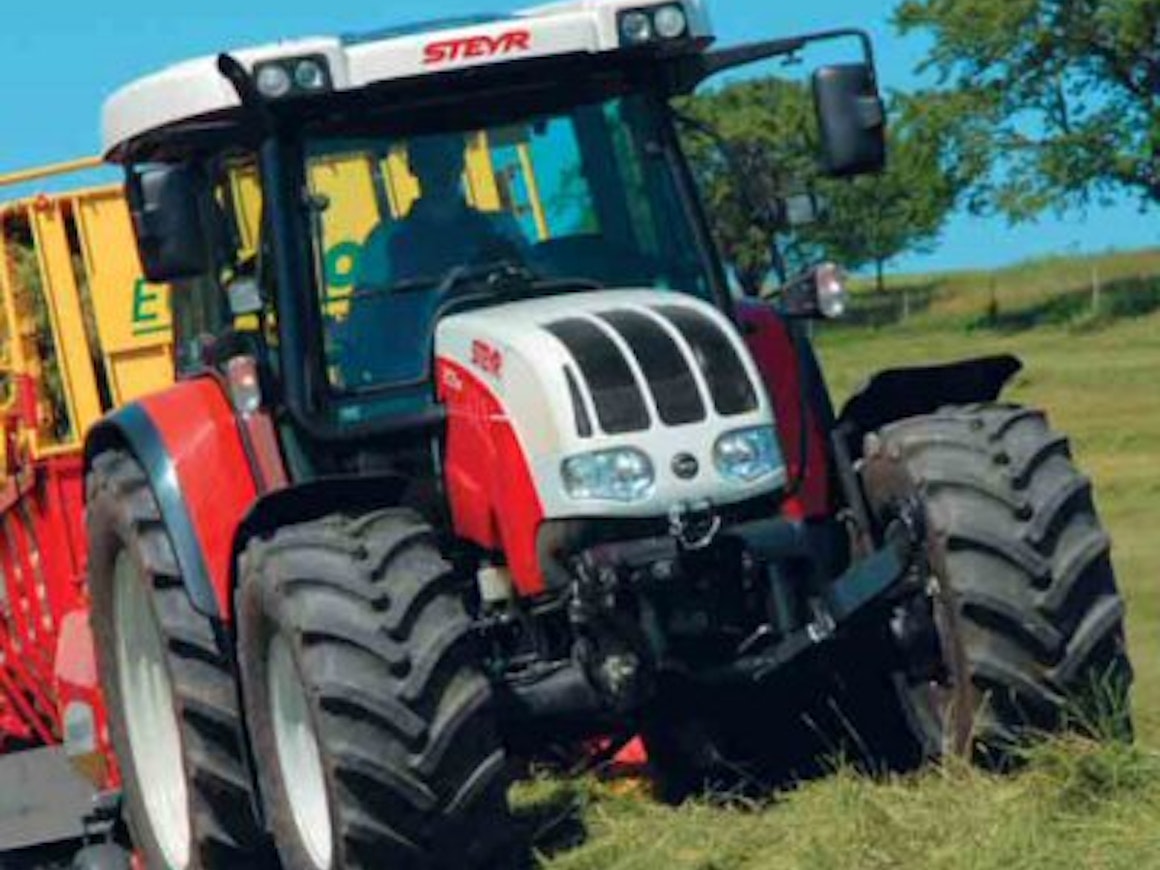

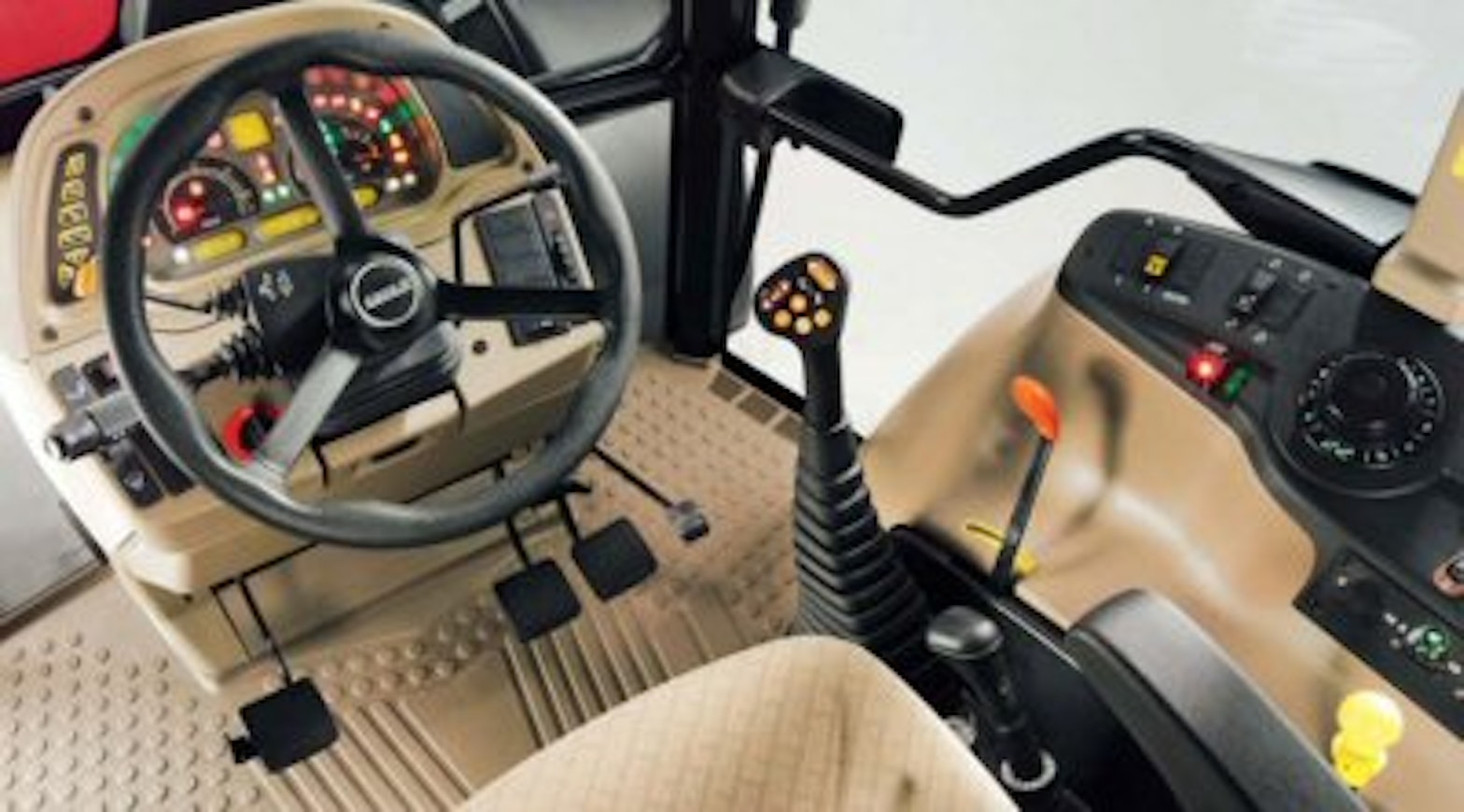

The Steyr 9000 M was replaced by the renewed MT model range in the spring of 2007. The taller, curved hood resembled the Steyr CVT, as did the new control devices on the right side of the cab. The roof section of the cab was also renewed and equipped with a roof window positioned at the front. A Multicontroller lever was available for controlling the hydraulic valves. After a break, a similar Case IH series was again offered, called the CS Pro.
Initially, the previous series' Sisu engines continued to be used. From spring 2008 onwards, the SisuDiesels were intercooled and compliant with Tier III standards. The transmission selection was simplified, and a hydraulic 2-speed quick shift as well as an electro-hydraulic direction reverser were always standard.
There were four speeds available in the power take-off: 430, 540, 750, and 1000. The drive shaft PTO was available as an optional extra. The lifting capacity was 4,900 kilograms. The lifting device could be either mechanical or electrical. The electrical lift system featured an electronic draft arm sensing and oscillation damping. The front axle had a 100% lock, which was engaged electro-hydraulically together with the rear differential lock. Otherwise, the standard equipment was basic, but more sophisticated technology was available as an option.
This is an automated translation. Please report any issues in the translation.
| Model | Steyr 9080 MT | Case IH CS 80 Pro | Steyr 9090 MT | Case IH CS 90 Pro | Steyr 9100 MT | Case IH CS 100 Pro | Steyr 9085 MT | Case IH CS 85 Pro | Steyr 9095 MT | Case IH CS 95 Pro | Steyr 9105 MT | Case IH CS 105 Pro |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Imported to Finland | No | No | No | No | No | No | No | No | No | No | No | No |
| Years | 2007-08 | 2007-08 | 2007-08 | 2007-08 | 2007-08 | 2007-08 | 2008-11 | 2008-11 | 2008-11 | 2008-11 | 2008-11 | 2008-11 |
| Engine model | Sisu 44DT | Sisu 44DT | Sisu 44DT | Sisu 44DT | Sisu 44DT | Sisu 44DT | Sisu 44DTA | Sisu 44DTA | Sisu 44DTA | Sisu 44DTA | Sisu 44DTA | Sisu 44DTA |
| Cyl/Turbo/Intercooler | 4T | 4T | 4T | 4T | 4T | 4T | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI |
| Displacement | 4397 cm³ | 4397 cm³ | 4397 cm³ | 4397 cm³ | 4397 cm³ | 4397 cm³ | 4397 cm³ | 4397 cm³ | 4397 cm³ | 4397 cm³ | 4397 cm³ | 4397 cm³ |
| Bore x stroke | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm |
| Rated power | - | - | - | - | - | - | - | - | - | - | - | - |
| Max power | - | - | - | - | - | - | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - | - | - | - | - | - | - |
| Gears | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 |
| Synchronized gears | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 |
| Powershift gears | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 2,0-39,9 | 2,0-39,9 | 2,0-39,9 | 2,0-39,9 | 2,0-39,9 | 2,0-39,9 | 2,0-39,9 | 2,0-39,9 | 2,0-39,9 | 2,0-39,9 | 2,0-39,9 | 2,0-39,9 |
| Max. speed | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 50 (86) l/min | 50 (86) l/min | 50 (86) l/min | 50 (86) l/min | 50 (86) l/min | 50 (86) l/min | 50 (86) l/min | 50 (86) l/min | 50 (86) l/min | 50 (86) l/min | 50 (86) l/min | 50 (86) l/min |
| Hydraulic pressure | 175 bar | 175 bar | 175 bar | 175 bar | 175 bar | 175 bar | 175 bar | 175 bar | 175 bar | 175 bar | 175 bar | 175 bar |
| Lift controls | mech./elec. | mech./elec. | mech./elec. | mech./elec. | mech./elec. | mech./elec. | mech./elec. | mech./elec. | mech./elec. | mech./elec. | mech./elec. | mech./elec. |
| Lift capacity | 4900 kg | 4900 kg | 4900 kg | 4900 kg | 4900 kg | 4900 kg | 4900 kg | 4900 kg | 4900 kg | 4900 kg | 4900 kg | 4900 kg |
| PTO speeds | 430/540/ 750/1000 | 430/540/ 750/1000 | 430/540/ 750/1000 | 430/540/ 750/1000 | 430/540/ 750/1000 | 430/540/ 750/1000 | 430/540/ 750/1000 | 430/540/ 750/1000 | 430/540/ 750/1000 | 430/540/ 750/1000 | 430/540/ 750/1000 | 430/540/ 750/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 8.8 | 8.8 | - | - | - | - | 8.8 | 8.8 | - | - | - | - |
| Turning circle m 4WD | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 | 9.6 |
| Front tyres 2WD | 9.00-16 | 9.00-16 | - | - | - | - | 9.00-16 | 9.00-16 | - | - | - | - |
| Front tyres 4WD | 14.9R24 | 14.9R24 | 14.9R24 | 14.9R24 | 14.9R24 | 14.9R24 | 14.9R24 | 14.9R24 | 14.9R24 | 14.9R24 | 14.9R24 | 14.9R24 |
| Rear tyres 2WD | 18.4R34 | 18.4R34 | - | - | - | - | 18.4R34 | 18.4R34 | - | - | - | - |
| Rear tyres 4WD | 18.4R34 | 18.4R34 | 18.4R34 | 18.4R34 | 18.4R34 | 18.4R34 | 18.4R34 | 18.4R34 | 18.4R34 | 18.4R34 | 18.4R34 | 18.4R34 |
| Weight 4WD | 4150 kg | 4150 kg | 4150 kg | 4150 kg | 4150 kg | 4150 kg | 4180 kg | 4180 kg | 4180 kg | 4180 kg | 4180 kg | 4180 kg |
| Height with cab | 273 (262) cm | 273 (262) cm | 273 (262) cm | 273 (262) cm | 273 (262) cm | 273 (262) cm | 273 (262) cm | 273 (262) cm | 273 (262) cm | 273 (262) cm | 273 (262) cm | 273 (262) cm |
| Length (2WD/4WD) | 398/422 cm | 398/422 cm | 422 cm | 422 cm | 422 cm | 422 cm | 398/422 cm | 398/422 cm | 422 cm | 422 cm | 422 cm | 422 cm |
| Wheelbase (2WD/4WD) | 242/248 cm | 242/248 cm | 248 cm | 248 cm | 248 cm | 248 cm | 242/248 cm | 242/248 cm | 248 cm | 248 cm | 248 cm | 248 cm |
| Fuel tank | 100 (150) l | 100 (150) l | 100 (150) l | 100 (150) l | 100 (150) l | 100 (150) l | 100 (150) l | 100 (150) l | 100 (150) l | 100 (150) l | 100 (150) l | 100 (150) l |
| Cab noise level | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB |
| Solid cab | x | x | x | x | x | x | x | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Autom. differential locks | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
