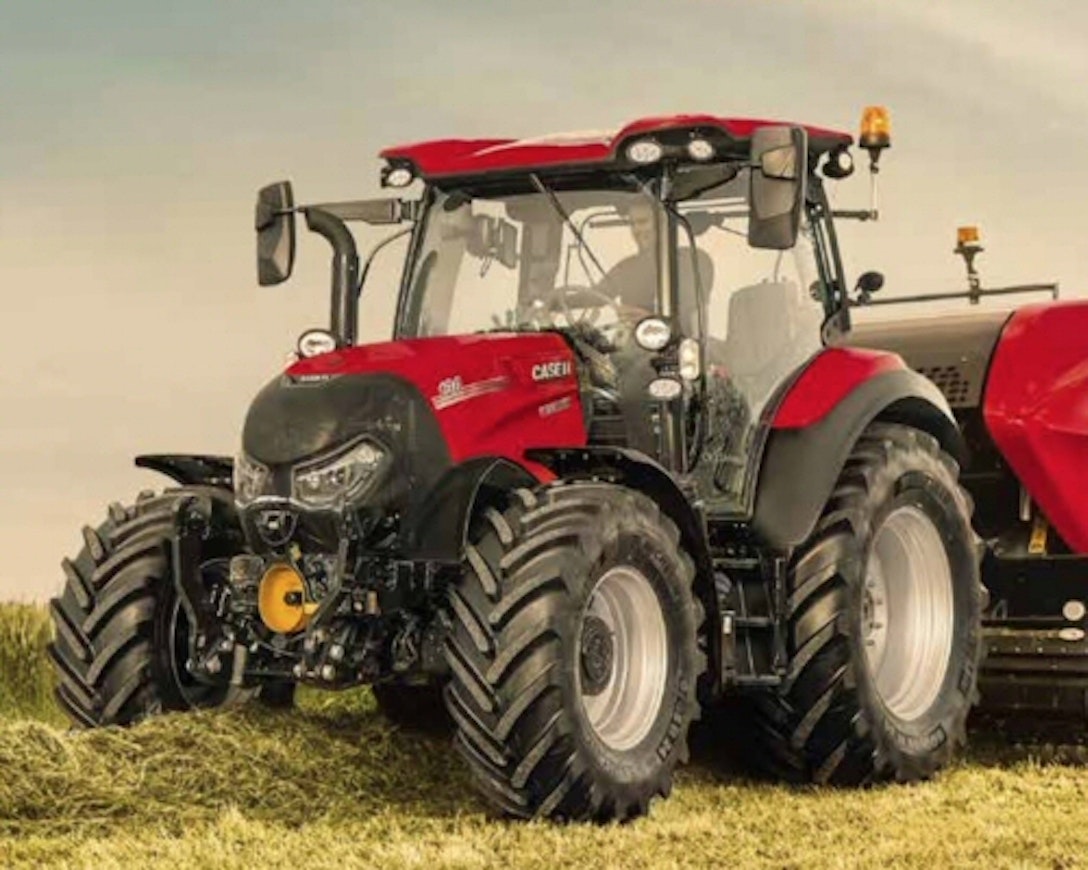

Case IH Vestrum 100-130 CVXDrive / Steyr Expert CVT 4100-4130

The Vestrum model range was introduced in spring 2019 between the Luxxum and Maxxum models and was chosen as Tractor of the Year 2019. The engines were significantly cleaner 4.5-liter units compared to the Luxxum. Maximum power was reached between 1700 and 1900 rpm. The engines featured a wastegate turbo, intercooling, and common rail injection. Stage V emission requirements were met with urea injection and an oxidation catalyst. The oil change interval was 600 hours. The transmission was a stepless CVXDrive, which shifted automatically between two ranges using a dual clutch. The parking brake was automatic. A speed of 40 km/h was reached at 1700 rpm, but higher speeds were not possible.

The lifting capacity was 5600 kilograms and the hydraulic output 110 l/min. Two mechanical hydraulic valves were standard. At most, it was possible to have four valves at the rear (two of which were electric) and three in the middle. Suspension for the cab and front axle as well as front brakes were available as optional equipment.

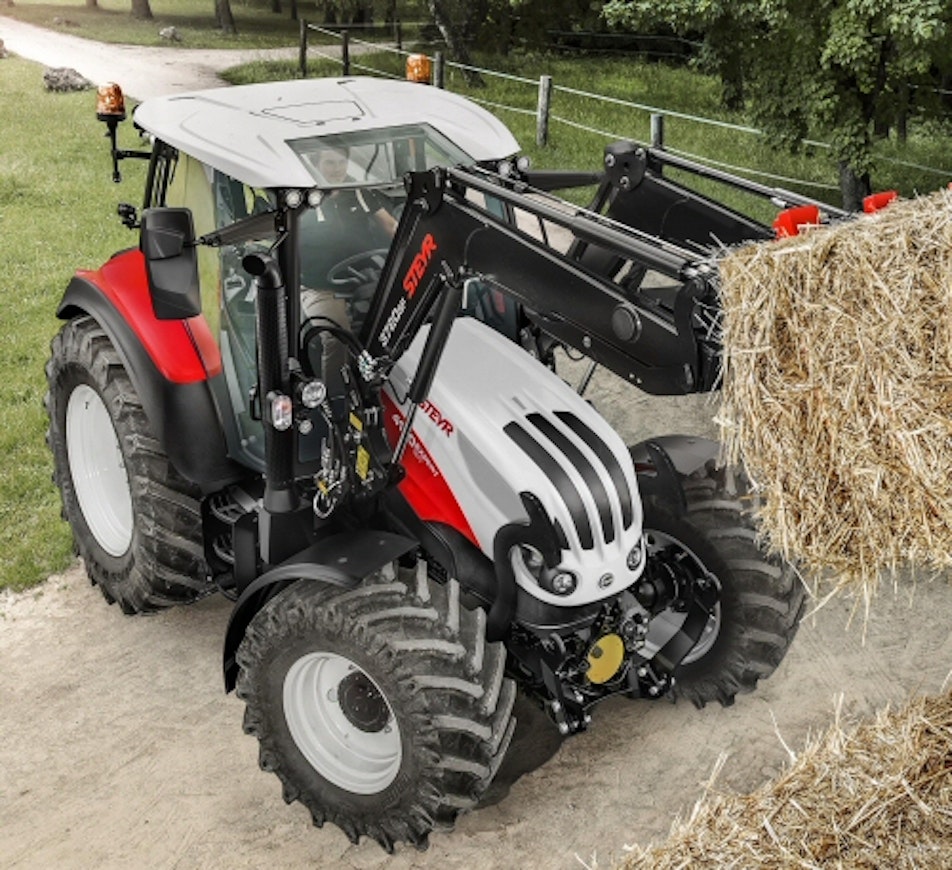

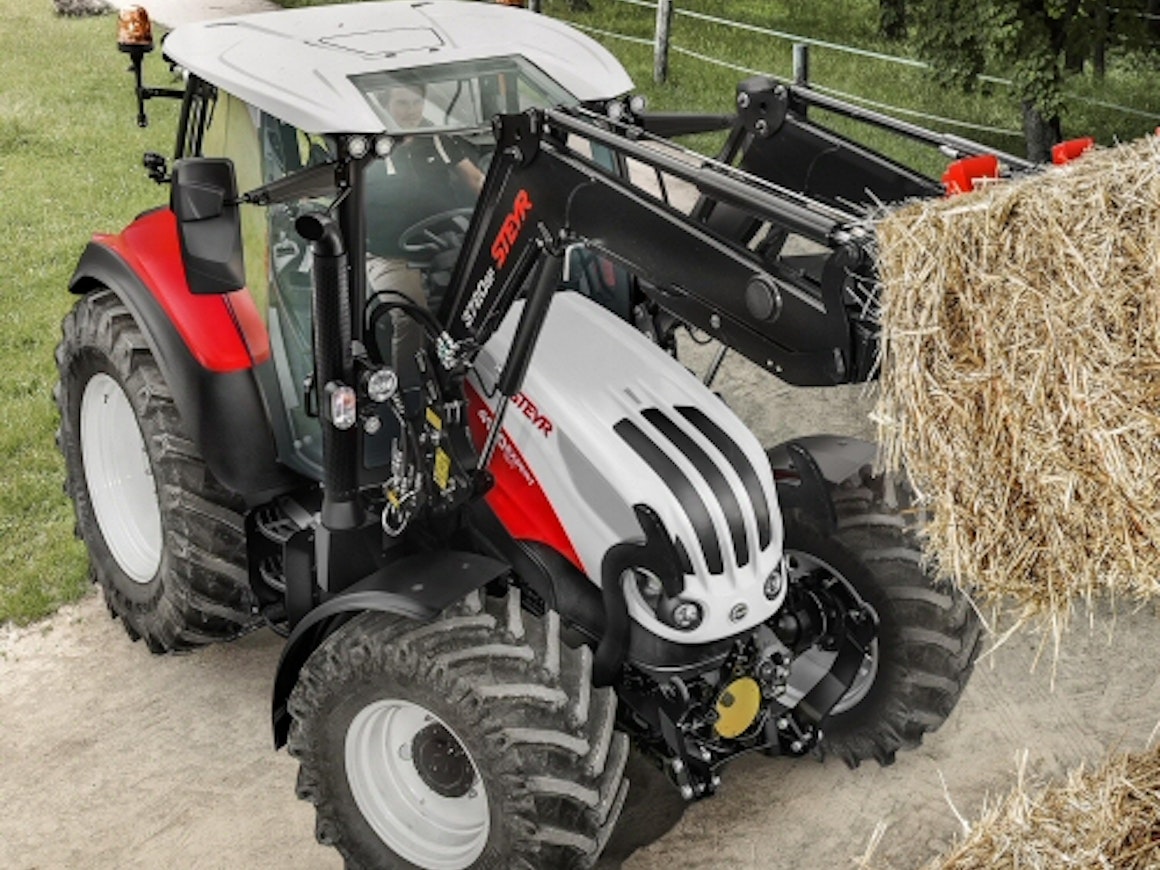

In Steyr’s lineup, the corresponding tractor was named the Steyr Expert CVT 4000.
