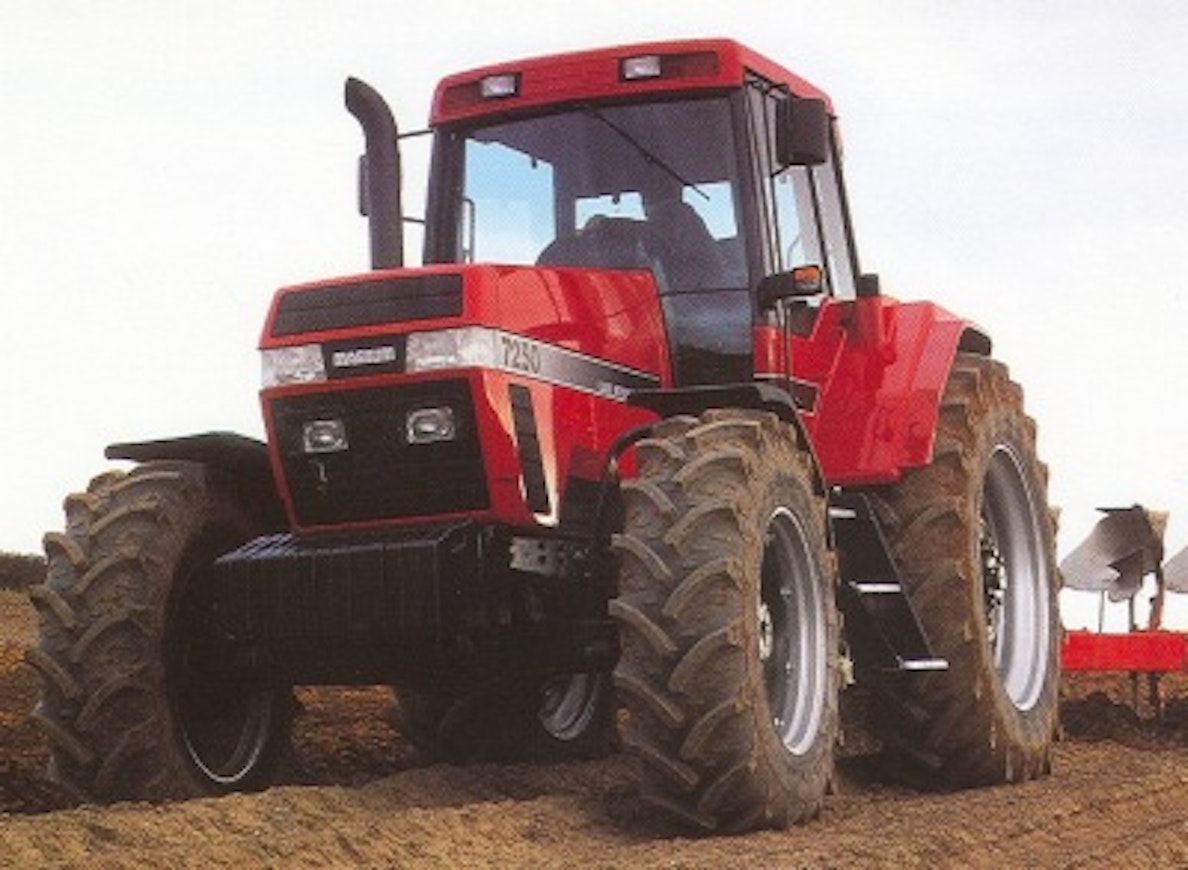

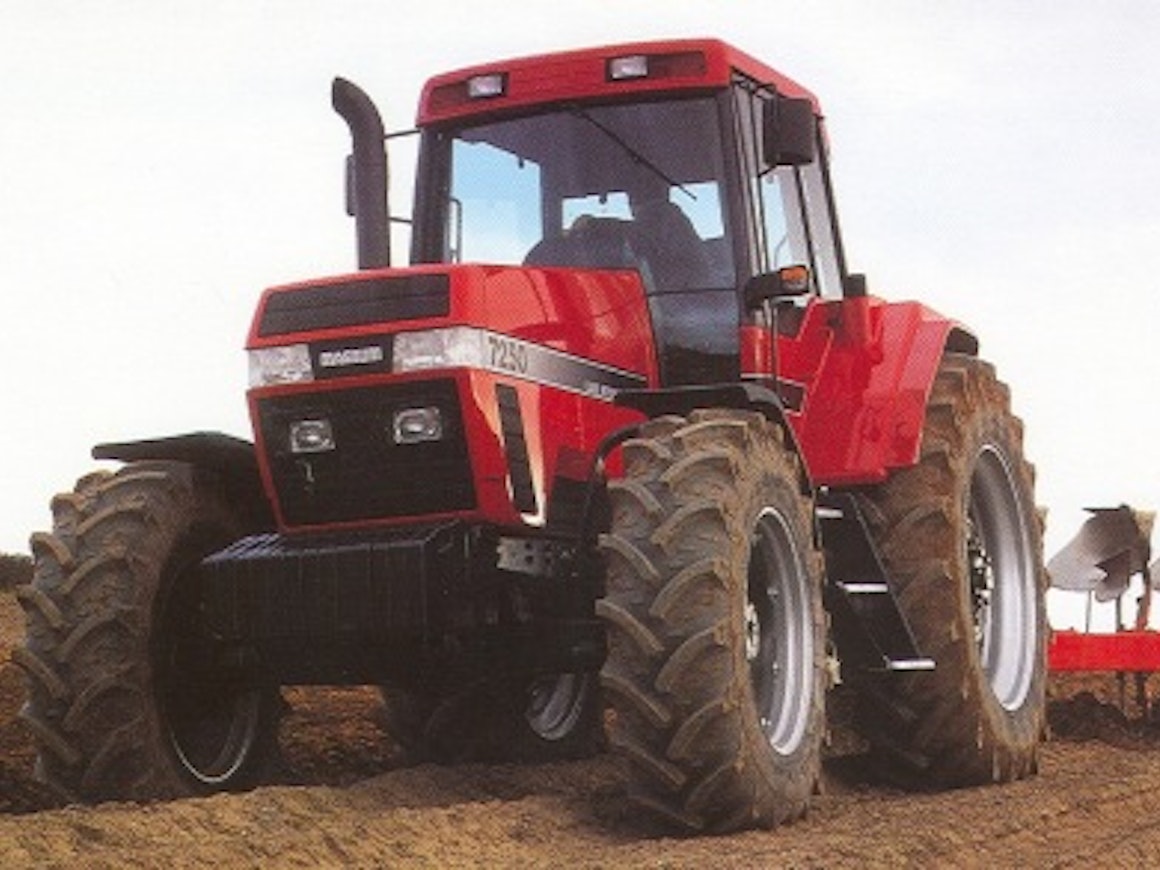

Case IH Magnum 7210-7250

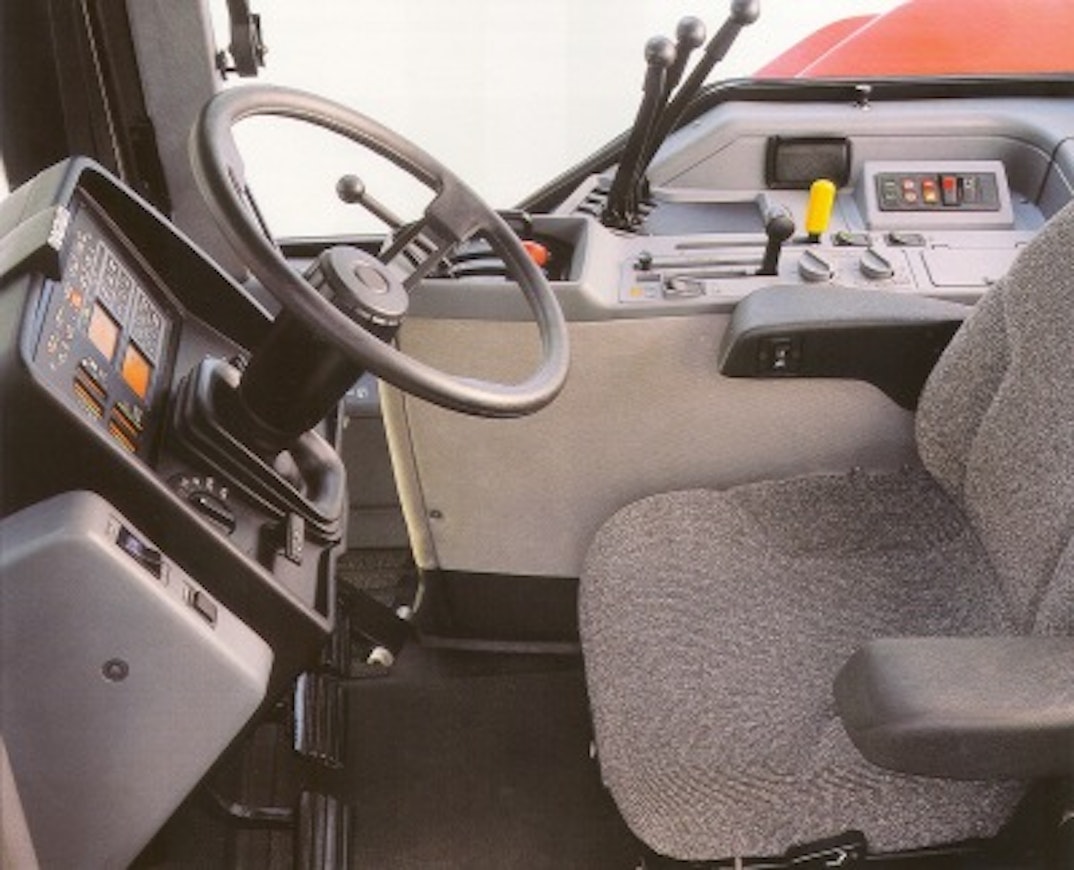

The second generation of the Case IH Magnum, the 7200 series, was introduced for the year 1994. The largest model in the range, the 7250, was now also available in Europe. Engine power was slightly increased in the other models as well. All models now featured a viscous fan, and the muffler was relocated alongside the pillar exhaust pipe. The transmission now came with creep speeds as standard, the road speed increased to 40 km/h, and there were 6 reverse gears. The lifting capacities had clearly increased. Improvements were also made to the cab and serviceability.

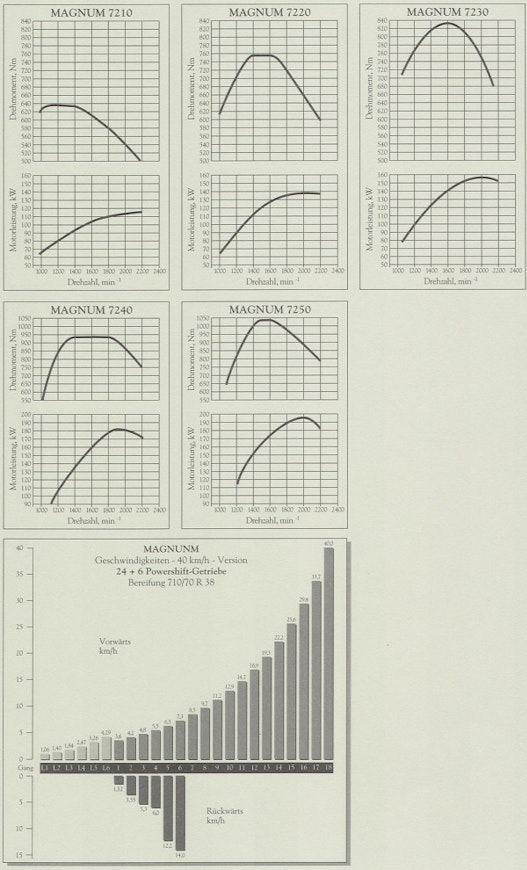

The specified torque figures rose in 1996. The table shows the newer data, and the lower graphs the older ones.
This is an automated translation. Please report any issues in the translation.
| Model | Case IH 7210 | Case IH 7220 | Case IH 7230 | Case IH 7240 | Case IH 7250 |
|---|---|---|---|---|---|
| Manufacturer name | Case IH | Case IH | Case IH | Case IH | Case IH |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes |
| Years | 1994-97 | 1994-97 | 1994-97 | 1994-97 | 1994-97 |
| Engine model | C6T-830 | C6T-830 | C6T-830 | C6T-830 | C6T-830 |
| Cyl/Turbo/Intercooler | 6T | 6T | 6T | 6TI | 6TI |
| Displacement | 8277 cm³ | 8277 cm³ | 8277 cm³ | 8277 cm³ | 8277 cm³ |
| Bore x stroke | 114×135,1 mm | 114×135,1 mm | 114×135,1 mm | 114×135,1 mm | 114×135,1 mm |
| Rated power | 155/2200 hp DIN/rpm | 188/2200 hp DIN/rpm | 207/2200 hp DIN/rpm | 234/2200 hp DIN/rpm | 249/2200 hp DIN/rpm |
| Max power | - | - | - | - | - |
| Torque | - | - | - | - | - |
| Gears | 24+6 | 24+6 | 24+6 | 24+6 | 24+6 |
| Synchronized gears | 24+6 | 24+6 | 24+6 | 24+6 | 24+6 |
| Powershift gears | powershift | powershift | powershift | powershift | powershift |
| Speeds in km/h | 0,8-40,0 | 0,8-40,0 | 0,8-40,0 | 0,8-40,0 | 0,8-40,0 |
| Hydr. flow l/min | 110 l/min | 110 l/min | 110 l/min | 110 l/min | 110 l/min |
| Hydraulic pressure | 183 bar | 183 bar | 183 bar | 183 bar | 183 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 7200 kg | 8500 kg | 8500 kg | 8500 kg | 8500 kg |
| PTO speeds | 540/1000 | 540/1000 | 1000 | 1000 | 1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 10.48 | 10.48 | 10.48 | 10.48 | 10.48 |
| Front tyres 4WD | 480/70R30 | 480/70R30 | 480/70R30 | 480/70R30 | 480/70R30 |
| Rear tyres 4WD | 20.8R42 | 20.8R42 | 710/70R38 | 710/70R38 | 710/70R38 |
| Weight 4WD | 7500 kg | 7800 kg | 7950 kg | 8060 kg | 8120 kg |
| Height with cab | 298 cm | 298 cm | 298 cm | 298 cm | 298 cm |
| Length (2WD/4WD) | 529 cm | 529 cm | 529 cm | 529 cm | 529 cm |
| Wheelbase (2WD/4WD) | 300 cm | 300 cm | 300 cm | 300 cm | 300 cm |
| Fuel tank | 360 l | 360 l | 360 l | 360 l | 360 l |
| Cab noise level | 73 dB | 73 dB | 73 dB | 73 dB | 73 dB |
| Solid cab | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Autom. differential locks | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x |
| Air conditioning | x | x | x | x | x |
| Trip computer | x | x | x | x | x |
| Creeper gear | x | x | x | x | x |
