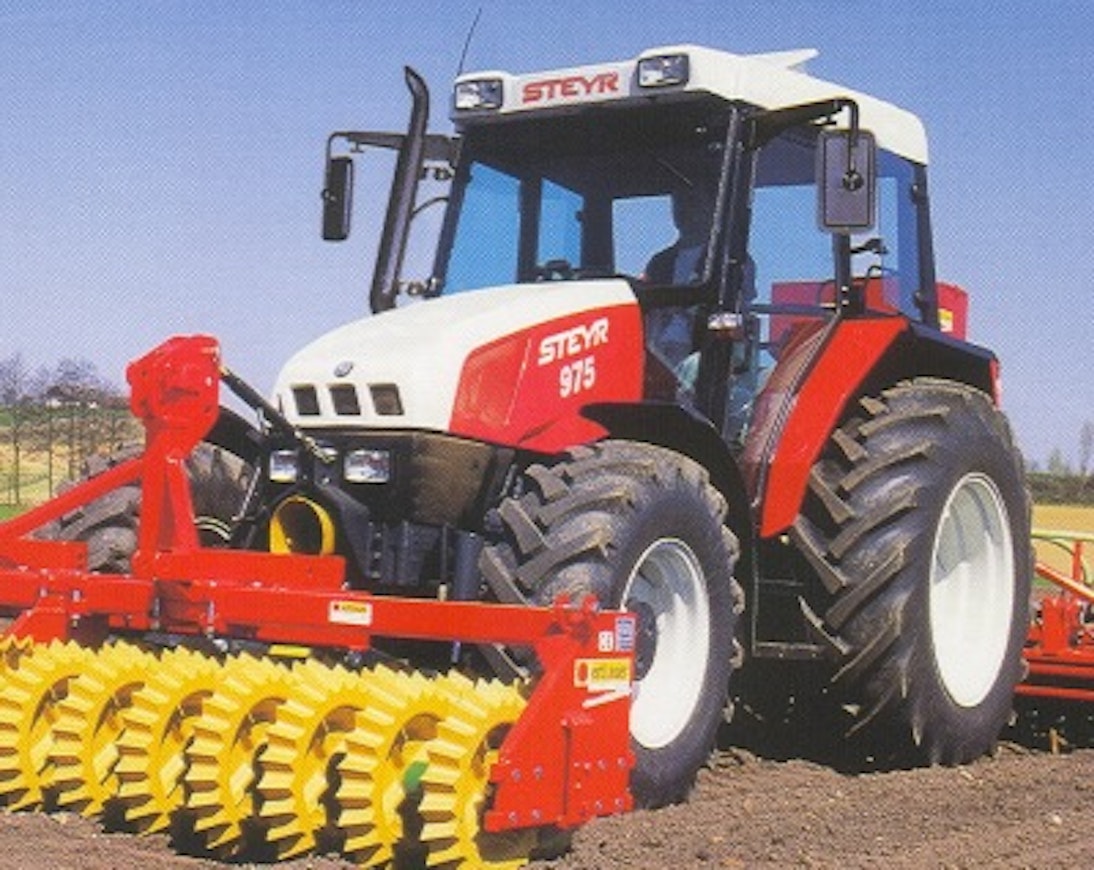

Case IH CS 52-75 / Steyr M 952 – M 975
Manufacturer
Models
Case IH CS 52, Steyr M 952, Case IH CS 63, Steyr M 963, Case IH CS 68, Steyr M 968, Case IH CS 75, Steyr M 975
Years
2001-2004
Info

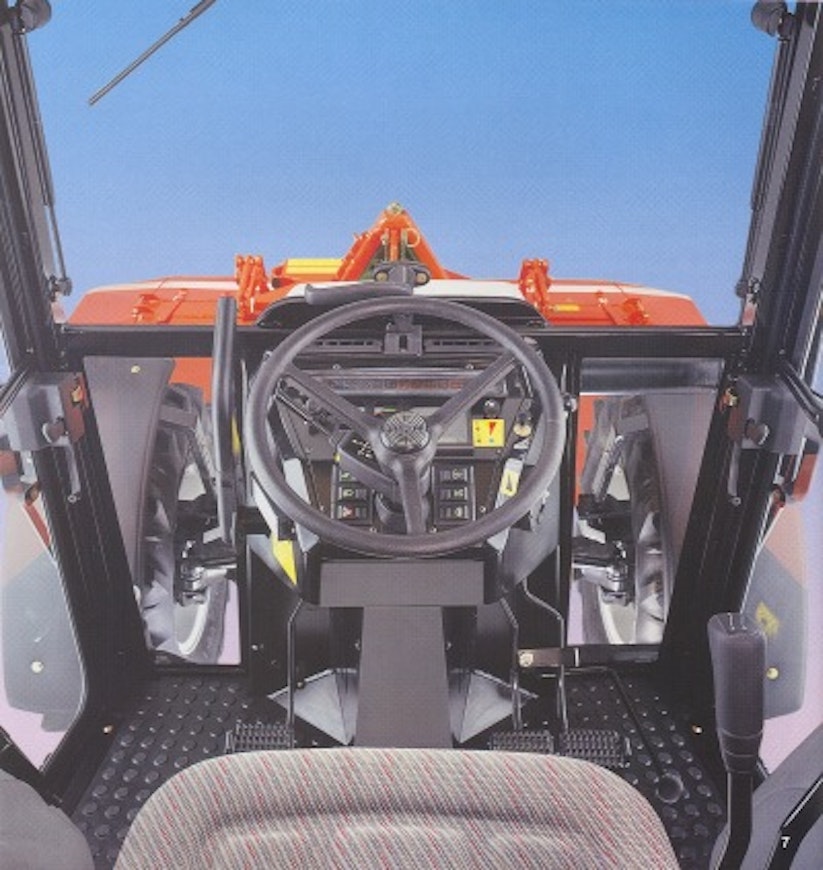

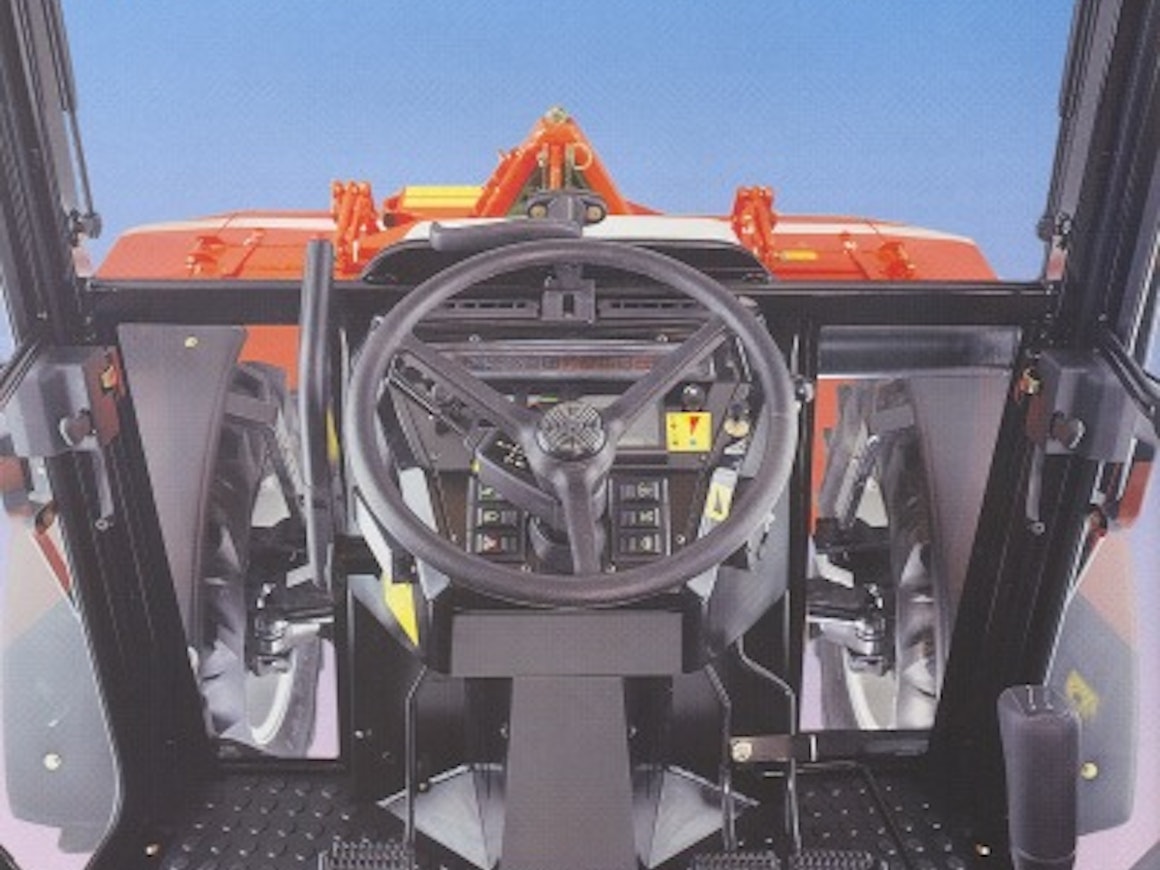

At the beginning of 2001, the smaller Case Steyrs were updated. The CS 48 was replaced by the turbocharged CS 52, and the CS 58 was replaced by the CS 63. The lifting capacity of the smaller models was increased. The smaller models had a Carraro front axle, while the larger ones had a Sige front axle. Both axles featured a friction brake. The four-wheel drive on the larger models was engaged electro-hydraulically. The cab underwent minor updates.

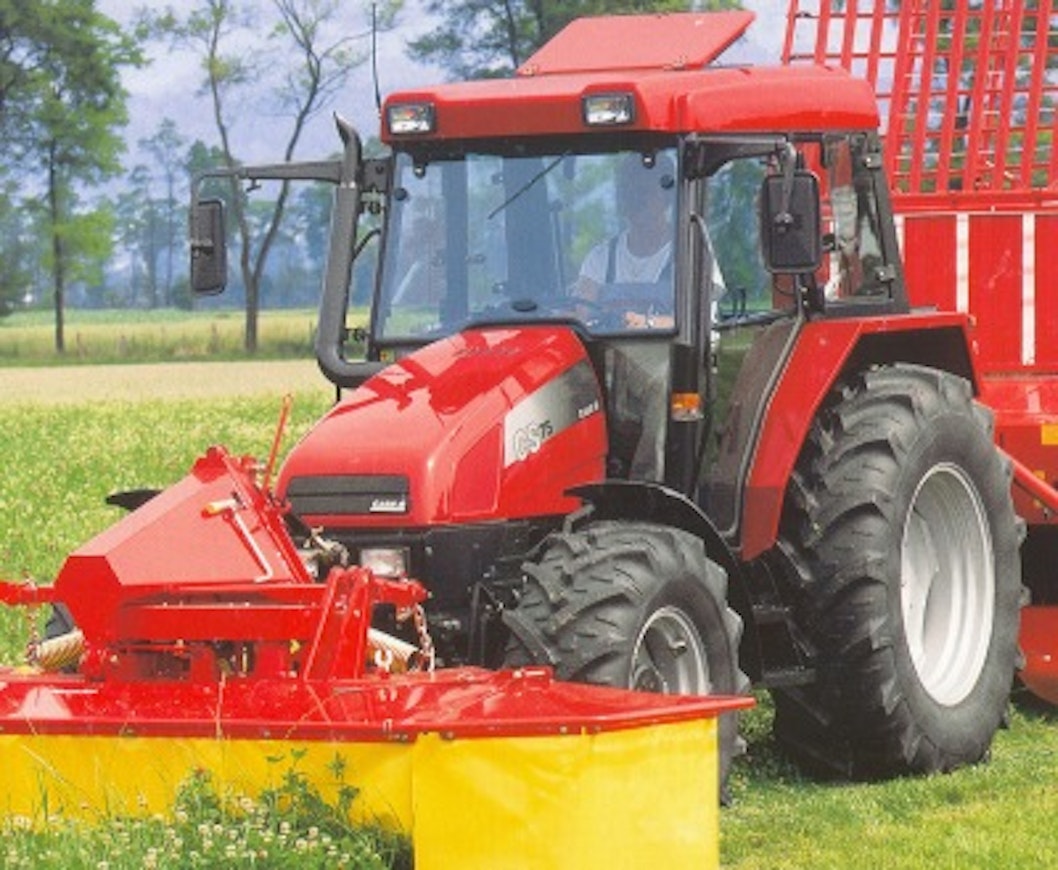

After the import of Case IH was transferred from Kesko to Agritek in the summer of 2001, the CS 75 was also brought to Finland for a short period.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Case IH CS 52 | Steyr M 952 | Case IH CS 63 | Steyr M 963 | Case IH CS 68 | Steyr M 968 | Case IH CS 75 | Steyr M 975 |
|---|---|---|---|---|---|---|---|---|
| Options | ||||||||
| Imported to Finland | No | No | No | No | No | No | Yes | Yes |
| Years | 2001-2004 | 2001-2004 | 2001-2004 | 2001-2004 | 2001-2004 | 2001-2004 | 2001-2004 | 2001-2004 |
| First year sold | 2001 | 2001 | 2001 | 2001 | 2001 | 2001 | 2001 | 2001 |
| Last year sold | 2004 | 2004 | 2004 | 2004 | 2004 | 2004 | 2004 | 2004 |
| Engine model | Perkins 903.27T | Perkins 903.27T | Perkins 903.27T | Perkins 903.27T | Sisu 320.80 | Sisu 320.80 | Sisu 320.81 | Sisu 320.81 |
| Cyl/Turbo/Intercooler | 3 | 3 | 3T | 3T | 3T | 3T | 3T | 3T |
| Displacement | 2700 cm³ | 2700 cm³ | 2700 cm³ | 2700 cm³ | 3298 cm³ | 3298 cm³ | 3298 cm³ | 3298 cm³ |
| Bore x stroke | 95×127 mm | 95×127 mm | 95×127 mm | 95×127 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm |
| Rated power hp/rpm DIN | 52/2250 | 52/2250 | 63/2250 | 63/2250 | 68/2300 | 68/2300 | 75/2300 | 75/2300 |
| Rated power | 52 | 52 | 63 | 63 | 68 | 68 | 75 | 75 |
| Rated speed | 2250 | 2250 | 2250 | 2250 | 2300 | 2300 | 2300 | 2300 |
| Torque Nm/rpm DIN | 193/1400 | 193/1400 | 239/1400 | 239/1400 | 270/1400 | 270/1400 | 290/1400 | 290/1400 |
| Gears | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 |
| Synchronized gears | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 |
| Reverser | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Speeds in km/h | 2,0-40,0 | 2,0-40,0 | 2,0-40,0 | 2,0-40,0 | 1,9-40,0 | 1,9-40,0 | 1,9-40,0 | 1,9-40,0 |
| Max. speed | 30/40 km/h | 30/40 km/h | 30/40 km/h | 30/40 km/h | 30/40 km/h | 30/40 km/h | 30/40 km/h | 30/40 km/h |
| Hydr. flow l/min | 34 l/min | 34 l/min | 34 l/min | 34 l/min | 43 l/min | 43 l/min | 43 l/min | 43 l/min |
| Hydraulic pressure | 175 bar | 175 bar | 175 bar | 175 bar | 175 bar | 175 bar | 175 bar | 175 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 2500 kg | 2500 kg | 2500 kg | 2500 kg | 2650 kg | 2650 kg | 2650 kg | 2650 kg |
| PTO speeds | 430/540/ 750/1000 | 430/540/ 750/1000 | 430/540/ 750/1000 | 430/540/ 750/1000 | 430/540/ 750/1000 | 430/540/ 750/1000 | 430/540/ 750/1000 | 430/540/ 750/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 7 | 7 | 7 | 7 | 7.8 | 7.8 | - | - |
| Turning circle m 4WD | 8.4 | 8.4 | 8.4 | 8.4 | 8.8 | 8.8 | 8.8 | 8.8 |
| Front tyres 2WD | 7.50-18 | 7.50-18 | 7.50-18 | 7.50-18 | 7.50-18 | 7.50-18 | - | - |
| Front tyres 4WD | 275/80R20 | 275/80R20 | 275/80R20 | 275/80R20 | 11.2R24 | 11.2R24 | 12.4R24 | 12.4R24 |
| Rear tyres 2WD | 14.9R28 | 14.9R28 | 14.9R28 | 14.9R28 | 13.6R36 | 13.6R36 | - | - |
| Rear tyres 4WD | 380/85R28 | 380/85R28 | 380/85R28 | 380/85R28 | 13.6R36 | 13.6R36 | 16.9R30 | 16.9R30 |
| Weight 2WD | 2480 kg | 2480 kg | 2490 kg | 2490 kg | 2820 kg | 2820 kg | - | - |
| Weight 4WD | 2700 kg | 2700 kg | 2710 kg | 2710 kg | 3100 kg | 3100 kg | 3100 kg | 3100 kg |
| Height with cab | 238 (223) cm | 238 (223) cm | 238 (223) cm | 238 (223) cm | 250 (238) cm | 250 (238) cm | 250 (238) cm | 250 (238) cm |
| Length (2WD/4WD) | 350/357 cm | 350/357 cm | 350/357 cm | 350/357 cm | 370/379 cm | 370/379 cm | 379 cm | 379 cm |
| Wheelbase (2WD/4WD) | 212 cm | 212 cm | 212 cm | 212 cm | 223 cm | 223 cm | 223 cm | 223 cm |
| Fuel tank | 73 l | 73 l | 73 l | 73 l | 83 l | 83 l | 83 l | 83 l |
| Cab noise level | 82 dB | 82 dB | 82 dB | 82 dB | 81 dB | 81 dB | 82 dB | 82 dB |
| Solid cab | x | x | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Creeper gear | - | - | - | - | opt. | opt. | opt. | opt. |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
