Case IH 743-856 XL
Manufacturer
Models
Case IH 743 XL, Case IH 745 XL, Case IH 844/845 XL, Case IH 856 XL
Years
1985-90
Info

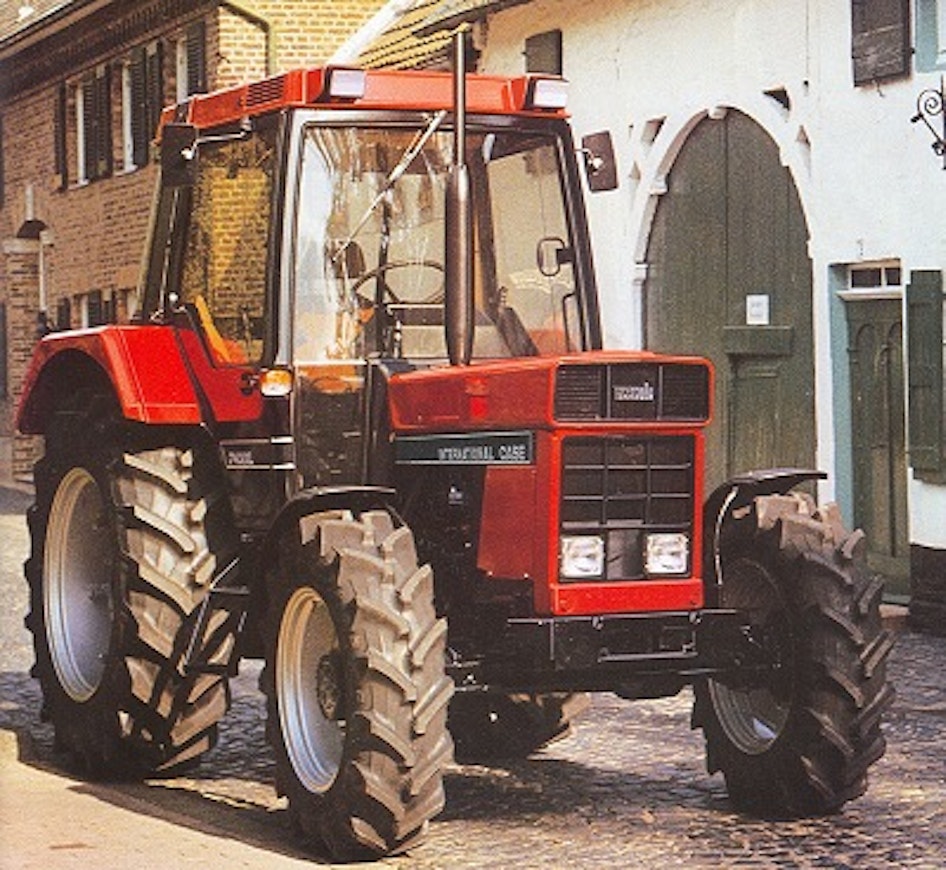

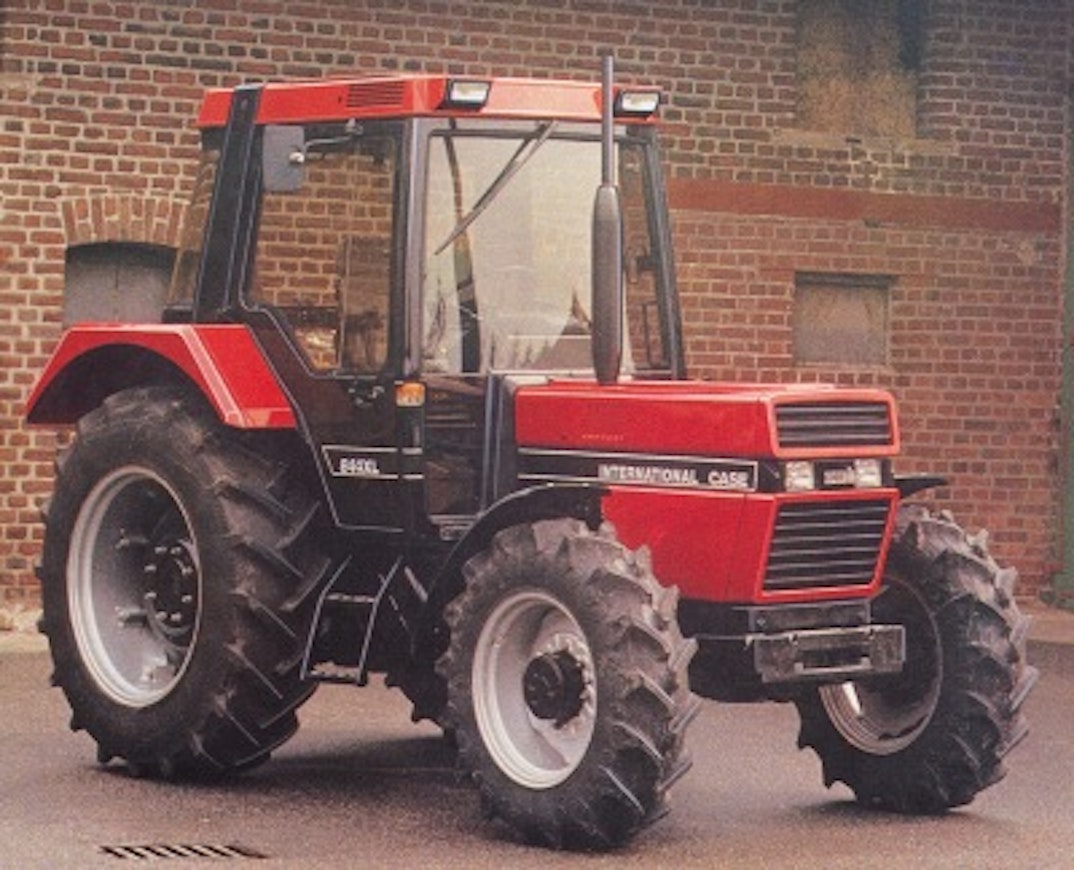

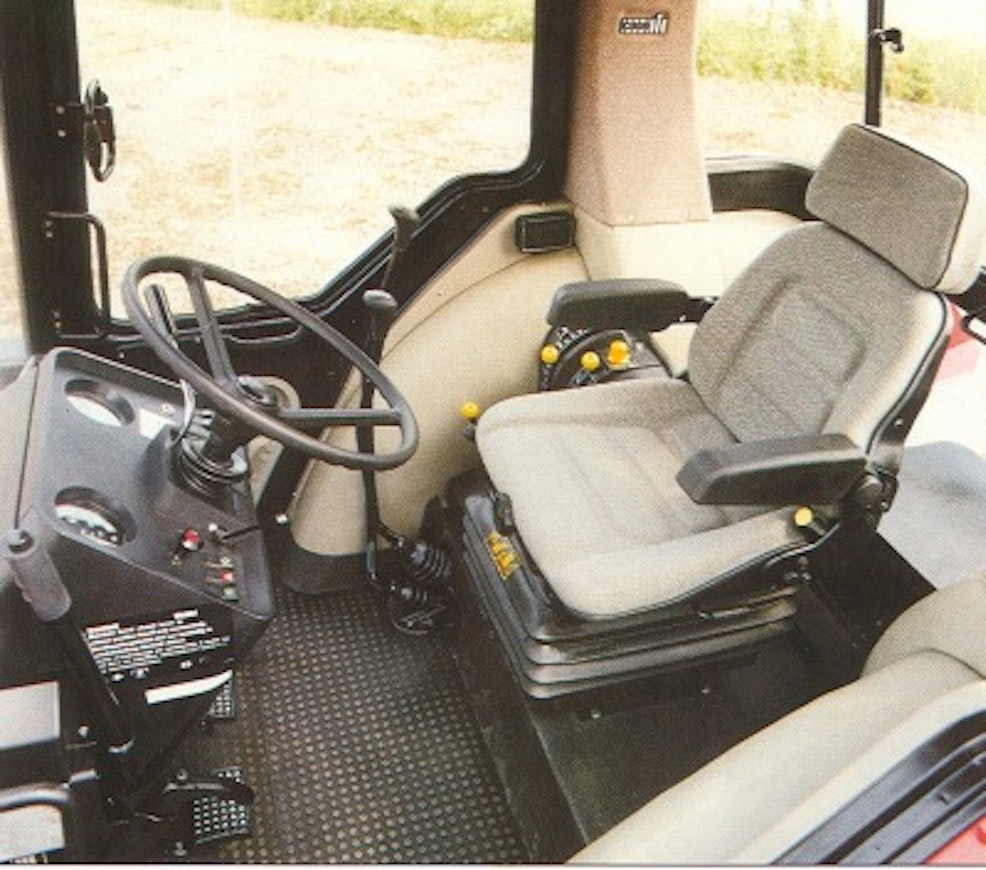

The B-series models were painted in Case IH colors in the fall of 1985 (1st picture), but in the fall of 1986 the front design was changed to resemble the family look more closely. In the fall of 1986, a 40 km/h speed, a more agile four-wheel drive equipped with a center axle, pressure lubrication for the transmission, and higher hydraulic output were also introduced. The number 844 was changed to 845 in most market areas. As Case IH, the models 743 and 745 increased in size to the same dimensions as the 844. Alongside the XL cab, a low XLN was introduced, which was not brought to Finland.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Case IH 743 XL | Case IH 745 XL | Case IH 844/845 XL | Case IH 856 XL |
|---|---|---|---|---|
| Options | ||||
| Manufacturer name | Case IH | Case IH | Case IH | Case IH |
| Imported to Finland | No | No | Yes | No |
| Years | 1985-89 | 1985-90 | 1985-87 | 1985-87 |
| First year sold | 1985 | 1985 | 1985 | 1985 |
| Last year sold | 1989 | 1990 | 1987 | 1987 |
| Engine model | D-239 | D-239 | D-268 | DT-239 |
| Cyl/Turbo/Intercooler | 4 | 4 | 4 | 4T |
| Displacement | 3911 cm³ | 3911 cm³ | 4389 cm³ | 3911 cm³ |
| Bore x stroke | 98,4×128,5 mm | 98,4×128,5 mm | 100×139,7 mm | 98,4×128,5 mm |
| Rated power hp/rpm DIN | 67/2300 | 72/2300 | 80/2300 | 85/2300 |
| Rated power | 67 | 72 | 80 | 85 |
| Rated speed | 2300 | 2300 | 2300 | 2300 |
| Torque Nm/rpm DIN | 235/1600 | 251/1600 | 296/1300 | 310/1600 |
| Gears | 16+8 | 16+8 | 16+8 | 16+8 |
| Synchronized gears | 16+8 | 16+8 | 16+8 | 16+8 |
| Powershift gears | mech. | mech. | mech. | mech. |
| Speeds in km/h | 1,5-27,6 | 1,5-28,9 | 1,5-28,9 | 1,8-30,1 |
| Max. speed | 30 km/h | 30 km/h | 30 km/h | - |
| Hydr. flow l/min | 33 l/min | 33 l/min | 33 l/min | 33 l/min |
| Hydraulic pressure | 167 bar | 167 bar | 167 bar | 167 bar |
| Lift controls | mech. | mech. | mech. | mech. |
| Lift capacity | 3150 kg | 3150 kg | 3150 kg | 4000 kg |
| PTO speeds | 540 | 540/1000 | 540/1000/ajo | 540/1000/ajo |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 8.3 | 8.3 | 8.6 | 8.6 |
| Turning circle m 4WD | 9.7 | 9.7 | 10.2 | 10.2 |
| Front tyres 2WD | 7,50-16 | 7,50-18 | 10,00-16 | 7,50-18 |
| Front tyres 4WD | 9.5R24 | 12.4R24 | 11.2R28 | 13.6R24 |
| Rear tyres 2WD | 16,9R30 | 16,9R34 | 18,4R34 | 16,9R34 |
| Rear tyres 4WD | 16.9R30 | 16.9R34 | 18.4R34 | 16.9R38 |
| Weight 2WD | 3460 kg | 3620 kg | 3660 kg | 3840 kg |
| Weight 4WD | 3750 kg | 3930 kg | 3970 kg | 4120 kg |
| Height with cab | 265 cm | 270 cm | 270 cm | 270/272 cm |
| Length (2WD/4WD) | 389/397 cm | 389/397 cm | 389/397 cm | 389/401 cm |
| Wheelbase (2WD/4WD) | 239/235 cm | 239/235 cm | 239/235 cm | 239/235 cm |
| Fuel tank | 106 l | 106 l | 106 l | 106 l |
| Cab noise level | - | - | 81 dB | - |
| Solid cab | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock |
| Creeper gear | opt. | opt. | opt. | - |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
