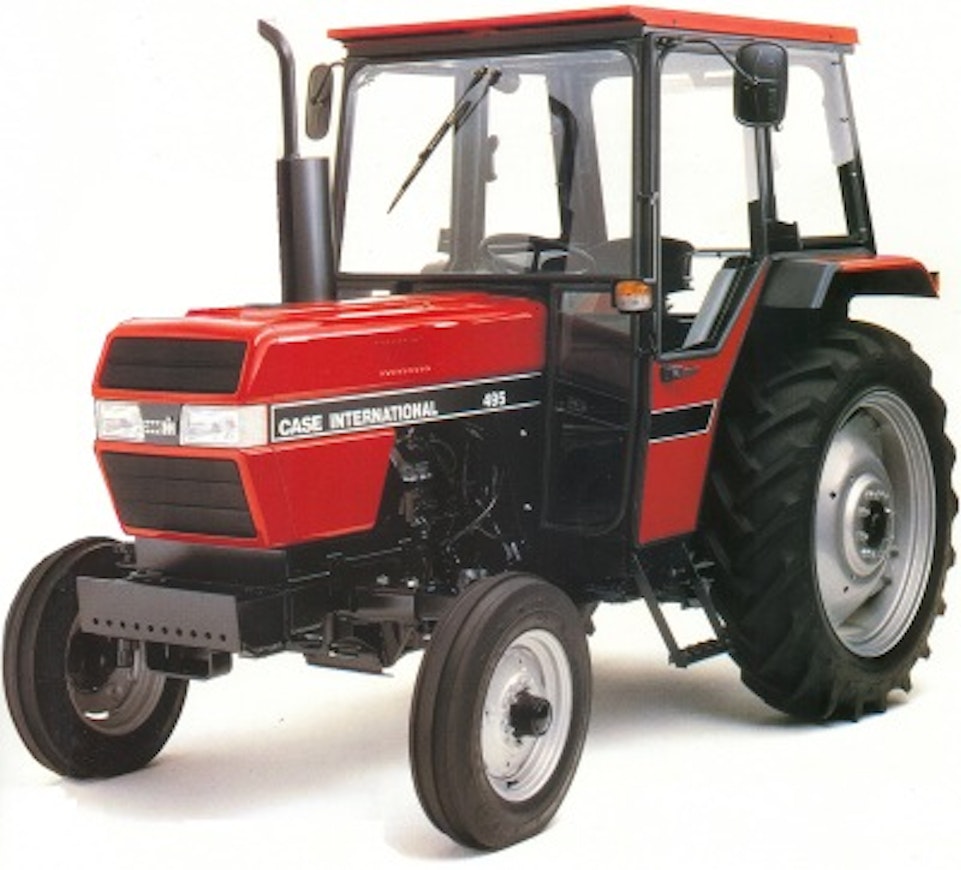

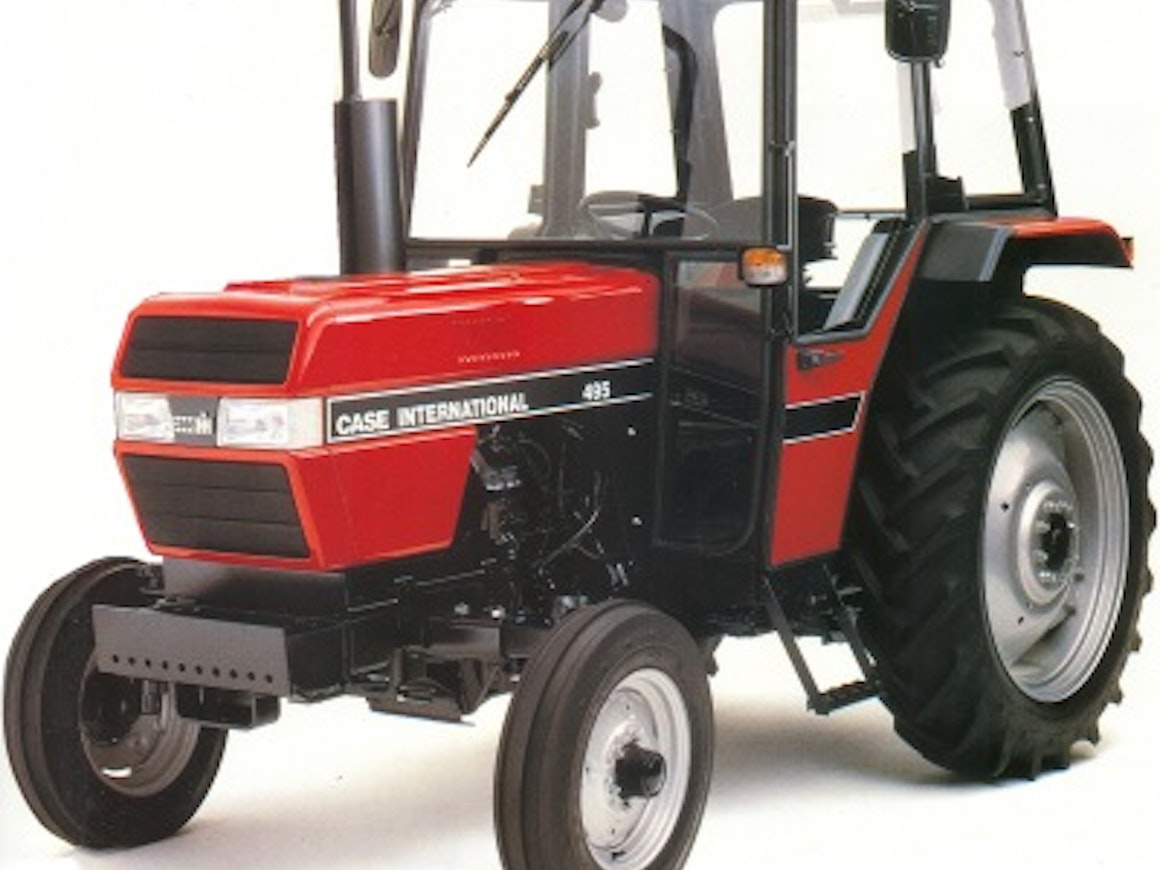

Case IH 495-995
Manufacturer
Models
Case IH 495 XL, Case IH 595 XL, Case IH 695 XL, Case IH 795 XL, Case IH 895 XL, Case IH 995 XL
Years
1990-93
Info

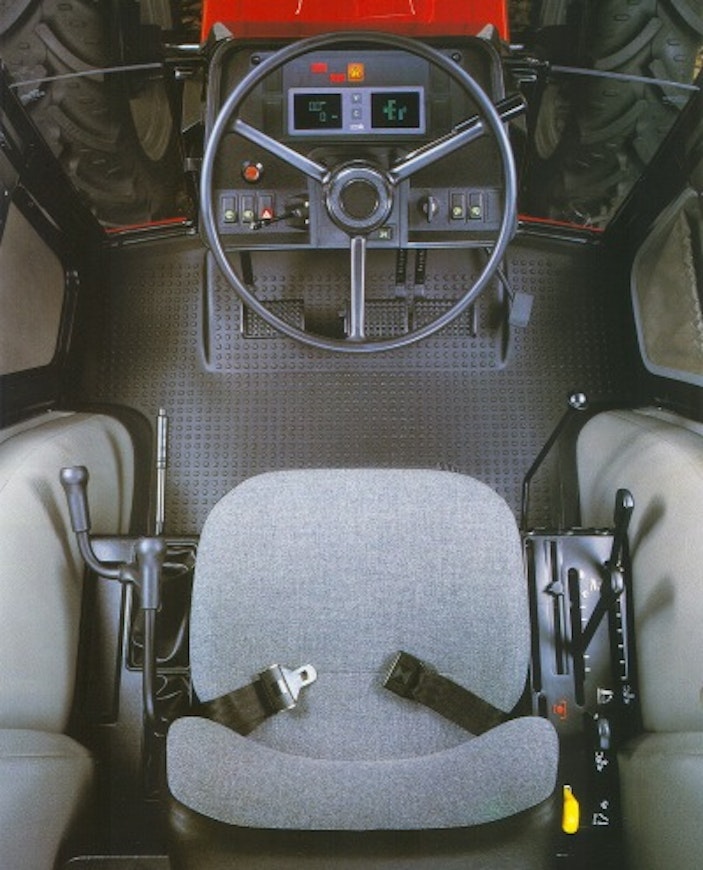

In the spring of 1990, the step in the English Case IH models was raised from 85 to 95. The changes were minimal. The engines remained the same. The basic transmission was the familiar 8+4, and with the quick shuttle, it was 16+8. As an option, a hydraulic reverser was now available for the 8-speed transmission. The XL cab remained externally unchanged. The new feature on the dashboard was a digital instrument cluster.
In 1991, a larger flagship model was introduced to the lineup: the 995 with 90 horsepower. At the same time, all models received a more powerful hydraulic pump than before.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Case IH 495 XL | Case IH 595 XL | Case IH 695 XL | Case IH 795 XL | Case IH 895 XL | Case IH 995 XL |
|---|---|---|---|---|---|---|
| Manufacturer name | Case IH | Case IH | Case IH | Case IH | Case IH | Case IH |
| Imported to Finland | No | Yes | Yes | Yes | Yes | Yes |
| Years | 1990-93 | 1990-93 | 1990-93 | 1990-93 | 1990-93 | 1990-93 |
| Engine model | D-179 | D-206 | D-239 | D-246 | D-268 | D-268T |
| Cyl/Turbo/Intercooler | 3 | 4 | 4 | 4 | 4 | 4T |
| Displacement | 2934 cm³ | 3382 cm³ | 3917 cm³ | 4037 cm³ | 4392 cm³ | 4392 cm³ |
| Bore x stroke | 98,4×128,5 mm | 98,4×111,1 mm | 98,4×128,5 mm | 100×128,5 mm | 100×139,7 mm | 100×139,7 mm |
| Rated power | 52/2180 hp DIN/rpm | 60/2300 hp DIN/rpm | 69/2300 hp DIN/rpm | 77/2300 hp DIN/rpm | 83/2400 hp DIN/rpm | 90/2400 hp DIN/rpm |
| Torque | - | - | - | - | - | - |
| Gears | 8+4 | 8+4 | 8+4 | 8+8 | 16+8 | 8+8 |
| Synchronized gears | 8+4 | 8+4 | 8+4 | 8+8 | 16+8 | 8+8 |
| Powershift gears | opt. | opt. | opt. | - | hydr. | - |
| Reverser | opt. | opt. | opt. | hydr. | opt. | hydr. |
| Speeds in km/h | 2,9-33,3 | 3,1-34,0 | 3,2-36,0 | 3,2-34,0 | 2,6-36,0 | 3,2-34,0 |
| Hydr. flow l/min | 46/59 l/min | 49/62 l/min | 49/62 l/min | 51/65 l/min | 51/65 l/min | 65 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 1680 kg | 2000 kg | 2380 kg | 2380 kg | 2380 kg | 2380 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 7.02 | 7.12 | 7.62 | - | - | - |
| Front tyres 2WD | 7,50-16 | 7,50-18 | 10,00-16 | - | - | - |
| Rear tyres 2WD | 12,4R36 | 13,6R38 | 16,9R34 | - | - | - |
| Weight 2WD | 2550 kg | 2900 kg | 3040 kg | - | - | - |
| Height with cab | 254 cm | 265 cm | 265 cm | 265 cm | 265 cm | 269 cm |
| Wheelbase (2WD/4WD) | 201 cm | 216/224 cm | 224/224 cm | 224 cm | 224 cm | 224 cm |
| Fuel tank | 112 l | 112 l | 112 l | 112 l | 112 l | 112 l |
| Solid cab | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. |
| Turning circle m 4WD | - | 8.23 | 8.23 | 8.23 | 8.23 | 8.23 |
| Front tyres 4WD | - | 12.4R24 | 12.4R24 | 12.4R24 | 12.4R24 | 13.6R24 |
| Rear tyres 4WD | - | 13.6R38 | 16.9R34 | 16.9R34 | 16.9R34 | 18.4R34 |
| Weight 4WD | - | 3260 kg | 3260 kg | 3280 kg | 3300 kg | 3450 kg |
| Length (2WD/4WD) | - | 361/362 cm | 368/375 cm | 368/375 cm | 375 cm | 375 cm |
| Cab noise level | - | 85 dB | 84 dB | 84 dB | 84 dB | 84 dB |
