Case IH 485-885
Manufacturer
Models
Case IH 485 XL, Case IH 585 XL, Case IH 685 XL, Case IH 785 XL, Case IH 885 XL
Years
1985-90
Info
The English models were initially painted in Case IH colors without any design changes, just like the German ones, but Finland only received the models with the redesigned front end at the beginning of 1986.

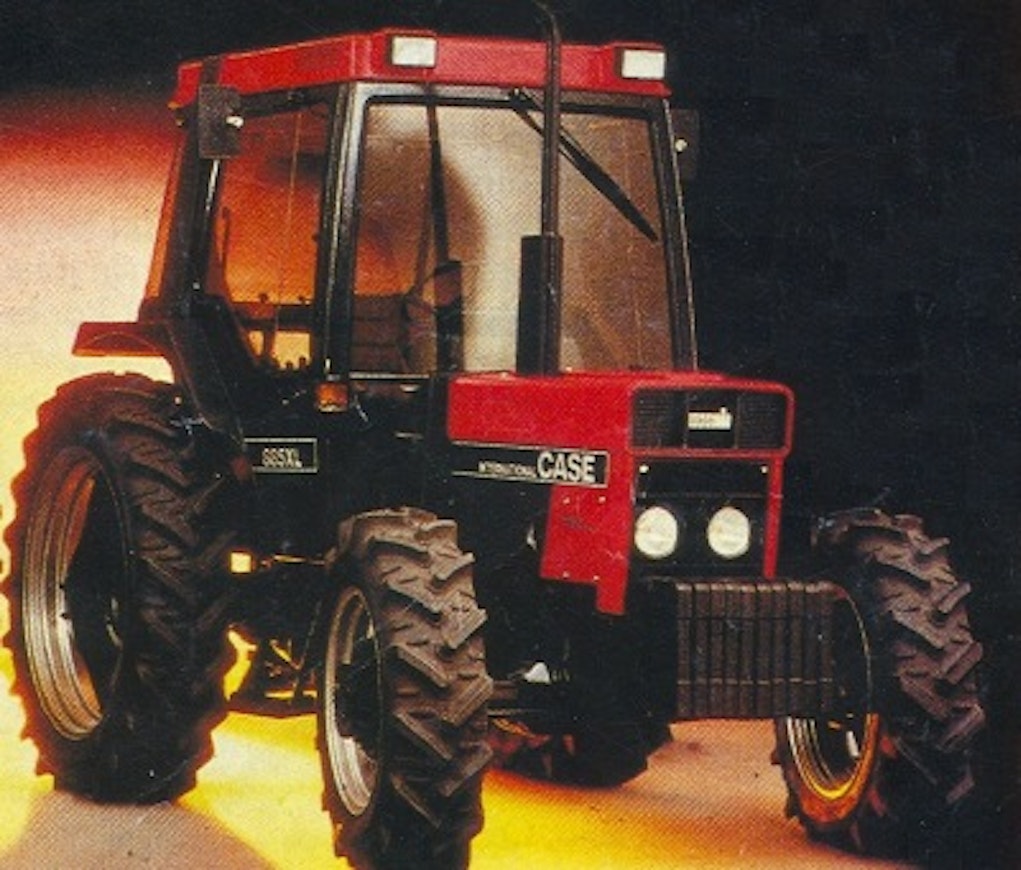

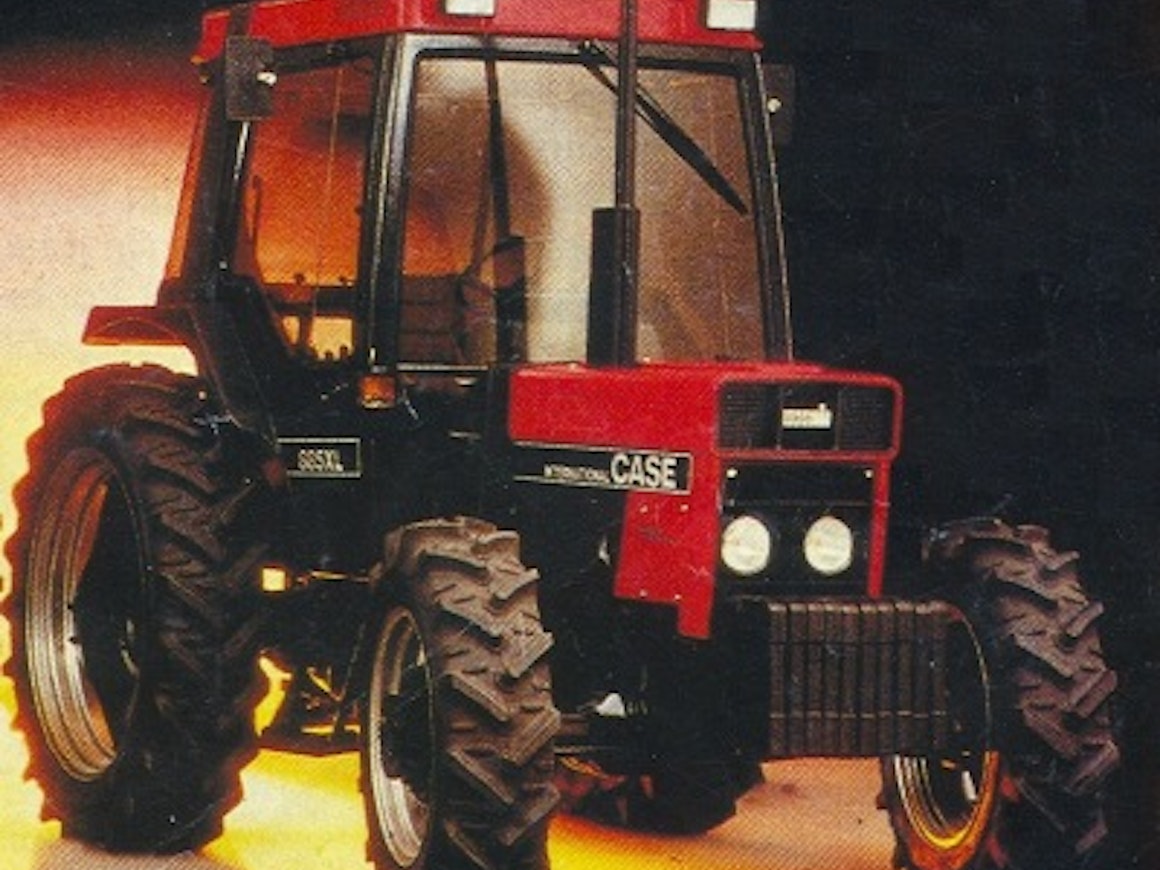

The clutch disc diameter of the 685 model and larger increased from 280 millimeters to 295 mm. The four-wheel drive was noticeably more agile than before, and even smaller figures were reported for 1989. The lineup brought to Finland expanded with the 83-horsepower 885. However, the most powerful model in the lineup was the 90-horsepower 985, which was only produced for a short time during 1989-90 before the introduction of the 95 series.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Case IH 485 XL | Case IH 585 XL | Case IH 685 XL | Case IH 785 XL | Case IH 885 XL |
|---|---|---|---|---|---|
| Options | |||||
| Manufacturer name | Case IH | Case IH | Case IH | Case IH | Case IH |
| Imported to Finland | Yes | Yes | Yes | No | Yes |
| Years | 1985-90 | 1985-90 | 1985-90 | 1985-90 | 1985-90 |
| First year sold | 1985 | 1985 | 1985 | 1985 | 1985 |
| Last year sold | 1990 | 1990 | 1990 | 1990 | 1990 |
| Engine model | D-179 | D-206 | D-239 | D-246 | D-268 |
| Cyl/Turbo/Intercooler | 3 | 4 | 4 | 4 | 4 |
| Displacement | 2934 cm³ | 3376 cm³ | 3915 cm³ | 4032 cm³ | 4389 cm³ |
| Bore x stroke | 98,4×128,5 mm | 98,4×111,1 mm | 98,4×128,5 mm | 100×128,5 mm | 100×139,7 mm |
| Rated power hp/rpm DIN | 52/2180 | 60/2300 | 69/2300 | 77/2300 | 83/2400 |
| Rated power | 52 | 60 | 69 | 77 | 83 |
| Rated speed | 2180 | 2300 | 2300 | 2300 | 2400 |
| Torque Nm/rpm DIN | 182/1400 | 220/1400 | 238/1600 | 256/1600 | 296/1300 |
| Gears | 8+4 | 8+4 | 8+4 | 16+8 | 16+8 |
| Synchronized gears | 8+4 | 8+4 | 8+4 | 16+8 | 16+8 |
| Powershift gears | - | opt. | opt. | hydr. | hydr. |
| Speeds in km/h | 2,5-33,3 | 2,6-34,0 | 2,6-34,0 | 2,6-34,0 | 2,6-34,0 |
| Max. speed | - | 35 km/h | 35 km/h | 36 km/h | 36 km/h |
| Hydr. flow l/min | 47 l/min | 47 l/min | 47 l/min | 47 l/min | 47 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 1680 kg | 2000 kg | 2380 kg | 2380 kg | 2380 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 7.02 | 7.12 | 7.62 | 7.62 | - |
| Turning circle m 4WD | - | 8,8/8,23 | 8,8/8,23 | 8,8/8,23 | 8,8/8,23 |
| Front tyres 2WD | 7,50-16 | 7,50-18 | 10,00-16 | 10,00-16 | - |
| Front tyres 4WD | - | 12.4-24 | 12.4-24 | 12.4-24 | 12.4-24 |
| Rear tyres 2WD | 12,4-36 | 13,6-38 | 16,9-34 | 16,9-34 | - |
| Rear tyres 4WD | - | 13.6-38 | 16.9-34 | 16.9-34 | 16.9-34 |
| Weight 2WD | 2550 kg | 2900 kg | 3040 kg | - | - |
| Weight 4WD | - | 3260 kg | 3260 kg | - | 3560 kg |
| Height with cab | 252 cm | 262 cm | 264 cm | 264 cm | 264 cm |
| Length (2WD/4WD) | - | 361/362 cm | 368/375 cm | 368/375 cm | 375 cm |
| Wheelbase (2WD/4WD) | 214 cm | 215/216 cm | 224/217 cm | 224/217 cm | 217 cm |
| Fuel tank | 112 l | 112 l | 112 l | 112 l | 112 l |
| Cab noise level | - | 85 dB | 84 dB | 84 dB | 84 dB |
| Solid cab | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
