Siirry sivupalkkiinSiirry alaosaanYuMZ-8070-8280, UMZ-8040-8244

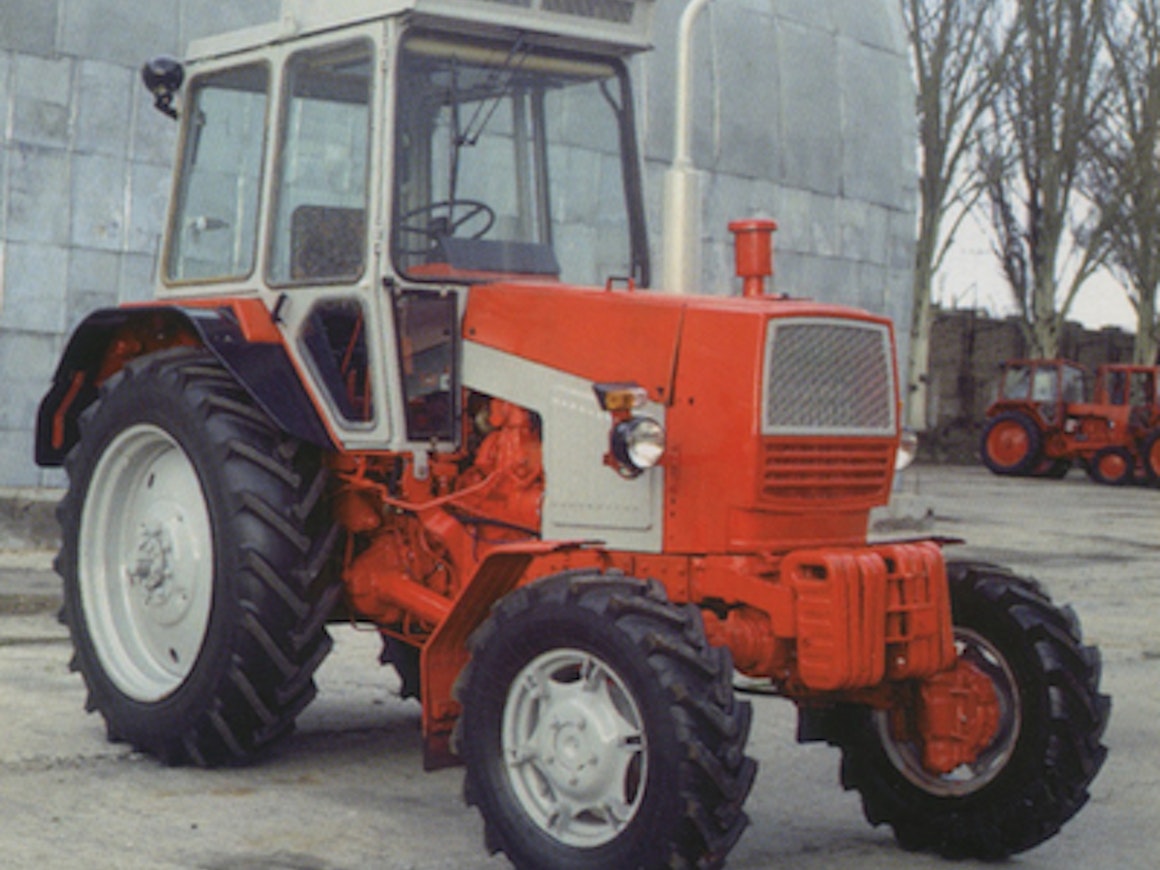

At the Ukrainian YuMZ factory, development was slow even by Eastern Bloc standards. However, in 1998, the age-old engine was tuned to produce 80 horsepower in the 8070/8270 models. Other differences compared to the parallel 60-horsepower 6 model were minimal. During power take-off at 1000 rpm, a power output independent of the driving clutch was achieved. The clutch was stronger. The steering wheel was adjustable. The factory introduced its first four-wheel drive models alongside these: the 8270 and the 8271, equipped with a gasoline engine starter. In the early 2000s, production also included the 8080/8280 equipped with an 82-horsepower Iveco engine. However, the majority of the factory's production still consisted of the 60-horsepower 6 models.

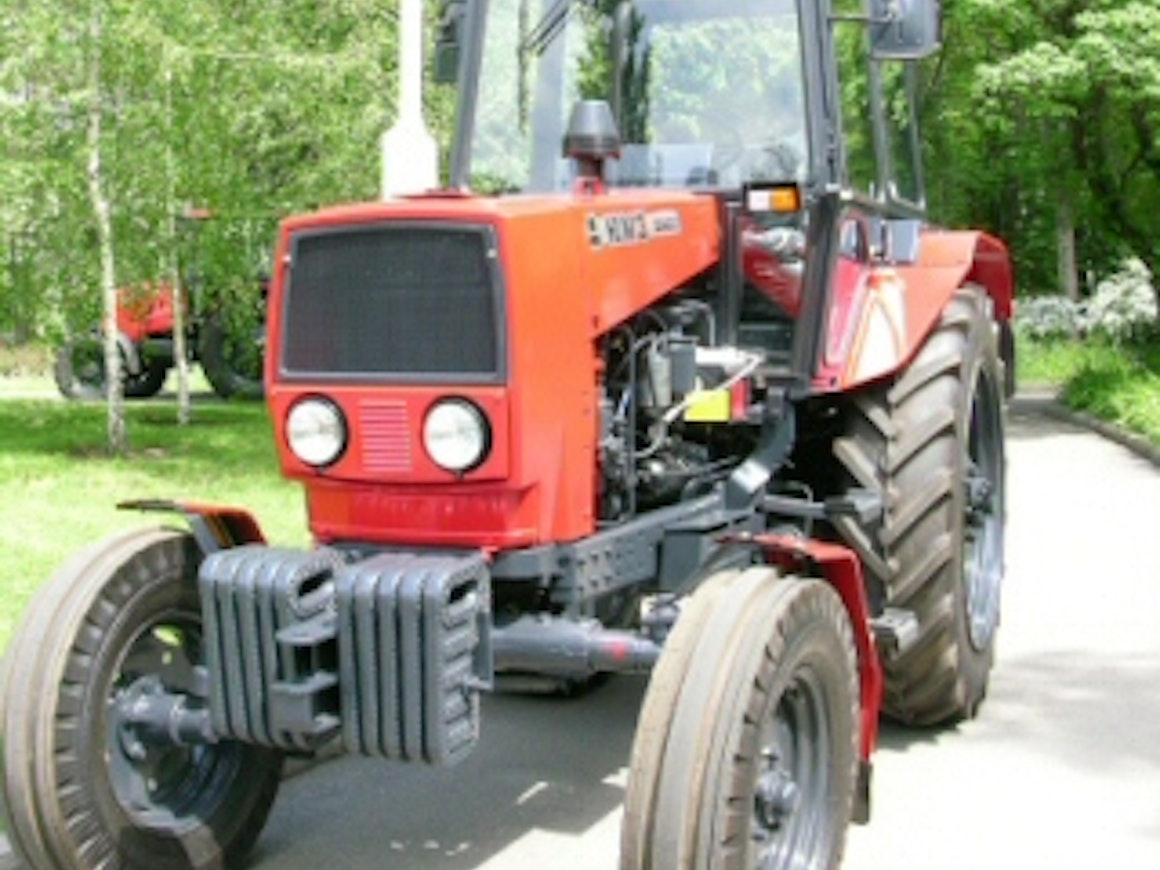

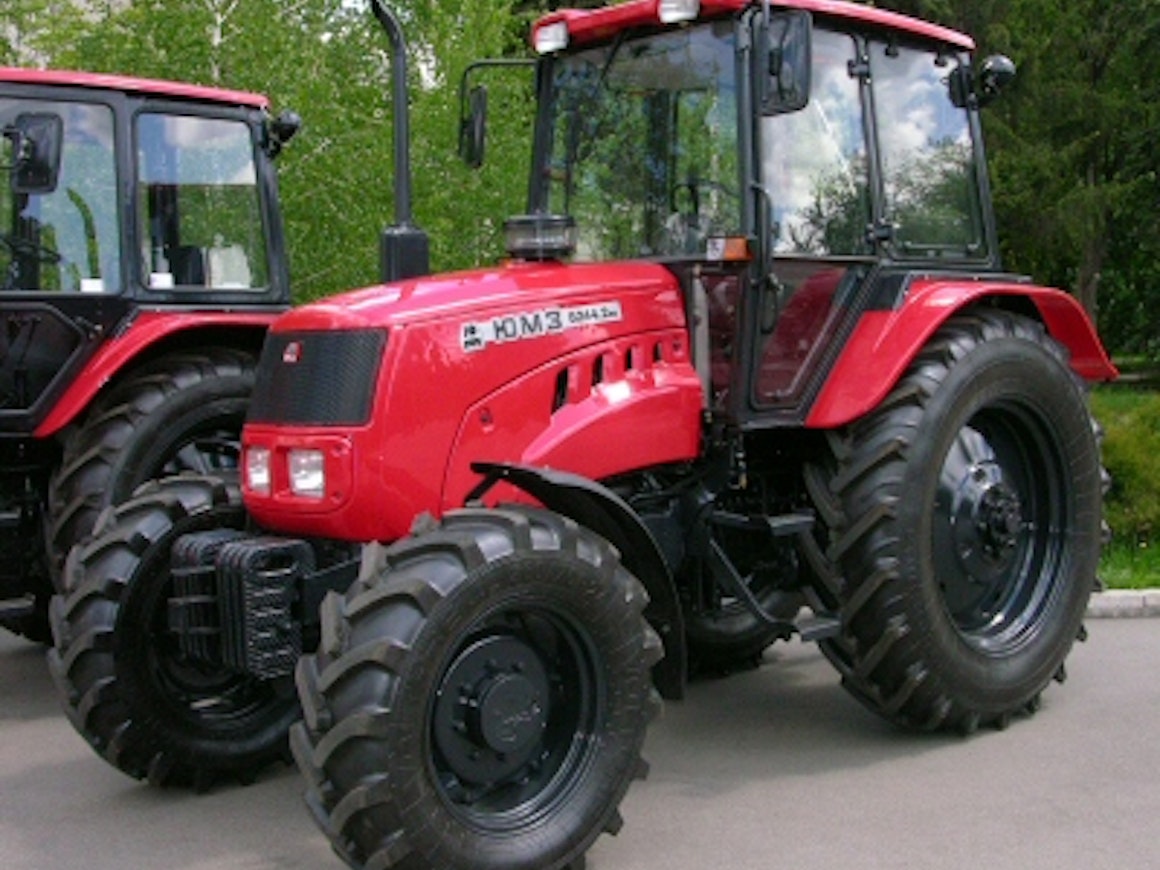

The 8040 and 8240 models came in 2003. These had an MTZ factory engine and a 12+3 speed gearbox. The 8244 model featured a Carraro front axle. The 8040.2 and 8244.2 models had a faster 9+2 speed gearbox for road speeds. In later M models, the red parts of the outer shell were replaced with more rounded plastic parts, and the controls were modernized. Four-wheel drive models had significantly larger 12.4R24 front wheels.
This is an automated translation. Please report any issues in the translation.
| Model | YuMZ-8070/8270 | YuMZ-8080/8280 | UMZ-8040/8244 |
|---|---|---|---|
| Imported to Finland | No | No | No |
| Years | 1998- | 1998- | 2003-2015 |
| Engine model | D-65HT1 | 8045.25 | D-243 |
| Cyl/Turbo/Intercooler | 4 | 4 | 4 |
| Displacement | 4940 cm³ | 3908 cm³ | 4750 cm³ |
| Bore x stroke | 110×130 mm | 104×115 mm | 110×125 mm |
| Rated power | 80/1800 hp DIN/rpm | 82/2200 hp DIN/rpm | 78/2200 hp DIN/rpm |
| Gears | 9+2 (12+3) | 9+2 (12+3) | 9+2 (12+3) |
| Synchronized gears | partial | partial | partial |
| Speeds in km/h | 2,2-30,7 (2,9-24,9) | 2,8-31,2 | 1,5-33,1, 4WD 1,6-35,4 (2,9-30,4) |
| Hydr. flow l/min | 50 l/min | 50 l/min | 50 l/min |
| Hydraulic pressure | 160 bar | 160 bar | 160 bar |
| Lift controls | mech. | mech. | mech. |
| Lift capacity | 1400 kg | 1400 kg | 2500 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 |
| Brakes | dry disc | dry disc | dry disc |
| Steering | hydr. | hydr. | hydr. |
| Turning circle m 2WD | 8.4 | 8.4 | 9.2 |
| Front tyres 2WD | 9.00-20 | 9.00-20 | 9.00-20 |
| Rear tyres 2WD | 15.5-38 | 15.5-38 | 15.5R38 |
| Weight 2WD | 4070 kg | 3945 kg | 4103 kg |
| Weight 4WD | 4270 kg | 4125 kg | 4535 kg |
| Height with cab | 266 cm | 266 cm | 275/280 cm |
| Length (2WD/4WD) | 417 cm | 417 cm | 417/414 cm |
| Wheelbase (2WD/4WD) | 245 cm | 245 cm | 246/236 cm |
| Fuel tank | 100 l | 100 l | 100 l |
| Solid cab | x | x | x |
| Turning circle m 4WD | - | - | 9.6 |
| Front tyres 4WD | - | - | 11.2-20 |
| Rear tyres 4WD | - | - | 15.5R38 |
| Diff. lock | - | - | friction lock |
