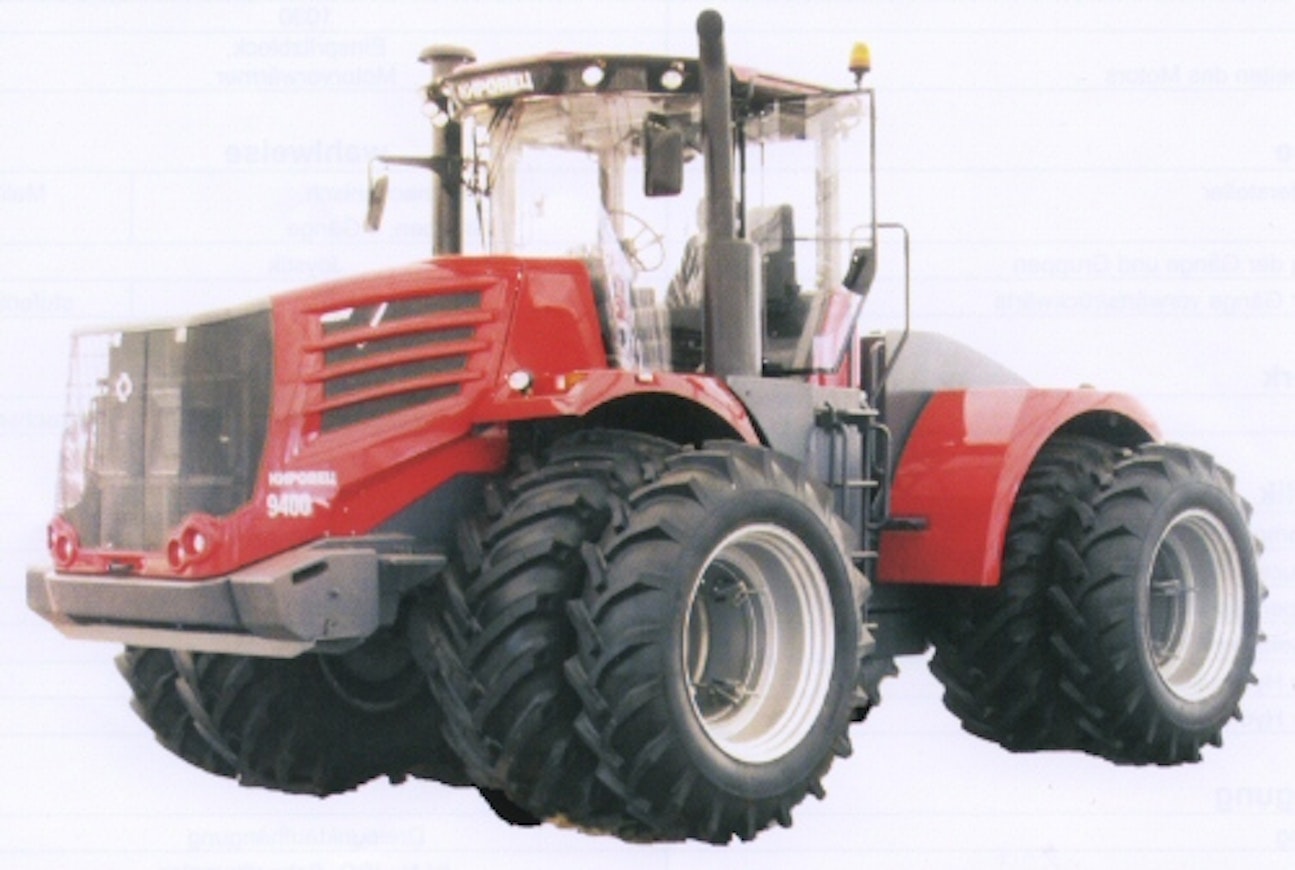

Kirovets K 9360 – K 9520
Manufacturer
Models
Kirovets K 9360, Kirovets K 9400, Kirovets K 9430, Kirovets K 9450, Kirovets K 9520
Years
2010-13
Info
At Agritechnica 2009, the Kirovets K 9000 series was introduced for Western markets, featuring five models equipped with Mercedes engines with power outputs ranging from 354 to 516 horsepower. There were three transmission options: the previously used 16+8, the American TwinDisc full powershift 12+2, and as a new feature, the stepless transmission from the German-Swiss company Mali. It was said to utilize outdated patents from Fendt. The hydraulics were significantly more powerful than previous Kirovets models, with a load-sensing SauerDanfoss pump delivering 190 l/min. This model series remained rare, and production quietly ended by 2013.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Kirovets K 9360 | Kirovets K 9400 | Kirovets K 9430 | Kirovets K 9450 | Kirovets K 9520 |
|---|---|---|---|---|---|
| Options | |||||
| Manufacturer name | Kirovets | Kirovets | Kirovets | Kirovets | Kirovets |
| Imported to Finland | No | No | No | No | No |
| Years | 2010-13 | 2010-13 | 2010-13 | 2010-13 | 2010-13 |
| First year sold | 2010 | 2010 | 2010 | 2010 | 2010 |
| Last year sold | 2013 | 2013 | 2013 | 2013 | 2013 |
| Engine model | Mercedes OM457LA E2/4 | Mercedes OM457LA E2/3 | Mercedes OM457LA E2/2 | Mercedes OM457LA E2/1 | Mercedes OM502LA |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI | V8TI |
| Displacement | 11970 cm³ | 11970 cm³ | 11970 cm³ | 11970 cm³ | 15930 cm³ |
| Bore x stroke | 128×155 mm | 128×155 mm | 128×155 mm | 128×155 mm | 130×150 mm |
| Rated power hp/rpm DIN | 354/1800 | 401/1800 | 433/1800 | 455/1800 | 516/1800 |
| Rated power | 354 | 401 | 433 | 455 | 516 |
| Rated speed | 1800 | 1800 | 1800 | 1800 | 1800 |
| Torque Nm/rpm DIN | 1800/1200 | 1900/1200 | 2000/1200 | - | 2400/1200 |
| Gears | 16+8 | 16+8 | 16+8/12+2 | 12+2 | 12+2/stepless |
| Synchronized gears | 16+8 | 16+8 | 16+8/12+2 | 12+2 | 12+2/stepless |
| Powershift gears | 4-step | 4-step | 4 step/powershift | powershift | powershift/CVT |
| Speeds in km/h | 3,7-30,0 | 3,7-30,0 | 3,7-30,0 | - | - |
| Max. speed | - | - | 30/37 km/h | 37 km/h | 37/40 km/h |
| Hydr. flow l/min | 190 l/min | 190 l/min | 190 l/min | 190 l/min | 190 l/min |
| Hydraulic pressure | 210 bar | 210 bar | 210 bar | 210 bar | 210 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 10000 kg | 10000 kg | 10000 kg | 10000 kg | 10000 kg |
| PTO speeds | 1000 | 1000 | 1000 | 1000 | 1000 |
| Brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 15.96 | 15.96 | 15.96 | 15.96 | 15.96 |
| Front tyres 4WD | 30.5R32 | 30.5R32 | 30.5R32 | 30.5R32 | 30.5R32 |
| Rear tyres 4WD | 30.5R32 | 30.5R32 | 30.5R32 | 30.5R32 | 30.5R32 |
| Weight 4WD | 16000 kg | 16000 kg | 16000 kg | 16000 kg | 16500 kg |
| Height with cab | 372 cm | 372 cm | 372 cm | 371 cm | 371 cm |
| Length (2WD/4WD) | 735 cm | 735 cm | 735 cm | 735 cm | 735 cm |
| Wheelbase (2WD/4WD) | 375 cm | 375 cm | 375 cm | 375 cm | 375 cm |
| Fuel tank | 1030 l | 1030 l | 1030 l | 1030 l | 1030 l |
| Cab noise level | 75 dB | - | 75 dB | - | 78 dB |
| Solid cab | x | x | x | x | x |
| Diff. lock | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x |
| Air conditioning | x | x | x | x | x |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
