Kirovets K-744 P – K-745
Manufacturer
Models
Kirovets K-744 P-04, Kirovets K-744 P-05, Kirovets K-744 P1, Kirovets K-744 P2, Kirovets K-744 P3, Kirovets K-744 P3-1 (P4), Kirovets K-745, Kirovets K-745 (MB), Kirovets K-745 (Deutz), Kirovets K-745 (Deutz)
Years
2000-14
Info
The improved P-model of the Kirovets K-744 went on sale in the year 2000. Initially, YaMZ engines were offered in 250-, 300-, and 350-horsepower versions, and later also in 390 and 420 horsepower. Mercedes' 11.97-liter OM 457 engines were available in 354 hp (K-744P2M), 401 hp (K-744P3M), and 428 hp (K-744P3M-1) versions. After the mid-2000s, either an 87 l/min open hydraulic system or a 100 l/min closed hydraulic system was available.
In 2001, the 420…500-horsepower K-745 was introduced. Its engine manufacturers were YaMZ, Mercedes, and Deutz. Unlike the smaller models, the transmission was a 12+2-speed full powershift.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Kirovets K-744 P-04 | Kirovets K-744 P-05 | Kirovets K-744 P1 | Kirovets K-744 P2 | Kirovets K-744 P3 | Kirovets K-744 P3-1 (P4) | Kirovets K-745 | Kirovets K-745 (MB) | Kirovets K-745 (Deutz) | Kirovets K-745 (Deutz) |
|---|---|---|---|---|---|---|---|---|---|---|
| Options | ||||||||||
| Manufacturer name | Kirovets | Kirovets | Kirovets | Kirovets | Kirovets | Kirovets | Kirovets | Kirovets | Kirovets | Kirovets |
| Imported to Finland | No | No | No | No | No | No | No | No | No | No |
| Years | 2000-09 | 2000-14 | 2000-14 | 2000-14 | 2007-14 | 2008-14 | 2001-09 | 2001-09 | 2001-06 | 2006-09 |
| First year sold | 2000 | 2000 | 2000 | 2000 | 2007 | 2008 | 2001 | 2001 | 2001 | 2006 |
| Last year sold | 2009 | 2014 | 2014 | 2014 | 2014 | 2014 | 2009 | 2009 | 2006 | 2009 |
| Engine model | YaMZ-238 ND4 | YaMZ-238 ND5 | YaMZ-238 ND5 | YaMZ 8481.10 | YaMZ 8481.10-02 | YaMZ 8481.10-04 | YaMZ-8481.04 | OM 502 LA | BF8M1015C | 6125H4V |
| Cyl/Turbo/Intercooler | V8TI | V8TI | V8TI | V8TI | V8TI | V8TI | V8TI | V8TI | V8TI | V8TI |
| Displacement | 14860 cm³ | 14860 cm³ | 14860 cm³ | 17240 cm³ | 17240 cm³ | 17240 cm³ | 17240 cm³ | 15950 cm³ | 15874 cm³ | 15874 cm³ |
| Bore x stroke | 130×140 mm | 130×140 mm | 130×140 mm | 140×140 mm | 140×140 mm | 140×140 mm | 140×140 mm | 130×150 mm | 132×145 mm | 132×145 mm |
| Rated power hp/rpm DIN | 250/1900 | 300/1900 | 300/1900 | 350/1900 | 390/1900 | 420/1900 | 420/1900 | 450/1800 | 495/1900 | 544/2100 |
| Rated power | 250 | 300 | 300 | 350 | 390 | 420 | 420 | 450 | 495 | 544 |
| Rated speed | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | 1800 | 1900 | 2100 |
| Torque Nm/rpm DIN | 1150/1100 | 1280/1100 | 1280/1100 | 1570/1300 | 1860/1300 | 1960/1300 | - | 2150/1200 | 2513/1200 | - |
| Gears | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 12+2 | 12+2 | 12+2 | 12+2 |
| Synchronized gears | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 16+8 | 12+2 | 12+2 | 12+2 | 12+2 |
| Powershift gears | 4-step | 4-step | 4-step | 4-step | 4-step | 4-step | powershift | powershift | powershift | powershift |
| Speeds in km/h | 3,6-28,8 | 3,6-28,8 | 3,7-30,0 | 3,7-30,0 | 3,7-30,0 | 3,7-30,0 | - | - | - | - |
| Max. speed | - | - | - | - | - | - | 37 km/h | 37 km/h | 37 km/h | 37 km/h |
| Hydr. flow l/min | 75 (87) l/min | 75 (87) l/min | 75 (87-100) l/min | 75 (87-100) l/min | 87/100 l/min | 87/100 l/min | 75 l/min | 75 l/min | 75 l/min | 75 l/min |
| Hydraulic pressure | 180 (200) bar | 180 (200) bar | 180 (200) bar | 180 (200) bar | 200 bar | 200 bar | 210 bar | 210 bar | 210 bar | 210 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 10000 kg | 10000 kg | 10000 kg | 10000 kg | 10000 kg | 10000 kg | 10000 kg | 10000 kg | 10000 kg | 10000 kg |
| PTO speeds | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 14.4 | 14.4 | 15.96 | 15.96 | 15.96 | 15.96 | 15.4 | 15.4 | 15.4 | 15.4 |
| Front tyres 4WD | 28.1R26 | 28.1R26 | 28.1R26 | 30.5R32 | 30.5R32 | 30.5R32 | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 |
| Rear tyres 4WD | 28.1R26 | 28.1R26 | 28.1R26 | 30.5R32 | 30.5R32 | 30.5R32 | 800/65R32 | 800/65R32 | 800/65R32 | 900/55R32 |
| Weight 4WD | 14300 kg | 14300 kg | 14900 kg | 15680 kg | 17500 kg | 17500 kg | 18800 kg | 18800 kg | 18800 kg | 18800 kg |
| Height with cab | 362 cm | 362 cm | 369 cm | 373 cm | 375 cm | 375 cm | 373 cm | 373 cm | 373 cm | 381 cm |
| Length (2WD/4WD) | 705 cm | 705 cm | 735 cm | 735 cm | 735 cm | 735 cm | 759 cm | 759 cm | 759 cm | 760 cm |
| Wheelbase (2WD/4WD) | 320 cm | 320 cm | 375 cm | 375 cm | 375 cm | 375 cm | 375 cm | 375 cm | 375 cm | 375 cm |
| Fuel tank | 640 l | 640 l | 800 l | 800 l | 800 l | 800 l | 800 l | 800 l | 800 l | 800 l |
| Cab noise level | 78 dB | 78 dB | 78 dB | 78 dB | 78 dB | 78 dB | - | - | - | 78 dB |
| Solid cab | x | x | x | x | x | x | x | x | x | x |
| Diff. lock | x | x | x | x | x | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x | x | x | x | x |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.

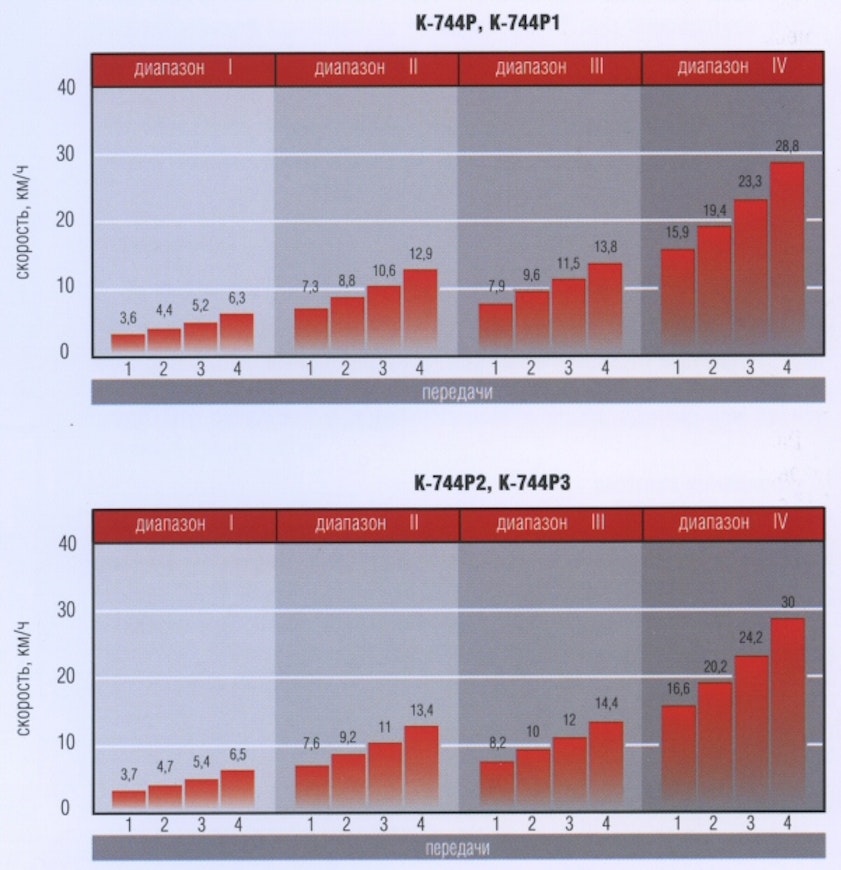

There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
