Kirovets K-700 – K-701

63K-700
90KirovetsK-700A
94KirovetsK-701M
94KirovetsK-701Mohjaamo
63K-700
90KirovetsK-700A
94KirovetsK-701M
94KirovetsK-701Mohjaamo
Manufacturer
Models
Kirovets K-700, Kirovets K-700 A, Kirovets K-700 A, Kirovets K-701, Kirovets K-701 M
Years
1962-2002
Info

In 1959, Nikita Khrushchev, visiting the USA, became enthusiastic about the large tractors introduced to him and immediately ordered the start of development for a 200…220 hp articulated tractor. The first machine was manufactured at the Kirov plant in July 1962, and serial production began in autumn 1964.

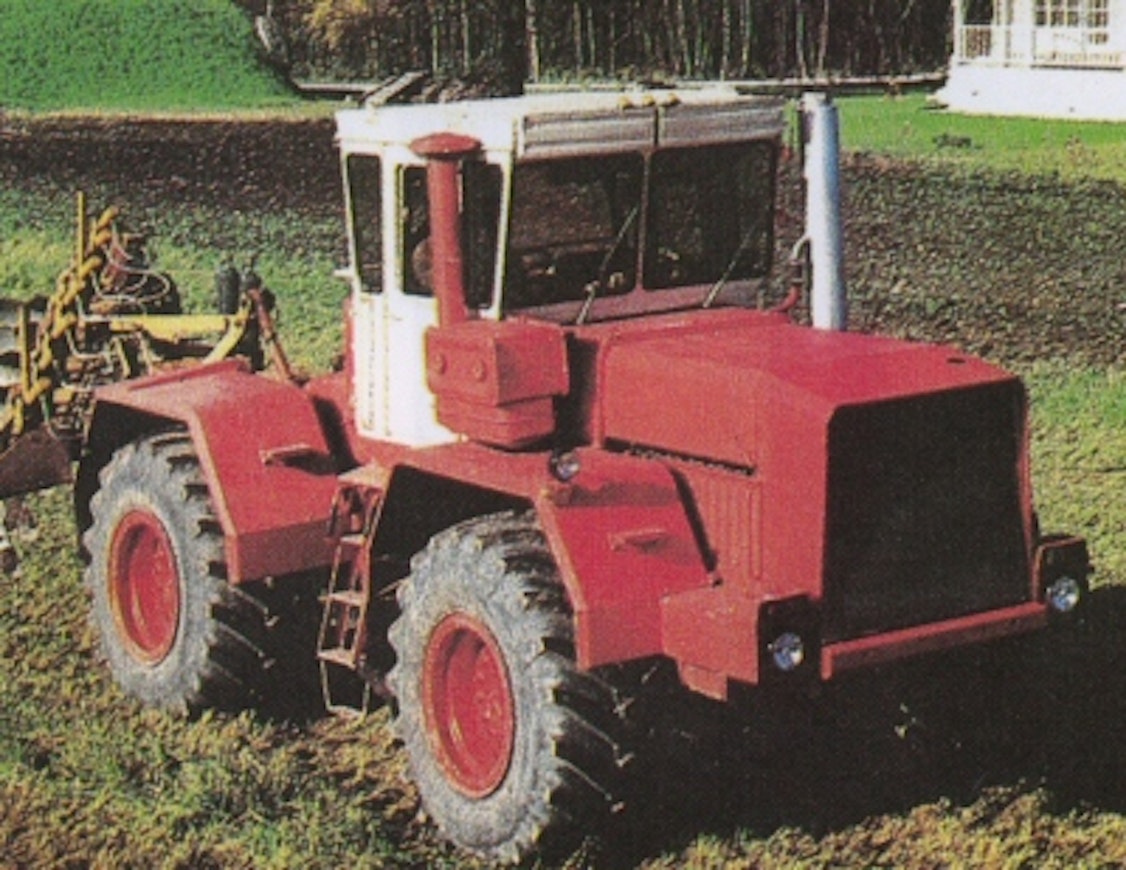

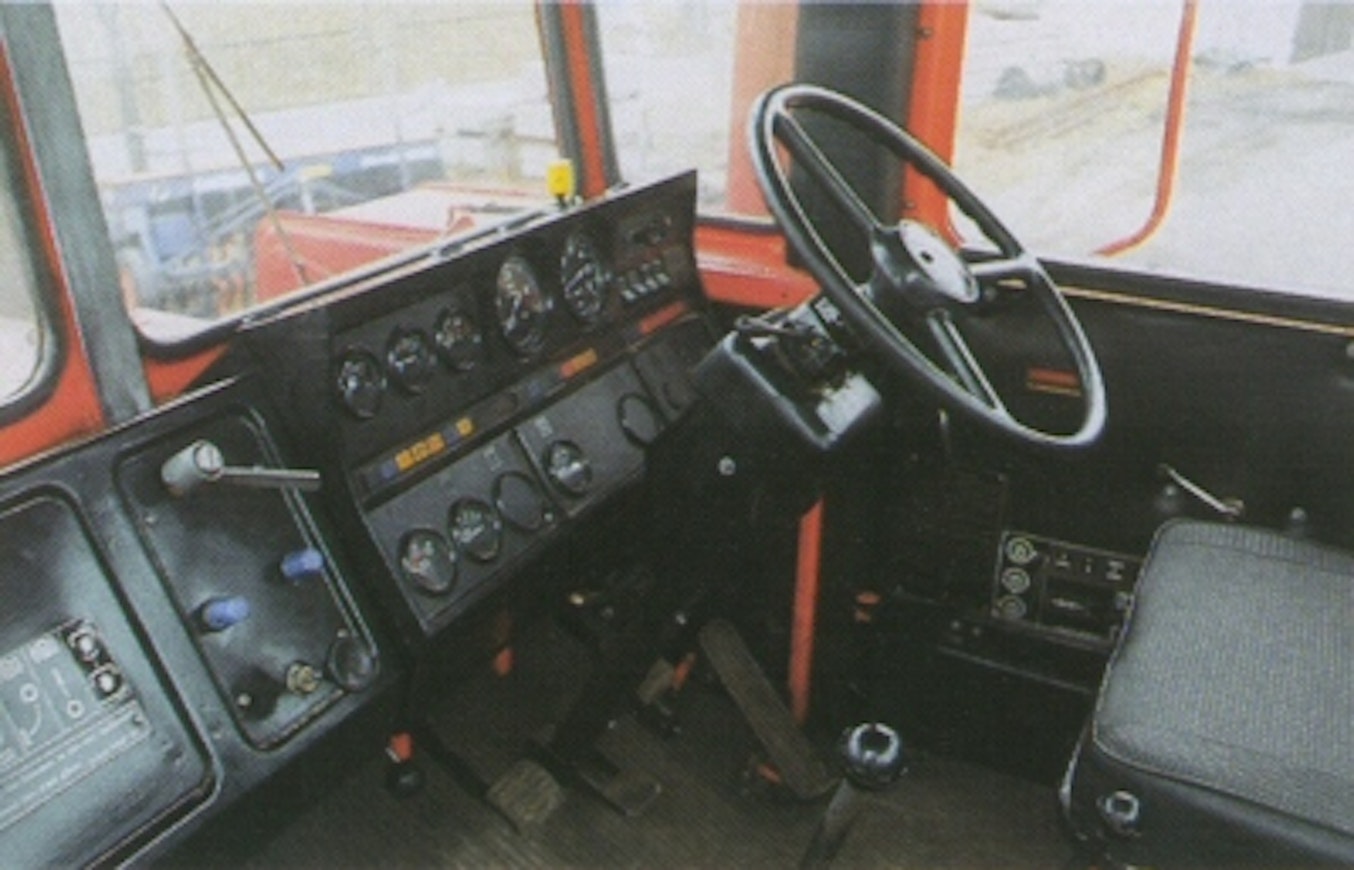

The K-700 was powered by a YaMZ 14.9-liter turbocharged direct injection diesel engine and was equipped with an electric starter. It had 16 forward and 4 reverse gears with hydraulic power shift. The brakes were pneumatic drum brakes on all four wheels, and the steering was hydraulic articulation. The rear axle could be disengaged if necessary. The differential lock was automatic. The cab was spacious, but visibility was poor. Approximately 100,000 units of the first model were produced.

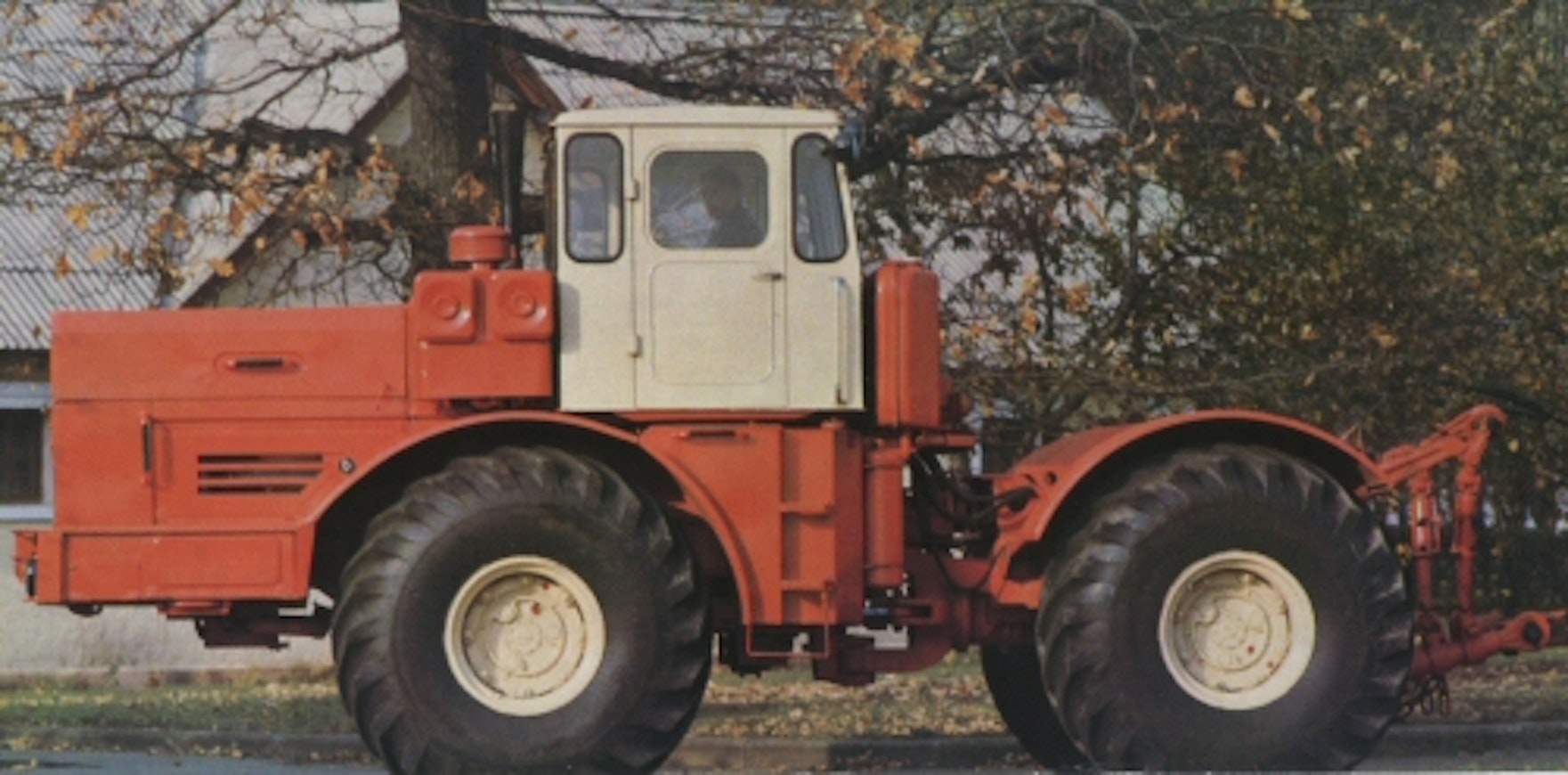

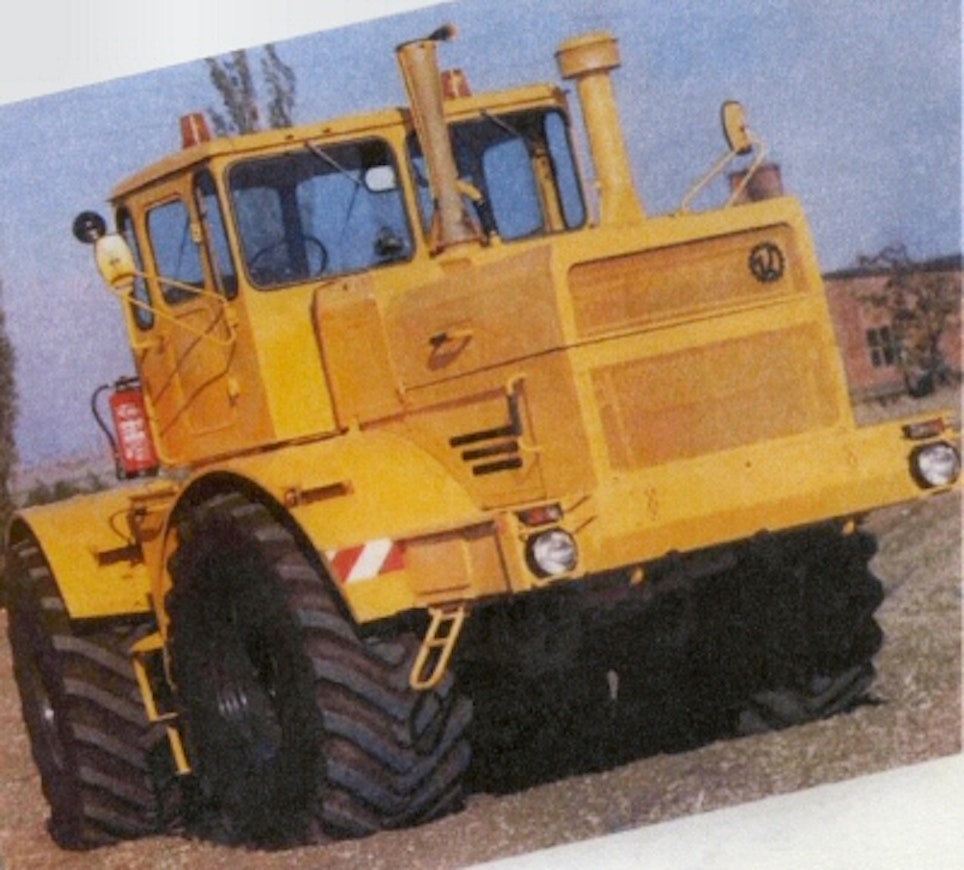

The updated K-700 A, which entered serial production in 1975, featured two fuel tanks, larger tires, and a more modern hood design. These models were usually yellow, and the headlights were moved lower. The gear spacing was unusual, as the speeds in the 2nd and 3rd ranges were nearly the same. There were now two reverse gear ranges, bringing the total to 16 forward and 8 reverse gears. At the same time, a more powerful K-701 with a V12 engine was developed. A total of 350,000 units of these models were produced by 2002.

The K-701 M, introduced in 1988, replaced the 12-cylinder engine with a 17.2-liter V8 featuring an intercooler and four-valve technology. The wheelbase was significantly longer than before, the wheels larger, the cab new, and the fenders more angular. The front axle also had an automatic differential lock. Optional extras included an air-suspended seat, air conditioning, and at least in Germany, a power lift. The hydraulics were undersized for a tractor of this size category.

In the USA, Kirovets tractors were sold under the names Belarus 7011 and 7111.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelKirovets K-700Kirovets K-700 AKirovets K-700 AKirovets K-701Kirovets K-701 M
Manufacturer nameKirovetsKirovetsKirovetsKirovetsKirovets
Imported to FinlandNoNoNoNoNo
Years1962-751975--20021974-20021989-2000
Engine modelYaMZ-238-NVYaMZ-238-NBYaMZ-238-NDYaMZ-240 BYaMZ-8423
Cyl/Turbo/IntercoolerV8TV8TV8TV12V8TI
Displacement14860 cm³14860 cm³14860 cm³22288 cm³17240 cm³
Bore x stroke130×140 mm130×140 mm130×140 mm130×140 mm140×140 mm
Rated power215/1700 hp DIN/rpm215/1700 hp DIN/rpm225/1700 hp DIN/rpm300/1900 hp DIN/rpm320/1900 hp DIN/rpm
Torque-----
Gears16+416+816+816+816+8
Powershift gears4-step4-step4-step4-step4-step
Speeds in km/h3,6-28,12,6-30,22,1-30,02,9-33,72,1-30,0
Lift controlsmech.mech.mech.mech.mech.
Lift capacity6330 kg5500 kg5500 kg5500 kg5500 kg
PTO speeds10001000100010001000
Brakesdrum brakesdrum brakesdrum brakesdrum brakesdrum brakes
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.
Front tyres 4WD23.1-2628.1-2628.1R2628.1-2630.5R32
Rear tyres 4WD23.1-2628.1-2628.1R2628.1-2630.5R32
Weight 4WD11000 kg12810 kg12900 kg13400 kg13560 kg
Height with cab300 cm355 cm369 cm353 cm382 cm
Length (2WD/4WD)702 cm740 cm639 cm743 cm749 cm
Wheelbase (2WD/4WD)305 cm320 cm320 cm320 cm379 cm
Fuel tank450 l640 l600 l640 l640 l
Solid cabxxxxx
Synchronized gears-partialpartialpartialpartial
Hydr. flow l/min-80 l/min75 l/min80 l/min75 l/min
Hydraulic pressure-140 bar140 bar140 bar160 bar
Turning circle m 4WD-14.414.414.415.4
Cab noise level--85 dB-82 dB
Diff. lock--x-x
