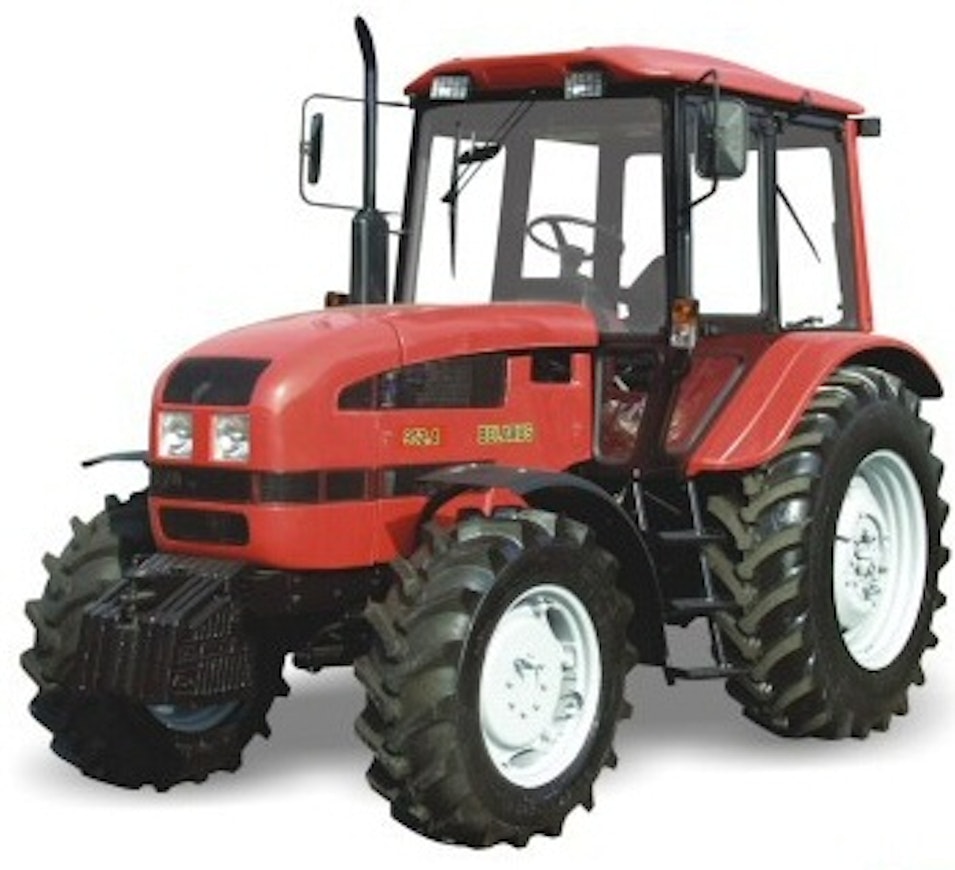

Belarus 920.4-1222.4

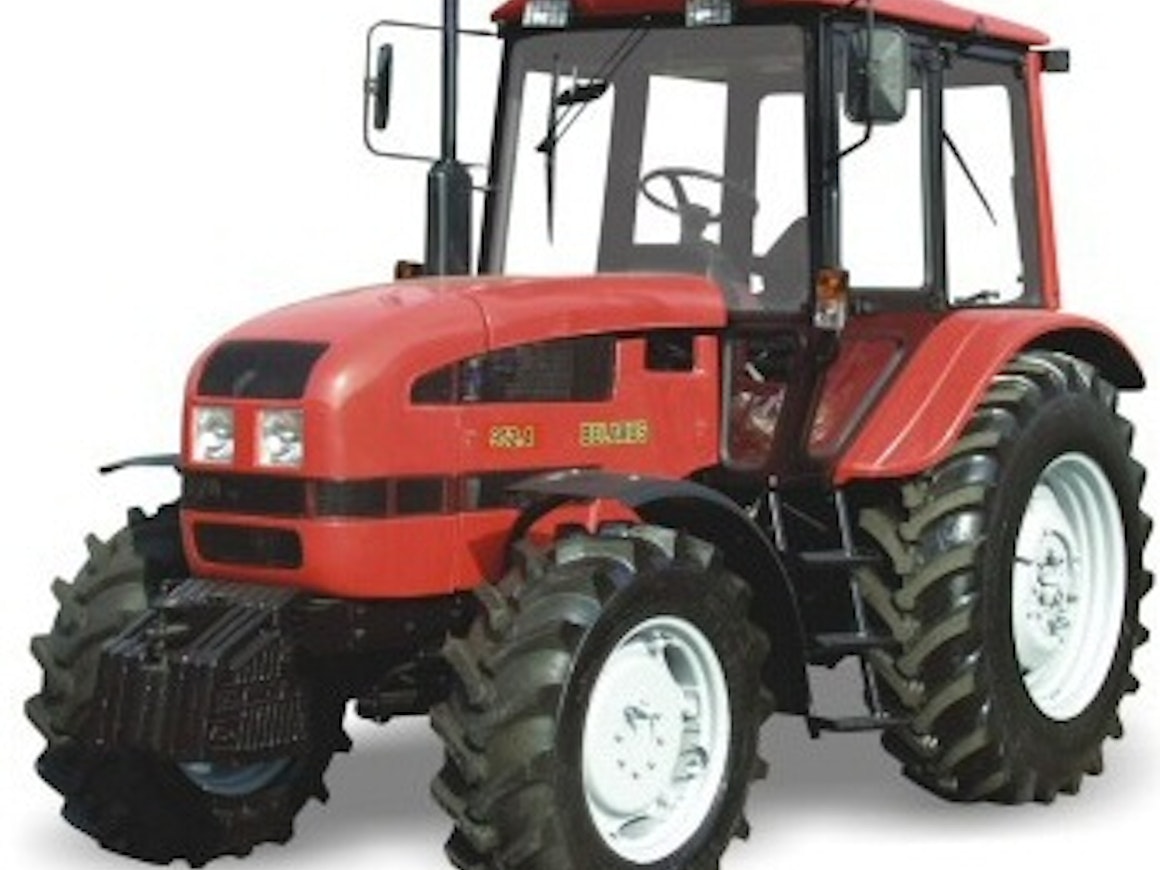

10Belarus952-4
10Belarus1221-4
10Belarus952-4
10Belarus1221-4
Manufacturer
Belarus
Models
Belarus 920.4, Belarus 923.4, Belarus 952.4, Belarus 1021.4, Belarus 1025.4, Belarus 1221.4, Belarus 1221.4, Belarus 1222.4
Years
2008-
Info

As emission requirements tightened in export markets, Belarus also had to seek solutions to comply with them. The Series 4 models corresponded to the Series 3 but met Tier IIIA requirements. The smaller models used the old 4.75-liter engine equipped with a common rail system, while the larger ones were fitted with Deutz engines. There were also Deutz-engine parallel models of the 1025.4 and 952.4 in the early 2010s. The lifting capacity of the smallest models increased to 4 tons in 2011.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelBelarus 920.4Belarus 923.4Belarus 952.4Belarus 1021.4Belarus 1025.4Belarus 1221.4Belarus 1221.4Belarus 1222.4
Manufacturer nameBelarusBelarusBelarusBelarusBelarusBelarusBelarusBelarus
Imported to FinlandNoNoNoNoNoNoNoNo
Years2008-2011-2008-2011-2008-2008-2008-2008-
Engine modelD-245.43S3AD-245.43S3AD-245.43S3AD-245S3AD-245S2D-260.2S3ATCD 2012 L06 2VD-260.2S3A
Cyl/Turbo/Intercooler4TI4TI4TI4TI4TI6TI6TI6TI
Displacement4750 cm³4750 cm³4750 cm³4750 cm³4750 cm³7120 cm³6057 cm³7120 cm³
Bore x stroke110×125 mm110×125 mm110×125 mm110×125 mm110×125 mm110×125 mm101×126 mm110×125 mm
Rated power85/1800 hp DIN/rpm95/1800 hp DIN/rpm95/1800 hp DIN/rpm110/2200 hp DIN/rpm105-110/2200 hp DIN/rpm136/2100 hp DIN/rpm142/2100 hp DIN/rpm136/2100 hp DIN/rpm
Torque--------
Gears14+414+414+414+416+816+8/24+1224+1216+8/24+12
Synchronized gears1010101016+816+8/24+1224+1216+8/24+12
Powershift gearsmech.mech.mech.mech.----
Speeds in km/h2,6-38,12,6-38,12,6-38,02,6-36,62,6-36,62,0-37,82,0-39,62,0-37,8
Hydr. flow l/min45 l/min45 l/min45 l/min45 l/min56 l/min51 l/min51 l/min53 l/min
Hydraulic pressure200 bar200 bar200 bar200 bar200 bar200 bar200 bar200 bar
Lift controlsmech.mech.mech.mech.mech.mech./elec.elec.mech./elec.
Lift capacity3200 (3800) kg4000 kg4000 kg4300 kg4300 kg4500 (5400) kg4500 (5400) kg6500 kg
PTO speeds540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo
Brakeswet discwet discwet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD8.88.88.8910.610.810.810.8
Front tyres 4WD360/70R24360/70R24360/70R24360/70R24360/70R2414.9R24420/70R2414.9R24
Rear tyres 4WD16.9R3818.4R3416.9R3816.9R3816.9R3818.4R3818.4R3818.4R38
Weight 4WD4100-4300 kg4700 kg4450 kg4870 kg4680 kg6000 kg6000 kg6000-6200 kg
Height with cab285 cm285 cm285 cm284 cm282 cm288 cm288 cm300 cm
Length (2WD/4WD)448 cm444 cm448 cm453 cm460 cm464 cm464 cm471 cm
Wheelbase (2WD/4WD)245 cm245 cm245 cm245 cm257 cm276 cm276 cm276 cm
Fuel tank130 l130 l156 l170 l170 l160 (250) l160 (250) l250 l
Cab noise level82 dB82 dB82 dB79 dB79 dB79 dB79 dB82 dB
Solid cabxxxxxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lock
Autom. differential locksxxxxxxxx
Creeper gearopt.opt.opt.opt.opt.opt.opt.opt.
Max. speed -----40 km/h-40 km/h
Max power------144/? hp DIN/rpm-
