Siirry sivupalkkiinSiirry alaosaanBelarus 920.3-1222.3

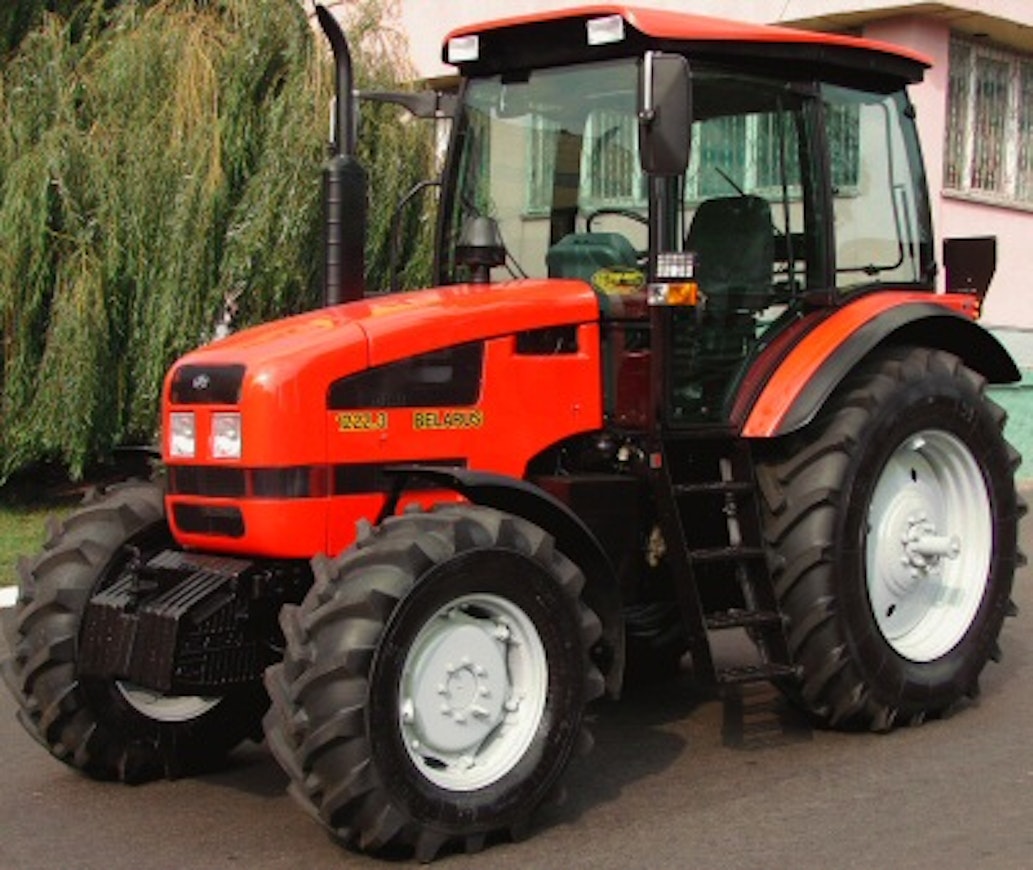

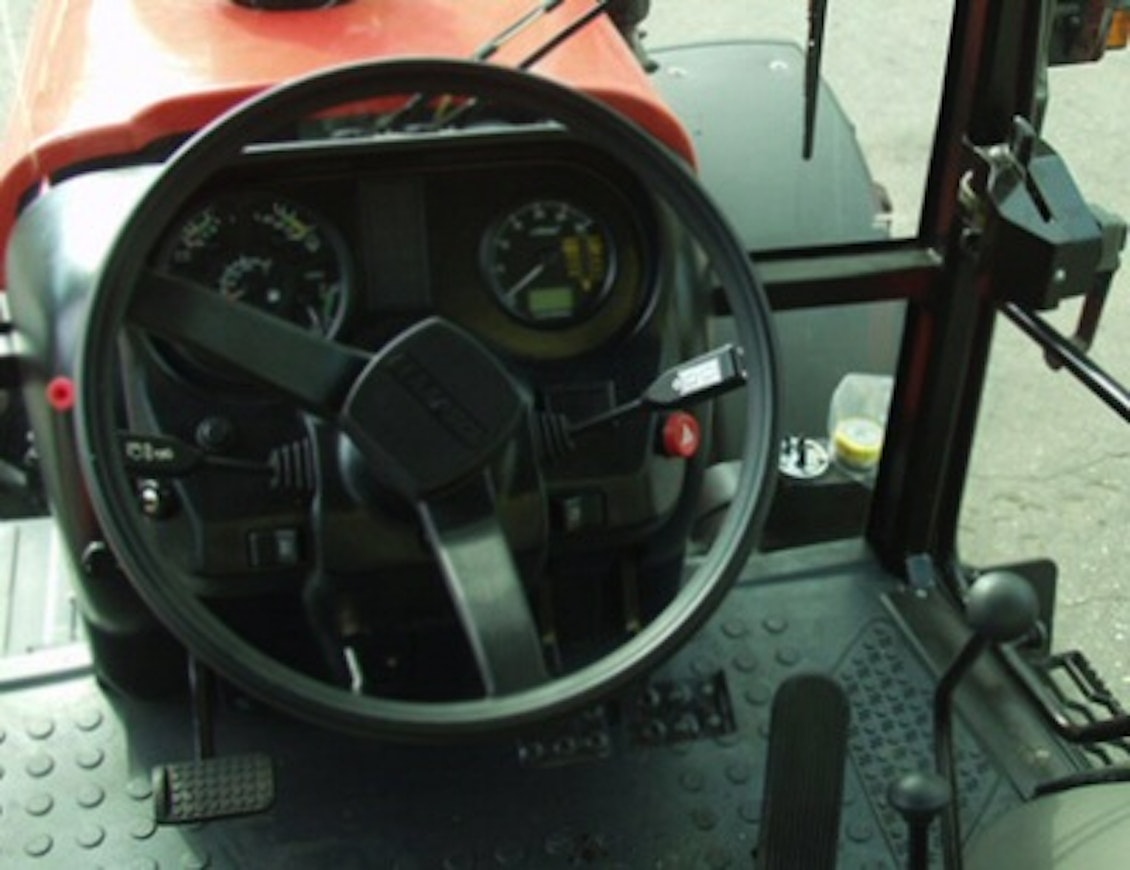

In 2002, a completely new-looking, round-shaped Belarus 1222 was introduced. A couple of years later, smaller models were added to the updated lineup, which received the model designation suffix .3. The 1222 model featured a new, curved-glass cab, which, however, was not included in the smaller models; they still had the older-style cab. Later, a parallel model 1221 with the old-style cab was also introduced alongside the 1222.
The "three-series" featured oil-bath disc brakes, electric four-wheel drive engagement, automatic differential lock, separate hydraulic oil, 3 hydraulic valves as standard, and a side exhaust pipe. The engines were intercooled 4.75-liter four-cylinders and 7.12-liter six-cylinders. The 6-cylinder models also had electric PTO engagement. The 1222 was also available equipped with a Deere six-cylinder engine. Models equipped with a 16+8 gearbox had a dry dual-plate clutch. The cabin noise level was successfully reduced slightly from the traditional 85 decibels. In Finland, some models were reported to have slightly higher power ratings than elsewhere.
This is an automated translation. Please report any issues in the translation.
| Model | Belarus 920.3 | Belarus 923.3 | Belarus 952.3 | Belarus 1021.3 | Belarus 1025.3 | Belarus 1220.3 | Belarus 1221.3 | Belarus 1222.3 | Belarus 1222D |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer name | Belarus | Belarus | Belarus | Belarus | Belarus | Belarus | Belarus | Belarus | Belarus |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | No | Yes | No | No |
| Years | 2004- | 2009- | 2004- | 2007- | 2004- | - | 2004- | 2002- | - |
| Engine model | D-243.43S2 | D-245.5S2 | D-245.5S2 | D-245S2 | D-245S2 | D-245S2 | D-260.2S2 | D-260.2S2 | Deere 6068TF159 |
| Cyl/Turbo/Intercooler | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI | 6TI | 6TI | 6TI |
| Displacement | 4750 cm³ | 4750 cm³ | 4750 cm³ | 4750 cm³ | 4750 cm³ | 4750 cm³ | 7120 cm³ | 7120 cm³ | 5980 cm³ |
| Bore x stroke | 110×125 mm | 110×125 mm | 110×125 mm | 110×125 mm | 110×125 mm | 110×125 mm | 110×125 mm | 110×125 mm | 100×127 mm |
| Rated power | 84/1800 hp DIN/rpm | 96/1800 hp DIN/rpm | 91/1800 hp DIN/rpm | 107/2200 hp DIN/rpm | 107/2200 hp DIN/rpm | 122/2200 hp DIN/rpm | 130/2100 hp DIN/rpm | 130/2100 hp DIN/rpm | 130/2100 hp DIN/rpm |
| Torque | - | - | - | - | - | - | - | - | - |
| Gears | 14+4 | 14+4 | 14+4 | 14+4 | 16+8/24+12 | 16+8/24+12 | 16+8/24+12 | 16+8/24+12 | 16+8/24+12 |
| Synchronized gears | 10 | 10 | 10 | 10 | 16+8/24+12 | 16+8/24+12 | 16+8/24+12 | 16+8/24+12 | 16+8/24+12 |
| Powershift gears | mech. | mech. | mech. | mech. | - | - | - | - | - |

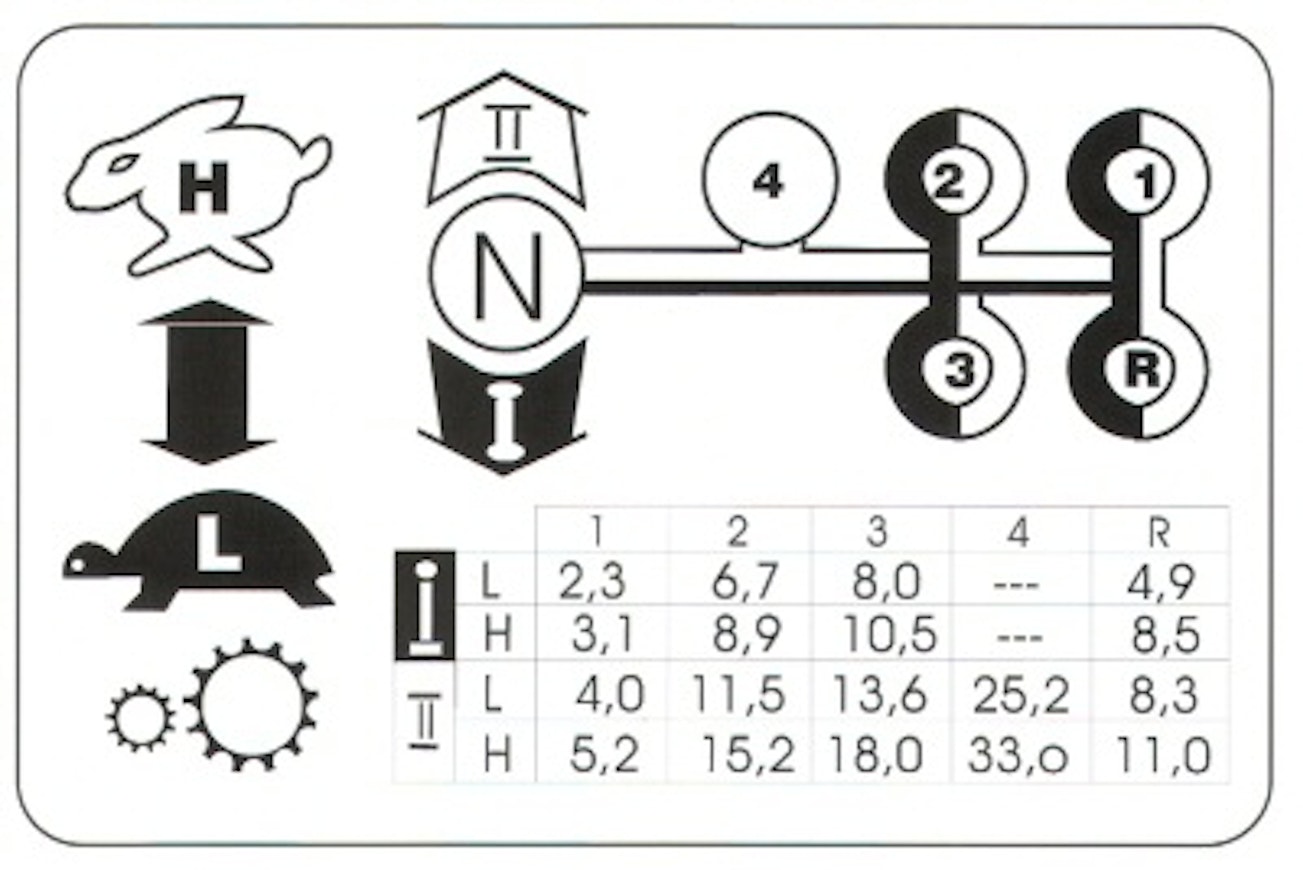

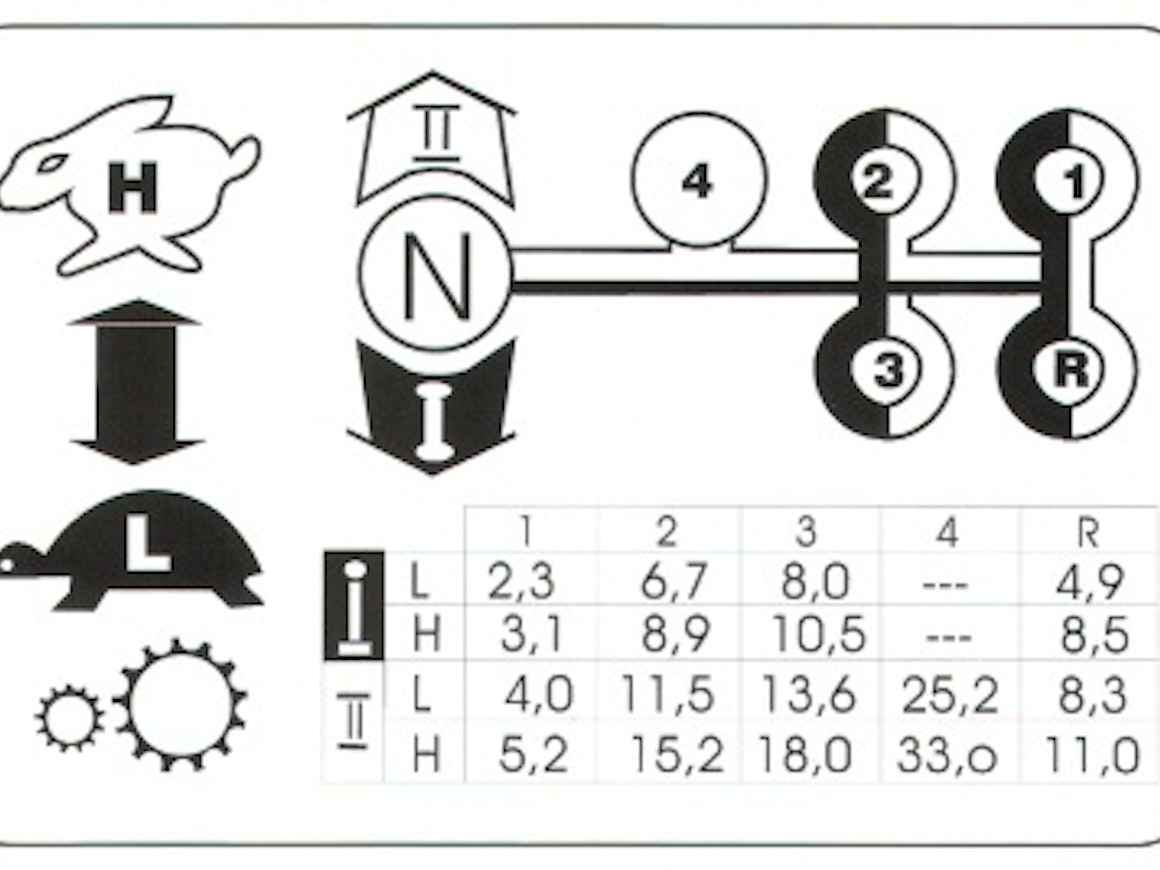

| Speeds in km/h | 2,7-39,9 | 2,7-39,9 | 2,7-39,9 | 2,6-37,4 | 2,6-36,6 | 2,0-39,6 | 1,5-35,0 | 2,0-37,8 | 2,2-39,8 |
| Hydr. flow l/min | 45 l/min | 45 l/min | 45 l/min | 56 l/min | 56 l/min | 51 l/min | 51 l/min | 53 l/min | 53 l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech./elec. | mech./elec. | mech./elec. | mech./elec. |
| Lift capacity | 3200 (3800) kg | 3200 (3800) kg | 3800 kg | 4300 kg | 4300 kg | 4500 kg | 4300 (5400) kg | 6500 kg | 4500 kg |
| PTO speeds | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 9 | 8.8 | 9 | 8.8 | 10.6 | 10.8 | 10.8 | 10.8 | 10.8 |
| Front tyres 4WD | 360/70R24 | 360/70R24 | 360/70R24 | 360/70R24 | 360/70R24 | 14.9R24 | 14.9R24 | 14.9R24 | 420/70R24 |
| Rear tyres 4WD | 16.9R38 | 18.4R34 | 16.9R38 | 16.9R38 | 16.9R38 | 18.4R38 | 18.4R38 | 18.4R38 | 520/70R38 |
| Weight 4WD | 4100 kg | 4100 kg | 4100 kg | 4400 kg | 4400 kg | 5500 kg | 5370 kg | 5480 kg | 5500 kg |
| Height with cab | 285 cm | 285 cm | 285 cm | 284 cm | 285 cm | 289 cm | 285 cm | 300 cm | 300 cm |
| Length (2WD/4WD) | 448 cm | 456 cm | 448 cm | 450 cm | 476 cm | 460 cm | 464 cm | 464 cm | 464 cm |
| Wheelbase (2WD/4WD) | 245 cm | 245 cm | 245 cm | 245 cm | 245 cm | 260 cm | 276 cm | 276 cm | 276 cm |
| Fuel tank | 130 l | 130 l | 156 l | 156/170 l | 156 l | 250 l | 160 (250) l | 250 l | 250 l |
| Cab noise level | 82 dB | 82 dB | 82 dB | 79 dB | 83 dB | 82 dB | 82 dB | 82 dB | - |
| Solid cab | x | x | x | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Autom. differential locks | x | x | x | x | x | x | x | x | x |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
| Max power | - | 98/? hp DIN/rpm | 95/? hp DIN/rpm | 110/? hp DIN/rpm | 110/? hp DIN/rpm | - | 133/? hp DIN/rpm | 133/? hp DIN/rpm | - |
| Max. speed | - | - | - | - | - | - | - | 40 km/h | - |
