Siirry sivupalkkiinSiirry alaosaanBelarus MTZ-501/521, MTZ-505/525, MTZ-80/82, MTZ-800/820










In 1973, the Belarus models MTZ-501 and 521 received a Swedish Fernmo cab.

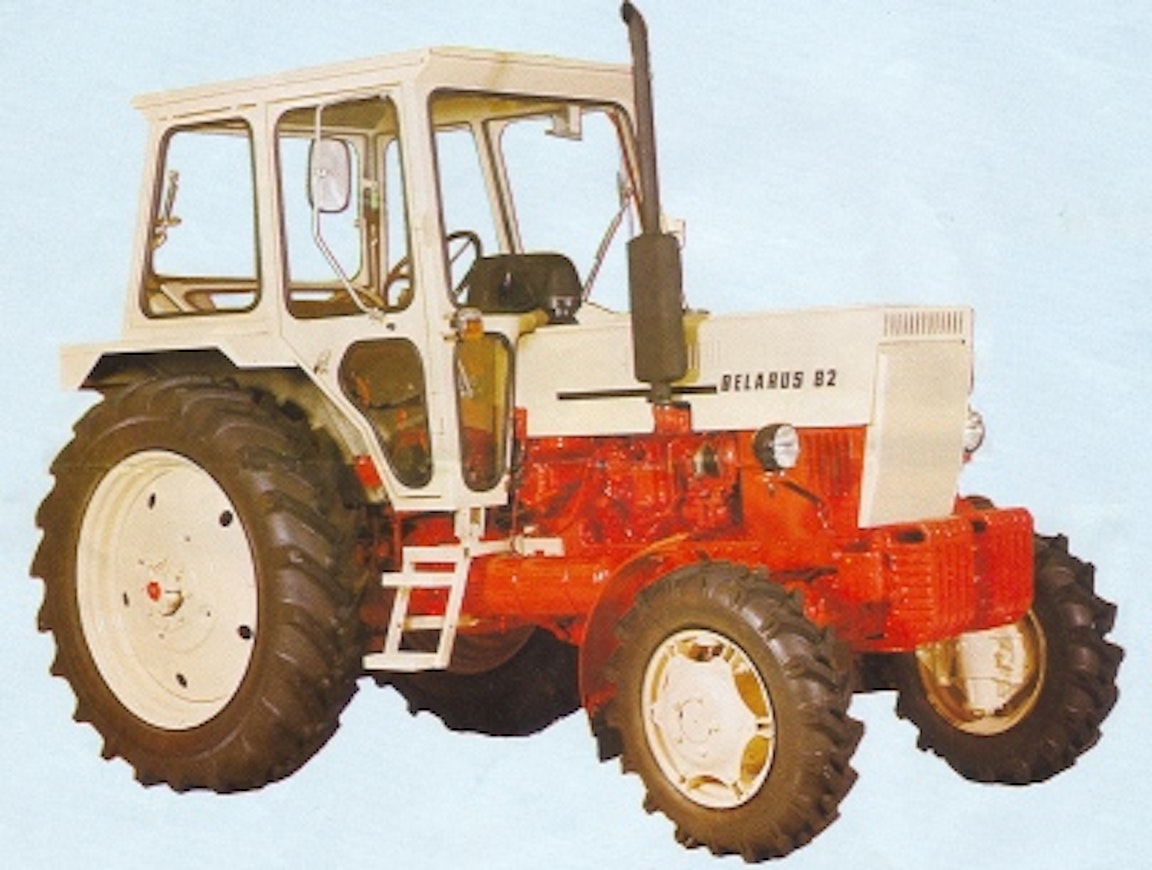

In 1975, the more powerful MTZ-80/82 equipped with a direct injection diesel engine, introduced in 1972, went into production. It featured a 1000 rpm power take-off, which was engaged with a key located underneath the tractor. The transmission included a mechanical overdrive that doubled the gears to 18+4 and provided a road speed of 33 km/h. The differential lock released automatically when the wheels were turned. There were three standard hydraulic outlets.

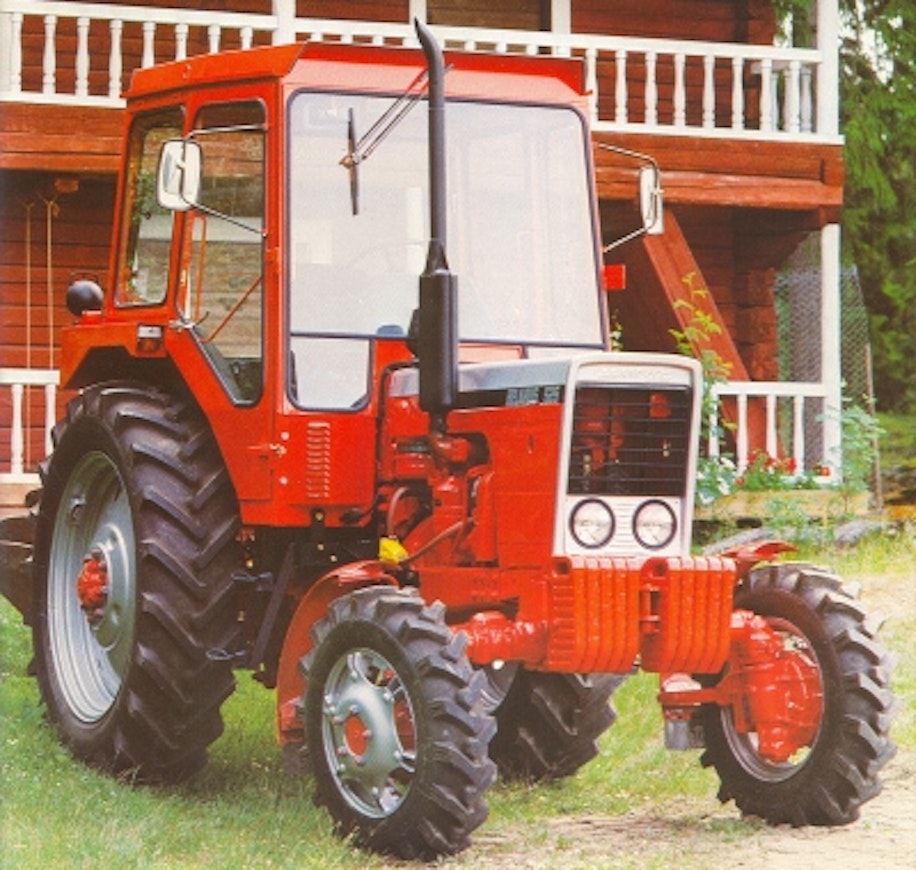

In the autumn of 1977, the cab was replaced with one manufactured by Maaseudun Kone, and the steering became hydrostatic. According to the advertising text, good visibility, light steering, a warm workplace in winter and fresh in summer, combined with thoughtfully positioned controls, were the defining features of the Belarus. Opinions on the placement of the controls may vary, but at least the steering wheel position was significantly improved. New was also the white color. Turbos were installed in the 505/525 models in Finland, increasing the power to 75 hp.
This is an automated translation. Please report any issues in the translation.
| Model | Belarus MTZ-501/521 | Belarus MTZ-505/525 | Belarus MTZ-80/82 | Belarus MTZ-800/820 |
|---|---|---|---|---|
| Manufacturer name | Belarus | Belarus | Belarus | Belarus |
| Imported to Finland | Yes | Yes | Yes | Yes |
| Years | 1973-77 | 1977-83 | 1975-77 | 1977-83 |
| Engine model | D60 | D60 | D240 | D240 |
| Cyl/Turbo/Intercooler | 4 | 4 | 4 | 4 |
| Displacement | 4750 cm³ | 4750 cm³ | 4750 cm³ | 4750 cm³ |
| Bore x stroke | 110×125 mm | 110×125 mm | 110×125 mm | 110×125 mm |
| Rated power | 67/1800 hp DIN/rpm | 67/1800 hp DIN/rpm | 80/2200 hp DIN/rpm | 80/2200 hp DIN/rpm |
| Torque | - | - | - | - |
| Gears | 9+2 | 9+2 | 18+4 | 18+4 |
| Speeds in km/h | 2,0-27,3 | 2,0-27,3 | 1,9-33,4 | 1,9-33,4 |
| Hydr. flow l/min | 50 l/min | 50 l/min | 50 l/min | 50 l/min |
| Hydraulic pressure | 145 bar | 145 bar | 145 bar | 145 bar |
| Lift controls | mech. | mech. | mech. | mech. |
| Lift capacity | 2000 kg | 2700 kg | 2000 kg | 2700 kg |
| PTO speeds | 540/ajov. | 540/ajov. | 540/1000/ajo | 540/1000/ajo |
| Brakes | disc brakes | disc brakes | disc brakes | disc brakes |
| Steering | power | hydrost. | power | hydrost. |
| Front tyres 2WD | 7,50-20 | 7,50-20 | 7,50-20 | 7,50-20 |
| Front tyres 4WD | 8.30-20 | 8.30-20 | 8.30-20 | 8.30-20 |
| Rear tyres 2WD | 13,6-38 | 13,6-38 | 15,5-38 | 15,5-38 |
| Rear tyres 4WD | 13.6-38 | 13.6-38 | 15.5-38 | 15.5-38 |
| Weight 2WD | 3330 kg | 3450 kg | 3655 kg | 3655 kg |
| Weight 4WD | 3490 kg | 3670 kg | 3820 kg | 3855 kg |
| Height with cab | 251-258 cm | 279 cm | 265 cm | 279 cm |
| Length (2WD/4WD) | 385 cm | 382/385 cm | 382/393 cm | 402/404 cm |
| Wheelbase (2WD/4WD) | 236/245 cm | 236/245 cm | 236/245 cm | 236/245 cm |
| Cab noise level | 90 dB | 85 dB | 87 dB | 87 dB |
| Solid cab | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock |
| Turning circle m 2WD | - | 8.8 | - | 9.3 |
| Turning circle m 4WD | - | 9.9 | - | 9,5 jarrulla |
| Fuel tank | - | 110 l | - | 110 l |
| Powershift gears | - | - | mech. | mech. |
| Autom. differential locks | - | - | x | x |
| Creeper gear | - | - | opt. | opt. |
