Belarus 920.6-1221.6
Manufacturer
Models
Belarus 920.6, Belarus 922.6, Belarus 923.6, Belarus 952.6, Belarus 952.6, Belarus 1021.6, Belarus 1025.6, Belarus 1220.6, Belarus 1221.6
Years
2015-
Info
The 6-series Belarus models complied with the Stage IV/Tier 4 emission standard. In addition to urea injection, the engines were now equipped with an oxidation catalyst. The technical specifications were practically identical to those of the 5-series versions.

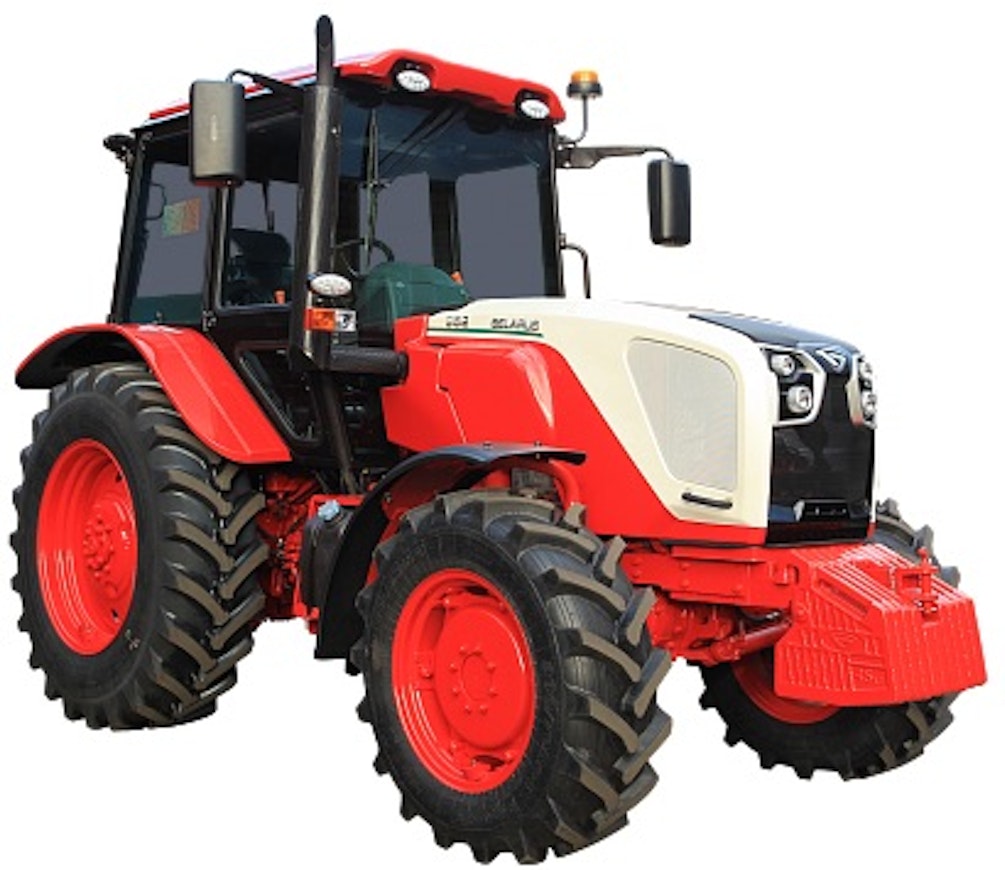

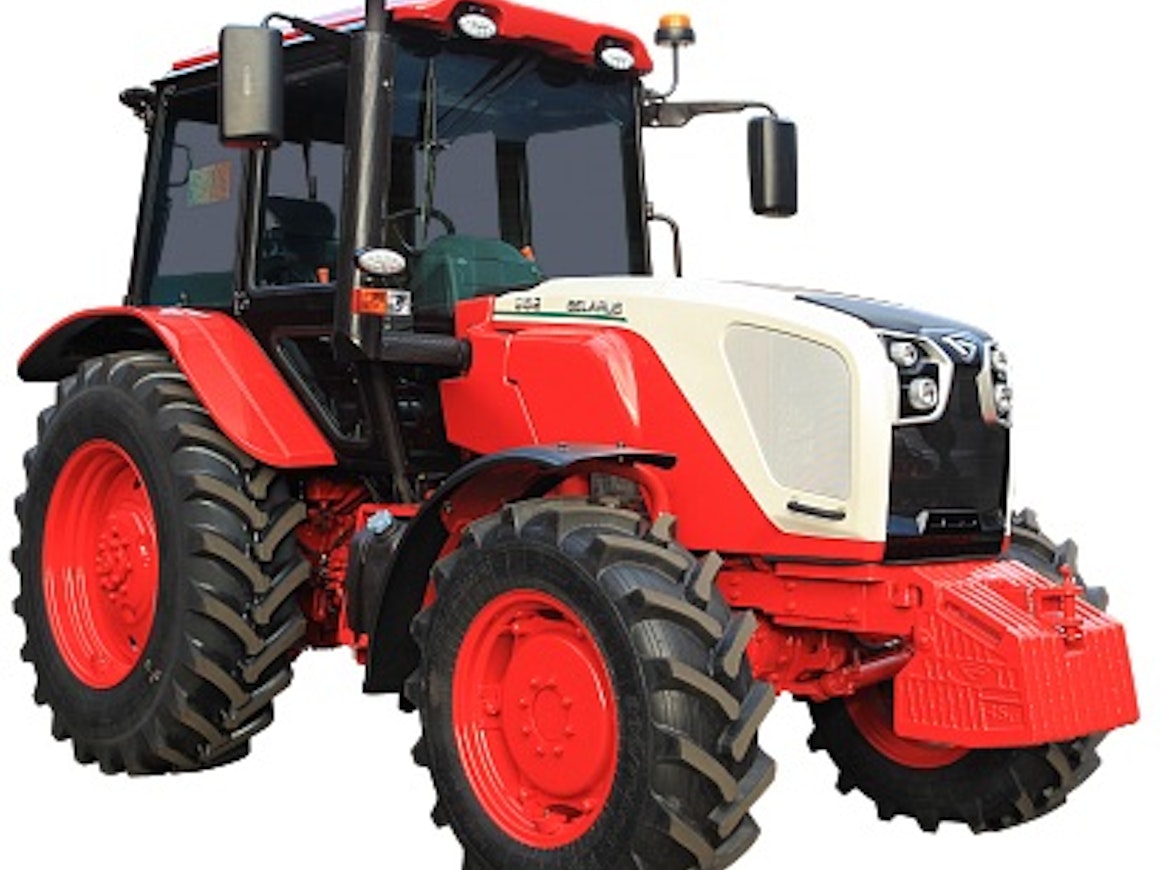

In the autumn of 2019, the 952.6 was introduced with a refreshed exterior and a synchronized 14+12 gearbox.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Belarus 920.6 | Belarus 922.6 | Belarus 923.6 | Belarus 952.6 | Belarus 952.6 | Belarus 1021.6 | Belarus 1025.6 | Belarus 1220.6 | Belarus 1221.6 |
|---|---|---|---|---|---|---|---|---|---|
| Options | |||||||||
| Manufacturer name | Belarus | Belarus | Belarus | Belarus | Belarus | Belarus | Belarus | Belarus | Belarus |
| Imported to Finland | No | No | No | No | No | No | No | No | No |
| Years | 2015- | 2015- | 2015- | 2015-19 | 2019- | 2015- | 2015- | 2015- | 2015- |
| First year sold | 2015 | 2015 | 2015 | 2015 | 2019 | 2015 | 2015 | 2015 | 2015 |
| Last year sold | - | - | - | 2019 | - | - | - | - | - |
| Engine model | D-245.43S4 | D-245.5S4 | D-245.5S4 | D-245.5S4 | D-245.5S4 | D-245S4 | D-245S4 | D-245.2S4 | D-260.2S4 |
| Cyl/Turbo/Intercooler | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI | 6TI |
| Displacement | 4750 cm³ | 4750 cm³ | 4750 cm³ | 4750 cm³ | 4750 cm³ | 4750 cm³ | 4750 cm³ | 4750 cm³ | 7120 cm³ |
| Bore x stroke | 110×125 mm | 110×125 mm | 110×125 mm | 110×125 mm | 110×125 mm | 110×125 mm | 110×125 mm | 110×125 mm | 110×125 mm |
| Rated power hp/rpm DIN | 84/2200 | 95/1800 | 95/1800 | 95/1800 | 95/1800 | 110/2200 | 110/2200 | 122/2200 | 136/2100 |
| Rated power | 84 | 95 | 95 | 95 | 95 | 110 | 110 | 122 | 136 |
| Rated speed | 2200 | 1800 | 1800 | 1800 | 1800 | 2200 | 2200 | 2200 | 2100 |
| Torque Nm/rpm DIN | 411/1200 | 464/1200 | 464/1200 | 464/1200 | 464/1200 | 440/1200 | 440/1200 | 501/1400 | 570/1400 |
| Gears | 14+4 | 14+4 | 14+4 | 14+4 | 14+12 | 14+4 | 16+8 | 16+8(24+12) | 16+8(24+12) |
| Synchronized gears | 10 | 10 | 10 | 10 | 14+12 | 10 | 16+8 | 16+8(24+12) | 16+8(24+12) |
| Powershift gears | mech. | mech. | mech. | mech. | mech. | mech. | - | - | - |
| Speeds in km/h | 2,8-39,9 | 2,6-37,1 | 2,6-38,1 | 2,8-39,9 | 0,7-35,2 | 2,6-37,5 | 2,6-36,6 | 2,2-40,0 | 1,5-35,0 |
| Hydr. flow l/min | 45 l/min | 45 l/min | 45 l/min | 45 l/min | 45 l/min | 45 l/min | 56 l/min | 45 l/min | 51 l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 4000 kg | 4000 kg | 4000 kg | 3800 kg | 4000 kg | 4200 kg | 4200 kg | 4300 kg | 4300 kg |
| PTO speeds | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000 | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 9 | 9 | 9 | 9 | 9 | 11.8 | 10.6 | 10.8 | 10.8 |
| Front tyres 4WD | 360/70R24 | 360/70R24 | 360/70R24 | 360/70R24 | 360/70R24 | 360/70R24 | 360/70R24 | 420/70R24 | 420/70R24 |
| Rear tyres 4WD | 18.4R34 | 18.4R34 | 18.4R34 | 16.9R38 | 16.9R38 | 16.9R38 | 18.4R34 | 18.4R38 | 18.4R38 |
| Weight 4WD | 4650 kg | 4700 kg | 4800 kg | 4650 kg | 5325 kg | 5560 kg | 5335 kg | 5620 kg | 5870 kg |
| Height with cab | 285 cm | 256 cm | 285 cm | 285 cm | 285 cm | 282 cm | 282 cm | 289 cm | 285 cm |
| Length (2WD/4WD) | 444 cm | 444 cm | 444 cm | 444 cm | 450 cm | 460 cm | 460 cm | 460 cm | 450 cm |
| Wheelbase (2WD/4WD) | 245 cm | 244 cm | 244 cm | 245 cm | 245 cm | 257 cm | 257 cm | 260 cm | 276 cm |
| Fuel tank | 135 l | 123 l | 120 l | 135 l | 140 l | 135 l | 135 l | 135 l | 135 l |
| Solid cab | x | x | x | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Autom. differential locks | x | x | x | x | x | x | x | x | x |
| Creeper gear | opt. | - | - | opt. | - | opt. | opt. | opt. | opt. |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
