Siirry sivupalkkiinSiirry alaosaanBelarus 920.5-1221.5
Manufacturer
Models

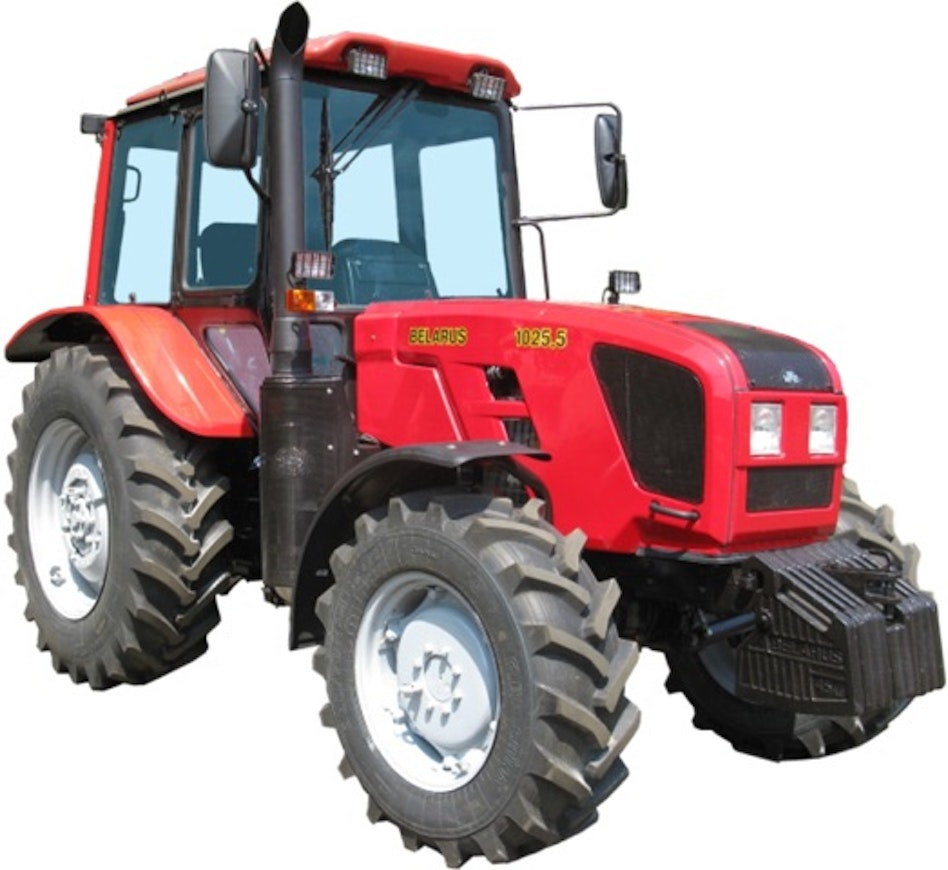

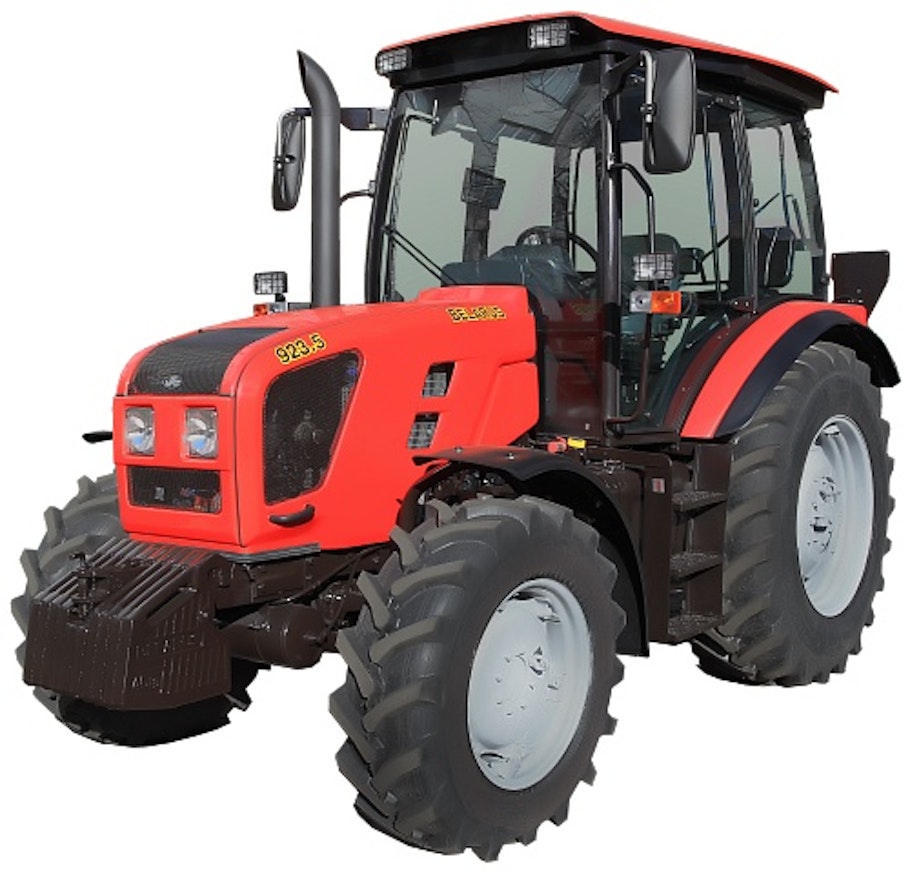

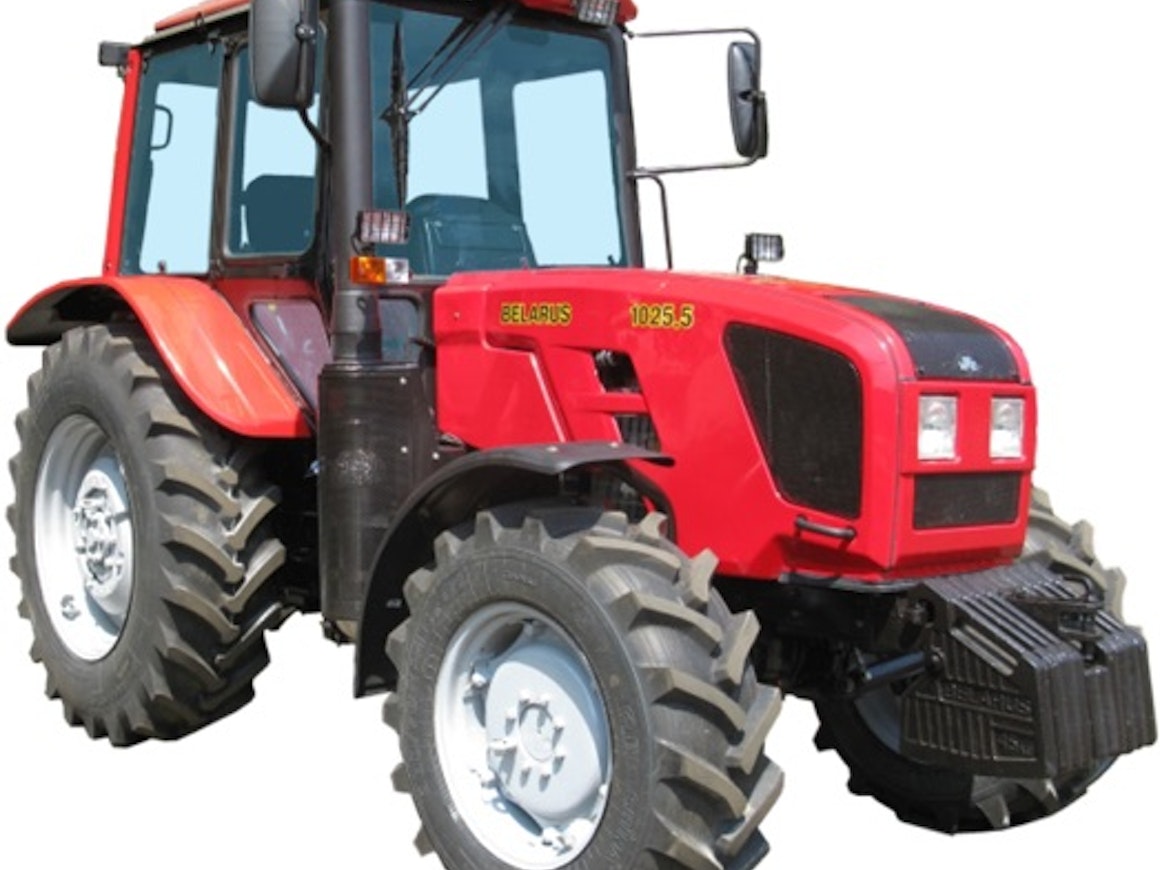

Belarus 920.5, Belarus 922.5, Belarus 923.5, Belarus 952.5, Belarus 1021.5, Belarus 1025.5, Belarus 1220.5, Belarus 1221.5
Years
2013-
Info
Belaruses meeting Stage IIIB/Tier 4i standards were primarily introduced for the year 2013. New features in the engines included Bosch electronic injection and LLC Rosskat’s urea injection system. In some models, the fuel tank was smaller than before. All models now had a lifting capacity of at least 4 tons. The 922.5 was a new low-cab model.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Belarus 920.5 | Belarus 922.5 | Belarus 923.5 | Belarus 952.5 | Belarus 1021.5 | Belarus 1025.5 | Belarus 1220.5 | Belarus 1221.5 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer name | Belarus | Belarus | Belarus | Belarus | Belarus | Belarus | Belarus | Belarus |
| Imported to Finland | No | No | No | Yes | No | Yes | No | Yes |
| Years | 2015-16 | 2013- | 2013- | 2013- | 2013- | 2013- | 2013- | 2013- |
| Engine model | D-245.43S3A | D-245.5S3B | D-245.5S3B | D-245.5S3B | D-245S3B | D-245S3B | D-245S3B | D-260.2S3B |
| Cyl/Turbo/Intercooler | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI | 6TI |
| Displacement | 4750 cm³ | 4750 cm³ | 4750 cm³ | 4750 cm³ | 4750 cm³ | 4750 cm³ | 4750 cm³ | 7120 cm³ |
| Bore x stroke | 110×125 mm | 110×125 mm | 110×125 mm | 110×125 mm | 110×125 mm | 110×125 mm | 110×125 mm | 110×125 mm |
| Rated power | 84/2200 hp DIN/rpm | 95/1800 hp DIN/rpm | 95/1800 hp DIN/rpm | 95/1800 hp DIN/rpm | 110/2200 hp DIN/rpm | 110/2200 hp DIN/rpm | 122/2200 hp DIN/rpm | 136/2100 hp DIN/rpm |
| Torque | - | - | - | - | - | - | - | - |
| Gears | 14+4 | 14+4 | 14+4 | 14+4 | 14+4 | 16+8 | 16+8(24+12) | 16+8(24+12) |
| Synchronized gears | 10 | 10 | 10 | 10 | 10 | 16+8 | 16+8(24+12) | 16+8(24+12) |
| Powershift gears | mech. | mech. | mech. | mech. | mech. | - | - | - |
| Speeds in km/h | 2,8-39,9 | 2,6-37,1 | 2,6-38,1 | 2,8-39,9 | 2,6-37,5 | 2,6-36,6 | 2,2-40,0 | 1,5-35,0 |
| Hydr. flow l/min | 45 l/min | 45 l/min | 45 l/min | 45 l/min | 45 l/min | 56 l/min | 45 l/min | 51 l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 4000 kg | 4000 kg | 4000 kg | 3800 kg | 4200 kg | 4200 kg | 4300 kg | 4300 kg |
| PTO speeds | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 9 | 9 | 9 | 9 | 11.8 | 10.6 | 10.8 | 10.8 |
| Front tyres 4WD | 360/70R24 | 360/70R24 | 360/70R24 | 360/70R24 | 360/70R24 | 360/70R24 | 420/70R24 | 420/70R24 |
| Rear tyres 4WD | 18.4R34 | 18.4R34 | 18.4R34 | 16.9R38 | 16.9R38 | 18.4R34 | 18.4R38 | 18.4R38 |
| Weight 4WD | 4650 kg | 4700 kg | 4800 kg | 4650 kg | 5560 kg | 5335 kg | 5620 kg | 5870 kg |
| Height with cab | 285 cm | 256 cm | 285 cm | 285 cm | 282 cm | 282 cm | 289 cm | 285 cm |
| Length (2WD/4WD) | 444 cm | 444 cm | 444 cm | 444 cm | 460 cm | 460 cm | 460 cm | 450 cm |
| Wheelbase (2WD/4WD) | 245 cm | 244 cm | 244 cm | 245 cm | 257 cm | 257 cm | 260 cm | 276 cm |
| Fuel tank | 135 l | 123 l | 120 l | 135 l | 135 l | 135 l | 135 l | 135 l |
| Solid cab | x | x | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Autom. differential locks | x | x | x | x | x | x | x | x |
| Creeper gear | opt. | - | - | opt. | opt. | opt. | opt. | opt. |
