Siirry sivupalkkiinSiirry alaosaanAgromash 30 TK – 85 TK

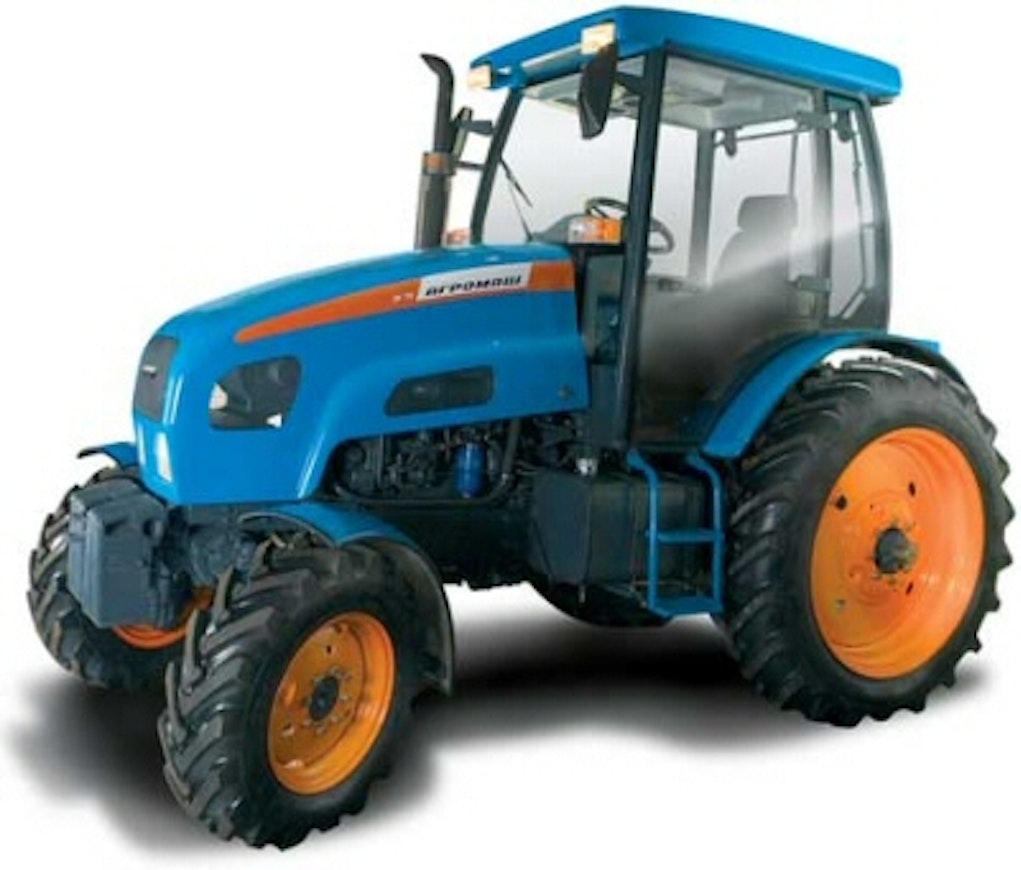

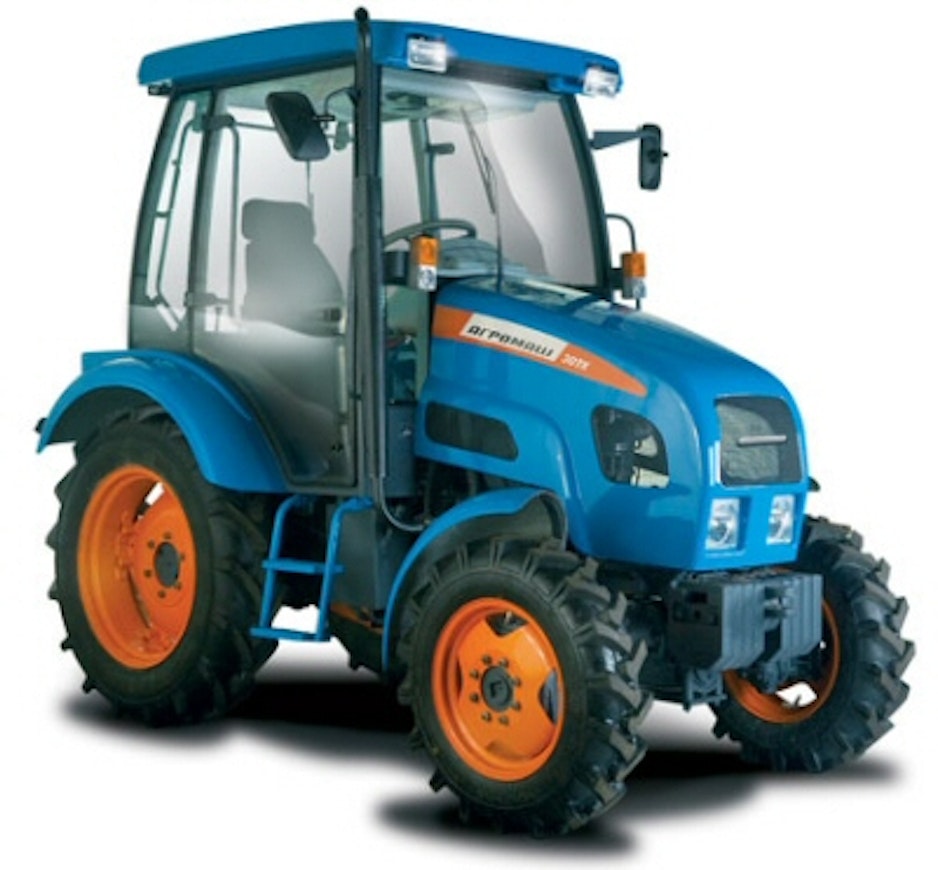

The Vladimirets Tractor Factory merged into the Agromash group along with many other Russian agricultural machinery factories. As a result, the VTZ tractor lineup received Agromash's blue color and new model designations. The smallest model was now the 30TK, corresponding to the VTZ-2032, which replaced its old sloped hood with a higher engine cover and a curved glass cab similar to those of the larger models. The new model was the 60TK, which combined a 3-cylinder engine with an 85TK Carraro transmission. In 2011, a water-cooled D-145TV engine became available for the 85TK. The 60TK and 85TK models were also equipped with SisuDiesel engines.
Agromash's tractor export regions included the CIS countries, North Africa, and South America.
This is an automated translation. Please report any issues in the translation.
| Model | Agromash 30TK 122 | Agromash 50TK | Agromash 60TK | Agromash 60TK (Sisu) | Agromash 85TK | Agromash 85TK 100 | Agromash 85TK (Sisu) |
|---|---|---|---|---|---|---|---|
| Manufacturer name | Agromash | Agromash | Agromash | Agromash | Agromash | Agromash | Agromash |
| Imported to Finland | No | No | No | No | No | No | No |
| Years | 2009- | 2009- | 2011- | 2007- | 2009- | 2011- | 2008- |
| Engine model | D-120 | D-130 | D-130T | Sisu 33DTA | D-145T | D-145TV | Sisu 44 |
| Cyl/Turbo/Intercooler | 2 | 3 | 3T | 3TI | 4T | 4T | 4TI |
| Displacement | 2077 cm³ | 3117 cm³ | 3117 cm³ | 3300 cm³ | 4150 cm³ | 4150 cm³ | 4400 cm³ |
| Bore x stroke | 105×120 mm | 105×120 mm | 105×120 mm | 108×120 mm | 105×120 mm | 105×120 mm | 108×120 mm |
| Rated power | 30/2000 hp DIN/rpm | 45/2000 hp DIN/rpm | 60/2000 hp DIN/rpm | 60/2200 hp DIN/rpm | 85/2100 hp DIN/rpm | 100/2100 hp DIN/rpm | 95/2200 hp DIN/rpm |
| Gears | 8+6 | 8+6 | 8+6 | 8+6 | 24+24 | 24+24 | 24+24 |
| Reverser | x | x | x | x | x | x | x |
| Speeds in km/h | 1,5-23,9 | 1,5-23,9 | 1,4-37,7 | 1,4-37,7 | 1,5-37,7 | 1,5-37,7 | 1,5-37,7 |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 1000 kg | 1200 kg | 3000 kg | 3000 kg | 3000 kg | 3000 kg | 3000 kg |
| PTO speeds | 540 | 540 | 540 | 540 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | drum brakes | drum brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Rear tyres 4WD | 12.4R28 | 12.4R28 | 13.6R38 | 13.6R38 | 13.6R38 | 13.6R38 | 13.6R38 |
| Weight 4WD | 2500 kg | 2600 kg | 3800 kg | 3800 kg | 3800 kg | 3800 kg | 3800 kg |
| Height with cab | 257 cm | 254 cm | 260 cm | 260 cm | 271 cm | 271 cm | 271 cm |
| Length (2WD/4WD) | 332 cm | 374 cm | 390 cm | 390 cm | 390 cm | 390 cm | 390 cm |
| Wheelbase (2WD/4WD) | 190 cm | 209 cm | - | - | 245 cm | 245 cm | 245 cm |
| Solid cab | x | x | x | x | x | x | x |
| Hydraulic pressure | - | 180 bar | - | - | - | - | - |
| Front tyres 4WD | - | - | 12.4R24 | 12.4R24 | 12R4-24 | 12R4-24 | 12R4-24 |
| Synchronized gears | - | - | - | - | 24+24 | 24+24 | 24+24 |
