Siirry sivupalkkiinSiirry alaosaanNew Holland TC 52 – TC 54




Manufacturer
Models
TC52, TC54, TC54, TC54 hydr., TC54 hydr.
Years
1991-98
Info

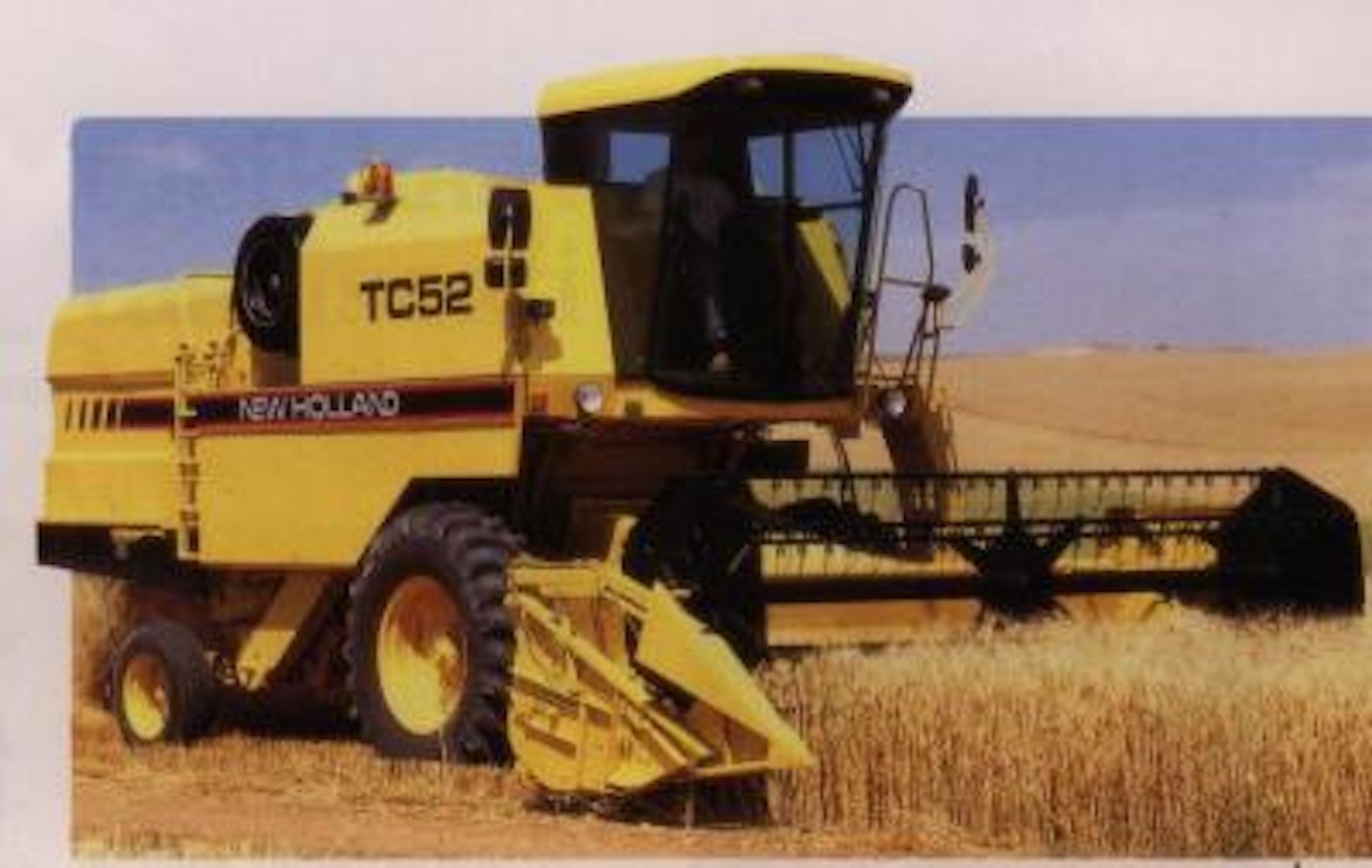

TC 52 and 54 were the successors to the four-cylinder 8000-series models. The updates included longer pistons, new 5.0- and 7.5-liter engines, and a new cab with a noise level of 83 dB. In 1998, more powerful engines, larger tires, and hydrostatic drive became available as an option. The decal styles shown in these pictures represent the years 1991-97 and 2004-07. Production was moved from Belgium to Poland in 2001-2002.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | TC52 | TC54 | TC54 | TC54 hydr. | TC54 hydr. |
|---|---|---|---|---|---|
| Imported to Finland | Yes | Yes | Yes | Yes | Yes |
| Years | 1991-94 | 1991-98 | 1998-2000 | 1998-2000 | 2000-07 |
| Engine | NH | NH | NH | NH | NH |
| Engine type | 4.50T | 6.75T | 6.75T | 6.75T | 6.75T |
| Displacement | 5000 cm³ | 7474 cm³ | 7474 cm³ | 7474 cm³ | 7474 cm³ |
| Cyl/turbo | 4 T | 6 T | 6 T | 6 T | 6 T |
| Power | 110 hp DIN | 125 hp DIN | 135 hp DIN | 168 hp DIN | 168 hp DIN |
| Fuel tank | 300 l | 300 l | 300 l | 300 l | 300 l |
| Transmission | mech. | mech. | mech. | hydr. | hydr. |
| Gears | 3 | 3/4 | 4 | 4 | 4 |
| Speed min-max. | 1,6-25 km/h | 1,6-25 km/h | 1,6-25 km/h | 0-25 km/h | 0-25 km/h |
| Cutting width | 366 cm | 396 cm | 396 cm | 396 cm | 396 cm |
| Cutting width, alternative | 305-396 cm | 305-457 cm | 305-457 cm | 305-457 cm | 305-457 cm |
| Reel diameter | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm |
| Header length | 41 cm | 41 cm | 41 cm | 41 cm | 41 cm |
| Threshing cyl. diameter | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm |
| Threshing cyl. width | 104 cm | 104 cm | 104 cm | 104 cm | 104 cm |
| Number of straw walkers | 4 | 4 | 4 | 4 | 4 |
| Area of walkers | 400 dm² | 400 dm² | 400 dm² | 400 dm² | 400 dm² |
| Lenght of walkers | 378 cm | 378 cm | 378 cm | 378 cm | 378 cm |
| Straw shieve | 174 dm² | 174 dm² | 174 dm² | 174 dm² | 174 dm² |
| Bottom shieve | 136 dm² | 136 dm² | 136 dm² | 136 dm² | 136 dm² |
| Total screening area | 329 | 329 | 329 | 329 | 329 |
| Overall lenght | 932 cm | 932 cm | 932 cm | 932 cm | 932 cm |
| Overall width | 399 cm | 429 cm | 429 cm | 429 cm | 429 cm |
| Width without header | 306 cm | 306 cm | 319 cm | 319 cm | 319 cm |
| Height without cabin | 363 cm | 363 cm | 363 cm | 363 cm | 363 cm |
| Height with cabin | 383 cm | 383 cm | 383 cm | 383 cm | 383 cm |
| Weight without header | 7000 kg | 7305 kg | - | - | 7600 kg |
| Grain tank | 34.5 hl | 39.8 hl | 39.8 hl | 39.8 hl | 39.8 hl |
| Unl. height | 394 cm | 394 cm | 394 cm | 394 cm | 394 cm |
| Tyres front (Finland) | 23.1R26 | 23.1R26 | 28LR26 | 28LR26 | 750/70R26 |
| Tyres front, alternative | 18.4-30 | 18.4-30 | 18.4R30 | 18.4R30 | 18.4R30 |
| Tyres rear (Finland) | 13/65-18 | 13/65-18 | 13/65-18 | 13/65-18 | 13/65-18 |
| Tyres rear, alternative | 10.5-18 | 10.5-18 | 10.5-18 | 10.5-18 | 400/70-20 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | elec. | elec. | elec. | elec. | elec. |
| Threshing cyl. speed adjustment | elec. | elec. | elec. | elec. | elec. |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Reverser | x | x | x | x | x |
| Type of cutting platform floating | gas damper | gas damper | gas damper | gas damper | gas damper |
| Weight with cabin | - | - | 8700 kg | 8700 kg | 8700 kg |
| Heating | - | - | x | x | x |
| Grain loss indicator | - | - | x | x | x |
