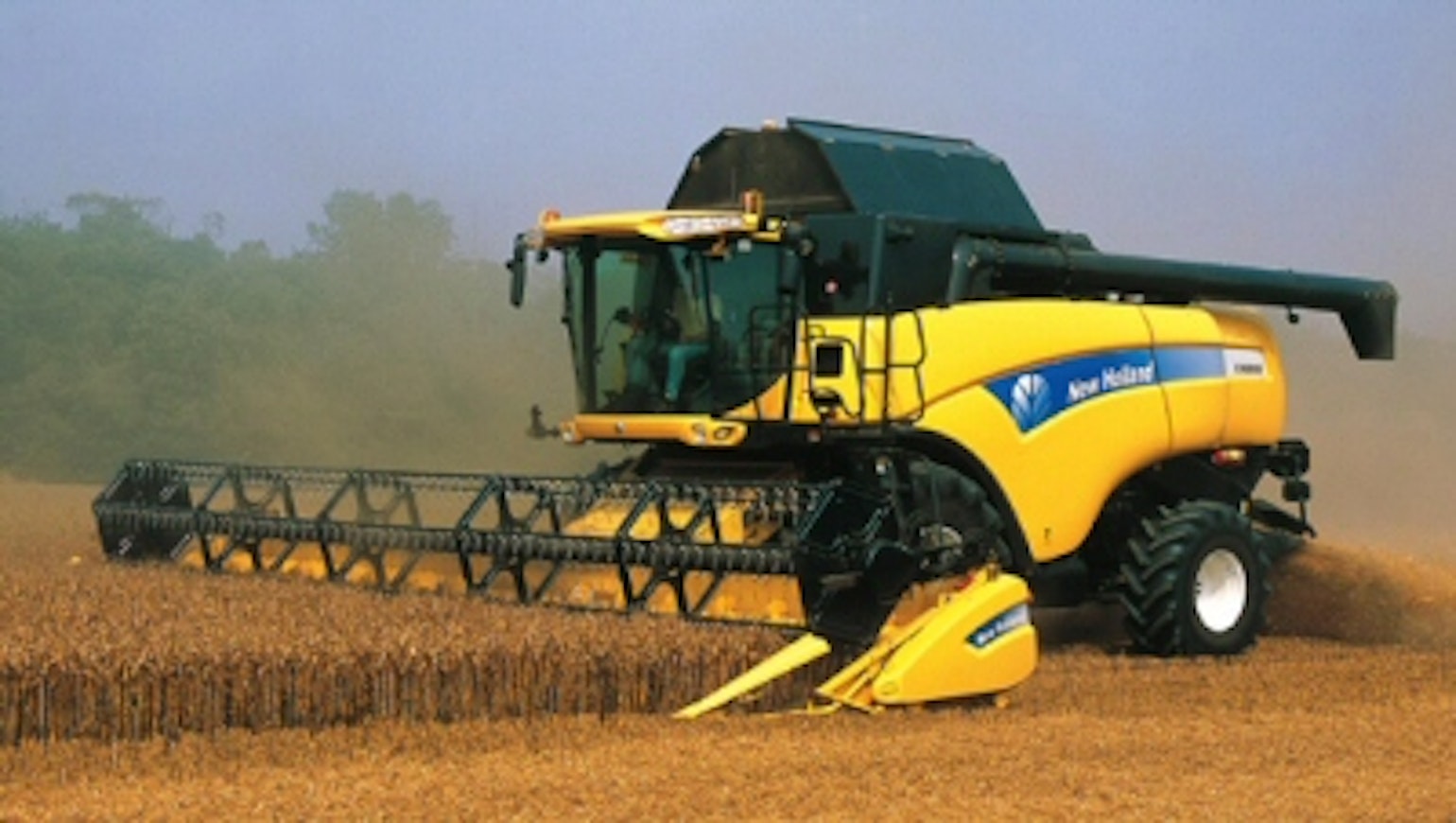

New Holland CX8040 – CX8090
Here is the English translation of your text:
In ten years, over 10,000 CX combines had been manufactured, and in autumn 2011 versions equipped with SCR engines from the CX8000 series were introduced. The largest, the 8090, had switched to a more powerful 10.3-liter engine, while the power of the other Fiat Power Technologies engines had remained roughly the same.

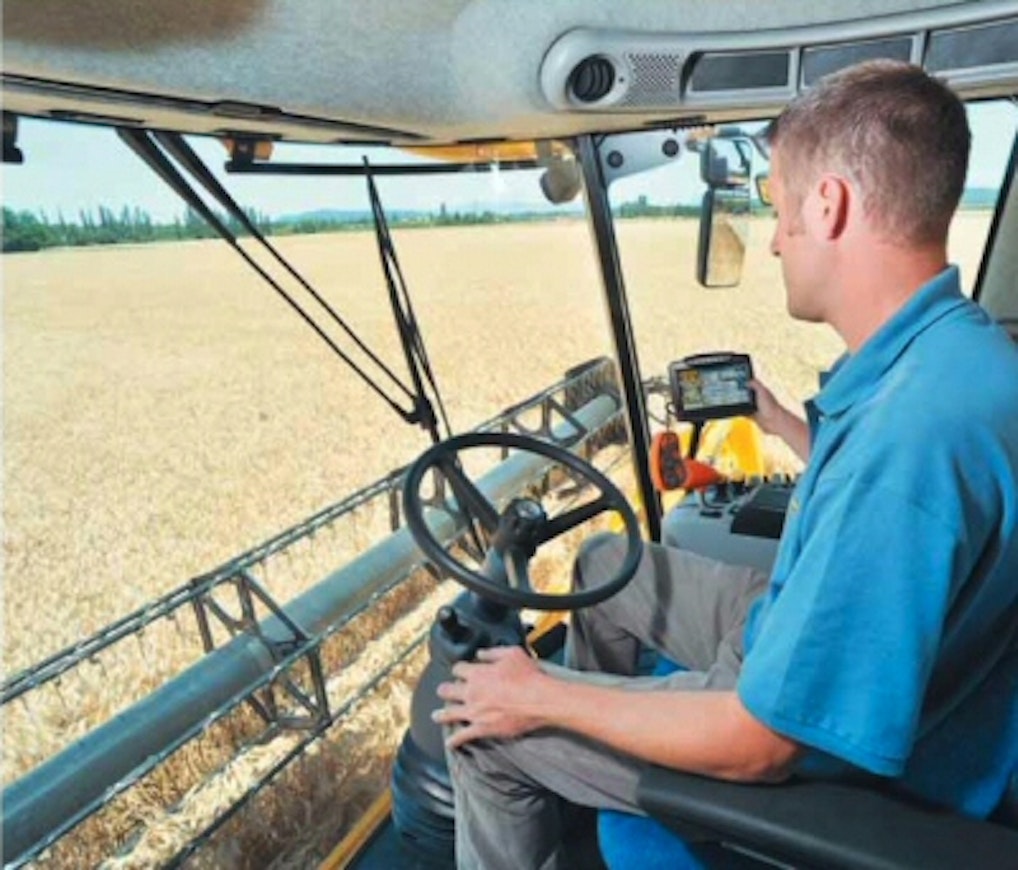

There were no significant changes in threshing technology. There were still three options for the cutting table, of which the Varifeed had a 575 mm adjustable length. The diameters of the threshing drums were 75 and 72 cm. The noise level in the cab was, depending on the model, 73–75 dB. The user interface had been updated to IntelliView III, and as an optional extra, various automatic steering functions were available, for example.
This is an automated translation. Please report any issues in the translation.
| Model | CX8040 | CX8050 | CX8070 | CX8080 | CX8090 |
|---|---|---|---|---|---|
| Options | |||||
| Imported to Finland | Yes | No | Yes | Yes | Yes |
| Years | 2012-13 | 2012-13 | 2012-13 | 2012-13 | 2012-13 |
| First year sold | 2012 | 2012 | 2012 | 2012 | 2012 |
| Last year sold | 2013 | 2013 | 2013 | 2013 | 2013 |
| Power | 299 | 326 | 326 | 360 | 449 |
| Engine | FPT | FPT | FPT | FPT | FPT |
| Engine type | Cursor 9 | Cursor 9 | Cursor 9 | Cursor 9 | Cursor 10 |
| Displacement | 8709 cm³ | 8709 cm³ | 8709 cm³ | 8709 cm³ | 10308 cm³ |
| Cyl/turbo | 6 TI | 6 TI | 6 TI | 6 TI | 6 TI |
| Power hp ISO | 299(333) | 326(367) | 326(367) | 360(401) | 449(490) |
| Fuel tank | 750+AB120 l | 750+AB120 l | 750+AB120 l | 1000+AB120 l | 1000+AB120 l |
| Transmission | hydr. | hydr. | hydr. | hydr. | hydr. |
| Gears | 4 | 4 | 4 | 4 | 4 |
| Speed min-max. | 0-30 km/h | 0-30 km/h | 0-30 km/h | 0-30 km/h | 0-30 km/h |
| Cutting width | 609 cm | 609 cm | 732 cm | 732 cm | 732 cm |
| Cutting width, alternative | 457-732 cm | 458-732 cm | 518-915 cm | 610-1067 cm | 762-1067 cm |
| Reel diameter | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm |
| Header length | 41 cm | 41 cm | 41 cm | 41 cm | 41 cm |
| Threshing cyl. diameter | 75 cm | 75 cm | 75 cm | 75 cm | 75 cm |
| 2. cyl. diameter | 72 cm | 72 cm | 72 cm | 72 cm | 72 cm |
| Threshing cyl. width | 130 cm | 130 cm | 156 cm | 156 cm | 156 cm |
| Number of straw walkers | 5 | 5 | 6 | 6 | 6 |
| Area of walkers | 556 dm² | 556 dm² | 668 dm² | 668 dm² | 668 dm² |
| Lenght of walkers | 367 cm | 367 cm | 367 cm | 367 cm | 367 cm |
| Straw shieve | 330 dm² | 330 dm² | 395 dm² | 395 dm² | 395 dm² |
| Bottom shieve | 191 dm² | 191 dm² | 228 dm² | 228 dm² | 228 dm² |
| Total screening area | 540 | 540 | 650 | 650 | 650 |
| Overall lenght | 1050 cm | 1050 cm | 1050 cm | 1050 cm | 1050 cm |
| Overall width | 654 cm | 654 cm | 777 cm | 777 cm | 777 cm |
| Width without header | 379 cm | 379 cm | 390 cm | 390 cm | 390 cm |
| Height with cabin | 398 cm | 398 cm | 398 cm | 398 cm | 398 cm |
| Weight with cabin | 17200 kg | 17600 kg | 18200 kg | 18400 kg | 18700 kg |
| Weight without header | 12580 kg | 13000 kg | 13650 kg | 13830 kg | 14140 kg |
| Grain tank | 90 hl | 90 hl | 90 hl | 105 hl | 105 hl |
| Unl. height | 442 cm | 442 cm | 442 cm | 442 cm | 442 cm |
| Tyres front (Finland) | 900/60R32 | 900/60R32 | 900/60R32 | 900/60R32 | 900/60R32 |
| Tyres front, alternative | 1050/50R32 | 1050/50R32 | 1050/50R32 | 1050/50R32 | 1050/50R32 |
| Tyres rear (Finland) | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 |
| Tyres rear, alternative | 540/65R24 | 540/65R24 | 17.5LR24 | 17.5LR24 | 17.5LR24 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | elec. | elec. | elec. | elec. | elec. |
| Threshing cyl. speed adjustment | elec. | elec. | elec. | elec. | elec. |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Reverser | x | x | x | x | x |
| Air conditioning | x | x | x | x | x |
| Heating | x | x | x | x | x |
| Grain loss indicator | x | x | x | x | x |
| Floating cutting platform | x | x | x | x | x |
| Autom. control of cutting height | x | x | x | x | x |
| Slope levelling | opt. | opt. | opt. | opt. | opt. |
| Cutting platform lateral tilt | x | x | x | x | x |
| Type of cutting platform floating | autom. | autom. | autom. | autom. | autom. |
