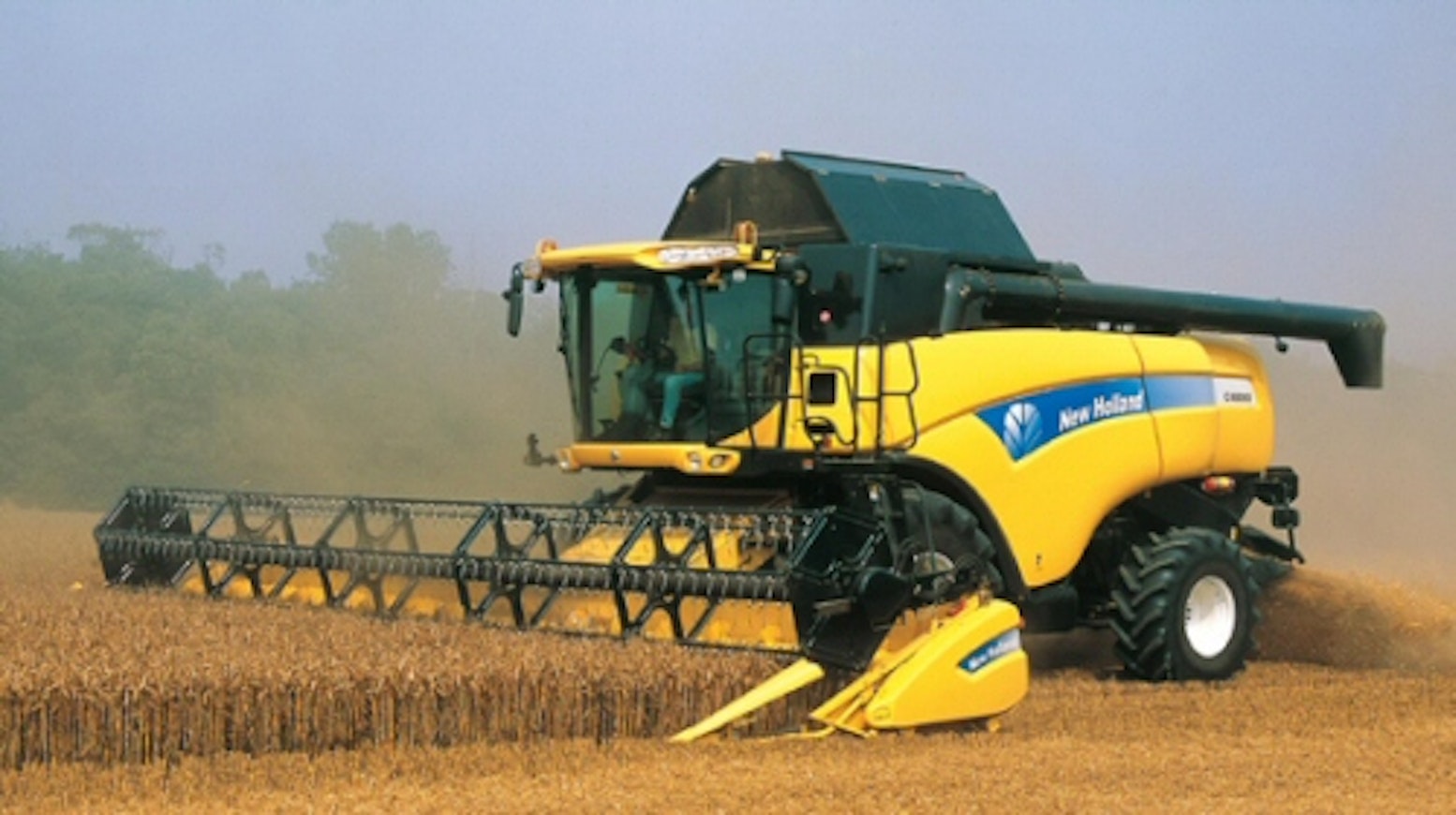

Siirry sivupalkkiinSiirry alaosaanNew Holland CX7080 – CX8090 Elevation
Manufacturer
Models
CX7080 Elevation, CX7090 Elevation, CX8070 Elevation, CX8080 Elevation, CX8090 Elevation
Years
2014-15
Info

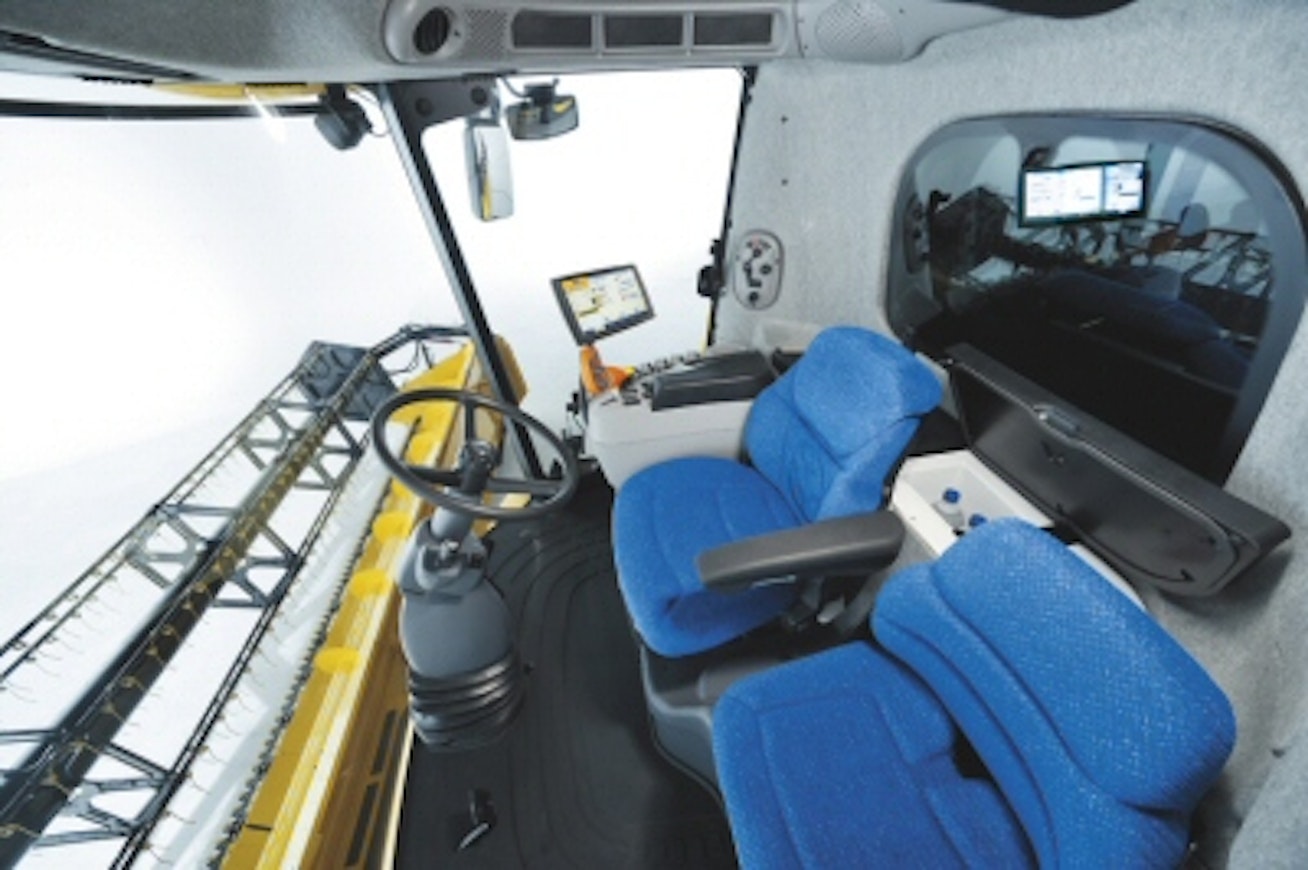

In the autumn of 2013, it was decided to rename the 5-rotor models of the CX8000 series to the CX7000 series. The grain tanks were larger in both the 7000 and 8000 series, and the unloading speed was improved by 14% to 125 liters per second, which was top of the line in the industry. The fan speed and rotor speed adjusted automatically depending on whether harvesting was done downhill or uphill. When equipped with a hillside threshing system, the shaker impact also adjusted according to the slope. A speed of 40 km/h was available as an optional feature. The touchscreen was updated to the IntelliView IV version.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | CX7080 Elevation | CX7090 Elevation | CX8070 Elevation | CX8080 Elevation | CX8090 Elevation |
|---|---|---|---|---|---|
| Imported to Finland | Yes | Yes | Yes | Yes | Yes |
| Years | 2014-15 | 2014-15 | 2014-15 | 2014-15 | 2014-15 |
| Engine | FPT | FPT | FPT | FPT | FPT |
| Engine type | Cursor 9 | Cursor 9 | Cursor 9 | Cursor 9 | Cursor 10 |
| Displacement | 8709 cm³ | 8709 cm³ | 8709 cm³ | 8709 cm³ | 10308 cm³ |
| Cyl/turbo | 6 TI | 6 TI | 6 TI | 6 TI | 6 TI |
| Power | - | - | - | - | - |
| Fuel tank | 750+AB120 l | 750+AB120 l | 750+AB120 l | 1000+AB120 l | 1000+AB120 l |
| Transmission | hydr. | hydr. | hydr. | hydr. | hydr. |
| Gears | 4 | 4 | 4 | 4 | 4 |
| Speed min-max. | 0-30 km/h | 0-30 km/h | 0-30 km/h | 0-30 km/h | 0-30 km/h |
| Cutting width | 609 cm | 609 cm | 732 cm | 732 cm | 732 cm |
| Cutting width, alternative | 518-732 cm | 518-762 cm | 518-762 cm | 610-1067 cm | 762-1067 cm |
| Reel diameter | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm |
| Header length | 41 cm | 41 cm | 41 cm | 41 cm | 41 cm |
| Threshing cyl. diameter | 75 cm | 75 cm | 75 cm | 75 cm | 75 cm |
| 2. cyl. diameter | 72 cm | 72 cm | 72 cm | 72 cm | 72 cm |
| Threshing cyl. width | 130 cm | 130 cm | 156 cm | 156 cm | 156 cm |
| Number of straw walkers | 5 | 5 | 6 | 6 | 6 |
| Area of walkers | 556 dm² | 556 dm² | 668 dm² | 668 dm² | 668 dm² |
| Lenght of walkers | 367 cm | 367 cm | 367 cm | 367 cm | 367 cm |
| Straw shieve | 330 dm² | 330 dm² | 395 dm² | 395 dm² | 395 dm² |
| Bottom shieve | 191 dm² | 191 dm² | 228 dm² | 228 dm² | 228 dm² |
| Total screening area | 540 | 540 | 650 | 650 | 650 |
| Overall lenght | 1050 cm | 1050 cm | 1050 cm | 1050 cm | 1050 cm |
| Overall width | 654 cm | 654 cm | 777 cm | 777 cm | 777 cm |
| Width without header | 379 cm | 379 cm | 403 cm | 403 cm | 403 cm |
| Height with cabin | 392 cm | 392 cm | 392 cm | 392 cm | 392 cm |
| Weight with cabin | 17200 kg | 17600 kg | 18200 kg | 18200 kg | 18700 kg |
| Weight without header | 14266 kg | 14802 kg | 15507 kg | 15538 kg | 16034 kg |
| Grain tank | 90 hl | 100 hl | 95 hl | 115 hl | 115 hl |
| Unl. height | 442 cm | 442 cm | 442 cm | 442 cm | 442 cm |
| Tyres front (Finland) | 900/60R32 | 900/60R32 | 900/60R32 | 900/60R32 | 900/60R32 |
| Tyres front, alternative | 1050/50R32 | 1050/50R32 | 1050/50R32 | 1050/50R32 | 1050/50R32 |
| Tyres rear (Finland) | 600/65R28 | 600/65R28 | 600/65R28 | 600/65R28 | 600/65R28 |
| Tyres rear, alternative | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | elec. | elec. | elec. | elec. | elec. |
| Threshing cyl. speed adjustment | elec. | elec. | elec. | elec. | elec. |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Reverser | x | x | x | x | x |
| Air conditioning | x | x | x | x | x |
| Heating | x | x | x | x | x |
| Grain loss indicator | x | x | x | x | x |
| Floating cutting platform | x | x | x | x | x |
| Autom. control of cutting height | x | x | x | x | x |
| Slope levelling | opt. | opt. | opt. | opt. | opt. |
| Cutting platform lateral tilt | x | x | x | x | x |
| Type of cutting platform floating | autom. | autom. | autom. | autom. | autom. |
