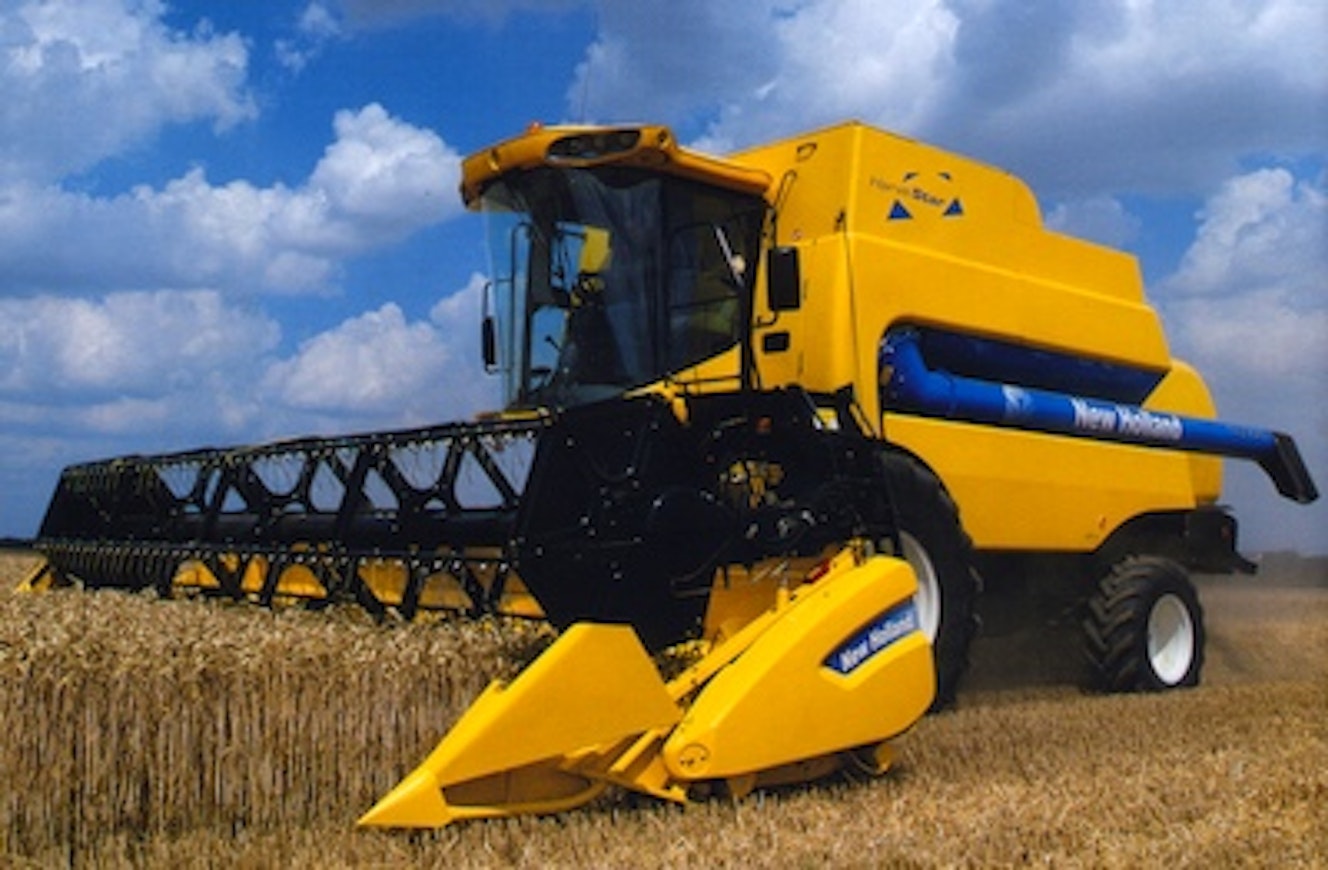

Siirry sivupalkkiinSiirry alaosaanNew Holland CSX7040 – CSX7080

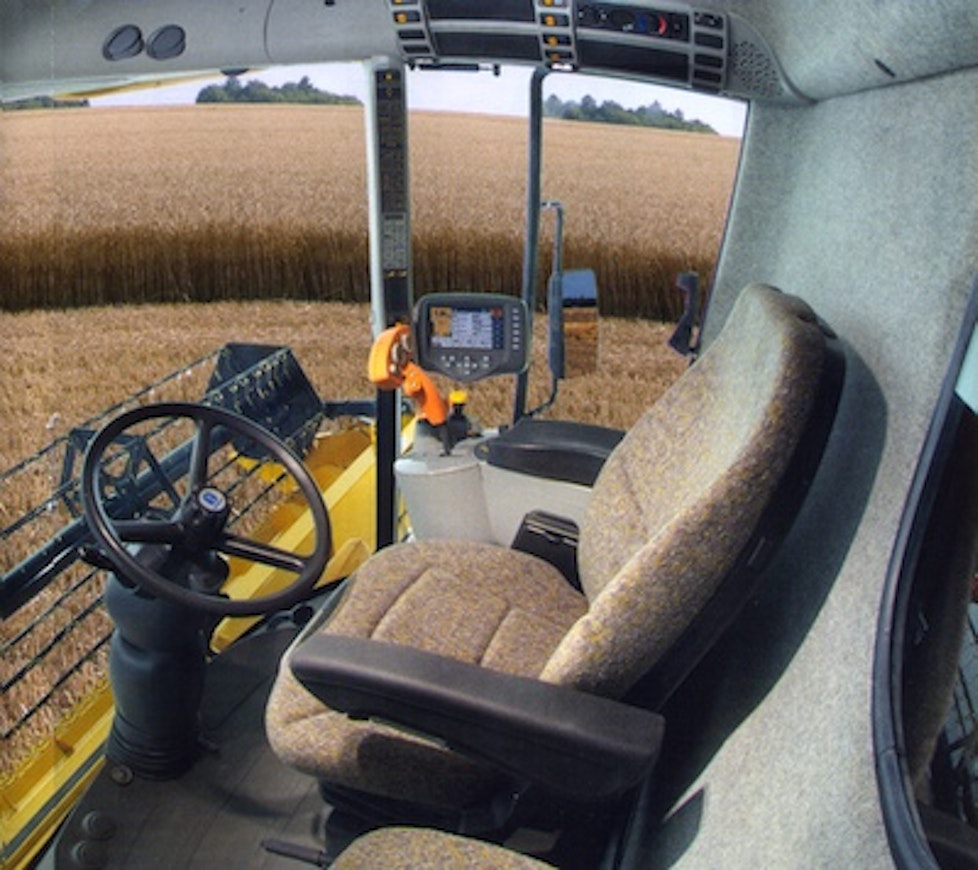

In 2006, two CSX 7000-series models, the 7060 and 7080, were introduced alongside the existing CS combines. These machines were fitted with a tilting concave and a secondary threshing reel. At that point, the CSX line was not yet offered in Finland’s import range. In 2008, all CS combines were replaced by CSX models and the lineup was extended downward. The differences between the new models and the earlier CS machines were minor. Optional equipment included the more advanced IntelliView II monitoring system, electrically adjustable sieves, an electrically adjustable threshing gap, and a VariFeed header that could be extended by 50 cm. Standard equipment for the Finnish market—except on the 7040—included the secondary threshing reel, differential lock, air-suspended operator’s seat, header tilt and flotation automation, and automatic unloading-auger speed control. The feed-elevator chains were stronger than before, and the cab noise level measured 76 dB.
This is an automated translation. Please report any issues in the translation.
| Model | CSX7040 | CSX7050 RS | CSX7060 RS | CSX7070 RS | CSX7080 RS |
|---|---|---|---|---|---|
| Imported to Finland | Yes | Yes | Yes | No | Yes |
| Years | 2008-10 | 2008-10 | 2006-10 | 2008-10 | 2006-10 |
| Engine | Iveco | Iveco | Iveco | Iveco | Iveco |
| Engine type | NEF | NEF | Cursor 9 | NEF | Cursor 9 |
| Displacement | 6728 cm³ | 6728 cm³ | 8700 cm³ | 6728 cm³ | 8700 cm³ |
| Cyl/turbo | 6 TI | 6 TI | 6 TI | 6 TI | 6 TI |
| Power | - | - | - | - | - |
| Fuel tank | 450 l | 580 l | 580 l | 580 l | 580 l |
| Transmission | hydr. | hydr. | hydr. | hydr. | hydr. |
| Gears | 3 | 3 | 3 | 3 | 3 |
| Speed min-max. | 0-25 km/h | 0-25 km/h | 0-25 km/h | 0-25 km/h | 0-25 km/h |
| Cutting width | 457 cm | 518 cm | 610 cm | 610 cm | 610 cm |
| Cutting width, alternative | 400-732 cm | 457-732 cm | 457-732 cm | 457-732 cm | 457-732 cm |
| Reel diameter | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm |
| Header length | 41 cm | 41 cm | 41 cm | 41 cm | 41 cm |
| Threshing cyl. diameter | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm |
| Threshing cyl. width | 130 cm | 130 cm | 130 cm | 156 cm | 156 cm |
| Number of straw walkers | 5 | 5 | 5 | 6 | 6 |
| Area of walkers | 578 dm² | 538 dm² | 538 dm² | 645 dm² | 645 dm² |
| Lenght of walkers | 378 cm | 345 cm | 345 cm | 345 cm | 345 cm |
| Straw shieve | 228 dm² | 228 dm² | 228 dm² | 274 dm² | 274 dm² |
| Bottom shieve | 171 dm² | 171 dm² | 171 dm² | 206 dm² | 206 dm² |
| Total screening area | 432 | 432 | 432 | 521 | 521 |
| Overall lenght | 1020 cm | 1020 cm | 1020 cm | 1020 cm | 1020 cm |
| Overall width | 501 cm | 562 cm | 654 cm | 654 cm | 654 cm |
| Height with cabin | 395 cm | 395 cm | 395 cm | 395 cm | 395 cm |
| Weight without header | 10900 kg | 11000 kg | 11000 kg | 12000 kg | 12000 kg |
| Grain tank | 70 hl | 75 hl | 75 hl | 80 hl | 90 hl |
| Unl. height | 396 cm | 396 cm | 396 cm | 425 cm | 425 cm |
| Tyres front (Finland) | 800/65R32 | 900/60R32 | 900/60R32 | 900/60R32 | 900/60R32 |
| Tyres front, alternative | 1050/50R32 | 1050/50R32 | 1050/50R32 | 1050/50R32 | 1050/50R32 |
| Tyres rear (Finland) | 460/70R24 | 500/70R24 | 500/70R24 | 500/70R24 | 500/70R24 |
| Tyres rear, alternative | 540/65R24 | 460/70R24 | 460/70R24 | 460/70R24 | 460/70R24 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | elec. | elec. | elec. | elec. | elec. |
| Threshing cyl. speed adjustment | elec. | elec. | elec. | elec. | elec. |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Reverser | x | x | x | x | x |
| Air conditioning | x | x | x | x | x |
| Heating | x | x | x | x | x |
| Grain loss indicator | x | x | x | x | x |
| Floating cutting platform | x | x | x | x | x |
| Autom. control of cutting height | opt. | x | x | x | x |
| Cutting platform lateral tilt | opt. | x | x | x | x |
| Type of cutting platform floating | autom. | autom. | autom. | autom. | autom. |
| 2. cyl. diameter | - | 59 cm | 59 cm | 59 cm | 59 cm |
| Slope levelling | - | opt. | opt. | - | opt. |
