Siirry sivupalkkiinSiirry alaosaanClaeys / Clayson M 73 – M 103

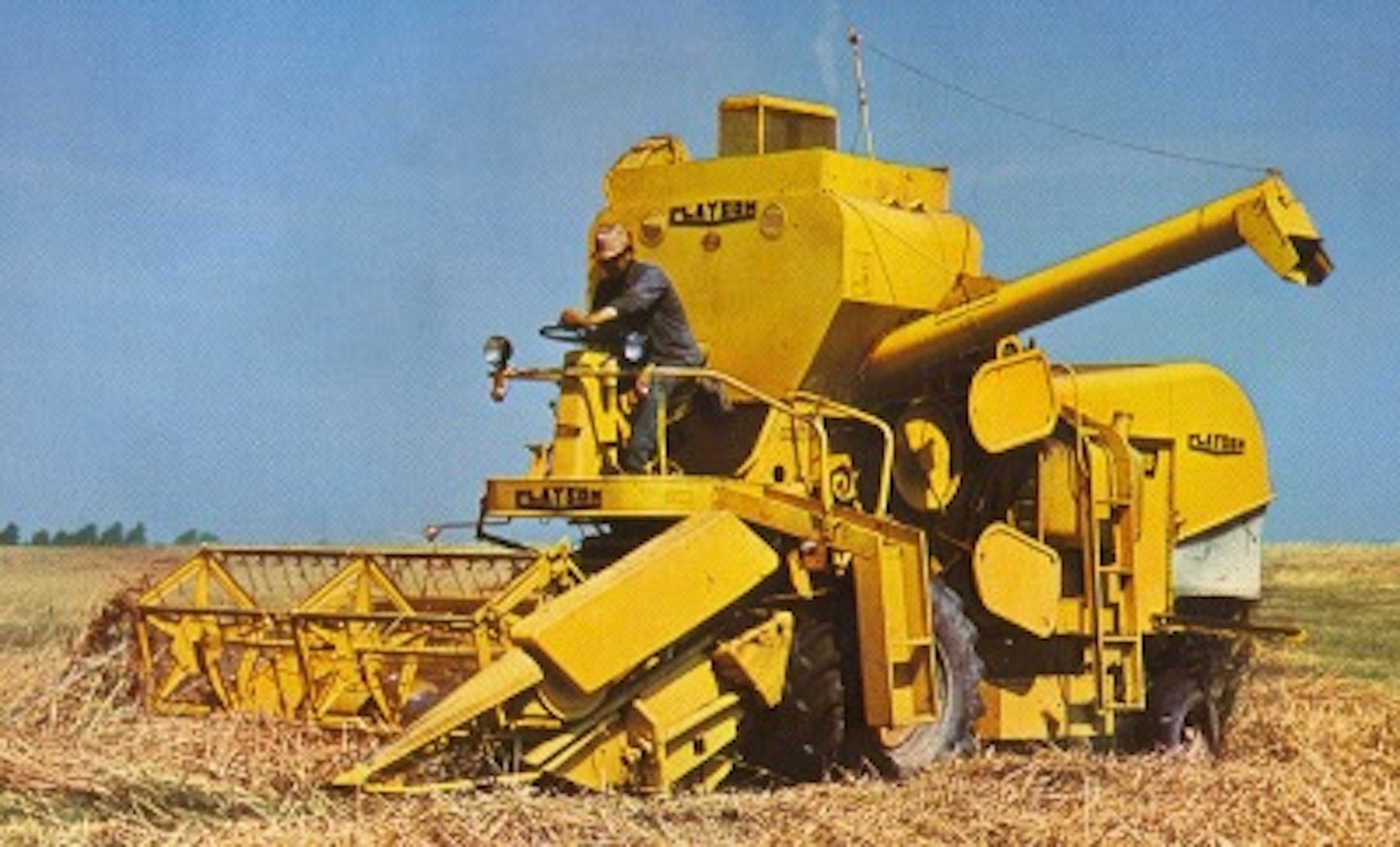

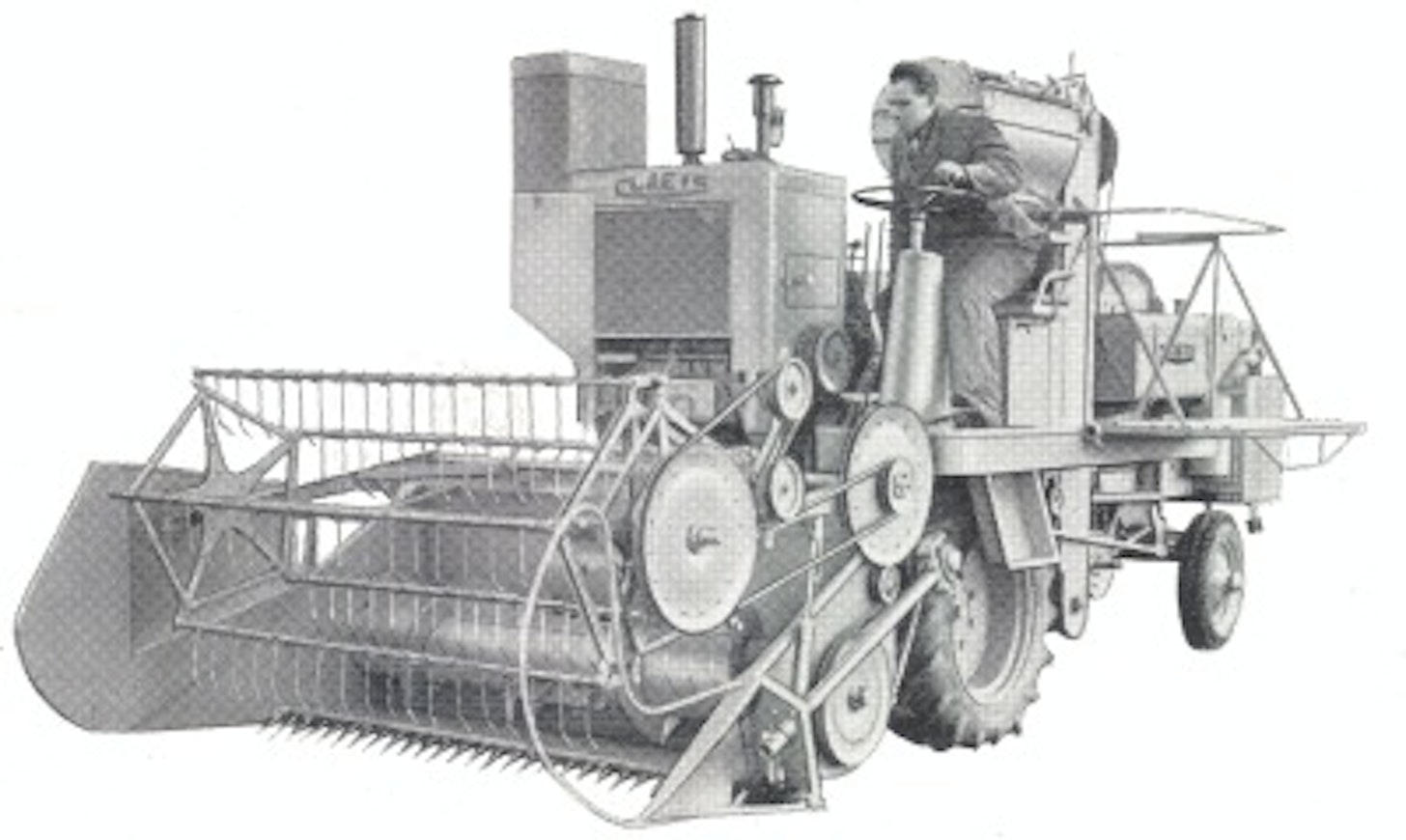

Alongside the Claeys MZ, a smaller 2.2-meter M 73 was introduced in 1956. A further developed 3.0-meter model from the late 1950s was designated M 80, and a more powerful model introduced around the turn of the 1960s was called M 103. The M 80 was equipped with a 3.6-liter engine from the Fordson Major. The M 103 used both 4- and 6-cylinder engines with power ranging from 65 to 88 hp. The cutting width of the M 103 was also 3.0 meters, but the threshing drum, sieves, and grain tank were larger. In 1965, the M 80 was replaced by the M 89, which had a slightly more powerful engine and a threshing drum housing with a more rectangular shape.
Until 1963, the brand name was Claeys; after that, it changed to Clayson. It is known that Claas filed an objection to the use of the original name. Fahr sold these models, among other places, in Germany above their own product range.
This is an automated translation. Please report any issues in the translation.
| Model | Claeys M 73 | Clayson M 80 | Clayson M 89 | Clayson M 103 | Clayson M 103 |
|---|---|---|---|---|---|
| Imported to Finland | Yes | Yes | Yes | Yes | Yes |
| Years | 1957-61 | 1959-65 | 1965-67 | 1959-65 | 1965-67 |
| Engine | Perkins / Austin | Ford | Ford | Ford | Ford |
| Engine type | P4 | 592 E | 592 E | 590 E | - |
| Cyl/turbo | 4 | 4 | 4 | 6 | 6 |
| Power | 40 bens. hp DIN | 59 SAE hp DIN | 56 (62 SAE) hp DIN | 80 hp DIN | 87 hp DIN |
| Alternative hp | 45 dies. hp | 54 SAE hp | - | 65 Ford, 78 Deutz hp | 78 Deutz hp |
| Transmission | mech. | mech. | mech. | mech. | mech. |
| Gears | 2 | 3 | 3 | 3 | 3 |
| Speed min-max. | 1,5-19,2 km/h | 1,3-19,5 km/h | 1,3-20,1 km/h | 1,3-20,0 km/h | 1,3-18,0 km/h |
| Cutting width | 220 cm | 300 cm | 300 cm | 300 cm | 300 cm |
| Threshing cyl. diameter | 60 cm | 46 cm | 46 cm | 60 cm | 60 cm |
| Threshing cyl. width | 73 cm | 103 cm | 103 cm | 103 cm | 103 cm |
| Number of straw walkers | 4 | 4 | 4 | 4 | 4 |
| Area of walkers | 213 dm² | 257 dm² | 257 dm² | 324 dm² | 340 dm² |
| Lenght of walkers | 254 cm | 250 cm | 250 cm | 315 cm | 330 cm |
| Straw shieve | 68 dm² | 132 dm² | 132 dm² | 155 dm² | 155 dm² |
| Bottom shieve | 68 dm² | 85 dm² | 85 dm² | 106 dm² | 106 dm² |
| Total screening area | 136 | 217 | 217 | 261 | 261 |
| Overall lenght | 630 cm | 750 cm | 750 cm | 880 cm | 880 cm |
| Overall width | 250 cm | 350 cm | 350 cm | 350 cm | 350 cm |
| Height without cabin | 325 cm | 370 cm | 370 cm | 395 cm | 395 cm |
| Weight without cabin | 2700 kg | 3900 kg | 4000 kg | 5300 kg | 5300 kg |
| Grain tank | 13 hl | 15 hl | 15 hl | 20 hl | 23 hl |
| Tyres front (Finland) | 10.00-24 | 16.9-26 | 16.9-26 | 18.4-30 | 18.4-30 |
| Tyres rear (Finland) | 7.00-12 | 8.50-12 | 8.50-12 | 10.00-18 | 10.00-18 |
| Reel forward/backw. adjustment | mech. | mech. | mech. | mech. | mech. |
| Threshing cyl. speed adjustment | converter | converter | converter | converter | converter |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. |
| Brakes | mech. | mech. disc | mech. disc | mech. disc | mech. disc |
| Displacement | - | 3610 cm³ | 3610 cm³ | 5415 cm³ | - |
| Cutting width, alternative | - | 260, 400 cm | 260 cm | 260, 400 cm | - |
| Tyres front, alternative | - | 14.9-26 | 14.9-26 | 14.9-26 | 16.9-26 |
| Tyres rear, alternative | - | 6.00-16 | 7.00-12 | 8.50-12 | 8.50-12 |
| Fuel tank | - | - | - | 150 l | - |
