John Deere T550 – T670
Manufacturer
Models
John Deere T550, John Deere T560, John Deere T660, John Deere T670
Years
2007-11
Info

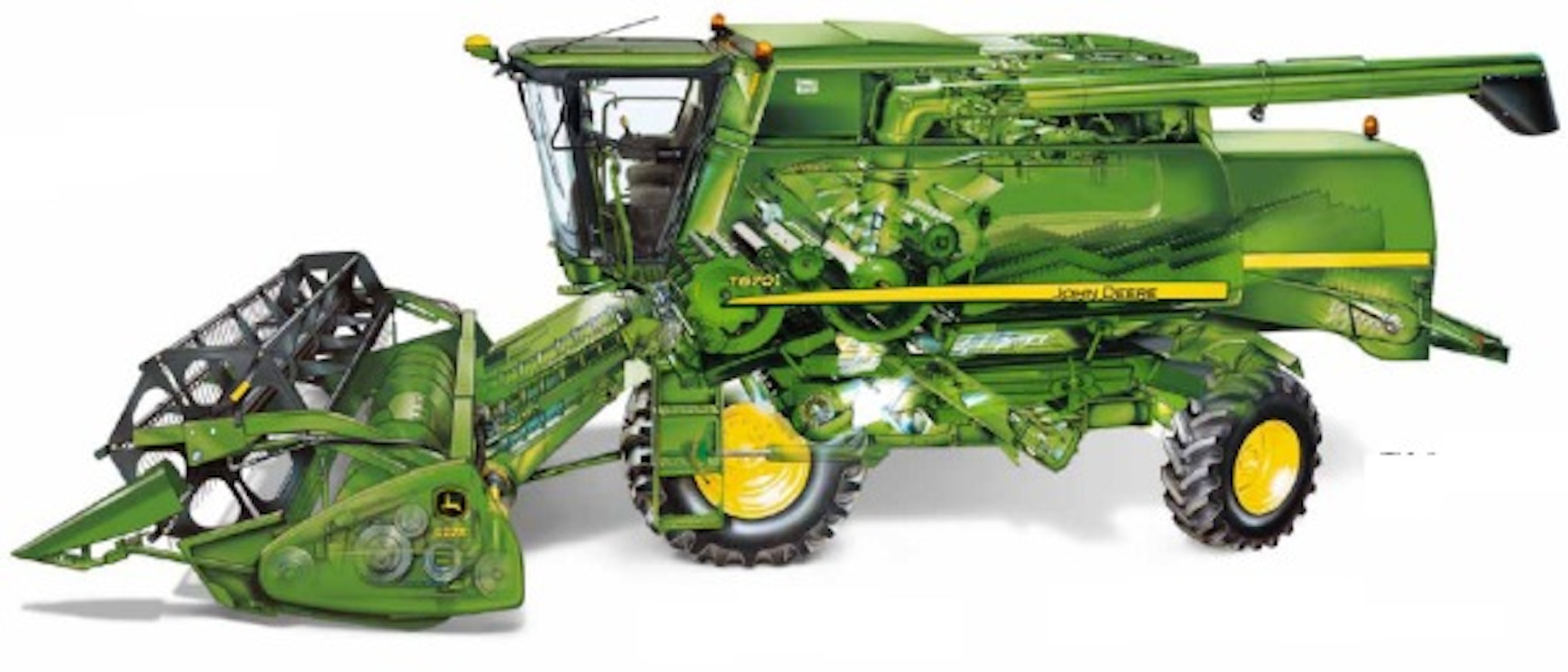

In the autumn of 2007, the largest innovation in John Deere's renewed combine harvester lineup was the T series. It was strongly based on the W series, but had a total of four reels. A special feature was the second reel, which rotated in the opposite direction compared to the other reels and transferred straw over the top to the third reel, which had a diameter of 66 cm, the same size as the front reel. The fourth reel was a similar 40-centimeter reel replacing the straw reel, as in the W series. The T series models had higher engine power than the W series.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | John Deere T550 | John Deere T560 | John Deere T660 | John Deere T670 |
|---|---|---|---|---|
| Options | ||||
| Imported to Finland | Yes | Yes | Yes | Yes |
| Years | 2007-11 | 2007-11 | 2007-11 | 2007-11 |
| First year sold | 2007 | 2007 | 2007 | 2007 |
| Last year sold | 2011 | 2011 | 2011 | 2011 |
| Power | 290 | 350 | 350 | 400 |
| Engine | JD | JD | JD | JD |
| Engine type | 6068HZ482 | 6090HZ003B | 6090HZ003B | 6090HZ003D |
| Displacement | 6788 cm³ | 8984 cm³ | 8984 cm³ | 8984 cm³ |
| Cyl/turbo | 6 TI | 6 TI | 6 TI | 6 TI |
| Power hp ISO | 290 | 350 | 350 | 400 |
| Fuel tank | 800 l | 800 l | 800 l | 800 l |
| Transmission | hydr. | hydr. | hydr. | hydr. |
| Gears | 3 | 3 | 3 | 3 |
| Speed min-max. | 0-25 km/h | 0-25 km/h | 0-25 km/h | 0-25 km/h |
| Cutting width | 550 cm | 550 cm | 610 cm | 610 cm |
| Cutting width, alternative | 430-610 cm | 430-610 cm | 670-915 cm | 670-915 cm |
| Reel diameter | 110 cm | 110 cm | 110 cm | 110 cm |
| Header length | 55-72 cm | 55-72 cm | 55-72 cm | 55-72 cm |
| Threshing cyl. diameter | 66 cm | 66 cm | 66 cm | 66 cm |
| 2. cyl. diameter | 42/66/40 cm | 42/66/40 cm | 42/66/40 cm | 42/66/40 cm |
| Threshing cyl. width | 140 cm | 140 cm | 167 cm | 167 cm |
| Number of straw walkers | 5 | 5 | 6 | 6 |
| Area of walkers | 460 dm² | 460 dm² | 550 dm² | 550 dm² |
| Lenght of walkers | 325 cm | 325 cm | 325 cm | 325 cm |
| Straw shieve | 276 dm² | 276 dm² | 332 dm² | 332 dm² |
| Bottom shieve | 208 dm² | 208 dm² | 251 dm² | 251 dm² |
| Total screening area | 484 | 484 | 583 | 583 |
| Overall lenght | 920+pöytä cm | 920+pöytä cm | 920+pöytä cm | 920+pöytä cm |
| Overall width | 589 cm | 589 cm | 656 cm | 656 cm |
| Width without header | 350 cm | 350 cm | 377 cm | 377 cm |
| Height with cabin | 388 cm | 388 cm | 396 cm | 396 cm |
| Weight without header | 12580 kg | 12890 kg | 13620 kg | 14330 kg |
| Grain tank | 80 hl | 100 hl | 110 hl | 110 hl |
| Unl. height | 404 cm | 404 cm | 420 cm | 420 cm |
| Tyres front (Finland) | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 |
| Tyres front, alternative | 650/70R32 | 650/70R32 | 650/70R32 | 650/70R32 |
| Tyres rear (Finland) | 480/80R26 | 480/80R26 | 480/80R26 | 480/80R26 |
| Tyres rear, alternative | 540/65R28 | 540/65R28 | 540/65R28 | 540/65R28 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | elec. | elec. | elec. | elec. |
| Threshing cyl. speed adjustment | hydr. | hydr. | hydr. | hydr. |
| Bottom sieve | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Reverser | x | x | x | x |
| Air conditioning | x | x | x | x |
| Heating | x | x | x | x |
| Grain loss indicator | x | x | x | x |
| Floating cutting platform | x | x | x | x |
| Autom. control of cutting height | x | x | x | x |
| Slope levelling | opt. | opt. | opt. | opt. |
| Cutting platform lateral tilt | x | x | x | x |
| Type of cutting platform floating | autom. | autom. | autom. | autom. |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
