John Deere S7 700 – S7 900

Manufacturer
Models
John Deere S7 700, John Deere S7 800, John Deere S7 850, John Deere S7 900
Years
2024-
Info

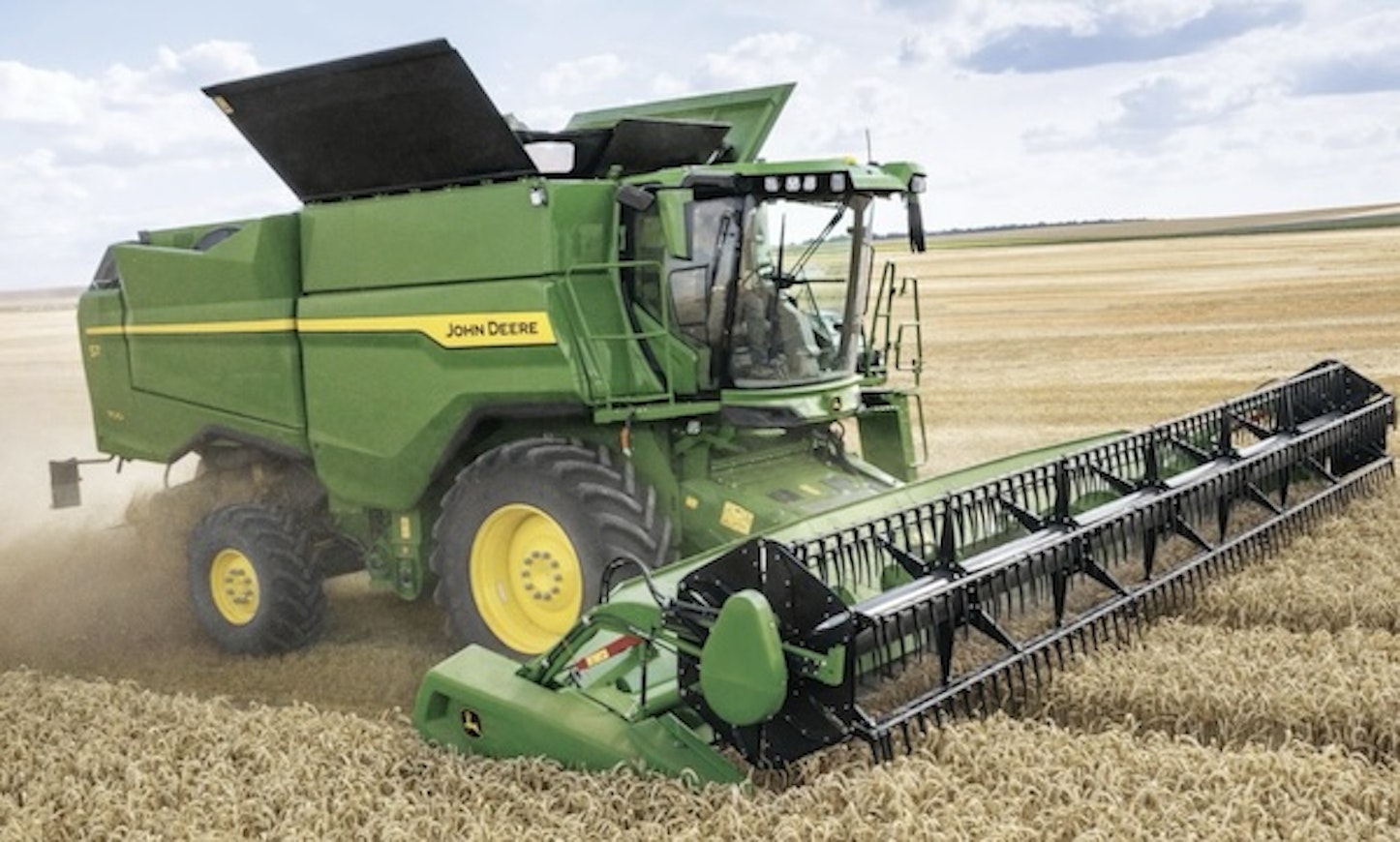

In spring 2024, the S700 series combines were replaced by the S7 series. The smallest model was dropped from the European lineup. The S7 series featured a single longitudinal cylinder as the threshing mechanism, now with a diameter of 834 mm instead of the previous 762 mm. The cylinder is divided lengthwise into three zones. The first takes care of feeding the straw mass, the middle one replaces the threshing drum, and the last one handles the rasp bars. The engines were still advanced 9- and 13.5-liter Stage V compliant models. The smallest model had slightly more power than before, and fuel consumption was promised to be 10% lower than previously. The AdBlue tank was larger than before. The Ultimate technology package included a new predictive ground speed automation, which aimed to adjust the combine’s speed based on factors such as terrain, the amount of biomass detected ahead by cameras, loss percentage, and engine load. The harvest settings automation, included in the Premium and Ultimate packages, handled adjustments of the threshing mechanism based on user-defined limits for loss, cleanliness, and damaged grains. The tank unloading rate was 150 liters per second.

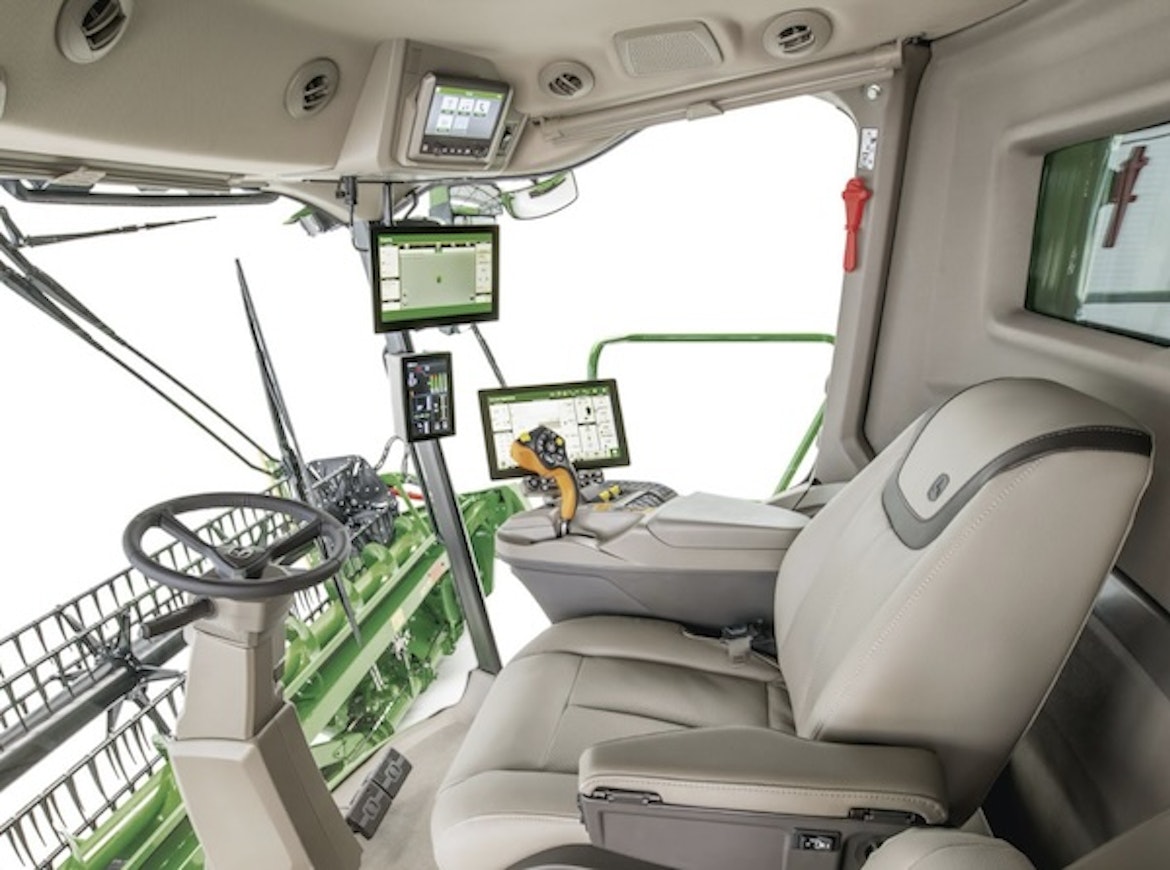

The S7 combines featured the new design and cab first introduced in the X9 series (72.8 dB) as well as a 12.8″ G5Plus display. Standard equipment included HarvestDoc crop documentation, JDLink modem, AutoTrac automatic steering, a rearview camera, and an air-suspended seat with lumbar support adjustment.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelJohn Deere S7 700John Deere S7 800John Deere S7 850John Deere S7 900
Imported to FinlandYesYesYesYes
Years2024-2024-2024-2024-
EngineJDJDJDJD
Engine type9X14X 6135HH01114X 6135HH01114X 6135HH011
Displacement8984 cm³13548 cm³13548 cm³13548 cm³
Cyl/turbo6 TI6 TI6 TI6 TI
Power----
Fuel tank950+AB74 l1155+AB74 l1155+AB74 l1155+AB74 l
Transmissionhydr.hydr.hydr.hydr.
Gears3port.port.port.
Speed min-max.0-20/30/40 km/h0-20/30/40 km/h0-20/30/40 km/h0-20/30/40 km/h
Cutting width915 cm915 cm1105 cm1105 cm
Cutting width, alternative550-760 cm550-1105 cm760-1219 cm760-1219 cm
Reel diameter110 cm110 cm110 cm110 cm
Header length40-57 cm40-57 cm40-57 cm40-57 cm
Threshing cyl. diameter83 cm83 cm83 cm83 cm
Threshing cyl. width312 cm312 cm312 cm312 cm
Number of straw walkers1 cylinder1 cylinder1 cylinder1 cylinder
Area of walkers275 dm²275 dm²275 dm²275 dm²
Total screening area590590590590
Overall lenght910+pöytä cm910+pöytä cm910+pöytä cm910+pöytä cm
Overall width799 cm799 cm799 cm799 cm
Width without header399 cm399 cm399 cm399 cm
Height with cabin404 cm404 cm404 cm404 cm
Weight without header21600 kg23100 kg23100 kg23100 kg
Grain tank106 hl141 hl141 hl141 hl
Unl. height440 cm440 cm440 cm440 cm
Tyres front (Finland)900/60R38900/60R38900/60R38900/60R38
Tyres front, alternative1250/50R321250/50R321250/50R321250/50R32
Tyres rear (Finland)750/65R26750/65R26750/65R26750/65R26
Tyres rear, alternative500/85R24500/85R24500/85R24-
Reel forward/backw. adjustmenthydr.hydr.hydr.hydr.
Reel speed adjustmentelec.elec.elec.elec.
Threshing cyl. speed adjustmentelec.elec.elec.elec.
Bottom sieveadj.adj.adj.adj.
Brakeswet discwet discwet discwet disc
Reverserxxxx
Air conditioningxxxx
Heatingxxxx
Grain loss indicatorxxxx
Floating cutting platformxxxx
Autom. control of cutting heightxxxx
Slope levellingopt.opt.opt.opt.
Cutting platform lateral tiltxxxx
Type of cutting platform floatingautom.autom.autom.autom.
