Siirry sivupalkkiinSiirry alaosaanJohn Deere 960 – 985

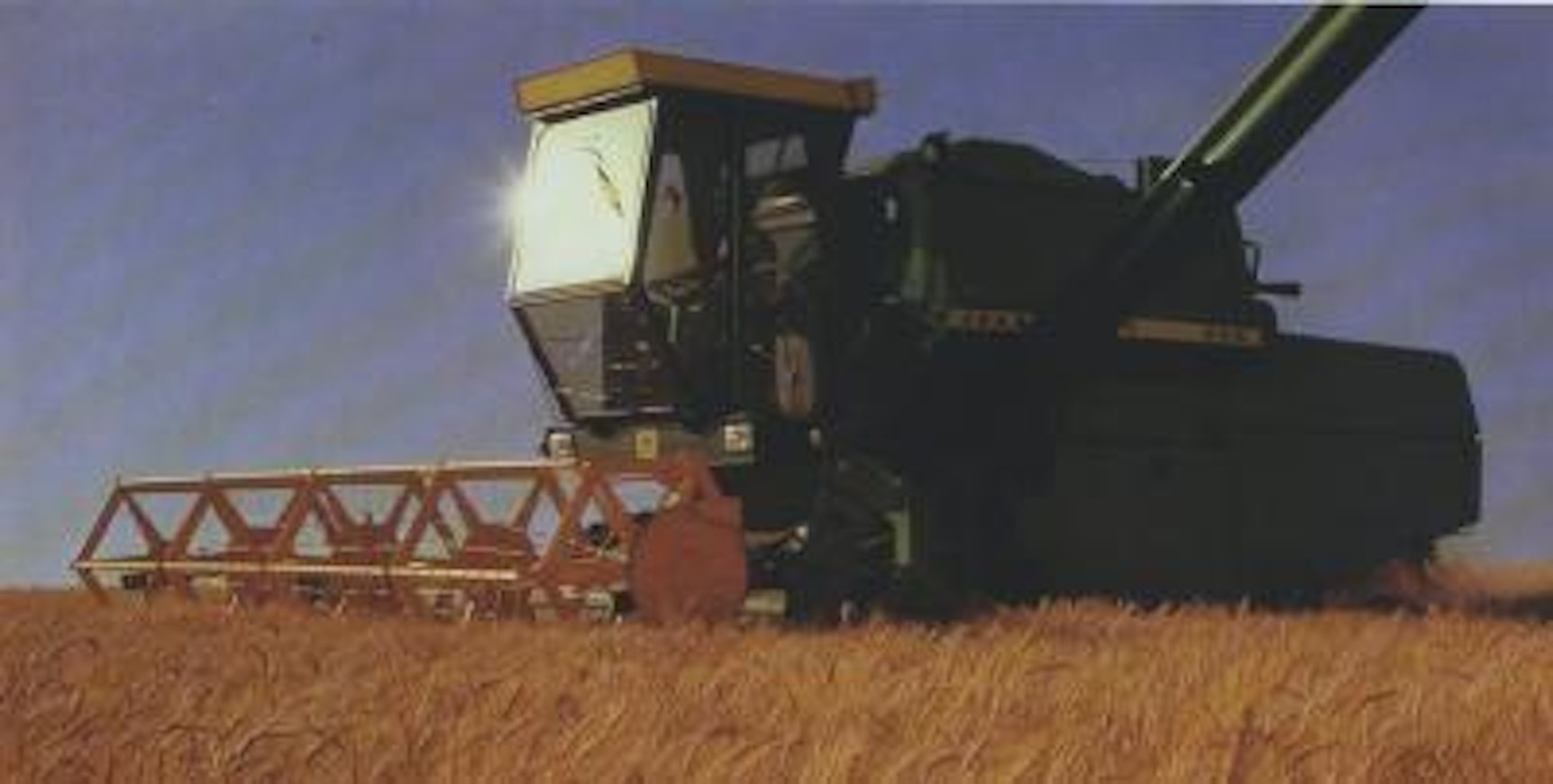

In the 900 series, JD's European combine harvester lineup expanded to include larger harvesters than before. The first hydraulically driven model was the 985 Hydro/4. The parallel model to the 965, the 968 Hydro, was not introduced in Finland. Advanced features of the model series included the Cross-Shaker, a "rake machine" that mixes straw mass on the concaves, a rotary engine air intake, and optional hydraulic adjustment of the straw walker length and the Revermatic system, which allowed for direction changes by pressing the clutch pedal deeper than usual using two clutches. The cab was also available as an option from the start. There were 10 daily lubrication points.

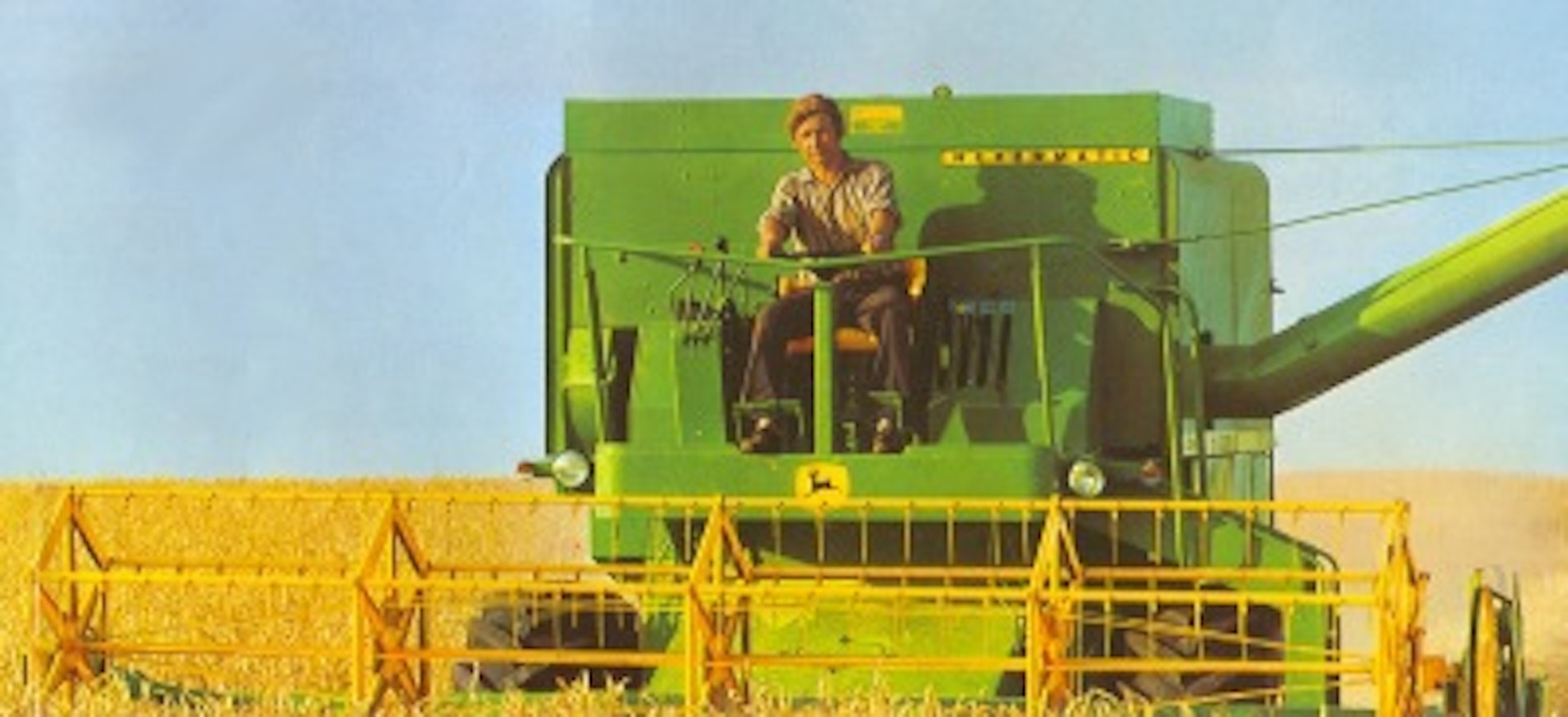

The engines of the 960 and 970 models in the 1975 machines were 5.9 liters, previously they had been 5.4 liters. For 1976, these models were replaced by the 965 and 975, which featured, among other improvements, larger sieves and more powerful engines. In 1977, a 12-degree tilt for hillside harvesting was added as an option to the 965, making it one of the first combines to have this feature.
This is an automated translation. Please report any issues in the translation.
| Model | John Deere 960 | John Deere 965 | John Deere 965 | John Deere 970 | John Deere 975 | John Deere 975 | John Deere 985 | John Deere 985 Hydro/4 |
|---|---|---|---|---|---|---|---|---|
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 1972-75 | 1975-77 | 1977-81 | 1972-75 | 1975-77 | 1977-81 | 1978-82 | 1978-82 |
| Engine | JD | JD | JD | JD | JD | JD | JD | JD |
| Engine type | 6329 DZ02 | 6359 TZ03 | 6539 TZ03 | 6329 TZ01 | 6359 TZ02 | 6539 TZ02 | 6466 TZ01 | 6466 AZ01 |
| Displacement | 5390 cm³ | 5883 cm³ | 5883 cm³ | 5390 cm³ | 5883 cm³ | 5883 cm³ | 7640 cm³ | 7640 cm³ |
| Cyl/turbo | 6 | 6 T | 6 T | 6 T | 6 T | 6 T | 6 T | 6 T |
| Power | 105 (111 SAE) hp DIN | 125 hp DIN | 125 hp DIN | 132 SAE hp DIN | 150 hp DIN | 150 hp DIN | 170 hp DIN | 195 hp DIN |
| Alternative hp | 6359 DZ01 hp | - | - | 6359 TZ01 135 hv DIN hp | - | - | - | - |
| Fuel tank | 175 l | 300 l | 300 l | 175 l | 300 l | 300 l | 300 l | 300 l |
| Transmission | mech. | mech. | mech. | mech. | mech. | mech. (hydr.) | mech. | hydr. |
| Gears | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 4 | 4 |
| Speed min-max. | 1,0-20,0 km/h | 1,2-20,0 km/h | 1,2-20,0 km/h | 1,0-20,0 km/h | 1,1-19,7 km/h | 1,1-19,7 (0-19,9) km/h | 1,1-20 km/h | 0-19,9 km/h |
| Cutting width | 365 cm | 365 cm | 425 cm | 425 cm | 425 cm | 425 cm | 485 cm | 485 cm |
| Cutting width, alternative | 305-485 cm | 305-485 cm | 305-485 cm | 305-550 cm | 305-550 cm | 365-550 cm | 550 cm | 550 cm |
| Reel diameter | 110 cm | 110 cm | 110 cm | 110 cm | 110 cm | 110 cm | 110 cm | 110 cm |
| Header length | 37 cm | 37 cm | 37 cm | 37 cm | 37 cm | 37 cm | 37 cm | 37 cm |
| Threshing cyl. diameter | 61 cm | 61 cm | 61 cm | 61 cm | 61 cm | 61 cm | 61 cm | 61 cm |
| Threshing cyl. width | 104 cm | 104 cm | 104 cm | 130 cm | 130 cm | 130 cm | 156 cm | 156 cm |
| Number of straw walkers | 4 | 4 | 4 | 5 | 5 | 5 | 6 | 6 |
| Area of walkers | 377 dm² | 377 dm² | 377 dm² | 470 dm² | 472 dm² | 472 dm² | 566 dm² | 566 dm² |
| Lenght of walkers | 365 cm | 365 cm | 365 cm | 363 cm | 365 cm | 365 cm | 365 cm | 365 cm |
| Straw shieve | 165 dm² | 193 dm² | 193 dm² | 210 dm² | 245 dm² | 245 dm² | 282 dm² | 282 dm² |
| Bottom shieve | 120 dm² | 148 dm² | 148 dm² | 153 dm² | 188 dm² | 188 dm² | 218 dm² | 218 dm² |
| Total screening area | 307 | 363 | 363 | 390 | 460 | 460 | 532 | 532 |
| Overall lenght | 790 cm | 906 cm | 906 cm | 796 cm | 906 cm | 906 cm | 892 cm | 892 cm |
| Width without header | 290 cm | 290 cm | 290 cm | 300 cm | 295 cm | 295 cm | 330 cm | 330 cm |
| Height without cabin | 315 cm | 369 cm | 369 cm | 325 cm | 369 cm | 369 cm | 396 cm | 396 cm |
| Weight without cabin | 6300 kg | 6400 kg | 7300 kg | 6780 kg | 6850 kg | 7760 kg | 9230 kg | 9230 kg |
| Grain tank | 27,1/31 hl | 39 hl | 39 hl | 28,6/33,5 hl | 42 hl | 42 hl | 42 hl | 42 hl |
| Tyres front (Finland) | 18.4-30 | 23.1-26 | 23.1-26 | 18.4-30 | 28.1-26 | 28.1-26 | 23.1-26 | 23.1-26 |
| Tyres rear (Finland) | 10.5-18 | 12.5/80-18 | 12.5/80-18 | 10.5-18 | 12.5/80-18 | 12.5/80-18 | 12.5/80-18 | 12.5/80-18 |
| Tyres rear, alternative | 7.50-16 | - | 10.5-18 | - | - | - | - | - |
| Reel forward/backw. adjustment | mech. | mech. | mech. | mech. | mech. | hydr. | hydr. | hydr. |
| Reel speed adjustment | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin |
| Threshing cyl. speed adjustment | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Type of cutting platform floating | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper |
| Height with cabin | - | 393 cm | 393 cm | - | 393 cm | 393 cm | 396 cm | 396 cm |
| Reverser | - | x | x | - | x | x | x | x |
| Overall width | - | - | 445 cm | - | - | 445 cm | 527 cm | 527 cm |
| Tyres front, alternative | - | - | 18.4-30 | - | 18.4-30 | 23.1-26 | 28.1-26 | 28.1-26 |
| Slope levelling | - | - | opt. | - | - | - | - | - |
