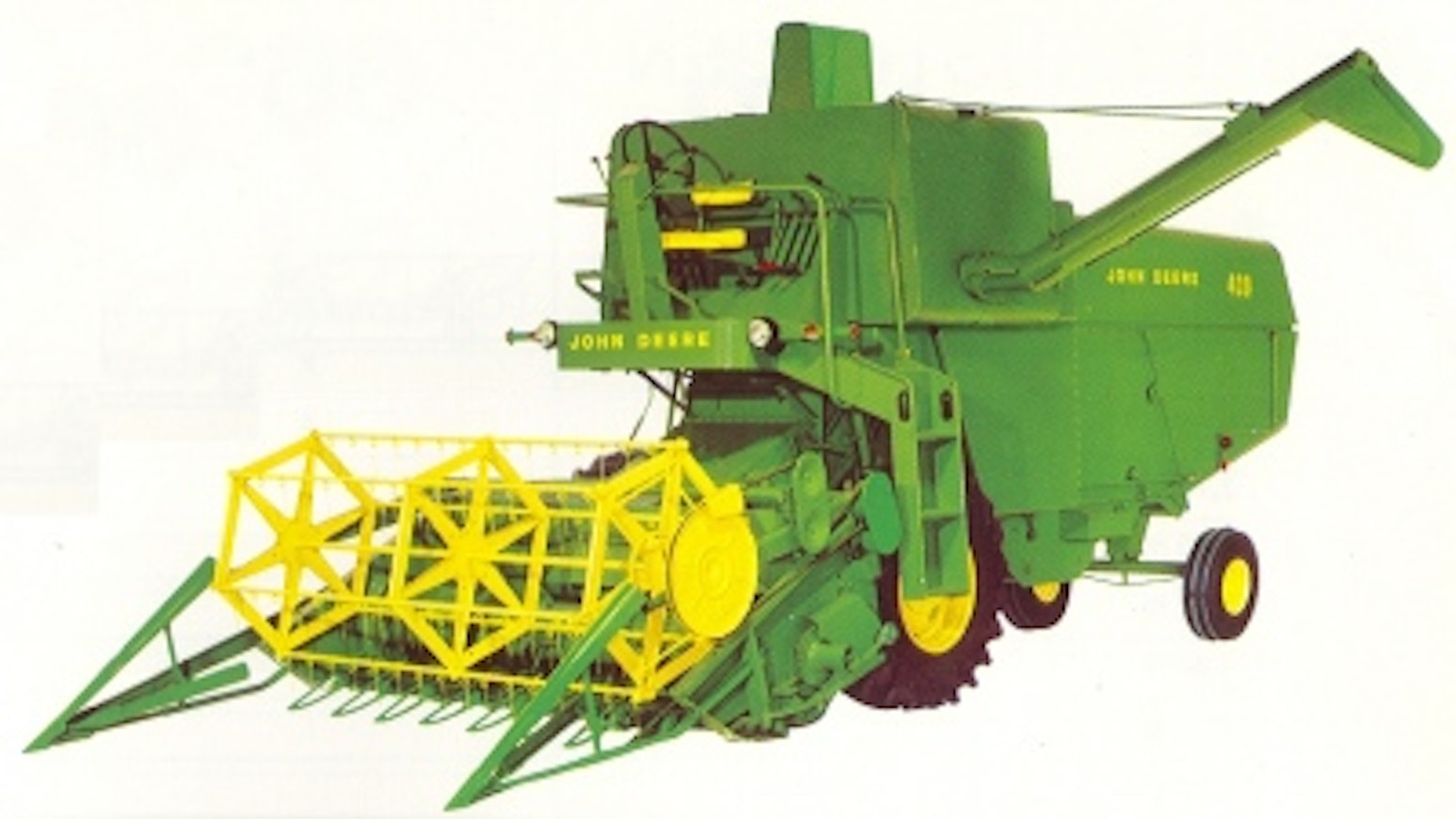

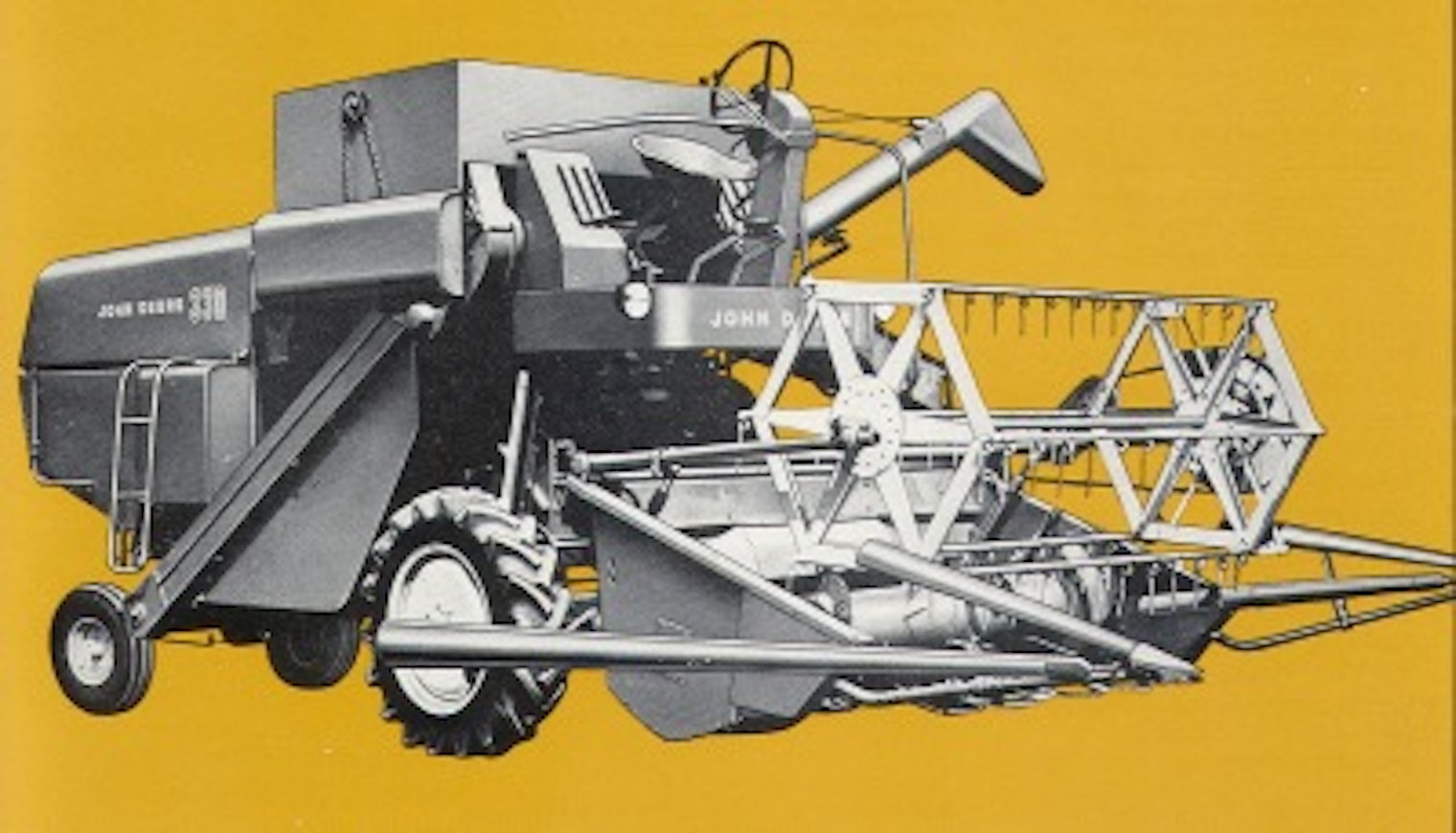

John Deere MD 330 – MD 430




After John Deere purchased Lanz, the combines were also named John Deere through an intermediate phase as John Deere Lanz. The model range introduced in 1964 initially bore the combined name, at least in the German market. The combines had low-power engines, which were now John Deere's own instead of Perkins and Mercedes. The MD 330 was available not only with a diesel engine but also with a VW industrial engine. Compared to the preceding models, the diameter of the threshing drum was significantly increased to 61 centimeters, and there were three forward gears. Power steering was available as an optional extra.
Alongside these models, at the end of the 1960s, the smallest of the previous series, the MD 150 equipped with a 175-centimeter cutting table, was still in production. Similarly, the MD 330 remained in production even after the introduction of the 900 series.
This is an automated translation. Please report any issues in the translation.
| Model | John Deere MD 330 | John Deere MD 330 | John Deere MD 430 | John Deere MD 430 |
|---|---|---|---|---|
| Imported to Finland | Yes | Yes | Yes | Yes |
| Years | 1964-69 | 1969-74 | 1964-69 | 1969-72 |
| Engine | JD | JD | JD | JD |
| Engine type | 3164 | 3164D27Z | 4219 | 4219 |
| Displacement | 2695 cm³ | 2695 cm³ | 3590 cm³ | 3590 cm³ |
| Cyl/turbo | 3 | 3 | 4 | 4 |
| Power | 47 hp DIN | 48 hp DIN | 57 hp DIN | 63-67 hp DIN |
| Alternative hp | VW bens. 42 hp | - | - | - |
| Fuel tank | 108 l | 108 l | 108 l | 108 l |
| Transmission | mech. | mech. | mech. | mech. |
| Gears | 3 | 3 | 3 | 3 |
| Speed min-max. | 1,3-16,7 km/h | 1,3-16,7 km/h | 1,4-18,6 km/h | 1,4-18,6 km/h |
| Cutting width | 260 cm | 260 cm | 300 cm | 300 cm |
| Cutting width, alternative | 210, 240 cm | 210, 240 cm | 260 cm | 260 cm |
| Reel diameter | 110 cm | 110 cm | 110 cm | 110 cm |
| Header length | 47 cm | 47 cm | 47 cm | 47 cm |
| Threshing cyl. diameter | 61 cm | 61 cm | 61 cm | 61 cm |
| Threshing cyl. width | 78 cm | 78 cm | 78 cm | 78 cm |
| Number of straw walkers | 3 | 3 | 3 | 3 |
| Area of walkers | 214 dm² | 214 dm² | 266 dm² | 266 dm² |
| Lenght of walkers | 274 cm | 274 cm | 341 cm | 341 cm |
| Straw shieve | 72 dm² | 72 dm² | 104 dm² | 104 dm² |
| Bottom shieve | 72 dm² | 72 dm² | 88 dm² | 88 dm² |
| Total screening area | 166 | 166 | 209 | 209 |
| Overall lenght | 760 cm | 760 cm | 830 cm | 830 cm |
| Overall width | 251 cm | 299 cm | 343 cm | 343 cm |
| Height without cabin | 312 cm | 292 cm | 365 cm | 299 cm |
| Weight without cabin | 3265 kg | 4050 kg | 3900 kg | 4200 kg |
| Grain tank | 14 hl | 13 (17,5) hl | 19 hl | 17 (21,5) hl |
| Tyres front (Finland) | 16.9-24 | 16.9-24 | 14.9-26 | 16.9-24 |
| Tyres front, alternative | 12.8-28 | 14.9-24 | - | 14.9-26 |
| Tyres rear (Finland) | 8.50-12 | 7.50-12 | 8.50-12 | 8.50-12 |
| Tyres rear, alternative | 7.00-12 | 8.50-12 | - | - |
| Reel forward/backw. adjustment | holes | holes | holes | holes |
| Reel speed adjustment | converter | converter | converter | converter |
| Threshing cyl. speed adjustment | chain wheels | converter | converter | converter |
| Bottom sieve | adj. | adj. | adj. | adj. |
| Brakes | mech. drum | mech. drum | mech. drum | mech. drum |
| Type of cutting platform floating | mech. spring | mech. spring | mech. spring | mech. spring |
