<p>In autumn 2007 the CTS was replaced by the C670. The engine once again delivered more power, and the companion model was the C670i, fitted with the latest automation. Otherwise the combine – which uses two separation drums in place of straw walkers – remained unchanged. As before, the alternative version was the Hillmaster, which tilts by 22%. Maximum power during unloading was 425 hp.</p>
<p>This is an automated translation. Please report any issues in the translation.</p>

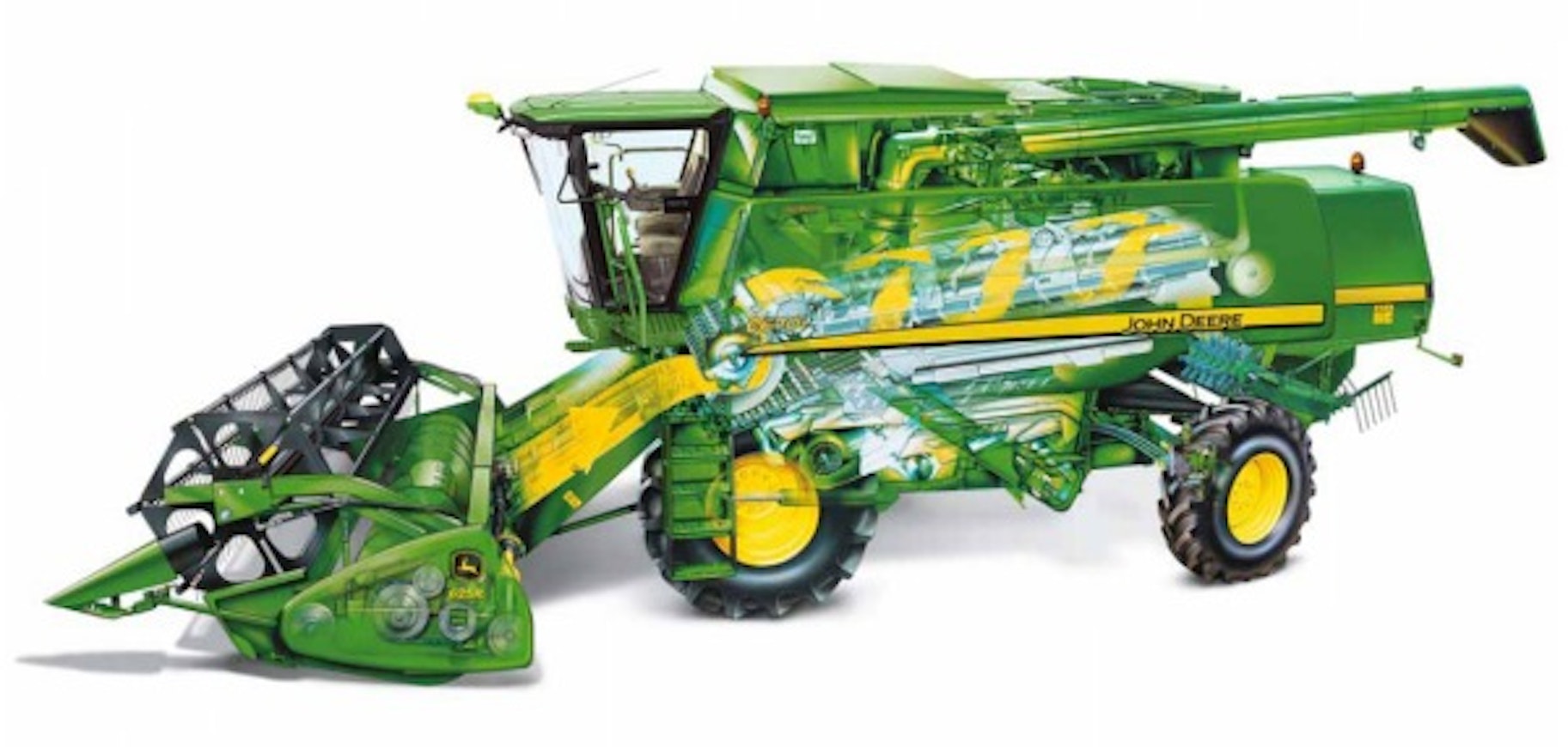

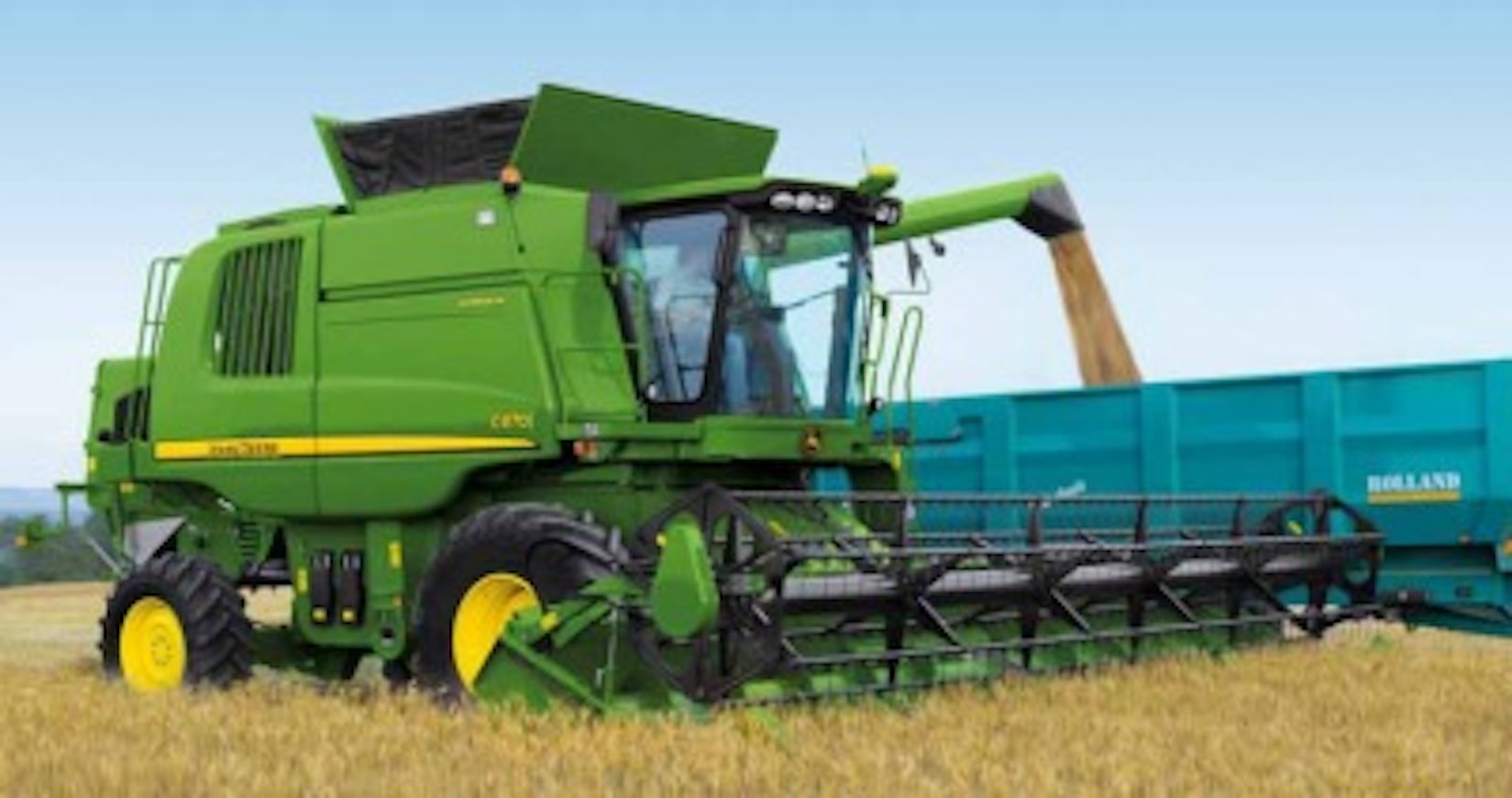

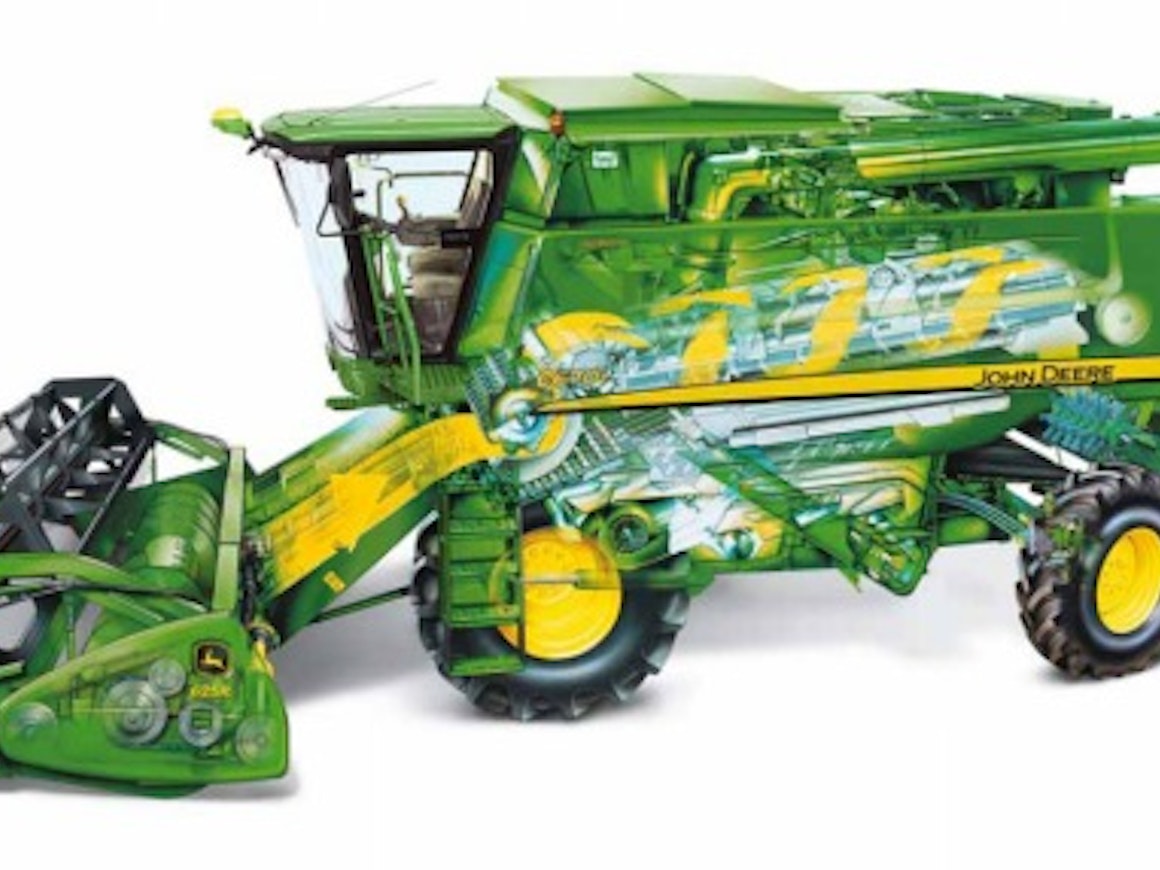

In autumn 2007 the CTS was replaced by the C670. The engine once again delivered more power, and the companion model was the C670i, fitted with the latest automation. Otherwise the combine – which uses two separation drums in place of straw walkers – remained unchanged. As before, the alternative version was the Hillmaster, which tilts by 22%. Maximum power during unloading was 425 hp.

This is an automated translation. Please report any issues in the translation.

John Deere C670

Malli

Hinta (sis. alv)

Imported to Finland

Years

First year sold

Last year sold

Power

Power speed

Engine

Engine type

Moottorin merkki ja malli

Turbo

Teho

Iskutilavuus

Sylinterien lukumäärä

Moottorin sijainti

Polttoainesäiliön tilavuus

Ajovoimansiirron tyyppi

Nopeusalueiden lukumäärä

Neliveto

Työleveys

Leikkuuleveys

Leikkuupöydän korkeuden säätö

Syöttöruuvin harjan etäisyys terän sormien kärjestä

Terän korkeus, minimi

Terän korkeus, maksimi

Leikkuupöydän korkeuden osoitin

Säätö korkeussuunnassa

Säätö pituussuunnassa

Nopeuden säätö

Puintikelojen lukumäärä

Varstojen lukumäärä

Kelojen leveys

Kelojen nopeus, maksimi

Kelojen nopeuden säätötapa

Varstasiltojen lukumäärä

Siltojen pituudet (varstojen ulkoreunasta mitaten)

Puintivälin säätö

Puintivälin toteaminen ja mittaus

Kohlimien lukumäärä

Kohlimien leveys

Kohlimien pituus

Kohlimien pinta-ala

Ruumenpinta-ala

Siemenpinta-ala

Eturaideväli

Akseliväli

Pituus kuljetusasennossa ilman pöytää

Korkeus (ylimp. kiint. pisteeseen)

Leveys, työasennossa

Leveys, kuljetusasennossa

Maavara koneen alla (minimi)

Viljasäiliön tilavuus

Viljasäiliön tilavuus lisälaidoin

Paino työkunnossa (polttoainesäiliöt täynnä)

Jarrut

Laonnostimien lukumäärä

Ruumenseulan tyyppi

Työvalojen lukumäärä

Työvalojen tyyppi

Teho, kW/Suurimman tehon kierrosluku, r/min

Suurimman tehon kierrosluku

Iskutilavuus, cm3/Sylinterien lukumäärä, kpl

Nopeus, km/h

Työleveys (jakol. kärjestä mitattuna), cm/Leikkuuleveys, cm

Terän alin...ylin taso (korkeus maasta), cm

Laonnostokelan säätöalue, r/min

Puintikela 1 halkaisija

Puintikela 2 halkaisija

Puintikela 3 halkaisija

Puintikelojen halkaisijat, cm

Puintikelojen nopeuden säätö

Varstojen 1 tehollinen pinta-ala (kaareva pituus x kelan leveys)

Varstojen 2 tehollinen pinta-ala (kaareva pituus x kelan leveys)

Varstojen 3 tehollinen pinta-ala (kaareva pituus x kelan leveys)

Varstojen teholliset pinta-alat (kaareva pit. x kelan lev.), dm2

Kohlintilan leveys x kohlinten pituus, cm

Renkaat edessä

Renkaat takana

Displacement

Esipuhdistaja

Cyl/turbo

Läpimitta (piikk.kärk.)

Power hp DIN

Power hp ISO

Alternative hp

Fuel tank

Transmission

Gears

Speed min-max.

Cutting width

Cutting width, alternative

Myynti

Takaraideväli, cm

Reel diameter

Header length

Threshing cyl. diameter

2. cyl. diameter

Threshing cyl. width

Number of straw walkers

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Lukijan kuvat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Subscribe

Paywall

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	John Deere C670
Options
Imported to Finland	Yes
Years	2007-11
First year sold	2007
Last year sold	2011
Power	400
Engine	JD
Engine type	6090HZ003D
Displacement	8984 cm³
Cyl/turbo	6 TI
Power hp ISO	400
Fuel tank	800 l
Transmission	hydr.
Gears	3
Speed min-max.	0-25 km/h
Cutting width	610 cm
Cutting width, alternative	670-915 cm
Reel diameter	110 cm
Header length	55-72 cm
Threshing cyl. diameter	66 cm
2. cyl. diameter	40 cm
Threshing cyl. width	140 cm
Number of straw walkers	2 cylinders
Overall lenght	910+pöytä cm
Overall width	649 cm
Width without header	377 cm
Height with cabin	400 cm
Weight without header	14750 kg
Grain tank	100 hl
Unl. height	404 cm
Tyres front (Finland)	800/65R32
Tyres front, alternative	650/70R32
Tyres rear (Finland)	540/65R30
Tyres rear, alternative	18.4-26
Reel forward/backw. adjustment	hydr.
Reel speed adjustment	elec.
Threshing cyl. speed adjustment	hydr.
Bottom sieve	adj.
Brakes	wet disc
Reverser	x
Air conditioning	x
Heating	x
Grain loss indicator	x
Floating cutting platform	x
Autom. control of cutting height	x
Slope levelling	opt.
Cutting platform lateral tilt	x
Type of cutting platform floating	autom.
