Gleaner

In the second-generation machines, the F2 model still had Gleaner's original threshing technology, but the M2 and L2 featured the perforated straw walkers and other changes introduced in the previous models. Only Allis turbo diesel engines were offered as power units. The M2 and L2 now came standard with axle speed monitoring. As with Gleaner, many optional extras were available, but the standard equipment was minimal. A new optional feature was a hydrostatic driven rear axle complementing the track equipment. The grain tanks of the larger models had grown noticeably. A hillside threshing version with tilting capability, the MH2, was available based on the M2.

This is an automated translation. Please report any issues in the translation.

Combines

Gleaner F2 / M2 / L2

The 1964 Gleaner A II model featured a new angular and wider grain tank, a larger grain bin, and a wider rear axle. A cab was available as an optional extra, as was hydraulic height adjustment for the unloading auger. From the 1965 models onwards, adjustable threshing drum speed was also standard.

The Super A was the equivalent red British version.

This is an automated translation. Please report any issues in the translation.

Gleaner A II / Super A

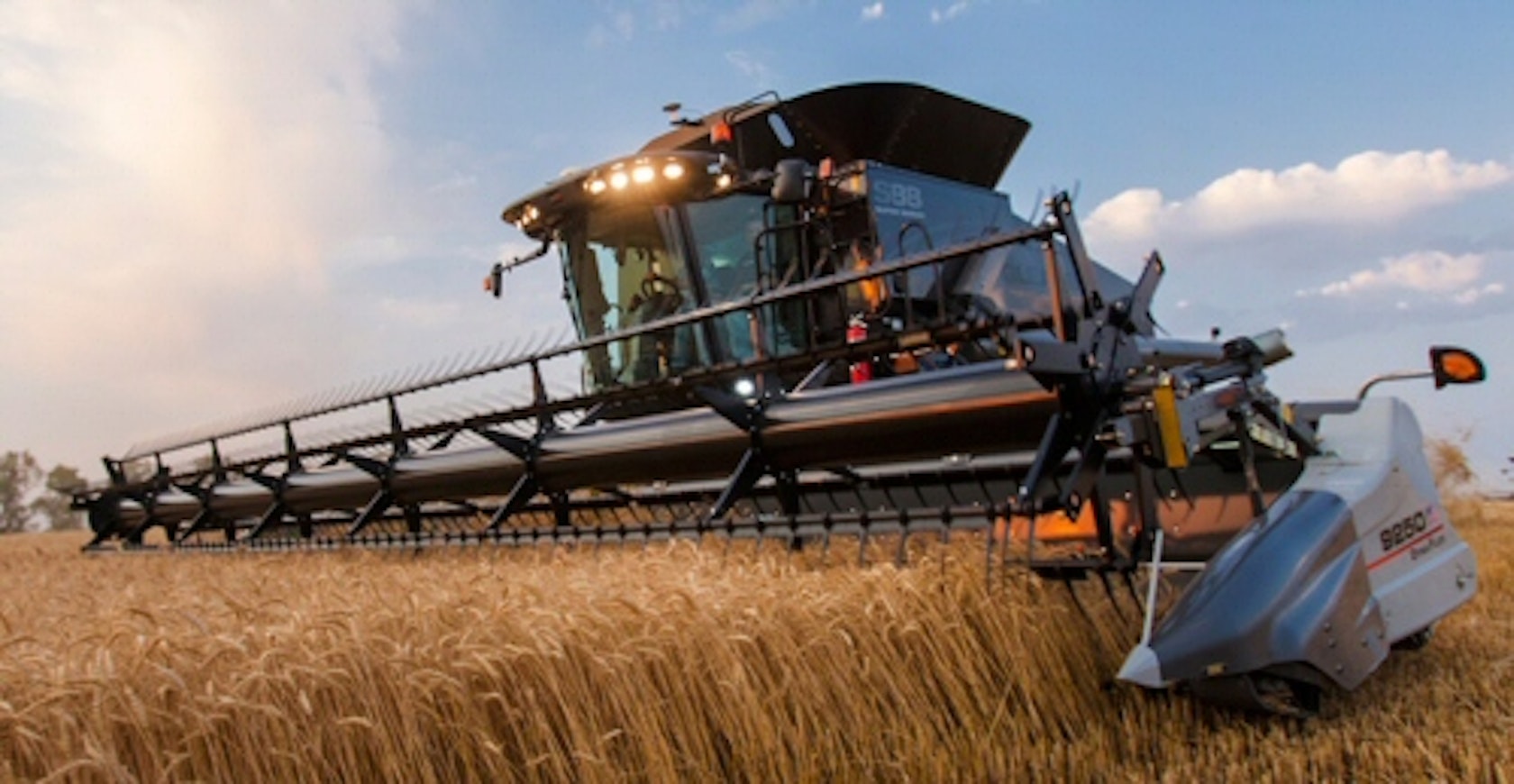

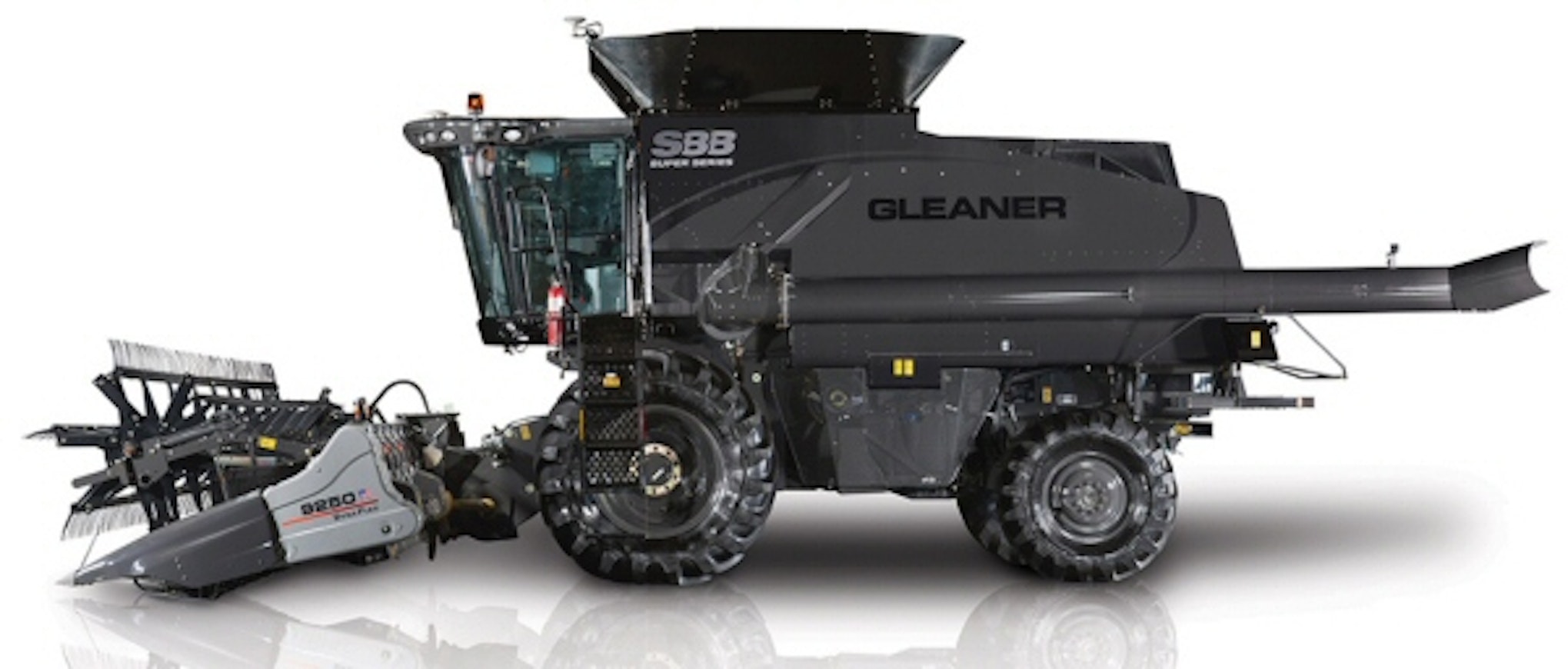

Unlike previous practices, in August 2013 Gleaner introduced a new model series alongside the existing one. The S8 Super Series was styled with rounded lines and was also available in dark gray for an additional price. The engines had more power than before. The S78 and the new S88 featured a 7-cylinder Finnish engine. The larger rotor introduced in the previous model was now supported by a more robust drive gearbox. The fuel tank was considerably larger than before.

This is an automated translation. Please report any issues in the translation.

Gleaner S68-S88

In the Super series introduced in 2010, the design of the Gleaner's rotor changed for the first time in history: the diameter was now 30 inches instead of 25 inches. Correspondingly, the diameters of the fan and accelerator drums were also increased. Despite these changes, the overall dimensions and engine power of the combine remained exactly the same as before. The 2013 models featured a massive 137-bushel grain tank as standard.

This is an automated translation. Please report any issues in the translation.

Gleaner S67-S77

In the A6 series, the changes to the A86 were minor compared to the A85. However, the smaller models received some features from the larger model, such as a 15" discharge pipe. The updated cabin utilized an ISOBUS interface. The monitor could store 20 different settings. After the A6, Gleaner once again focused exclusively on combines equipped with a transverse rotor. The same combine continued to be manufactured under the MF and Challenger brands.

This is an automated translation. Please report any issues in the translation.

Gleaner A66-A86

The R6 series Gleaners for the year 2009 were only a minor update. The engines were changed to the group's own Finnish-made engines. The headers were a new series. The diameter of the unloading pipe had increased from 12 inches to 14 inches.

This is an automated translation. Please report any issues in the translation.

Gleaner R66-R76

In spring 2007 Gleaner introduced its A5-series combines. These were MF’s longitudinal-rotor combines, originally derived from White. The same machine, built at the Hesston plant, was now sold in North America under the MF, Challenger, and Gleaner brands. The smaller models were powered by SisuDiesel engines, while the largest used a 13-litre Caterpillar. The A85 was more powerful than any previous Gleaner combine. It featured a 15″ unloading auger instead of the smaller models’ 12″ and offered nearly double the unloading rate.

This is an automated translation. Please report any issues in the translation.

Gleaner A65-A85

More from this manufacturer

Gleaner S68

malli

hinta (sis. alv)

Imported to Finland

Years

Engine

Engine type

moottorin merkki ja malli

turbo

teho

iskutilavuus

sylinterien lukumäärä

moottorin sijainti

polttoainesäiliön tilavuus

ajovoimansiirron tyyppi

nopeusalueiden lukumäärä

neliveto

työleveys

leikkuuleveys

leikkuupöydän korkeuden säätö

syöttöruuvin harjan etäisyys terän sormien kärjestä

terän korkeus, minimi

terän korkeus, maksimi

leikkuupöydän korkeuden osoitin

säätö korkeussuunnassa

säätö pituussuunnassa

nopeuden säätö

puintikelojen lukumäärä

varstojen lukumäärä

kelojen leveys

kelojen nopeus, maksimi

kelojen nopeuden säätötapa

varstasiltojen lukumäärä

siltojen pituudet (varstojen ulkoreunasta mitaten)

puintivälin säätö

puintivälin toteaminen ja mittaus

kohlimien lukumäärä

kohlimien leveys

kohlimien pituus

kohlimien pinta-ala

ruumenpinta-ala

siemenpinta-ala

eturaideväli

akseliväli

pituus kuljetusasennossa ilman pöytää

korkeus (ylimp. kiint. pisteeseen)

leveys, työasennossa

leveys, kuljetusasennossa

maavara koneen alla (minimi)

viljasäiliön tilavuus

viljasäiliön tilavuus lisälaidoin

paino työkunnossa (polttoainesäiliöt täynnä)

jarrut

laonnostimien lukumäärä

ruumenseulan tyyppi

työvalojen lukumäärä

työvalojen tyyppi

teho, kw/suurimman tehon kierrosluku, r/min

suurimman tehon kierrosluku

iskutilavuus, cm3/sylinterien lukumäärä, kpl

nopeus, km/h

työleveys (jakol. kärjestä mitattuna), cm/leikkuuleveys, cm

terän alin...ylin taso (korkeus maasta), cm

laonnostokelan säätöalue, r/min

puintikela 1 halkaisija

puintikela 2 halkaisija

puintikela 3 halkaisija

puintikelojen halkaisijat, cm

puintikelojen nopeuden säätö

varstojen 1 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 2 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 3 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen teholliset pinta-alat (kaareva pit. x kelan lev.), dm2

kohlintilan leveys x kohlinten pituus, cm

renkaat edessä

renkaat takana

Displacement

esipuhdistaja

Cyl/turbo

läpimitta (piikk.kärk.)

Power

Alternative hp

Fuel tank

Transmission

Gears

Speed min-max.

Cutting width

Cutting width, alternative

myynti

takaraideväli, cm

Reel diameter

Header length

Threshing cyl. diameter

2. cyl. diameter

Threshing cyl. width

Number of straw walkers

Area of walkers

Lenght of walkers

Straw shieve

päästöluokka

Gleaner S78

Gleaner S88

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Gleaner S68	Gleaner S78	Gleaner S88
Imported to Finland	No	No	No
Years	2013-	2013-	2013-
Engine	Agco	Agco	Agco
Engine type	84AWF	98AWF	98AWF
Displacement	8368 cm³	9763 cm³	9763 cm³
Cyl/turbo	6TI	7TI	7TI
Power	322(398) hp DIN	375(451) hp DIN	430(471) hp DIN
Fuel tank	871+AB93 l	871+AB93 l	871+AB93 l
Transmission	hydr.	hydr.	hydr.
Gears	4	4	4
Cutting width	760 cm	760 cm	760 cm
Cutting width, alternative	600-1060 cm	600-1060 cm	600-1060 cm
Threshing cyl. diameter	76 cm	76 cm	76 cm
Threshing cyl. width	224 cm	224 cm	224 cm
Number of straw walkers	1 rotor	1 rotor	1 rotor
Area of walkers	389 dm²	389 dm²	389 dm²
Straw shieve	251 dm²	251 dm²	251 dm²
Bottom shieve	219 dm²	219 dm²	219 dm²
Total screening area	499	499	499
Overall lenght	861+pöytä cm	861+pöytä cm	861+pöytä cm
Width without header	388 cm	396 cm	396 cm
Height with cabin	358 cm	358 cm	358 cm
Weight without header	14479 kg	14615 kg	14615 kg
Grain tank	137.4 hl	137.4 hl	137.4 hl
Unl. height	471 cm	471 cm	471 cm
Reel forward/backw. adjustment	hydr.	hydr.	hydr.
Reel speed adjustment	hydr.	hydr.	hydr.
Threshing cyl. speed adjustment	gears+hydr.	gears+hydr.	gears+hydr.
Bottom sieve	adj.	adj.	adj.
Brakes	wet disc	wet disc	wet disc
Reverser	x	x	x
Air conditioning	x	x	x
Heating	x	x	x
Grain loss indicator	x	x	x
Floating cutting platform	x	x	x
Autom. control of cutting height	x	x	x
Type of cutting platform floating	hydr.	hydr.	hydr.
