Gleaner S67-S77
Manufacturer
Models
Gleaner S67, Gleaner S77
Years
2011-
Info

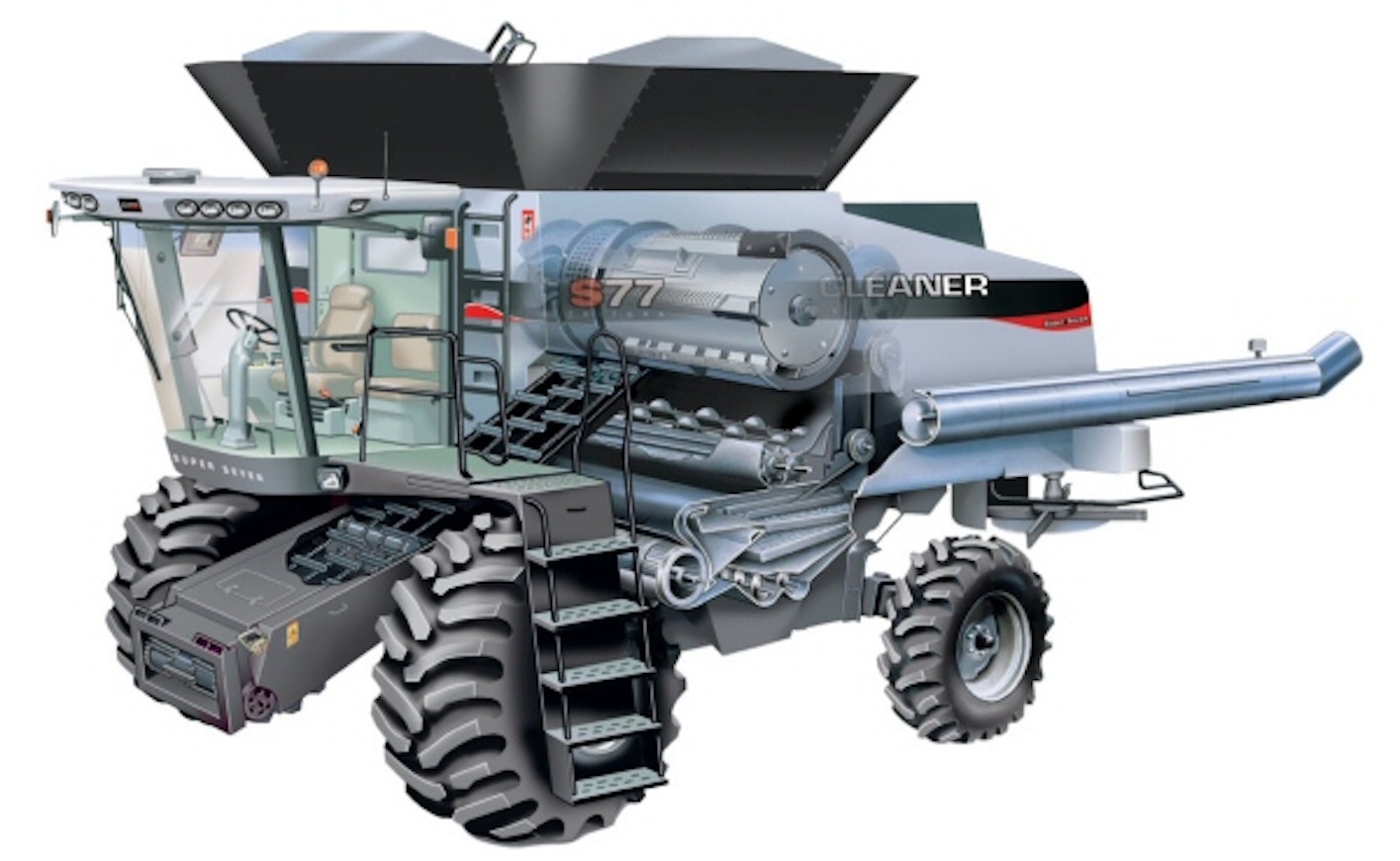

In the Super series introduced in 2010, the design of the Gleaner's rotor changed for the first time in history: the diameter was now 30 inches instead of 25 inches. Correspondingly, the diameters of the fan and accelerator drums were also increased. Despite these changes, the overall dimensions and engine power of the combine remained exactly the same as before. The 2013 models featured a massive 137-bushel grain tank as standard.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Gleaner S67 | Gleaner S77 |
|---|---|---|
| Options | ||
| Imported to Finland | No | No |
| Years | 2011- | 2011- |
| First year sold | 2011 | 2011 |
| Power | 314 | 370 |
| Engine | Agco | Agco |
| Engine type | 84CWA/AWI | 84CWA/AWI |
| Displacement | 8368 cm³ | 8368 cm³ |
| Cyl/turbo | 6TI | 6TI |
| Power hp DIN | 314 | 370 |
| Fuel tank | 568+AB109 l | 568+AB109 l |
| Transmission | hydr. | hydr. |
| Gears | 4 | 4 |
| Speed min-max. | 0-33,7 km/h | 0-33,7 km/h |
| Cutting width | 760 cm | 760 cm |
| Cutting width, alternative | 600-1060 cm | 600-1060 cm |
| Threshing cyl. diameter | 76 cm | 76 cm |
| Threshing cyl. width | 224 cm | 224 cm |
| Number of straw walkers | 1 rotor | 1 rotor |
| Area of walkers | 389 dm² | 389 dm² |
| Straw shieve | 251 dm² | 251 dm² |
| Bottom shieve | 219 dm² | 219 dm² |
| Total screening area | 499 | 499 |
| Overall lenght | 861+pöytä cm | 861+pöytä cm |
| Width without header | 388 cm | 396 cm |
| Height with cabin | 358 cm | 358 cm |
| Weight without header | 13490 kg | 13490 kg |
| Grain tank | 105,7 (137,4) hl | 116,3 (137,4) hl |
| Unl. height | 471 cm | 471 cm |
| Reel forward/backw. adjustment | hydr. | hydr. |
| Reel speed adjustment | hydr. | hydr. |
| Threshing cyl. speed adjustment | gears+hydr. | gears+hydr. |
| Bottom sieve | adj. | adj. |
| Brakes | wet disc | wet disc |
| Reverser | x | x |
| Air conditioning | x | x |
| Heating | x | x |
| Grain loss indicator | x | x |
| Floating cutting platform | x | x |
| Autom. control of cutting height | x | x |
| Type of cutting platform floating | hydr. | hydr. |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
