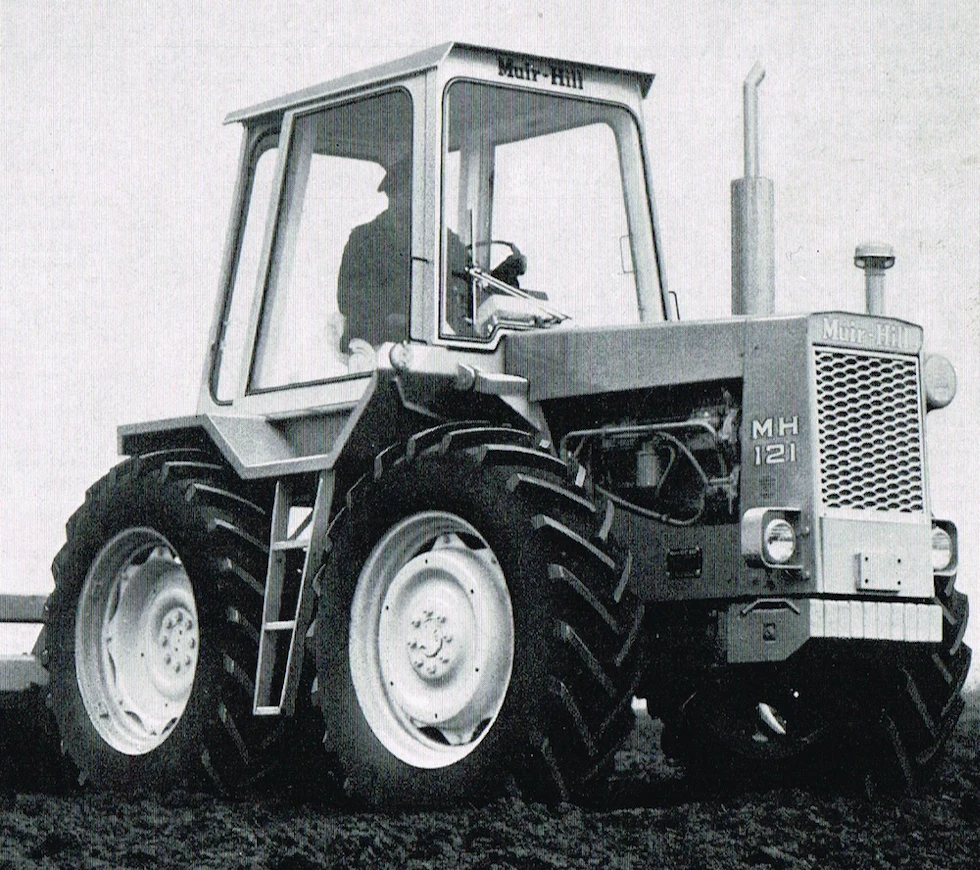

Muir-Hill 111-171
The most significant improvement of the Muir-Hill Series II models introduced in 1972 was the much improved, flat-floor cabin. There were sliding doors on both sides and large window surfaces.
As before, the Muir-Hills had a front axle with a central axle, gear lock and brakes, four equal-sized wheels and a reinforced Ford 8+2 transmission. The smallest model was now the 111 with a Perkins six-cylinder. The previous 101 with a Ford engine had been replaced by the 121, whose model designation corresponded to the increased power. The fuel tank was larger. The Dual Power quick gearbox was not available until the end of the Series II range.
In 1975, the 161 was replaced by the slightly more powerful 171. Instead of the rare Perkins V8.510, the engine was now the more common 8.8-liter V8.540. Unlike its predecessor, there was only one exhaust pipe. The wheelbase was increased by 22 cm. The cab was now a redesigned white Series II, almost similar to the smaller models.
| Modell | Muir-Hill 111 | Muir-Hill 121 | Muir-Hill 171 |
|---|---|---|---|
| Produktnahme | Muir-Hill | Muir-Hill | Muir-Hill |
| Importiert nach Finnland | Nein | Ja | Nein |
| Baujahre | 1972-78 | 1972-78 | 1975-78 |
| Erstes Verkaufsjahr | 1972 | 1972 | 1975 |
| Letztes Verkaufsjahr | 1978 | 1978 | 1978 |
| Motortyp | 6.354 | 2715E | V8.540 |
| Zylinderanzahl/Turbo/Ladeluftkühlung | 6 | 6 | 6 |
| Hubraum cm3 | 5797 cm³ | 6220 cm³ | 8834 cm³ |
| Zyl. Bohrung x Länge mm | 98,4x127 mm | 107x114,9 mm | 108x120,7 mm |
| Nennleistung PS/U/min DIN | 110 hp DIN/rpm | 120/2500 hp DIN/rpm | 170/2500 hp DIN/rpm |
| Drehmoment Nm/ U/min | 376/1400 Nm/rpm DIN | 378/1600 Nm/rpm DIN | - |
| Gänge | 8+2 | 8+2 | 10+2 |
| Kriechgang | option | option | - |
| Nenngeschwindigkeiten | 2,9-30,7 | 2,9-30,7 | 4,3-32,4 |
| Hydraulikleistung l/min | 27,3/41,6 l/min | 27,3/41,6 l/min | 66,4 l/min |
| Hydraulikdruck bar | 172/179 bar | 172/182 bar | - |
| Hubwerk | mech. | mech. | mech. |
| Hubkraft kg | 2990 kg | 2990 kg | - |
| Zapfwelle U/min | 540/770 (1000) | 540/770 (1000) | 540/1000 |
| Bremsen | wet disc | wet disc | wet disc |
| Lenkung | hydrost. | hydrost. | hydrost. |
| Wendekreis Durchm. m Allradantrieb | 9,47 | 10,08 | 11,42 |
| Bereifung vorn (Allrad) | - | - | - |
| Bereifung hinten (Allrad) | 13.6/12-38 | 13.6/12-38 | 13.6-38 |
| Gewicht kg Allradantrieb | 4854 kg | 4854 kg | 6350 kg |
| Höhe cm | 318 cm | 318 cm | - |
| Länge cm (Heckantrieb/Allradantrieb) | 396 cm | 396 cm | 474 cm |
| Radstand cm (Heckantrieb/Allradantrieb) | 190 cm | 190 cm | 220 cm |
| Kraftstofftank l | 182 l | 182 l | 409 l |
| Kippbare Fahrerhaus | x | x | x |
| Vorderachssperre | differential lock with cogs | differential lock with cogs | x |
