Muir-Hill 101-110




Muir-Hill manufactured, among other things, wheel loaders and dump trucks, which were based on Ford technology. In 1965, the company hired an engineer named David Brown, who had at his previous workplace developed a four-wheel drive version of the Ford 5000 called the Northrop 5004, which was not commercially successful. At Muir-Hill, he refined his idea further and the Muir-Hill 101 was born.
The tractor, which was launched at the end of 1966, had a Ford 5000 transmission, four identical wheels and a 101-horsepower Ford 2704 six-cylinder engine. Unlike the competing County and Roadless, the Muir-Hill's panels were completely designed to look like their own and were painted industrial yellow. The front axle, equipped with a hydraulically engaged toothed lock and brakes, was Muir-Hill's own production. The wheelbase was only 190 cm.

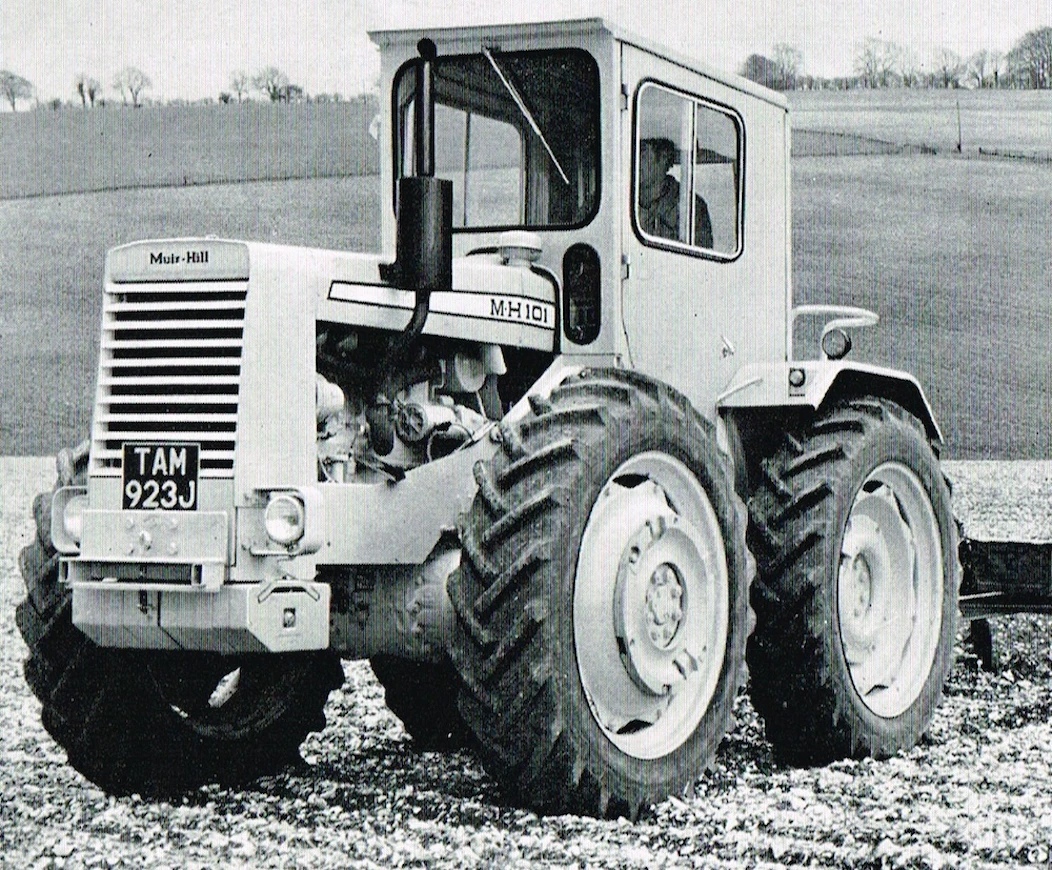

In 1967, a Dual Power-based quick-shift transmission was introduced. A basic cabin was introduced in 1970. The final year models, 1971-72, featured a slightly more powerful 6.2-liter engine.

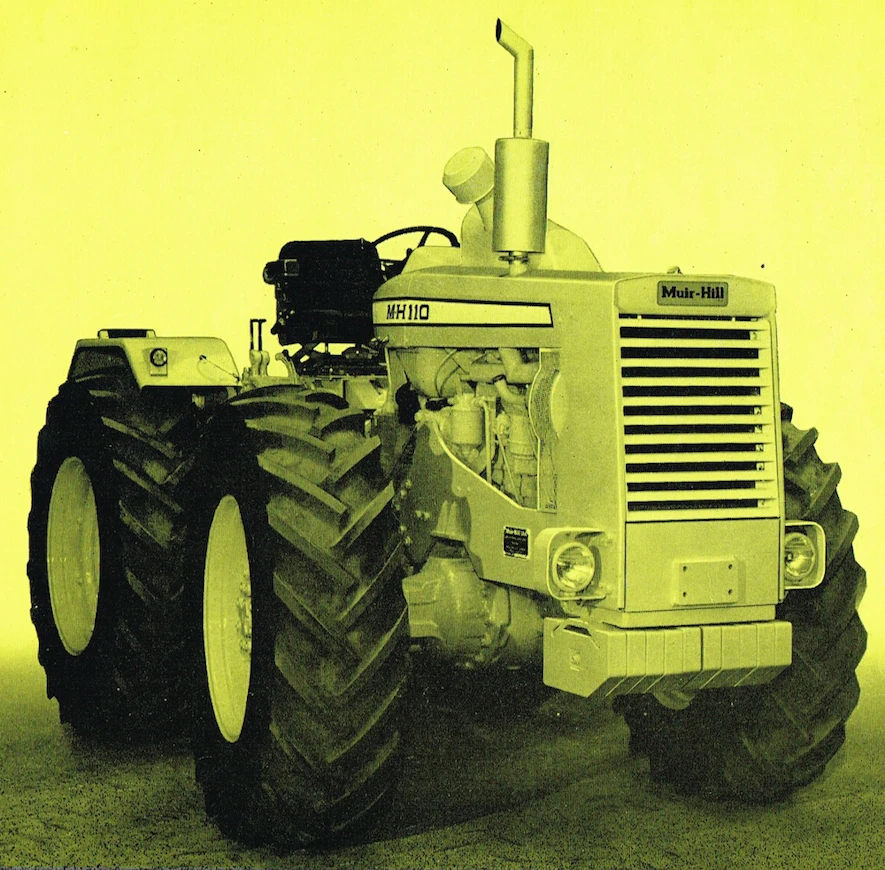

In 1969, the 110-horsepower model 110 was introduced, with a Perkins 6-cylinder engine.
| Modell | Muir-Hill 101 | Muir-Hill 101 | Muir-Hill 110 |
|---|---|---|---|
| Produktnahme | Muir-Hill | Muir-Hill | Muir-Hill |
| Importiert nach Finnland | Nein | Nein | Nein |
| Baujahre | 1966-71 | 1971-72 | 1969-72 |
| Erstes Verkaufsjahr | 1966 | 1971 | 1969 |
| Letztes Verkaufsjahr | 1971 | 1972 | 1972 |
| Motortyp | 2704E | 2715E | 6.354 |
| Zylinderanzahl/Turbo/Ladeluftkühlung | 6 | 6 | 6 |
| Hubraum cm3 | 5948 cm³ | 6220 cm³ | 5797 cm³ |
| Zyl. Bohrung x Länge mm | 105x115 mm | 107x114,9 mm | 98,4x127 mm |
| Nennleistung PS/U/min DIN | 101/2500 hp DIN/rpm | - | 110 hp DIN/rpm |
| Nennleistung PS/Umdrehungen SAE | 108/2500 hp SAE/rpm | 120/2500 hp SAE/rpm | 131 hp SAE/rpm |
| Drehmoment Nm/ U/min | 344/1500 Nm/rpm DIN | 378/1600 Nm/rpm DIN | 362 Nm/rpm DIN |
| Gänge | 8+2 | 8+2 | 8+2 |
| Kriechgang | option 1967- | option | option |
| Nenngeschwindigkeiten | 2,9-30,7 | 2,9-30,7 | 2,9-30,7 |
| Hydraulikleistung l/min | 27,3 (54,5)+ l/min | 27,3 (54,5) l/min | 27,3 (54,5) l/min |
| Hydraulikdruck bar | 172 bar | 172 bar | 172 bar |
| Hubwerk | mech. | mech. | mech. |
| Zapfwelle U/min | 540 (1000) | 1000 (540) | 540/770 |
| Bremsen | wet disc | wet disc | wet disc |
| Lenkung | power | hydrost. | power |
| Wendekreis Durchm. m Allradantrieb | 10,08 | 10,08 | 10,08 |
| Bereifung vorn (Allrad) | - | - | - |
| Bereifung hinten (Allrad) | 13.6/12-38 | 13.6/12-38 | 13.6/12-38 |
| Gewicht kg Allradantrieb | 4380 kg | 4380 kg | 4685 kg |
| Höhe cm | (203) cm | 276 cm | (213) cm |
| Länge cm (Heckantrieb/Allradantrieb) | 394 cm | 394 cm | 394 cm |
| Radstand cm (Heckantrieb/Allradantrieb) | 190 cm | 190 cm | 190 cm |
| Kraftstofftank l | 127 (205) l | 127 (205) l | 205 l |
| Vorderachssperre | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Kriechganggetriebe | option | option | option |
