Ford

At the beginning of 1978, the Muir Hill Series III models were introduced, featuring a new 30% more spacious Spacecab. Noise levels were reported to be 83…86 dB. The engines had slightly more power. The 111 and 121 models with Ford transmissions were fitted with a Dual Power quickshifter. The 171 had an Eaton-Fuller T4510 transmission. Other key features, according to the brochure, were axles manufactured by Muir-Hill, a hydraulically engaged front axle lock, oil-immersed disc brakes on four wheels, a tapered roller bearing gearbox and a 2-speed power take-off with a replaceable axle head.

At the end of 1978, the range was completed by the turbocharged 141, which was available in a 158-horsepower Ford-engined version as well as a 143-horsepower Perkins version. In some exotic export markets, service was only available for Perkins. The 141's specifications matched the 121 except for the wider standard tyres.

Muir-Hill production ended in a takeover in the autumn of 1982. Later, there was a weak attempt to continue production under the name Myth-Holm.

Muir-Hill

Traktoren

Muir-Hill 111-171 Series III

The most significant improvement of the Muir-Hill Series II models introduced in 1972 was the much improved, flat-floor cabin. There were sliding doors on both sides and large window surfaces.

As before, the Muir-Hills had a front axle with a central axle, gear lock and brakes, four equal-sized wheels and a reinforced Ford 8+2 transmission. The smallest model was now the 111 with a Perkins six-cylinder. The previous 101 with a Ford engine had been replaced by the 121, whose model designation corresponded to the increased power. The fuel tank was larger. The Dual Power quick gearbox was not available until the end of the Series II range.

In 1975, the 161 was replaced by the slightly more powerful 171. Instead of the rare Perkins V8.510, the engine was now the more common 8.8-liter V8.540. Unlike its predecessor, there was only one exhaust pipe. The wheelbase was increased by 22 cm. The cab was now a redesigned white Series II, almost similar to the smaller models.

Muir-Hill 111-171

In 1969, the Muir-Hill model 161 was introduced, which was clearly more powerful than the previous models. The engine was a Perkins 8.36-liter V8 with an output of 163 hp and the transmission was a Fuller 10+2. There were two 14-inch clutches.

The 161 was almost as compact in external dimensions as the smaller models, with a wheelbase 8 cm longer. The turning circle was promised to be 10.0 meters and only 6.1 meters with the steering brake. A compressed air system was standard equipment, and the differential locks were engaged pneumatically. A lock was an option at the front. The tires were the same size at the front and rear, the widest being 23.1-26.

The majority of the approximately 200 tractors produced were industrial models. For example, a hitch (Cat III) and a power take-off were optional extras.

The cab was flat-floored and large, but had a sheet metal interior. The 161 remained in production until 1975. It was not until the successor model 171 that it received the Series II cab that had been introduced 1972 in the smaller models.

Muir-Hill 161

Muir-Hill manufactured, among other things, wheel loaders and dump trucks, which were based on Ford technology. In 1965, the company hired an engineer named David Brown, who had at his previous workplace developed a four-wheel drive version of the Ford 5000 called the Northrop 5004, which was not commercially successful. At Muir-Hill, he refined his idea further and the Muir-Hill 101 was born.

The tractor, which was launched at the end of 1966, had a Ford 5000 transmission, four identical wheels and a 101-horsepower Ford 2704 six-cylinder engine. Unlike the competing County and Roadless, the Muir-Hill's panels were completely designed to look like their own and were painted industrial yellow. The front axle, equipped with a hydraulically engaged toothed lock and brakes, was Muir-Hill's own production. The wheelbase was only 190 cm.

In 1967, a Dual Power-based quick-shift transmission was introduced. A basic cabin was introduced in 1970. The final year models, 1971-72, featured a slightly more powerful 6.2-liter engine.

In 1969, the 110-horsepower model 110 was introduced, with a Perkins 6-cylinder engine.

Muir-Hill 101-110

The Roadless 120 model, with its large front wheels, was redesigned to be based on Ford's 600 series technology. The engine was still the 2715E industrial engine (114 hp). Standard equipment included a Dual Power 16+4 transmission, hydrostatic steering, auxiliary lift cylinder, 2-speed pto, front axle lock and additional fuel tank. The cab was a flat-floor Lambourn Q-Cab (82 db). The tyres were standard 13.6-38.

In the last S series models, the power was increased to 125 hp and the hydraulics were more powerful.

Roadless

Roadless 120

In 1979, Roadless introduced the 780 and 980 models, which were based on the 78 K and 98 K models, but the front axle steering swivels had been significantly improved to 50 degrees. The turning circle had been reduced to 8.5 meters. A front axle lock and hydrostatic steering were standard.

The 980 had a Dual Power quick gear (16+4). An auxiliary lift cylinder was available as an option.

Production volumes of these models remained low.

Roadless 780-980

In 1975 Roadless introduced the first Ford 600 series based models 78 and 98, which had the power according to the model designation. The transmission was 8+2 and the 98 had Dual Power as an option. The hydraulics were Ford-standard. The standard cab was a rudimentary Duncan and the Lambourn Q-Cab as an option. The 78 still did not have a lock on the front axle, but the 98 did.

A year later the J Series models were introduced, which had a flat-floor Lambourn cab with a noise level of 82 dB. The 118 with a 2715E six-cylinder engine was added to the series. Its lifting device had one auxiliary cylinder, the transmission was 2-speed and the steering was hydrostatic.

The K Series models introduced in 1979 had a redesigned, slightly higher cab. The 78 K had a 13” clutch. The 98 K had a 2-speed pto and Dual Power quickshift as standard.

The last S series models had the 4.4-liter engine in the 78 and 98. There was also more power in the 118. The hydraulic pump was slightly more efficient.

At this point, it was difficult to find features in the Roadless that would have surpassed Ford's own four-wheel drive models. The company went bankrupt in 1983.

Roadless 78-118

Mehr von diesem Hersteller

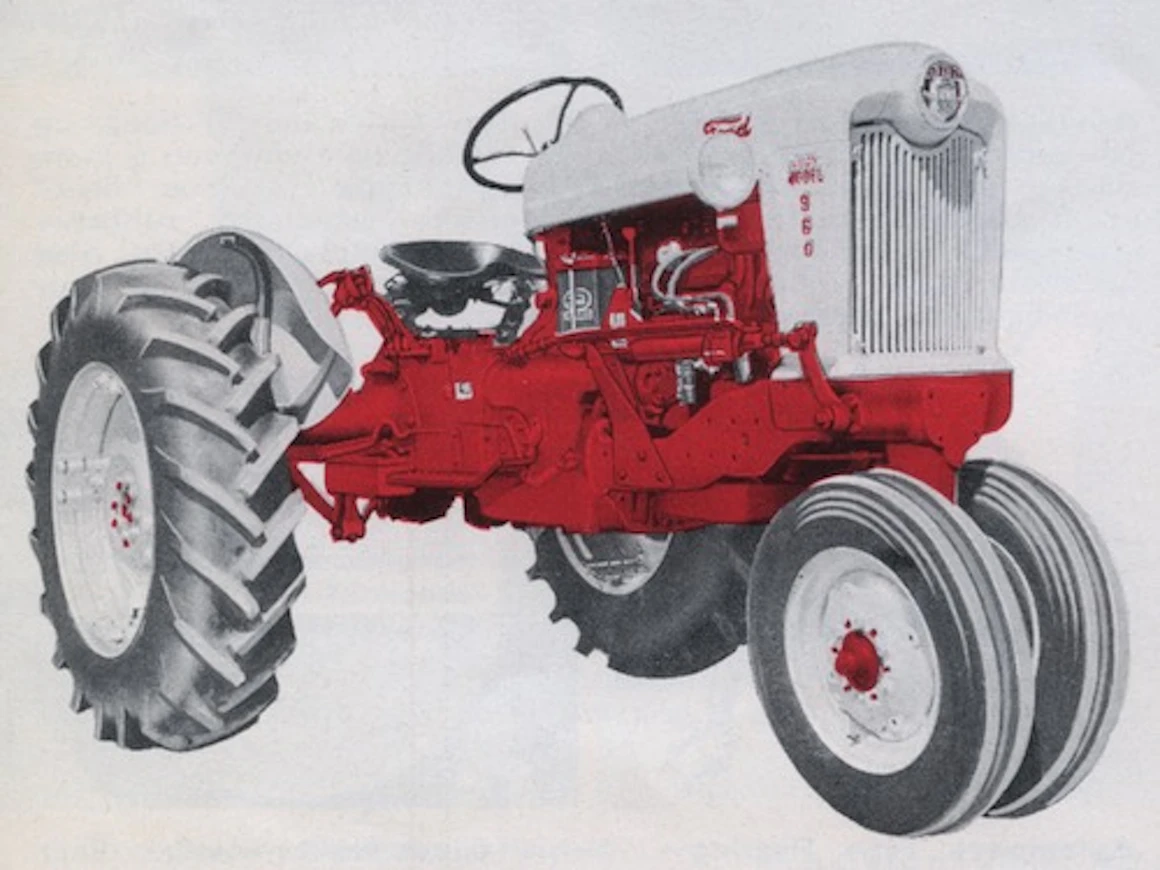

Im Jahr 1954 ersetzte die 600/700-Serie den Ford NAA. Die Änderungen waren nicht groß, zum Beispiel blieb der 2,2-Liter-Benzinmotor unverändert. Die Bremstrommeln wurden auf 14 Zoll vergrößert und die Hydraulik verbessert. Es gab insgesamt sechs Modelle:

Zur 600/700-Serie kam die 800/900-Serie, die mit einem auf 2,8 Liter vergrößerten Motor ausgestattet war. Die Modelle der 800/900-Serie waren:

Die Reihenfräs-Traktoren waren sowohl mit einem einzelnen Vorderrad als auch mit zwei parallelen Lenk-Vorderrädern erhältlich.

Dies ist eine automatisierte Übersetzung. Bitte melden Sie etwaige Probleme mit der Übersetzung.

Ford 640

Malli

Preis (inkl. MwSt.)

Serienkennung

Produktnahme

Modellspezifikation

Importiert nach Finnland

Baujahre

Erstes Verkaufsjahr

Letztes Verkaufsjahr

Motortyp

Zylinderanzahl/Turbo/Ladeluftkühlung

Hubraum cm3

Zyl. Bohrung x Länge mm

Nennleistung PS/U/min DIN

Maximale Leistung PS/Umin. DIN

Nennleistung PS/drehz. ISO

Maximale Leistung PS/Umin ISO

Maximale Leistung PS/min.

Nennleistung PS/U/min ECE

Maximale Leistung PS/Umin ECE

Nennleistung PS/Umdrehungen SAE

Nennleistung PS/Umin. VOA

Nennleistung PS/Antriebsriemenscheibe

Nennleistung PS/Drehzahl

Drehmoment Nm/Umdrehung

Drehmoment Nm/Umdrehung ECE

Drehmoment Nm/Umdr. ISO

Drehmoment Nm/Umdrehung SAE

Drehmoment Nm/ U/min

Gänge

Kriechgeschwindigkeiten

Synchronisiert

Kriechgang

Richtungswähler

Nenngeschwindigkeiten

Höchstgeschwindigkeit km/h

Hydraulikleistung l/min

Hydraulikdruck bar

Hubwerk

Hubkraft kg

Zapfwelle U/min

Bremsen

Lenkung

Wendekreis Durchmesser m Heckantrieb

Wendekreis Durchm. m Allradantrieb

Bereifung vorn (Allrad)

Traktorreifen Hinterradantrieb

Bereifung hinten (Allrad)

Gewicht kg Heckantrieb

Gewicht kg Allradantrieb

Höhe cm

Länge cm (Heckantrieb/Allradantrieb)

Radstand cm (Heckantrieb/Allradantrieb)

Kraftstofftank l

Lautstärke kabine dB

Kippbare Fahrerhaus

Vorderachssperre

Ausgleichsgetriebe Sperrautomatik

Luftgefedeter Sitz

Klimaanlage

Fahrcomputer

Kriechganggetriebe

Zylinderanzahl

Hubraum

Hubraumverhältnis

Maximales Drehmoment, Nm

Maximales Drehmoment, U/min

Drehmomentanstieg

Dieselverbrauch bei maximaler Leistung

Kupplungstyp

Zapfwelle

Vorwärtsgeschwindigkeit bei Nenndrehzahl des Motors, minimal

Vorwärtsgeschwindigkeit bei Nennmotordrehzahl, maximal

Maximaler Hydraulikdruck

Die höchste Hydraulikleistung

Steuerung der Hubwerkshydraulik

Externe Hydraulik, Ventilblöcke

1-zylindrig

2-taktig

Hubkraft (kN=100 kg)

Hydrauliktyp

Wendekreisdurchmesser ohne Lenkbremse

Vorderräder

Hinterräder

Kokonaismassa Tanks voll mit Serienausstattung

Frontgewichte

Heckzapfengewicht

Maximale Höhe (bis zur obersten Stelle der Kabine)

Gesamtlänge

Radstand

Bodenressource, kleinste

Kraftstofftankvolumen

Höchster Geräuschpegel

Differentialsperre der Vorderachse

Frontlader

Vordere Schutzbleche

Anhängerbremsventil

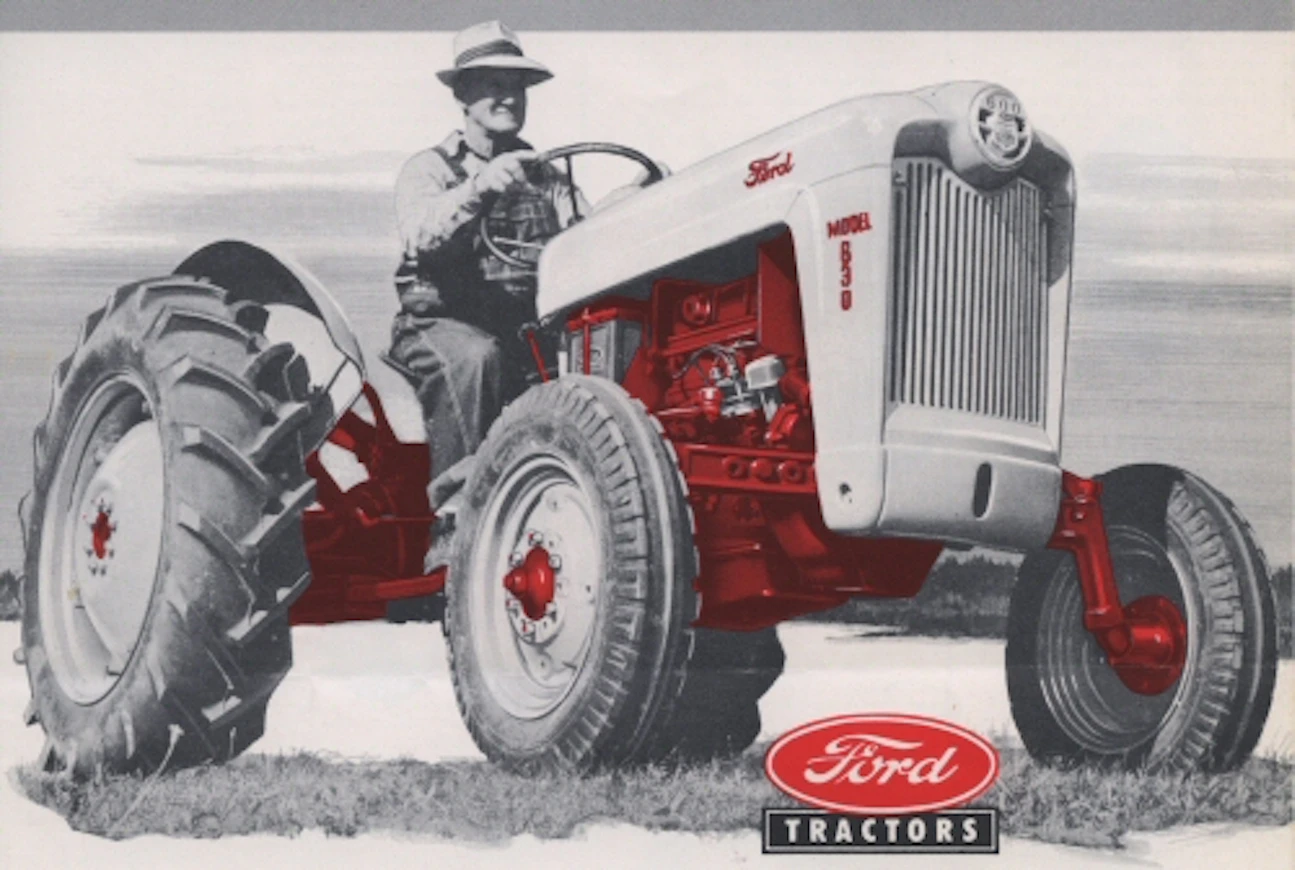

Ford 850

Ford 620-960

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Subscribe

Paywall

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Modell	Ford 640	Ford 850
Produktnahme	Ford	Ford
Importiert nach Finnland	Nein	Nein
Baujahre	1954-57	1954-57
Erstes Verkaufsjahr	1954	1954
Letztes Verkaufsjahr	1957	1957
Motortyp	EAE	EAF
Zylinderanzahl/Turbo/Ladeluftkühlung	4	4
Hubraum cm3	2196 cm³	2819 cm³
Zyl. Bohrung x Länge mm	87,3×91,4 mm	99,1×91,4 mm
Nennleistung PS/U/min DIN	35/2000 hp DIN/rpm	47/2200 hp DIN/rpm
Gänge	4+1	5+1
Nenngeschwindigkeiten	6,0-22,0	3,7-19,2
Hubwerk	mech.	mech.
Hubkraft kg	567 kg	567 kg
Zapfwelle U/min	540	540
Bremsen	drum brakes	drum brakes
Lenkung	mech.	mech.
Bereifung vorn (Allrad)	5.50-16	6.00-16
Traktorreifen Hinterradantrieb	11-28	12-28
Gewicht kg Heckantrieb	(1242) kg	(1354) kg
Höhe cm	(145) cm	(146) cm
Länge cm (Heckantrieb/Allradantrieb)	307 cm	307 cm
Radstand cm (Heckantrieb/Allradantrieb)	189 cm	189 cm
Kraftstofftank l	42 l	53 l
