Roadless Ploughmaster 75-105






Roadless bought GMC off-road truck front axles from a surplus stock in Spain. The problem was that the high torques when used with tractors caused the driveshafts to break. In addition, because the differentials were turned upside down to increase ground clearance, the gear bearings failed, as lubrication was inadequate in this position.

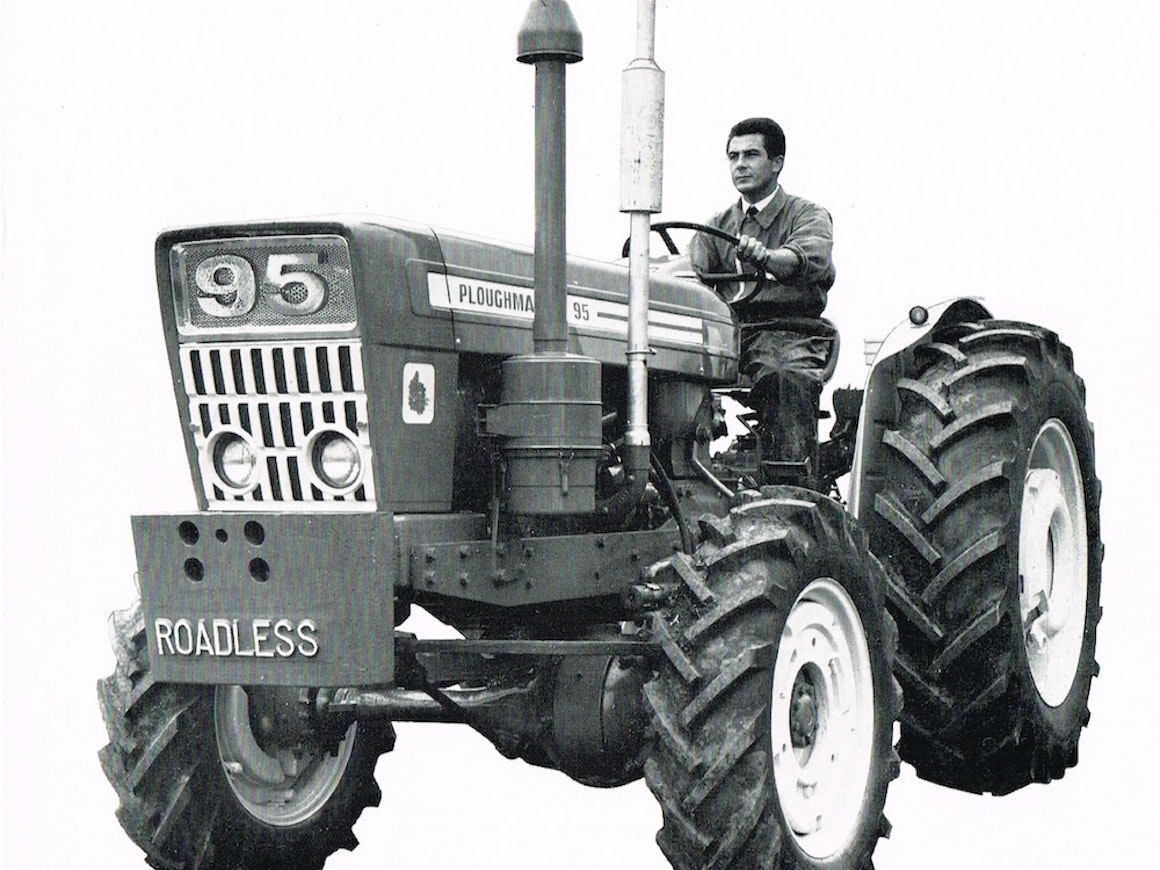

In the Roadless Ploughmaster 95, introduced in 1967, lubrication was improved by welding a tab to the differential, which directed oil to the bearing. In addition, a stronger bearing was installed and better driveshafts began to be ordered from Germany. The 95 also had a more powerful lift.
With the revamped Ford Force series, the Ploughmaster 65 was replaced by the more powerful 4.2-liter 75.
In 1971, the turbocharged 94T, based on the Ford 7000, was introduced, and in 1974, the 105, with a 6-cylinder 6.2-liter engine, was introduced. These models featured Roadless' own, more durable, and higher-clearance front axle.
The Ploughmaster 75 was Roadless' most popular model during the Ford era, but competing, more affordable four-wheel drive tractors began to appear from various manufacturers, and Roadless production volumes dropped to a few hundred per year.
| Model | Roadless Ploughmaster 75 | Roadless Ploughmaster 94T | Roadless Ploughmaster 95 | Roadless Ploughmaster 105 |
|---|---|---|---|---|
| Marka | Roadless | Roadless | Roadless | Roadless |
| Model sprzedawany w Finlandii | Nie | Nie | Nie | Nie |
| Lata | 1968-75 | 1971-75 | 1966-74 | 1974-77 |
| Pierwszy rok sprzedaży | 1968 | 1971 | 1966 | 1974 |
| Ostatni rok sprzedaży | 1975 | 1975 | 1974 | 1977 |
| Liczba cylindrów/Turbo/intercooler. | 4 | 4T | 6 | 6 |
| Pojemność skokowa cm3 | 4195 cm³ | 4195 cm³ | 5416 cm³ | 6220 cm³ |
| Pojemność skokowa cylindra x długość skoku mm | 111,8×106,7 mm | 111,8×106,7 mm | 100x115 mm | 107,2x114,9 mm |
| Moc znamionowa KM/obr. SAE | 75/2100 hp SAE/rpm | 94/2100 hp SAE/rpm | 95/2000 hp SAE/rpm | 104/2100 hp SAE/rpm |
| Moment obrotowy Nm/obr. SAE | 286/1300 Nm/rpm SAE | 325/1600 Nm/rpm SAE | - | 312/1600 Nm/rpm SAE |
| Liczba biegów | 8+2 | 8+2 | 8+2 | 8+2 |
| Prędkości znamionowe | 2,4-27,0 | 2,6-27,0 | 2,4-27,0 | 2,9-30,8 |
| Wydajność hydrauliki l/min | 22.7 l/min | 22.7 l/min | 22.7 l/min | 22.7 l/min |
| Ciśnienie hydrauliki bar | 176 bar | 176 bar | 176 bar | 176 bar |
| Hydraulika tylnej osi | mech. | mech. | mech. | mech. |
| Siła podnoszenia kg | 1750 kg | 1750 kg | 2721 kg | 2721 kg |
| Moc wyjściowa | 540 | 540 | 540 | 540 |
| Hamulce | wet disc | wet disc | wet disc | wet disc |
| Układ kierowniczy | power | power | power | power |
| Średnica zawracania m napęd na cztery koła | 11,64 | 11,6 | - | 10,98 |
| Opony przednie do napędu 4x4 | 11.2/10-24 | 11.2/10-24 | 11.2/10-24 | 11.2/10-24 |
| Opony terenowe do napędu na cztery koła | 13.6/12-38 | 13.6/12-38 | 13.6/12-38 | 13.6/12-38 |
| Masa kg napęd na cztery koła | 3375 kg | 3602 kg | (4041) kg | 4388 kg |
| Wysokość cm | 249 cm | 249 cm | (183) cm | 247 cm |
| Długość cm (napęd tylny/ na cztery koła) | 361 cm | 361 cm | 422 cm | 422 cm |
| Rozstaw osi cm (napęd tylni/napęd na cztery koła) | 214 cm | 214 cm | 214 cm | 209 cm |
| Zbiornik paliwa l | 68 (186) l | 68 (186) l | 76 l | 68 (186) l |
| Blokada wału przekaźnikowego | - | differential lock with cogs | - | differential lock with cogs |
| Typ silnika | - | - | 2703E | 2714E |
