Zetor Proxima Power 85-120

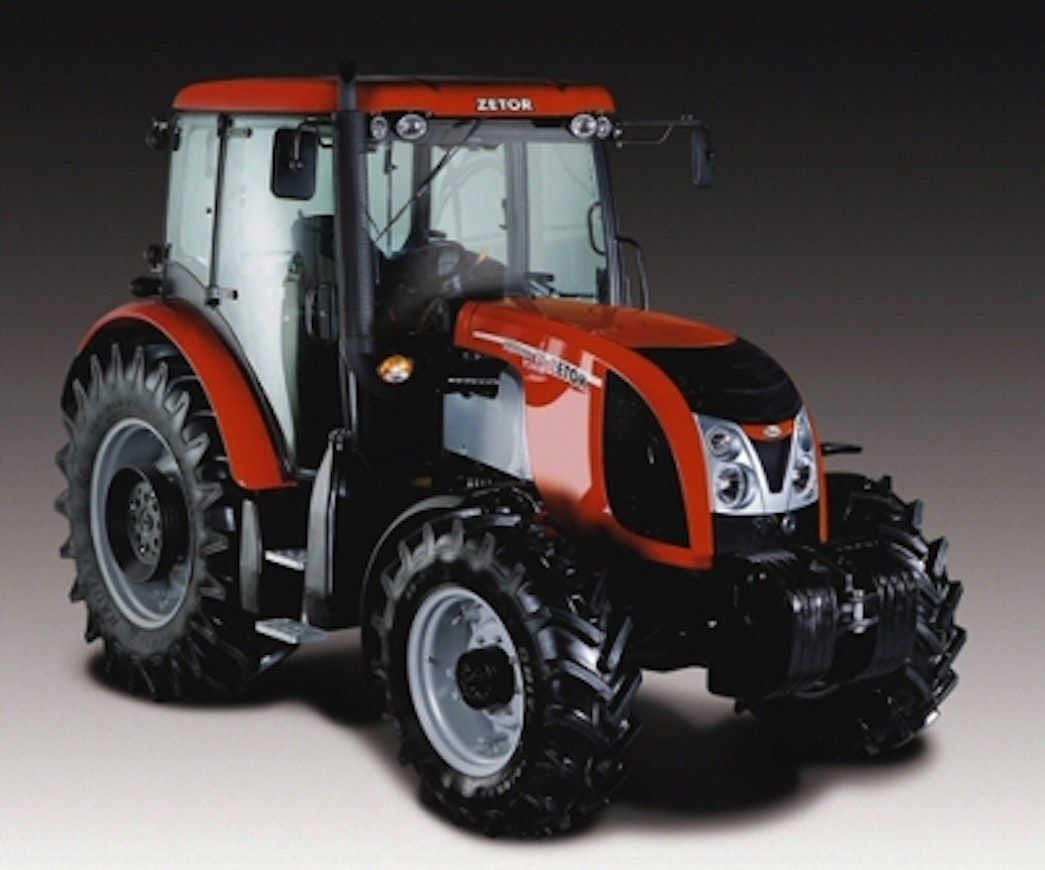

11ZetorProximaPower

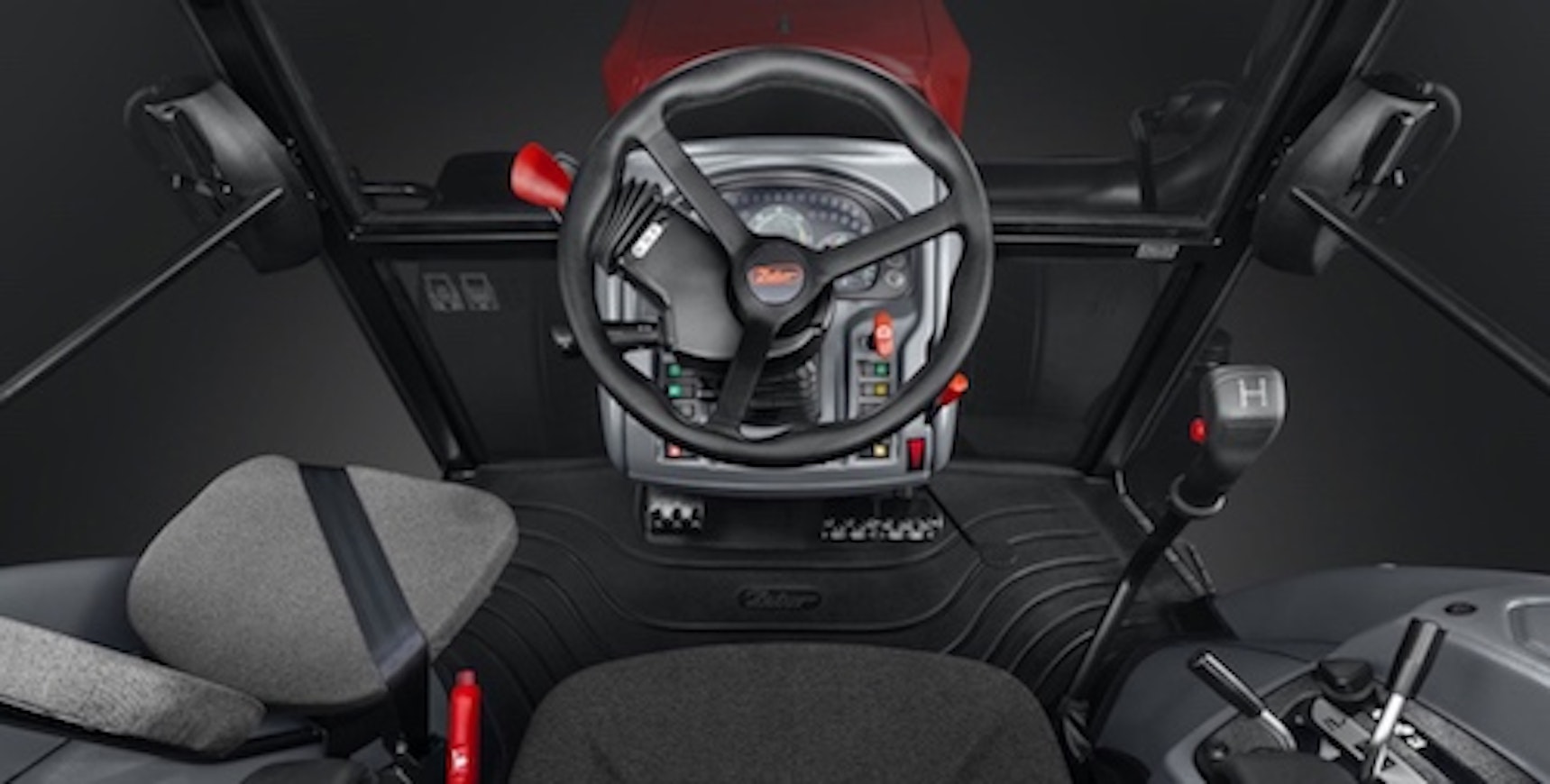

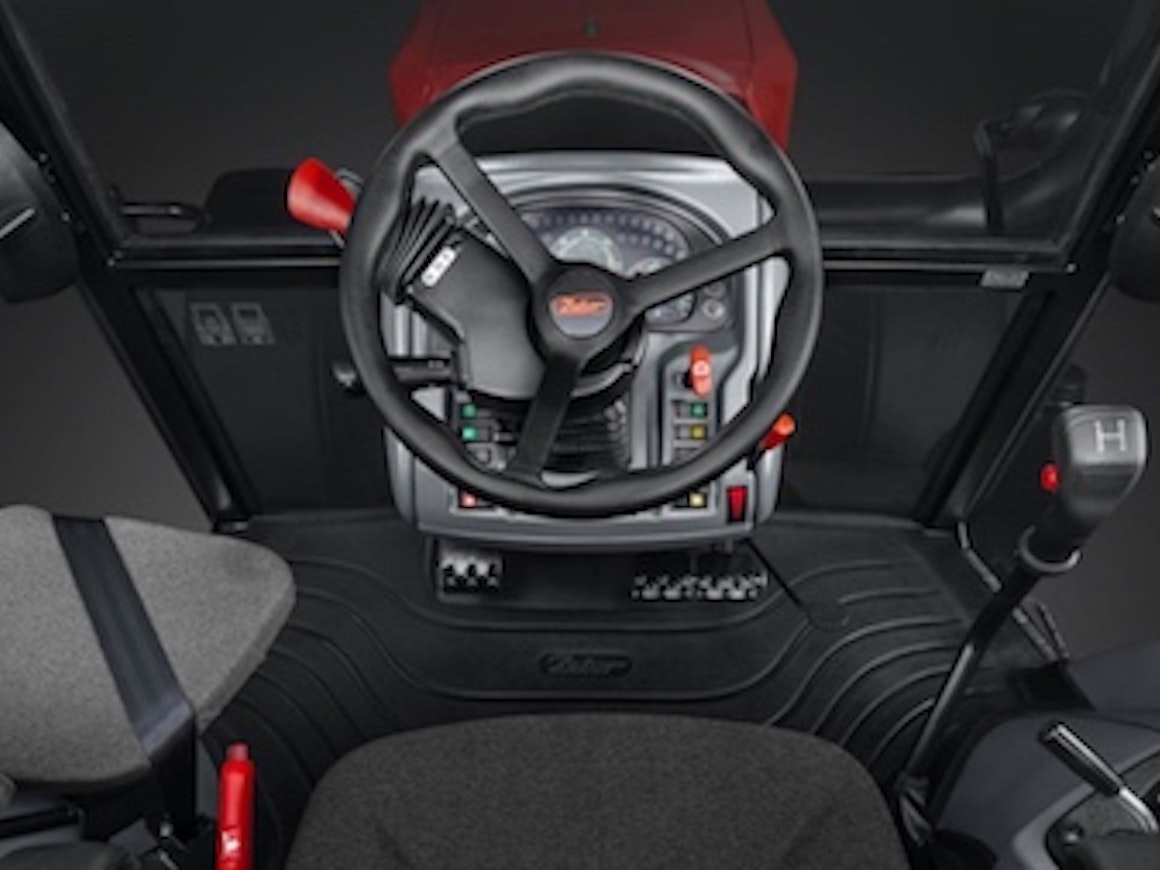

12ZetorProximaPowerOhjaamo

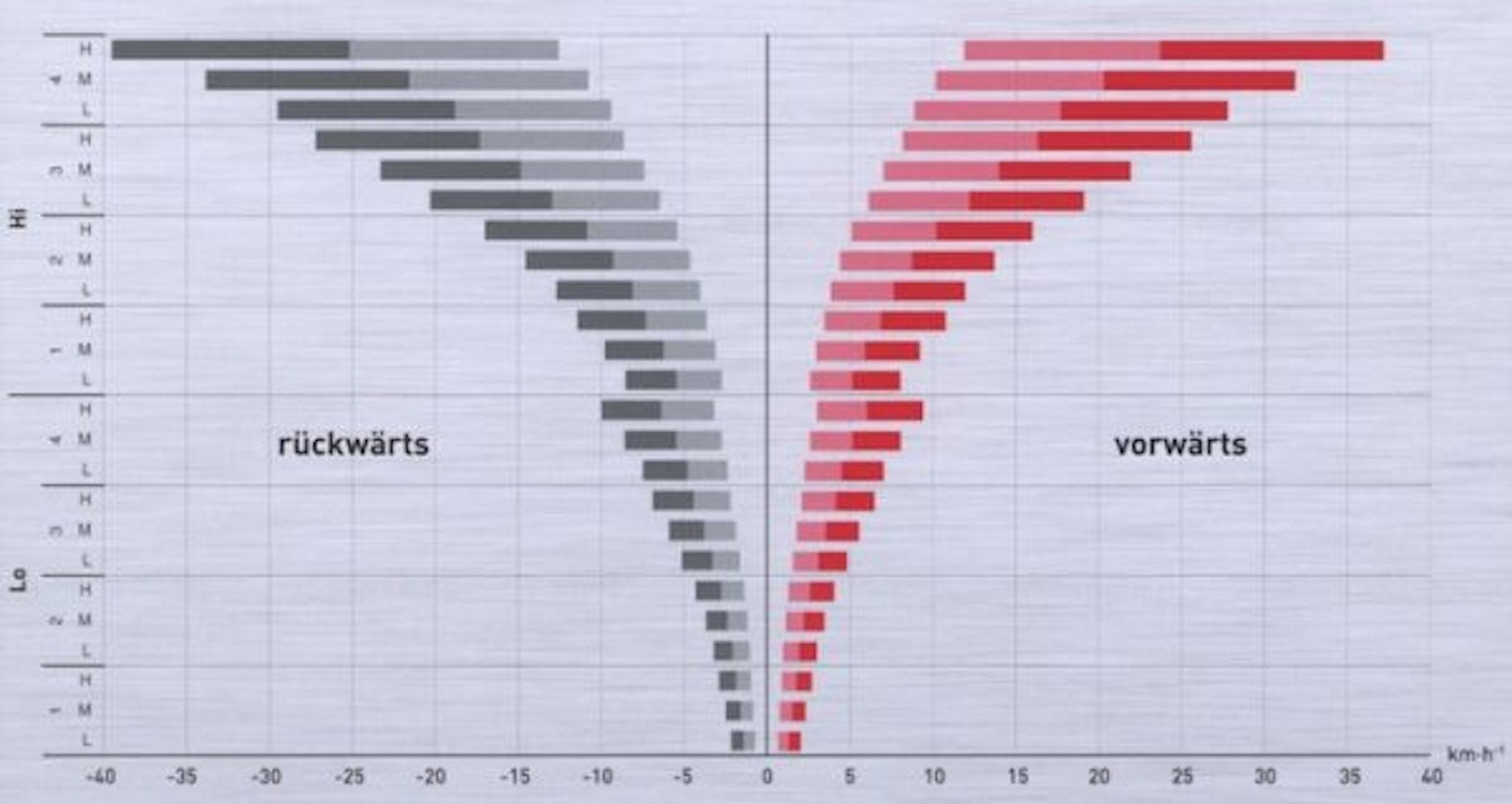

14ZetorProximaPowerNopeudet
11ZetorProximaPower
12ZetorProximaPowerOhjaamo
14ZetorProximaPowerNopeudet
Manufacturer
Models
Zetor Proxima Power 85, Zetor Proxima Power 95, Zetor Proxima Power 105, Zetor Proxima Power 115, Zetor Proxima Power 90, Zetor Proxima Power 100, Zetor Proxima Power 110, Zetor Proxima Power 120, Zetor Proxima Power 90, Zetor Proxima Power 100, Zetor Proxima Power 110, Zetor Proxima Power 120
Years
2009-17
Info

Here is the translation of the text into English:

There was still room for one more version between the Zetor Proxima Plus and Forterra. The range was expanded upward by another 10 horsepower with the model 115 (numbered 120 in 2010). Like the Forterra, the Proxima Power had a 3-speed power shift, but the rest of the basic technology was from the Proxima series. New in Zetor was the electro-hydraulic direction reversal. The fuel tank was 175 liters, and the cab noise level was stated to be 78 dB. The trailer brake valve was standard, and the front axle had wet disc brakes. The optional DeLuxe package included air conditioning, an air-suspended seat, a radio, a passenger seat, and Michelin tires (380/480). In 2014, models compliant with the Stage III B emission standard were introduced.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelZetor Proxima Power 85Zetor Proxima Power 95Zetor Proxima Power 105Zetor Proxima Power 115Zetor Proxima Power 90Zetor Proxima Power 100Zetor Proxima Power 110Zetor Proxima Power 120Zetor Proxima Power 90Zetor Proxima Power 100Zetor Proxima Power 110Zetor Proxima Power 120
Manufacturer nameZetor Proxima PowerZetor Proxima PowerZetor Proxima PowerZetor Proxima PowerZetor Proxima PowerZetor Proxima PowerZetor Proxima PowerZetor Proxima PowerZetor Proxima PowerZetor Proxima PowerZetor Proxima PowerZetor Proxima Power
Imported to FinlandYesYesYesYesYesYesYesYesYesYesYesYes
Years2009-102009-102009-102009-102010-142010-142010-142010-142014-172014-172014-172014-17
First year sold200920092009200920102010201020102014201420142014
Last year sold201020102010201020142014201420142017201720172017
Engine model120510051305140512051005130514051206100613061406
Cyl/Turbo/Intercooler4TI4TI4TI4TI4TI4TI4TI4TI4TI4TI4TI4TI
Displacement4156 cm³4156 cm³4156 cm³4156 cm³4156 cm³4156 cm³4156 cm³4156 cm³4156 cm³4156 cm³4156 cm³4156 cm³
Bore x stroke105×120 mm105×120 mm105×120 mm105×120 mm105×120 mm105×120 mm105×120 mm105×120 mm105×120 mm105×120 mm105×120 mm105×120 mm
Rated power hp/rpm DIN82/220090/2200100/2200110/220082/220090/2200100/2200110/220082/220090/2200100/2200110/2200
Rated power hp/rpm ISO89/220097/2200108/2200117/220088/220096/2200107/2200117/220087/220096/2200106/2200117/2200
Torque Nm/rpm DIN361/1400391/1400440/1400480/1400371/1400401/1400451/1400491/1400370/1500429/1500461/1500493/1500
Gears24+2424+2424+2424+2424+2424+2424+2424+2424+2424+2424+2424+24
Synchronized gears24+2424+2424+2424+2424+2424+2424+2424+2424+2424+2424+2424+24
Powershift gears3-step3-step3-step3-step3-step3-step3-step3-step3-step3-step3-step3-step
Reverserhydr.hydr.hydr.hydr.hydr.hydr.hydr.hydr.hydr.hydr.hydr.hydr.
Speeds in km/h1,9-371,9-371,9-371,9-371,9-371,9-371,9-371,9-371,9-371,9-371,9-371,9-37
Max. speed 40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h
Hydr. flow l/min50 l/min50 l/min50 l/min50 l/min50 l/min50 l/min50 l/min50 l/min50 (60) l/min50 (60) l/min50 (60) l/min50 (60) l/min
Hydraulic pressure180 bar180 bar180 bar180 bar180 bar180 bar180 bar180 bar180 bar180 bar180 bar180 bar
Lift controlsmech.mech.mech.mech.mech.mech.mech.mech.mech.mech.mech.mech.
Lift capacity4150 kg4150 kg4150 kg4150 kg4150 kg4150 kg4150 kg4150 kg4200 kg4200 kg4200 kg4200 kg
PTO speeds540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo
Brakeswet discwet discwet discwet discwet discwet discwet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD8.98.98.98.98.98.98.98.98.98.98.98.9
Front tyres 4WD13.6R2413.6R2413.6R2413.6R2413.6R2413.6R2413.6R2413.6R2413.6R2413.6R2413.6R2413.6R24
Rear tyres 4WD16.9R3416.9R3416.9R3416.9R3416.9R3416.9R3416.9R3416.9R3416.9R3416.9R3416.9R3416.9R34
Weight 4WD4150 kg4150 kg4150 kg4150 kg4150 kg4150 kg4150 kg4150 kg4150 kg4150 kg4150 kg4150 kg
Height with cab272 cm272 cm272 cm272 cm272 cm272 cm272 cm272 cm272 cm272 cm272 cm272 cm
Length (2WD/4WD)423 cm423 cm423 cm423 cm423 cm423 cm423 cm423 cm423 cm423 cm423 cm423 cm
Wheelbase (2WD/4WD)233 cm233 cm233 cm233 cm244 cm244 cm244 cm244 cm244 cm244 cm244 cm244 cm
Fuel tank175 l175 l175 l175 l175 l175 l175 l175 l175 l175 l175 l175 l
Cab noise level78 dB78 dB78 dB78 dB78 dB78 dB78 dB78 dB78 dB78 dB78 dB78 dB
Solid cabxxxxxxxxxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lock
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information. There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed. Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
