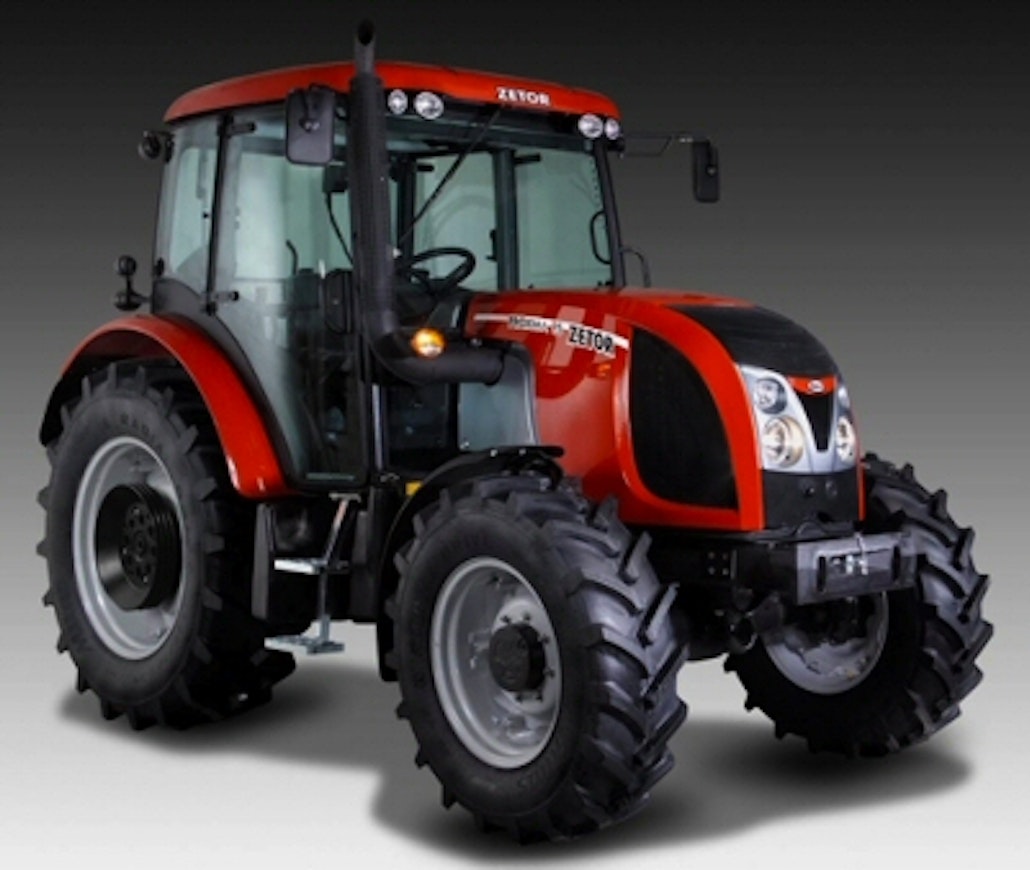

Zetor Proxima 65-100
Manufacturer
Models
Zetor Proxima 65, Zetor Proxima 75, Zetor Proxima 85, Zetor Proxima 95, Zetor Proxima 70, Zetor Proxima 80, Zetor Proxima 90, Zetor Proxima 100, Zetor Proxima 90, Zetor Proxima 100
Years
2009-
Info
Zetor Proxima model designations were changed to indicate horsepower in the spring of 2009. There were small differences in engine performance compared to the previous models. A year later, the model numbers were increased by 5 without significant changes. In 2014, models compliant with the Stage III B emission standards were introduced for the 90 and 100 models.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Zetor Proxima 65 | Zetor Proxima 75 | Zetor Proxima 85 | Zetor Proxima 95 | Zetor Proxima 70 | Zetor Proxima 80 | Zetor Proxima 90 | Zetor Proxima 100 | Zetor Proxima 90 | Zetor Proxima 100 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer name | Zetor Proxima | Zetor Proxima | Zetor Proxima | Zetor Proxima | Zetor Proxima | Zetor Proxima | Zetor Proxima | Zetor Proxima | Zetor Proxima | Zetor Proxima |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | No | Yes |
| Years | 2009-10 | 2009-10 | 2009-10 | 2009-10 | 2010- | 2010- | 2010-14 | 2010-14 | 2014- | 2014- |
| First year sold | 2009 | 2009 | 2009 | 2009 | 2010 | 2010 | 2010 | 2010 | 2014 | 2014 |
| Last year sold | 2010 | 2010 | 2010 | 2010 | - | - | 2014 | 2014 | - | - |
| Engine model | 7205 | 1105 | 1205 | 1005 | 7205 | 1105 | 1205 | 1005 | 1206 | 1006 |
| Cyl/Turbo/Intercooler | 4T | 4T | 4T | 4T | 4T | 4T | 4T | 4T | 4T | 4T |
| Displacement | 4156 cm³ | 4156 cm³ | 4156 cm³ | 4156 cm³ | 4156 cm³ | 4156 cm³ | 4156 cm³ | 4156 cm³ | 4156 cm³ | 4156 cm³ |
| Bore x stroke | 105×120 mm | 105×120 mm | 105×120 mm | 105×120 mm | 105×120 mm | 105×120 mm | 105×120 mm | 105×120 mm | 105×120 mm | 105×120 mm |
| Rated power hp/rpm DIN | 61/2200 | 72/2200 | 82/2200 | 90/2200 | 61/2200 | 70/2200 | 82/2200 | 90/2200 | 82/2200 | 90/2200 |
| Rated power hp/rpm ISO | 65/2200 | 78/2200 | 89/2200 | 97/2200 | 65/2200 | 77/2200 | 88/2200 | 96/2200 | 88/2200 | 96/2200 |
| Torque Nm/rpm DIN | 265/1500 | 310/1500 | 361/1500 | 400/1500 | 271/1400 | 317/1400 | 371/1400 | 401/1400 | 370/1500 | 429/1500 |
| Gears | 12+12/20+4 | 12+12/20+4 | 12+12/20+4 | 12+12/20+4 | 12+12/20+4 | 12+12/20+4 | 12+12/20+4 | 12+12/20+4 | 12+12/20+4 | 12+12/20+4 |
| Synchronized gears | 10+10/16 | 10+10/16 | 10+10/16 | 10+10/16 | 10+10/16 | 10+10/16 | 10+10/16 | 10+10/16 | 10+10/16 | 10+10/16 |
| Powershift gears | -/hydr. | -/hydr. | -/hydr. | -/hydr. | -/hydr. | -/hydr. | -/hydr. | -/hydr. | -/hydr. | -/hydr. |
| Reverser | mech./- | mech./- | mech./- | mech./- | mech./- | mech./- | mech./- | mech./- | mech./- | mech./- |
| Speeds in km/h | 1,6-38 | 1,6-38 | 1,6-38 | 1,6-38 | 1,6-38 | 1,6-38 | 1,6-38 | 1,6-38 | 1,6-38 | 1,6-38 |
| Max. speed | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 50 l/min | 50 l/min | 50 l/min | 50 l/min | 50 l/min | 50 l/min | 50 l/min | 50 l/min | 50 l/min | 50 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 3200 kg | 4150 kg | 4150 kg | 4150 kg | 4200 kg | 4200 kg | 4200 kg | 4200 kg | 4200 kg | 4200 kg |
| PTO speeds | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
| Front tyres 2WD | - | - | - | - | 9,00-16 | 9,00-16 | 9,00-16 | 9,00-16 | 9,00-16 | 9,00-16 |
| Front tyres 4WD | 12.4-24 | 13.6R24 | 13.6R24 | 13.6R24 | 11.2R24 | 13.6R24 | 13.6R24 | 13.6R24 | 13.6R24 | 13.6R24 |
| Rear tyres 2WD | - | - | - | - | 16,9R30 | 16,9R34 | 16,9R34 | 16,9R34 | 16,9R34 | 16,9R34 |
| Rear tyres 4WD | 16.9-34 | 16.9R34 | 16.9R34 | 16.9R34 | 16.9R34 | 16.9R34 | 16.9R34 | 16.9R34 | 16.9R34 | 16.9R34 |
| Weight 4WD | 3750 kg | 3750 kg | 3750 kg | 3750 kg | 3750 kg | 3750 kg | 3750 kg | 3750 kg | 3750 kg | 3750 kg |
| Height with cab | 274 cm | 274 cm | 274 cm | 274 cm | 274 cm | 274 cm | 274 cm | 274 cm | 274 cm | 274 cm |
| Length (2WD/4WD) | 420 cm | 420 cm | 420 cm | 420 cm | 420 cm | 420 cm | 420 cm | 420 cm | 420 cm | 420 cm |
| Wheelbase (2WD/4WD) | 223 cm | 223 cm | 223 cm | 223 cm | 232/231 cm | 223 cm | 223 cm | 223 cm | 223 cm | 223 cm |
| Fuel tank | 125 (150) l | 125 (150) l | 125 (150) l | 125 (150) l | 125 (150) l | 125 (150) l | 125 (150) l | 125 (150) l | 125 (150) l | 125 (150) l |
| Cab noise level | 81 dB | 81 dB | 81 dB | 81 dB | 78 dB | 78 dB | 78 dB | 78 dB | 78 dB | 78 dB |
| Solid cab | x | x | x | x | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
