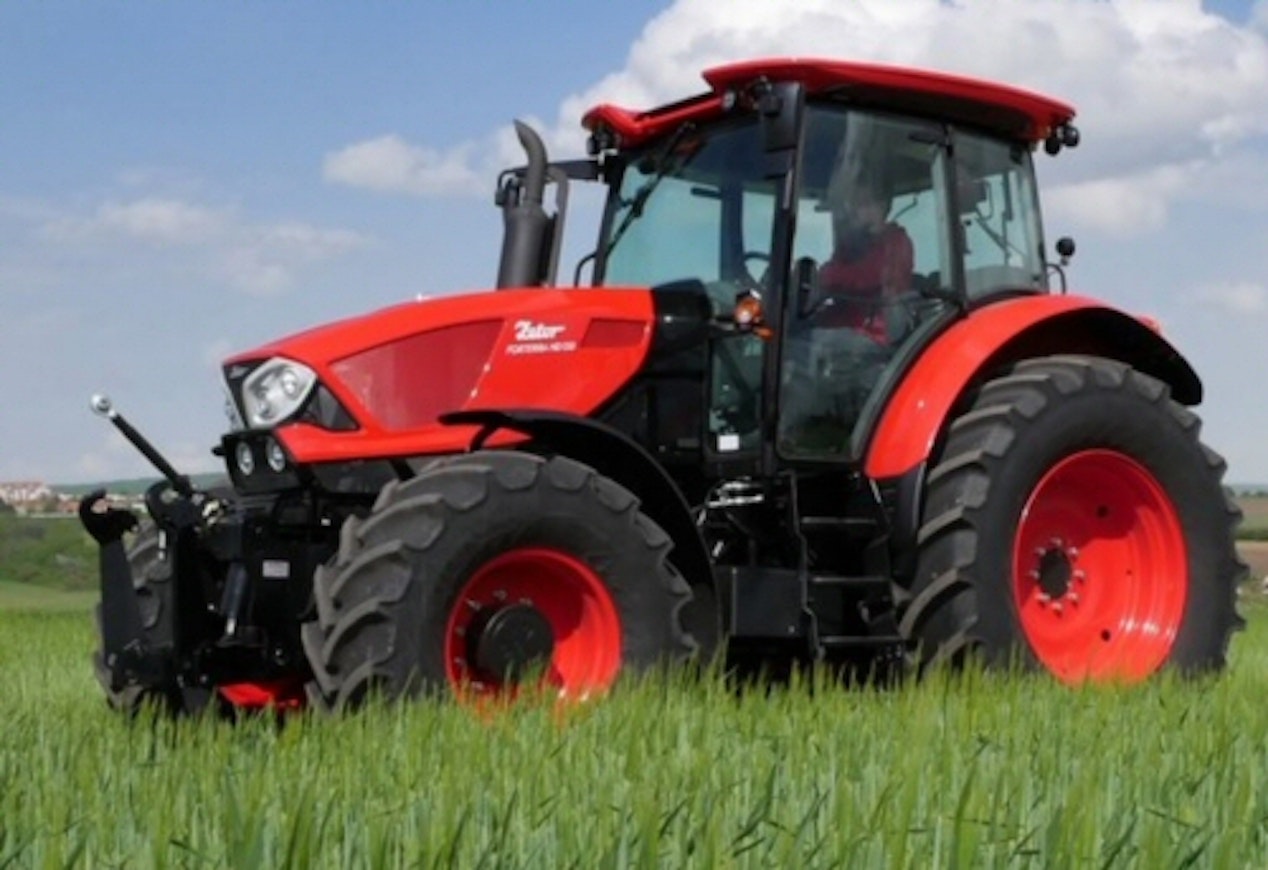

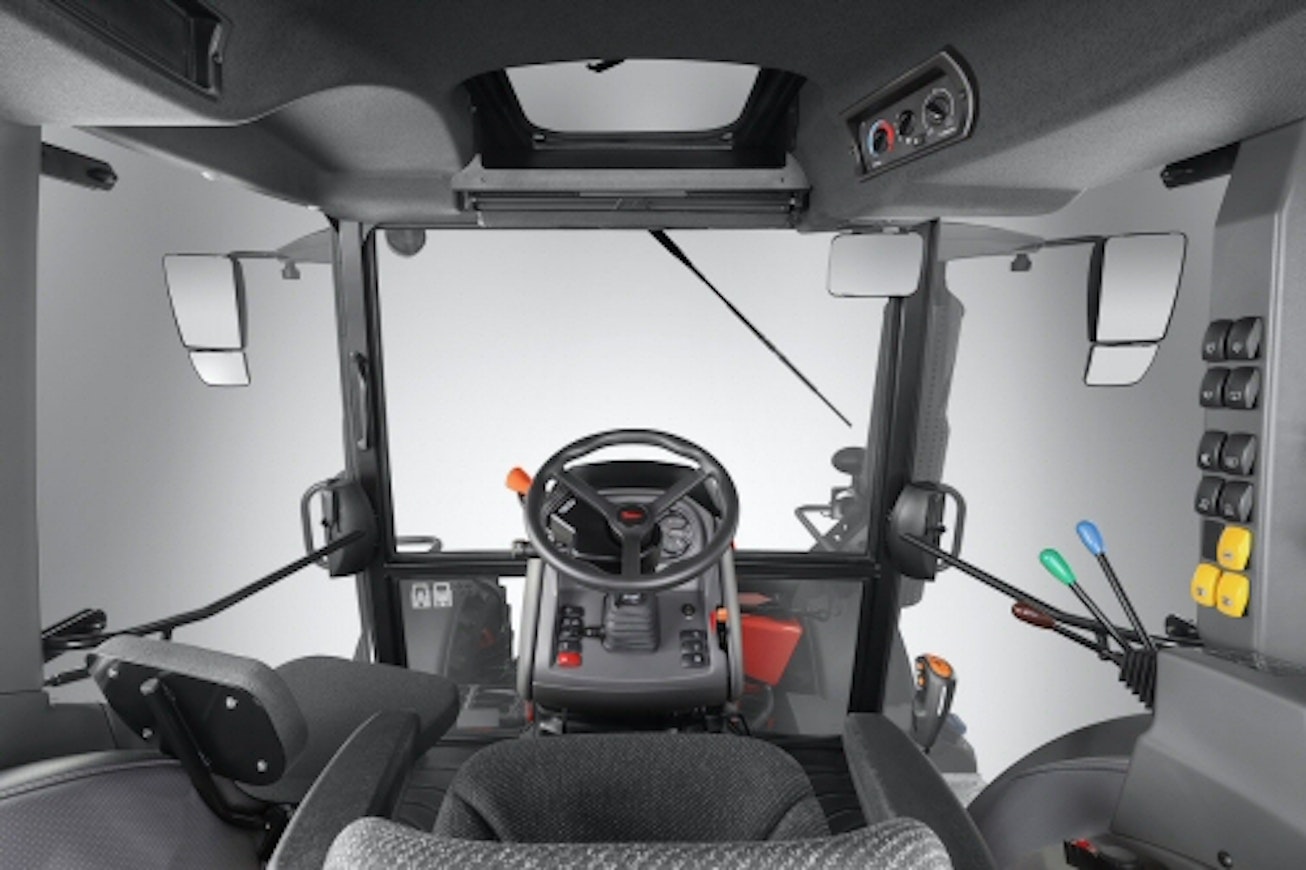

In 2020, the redesigned Forterras were introduced. The engines now complied with emission level 5. The 4.2-liter engine in the Classic models had 5 power classes ranging from 96 to 136 hp. The transmission was still 24+18 with a mechanical direction reverser and a 3-speed quick shift. The lifting capacity was 7.7 tons. New features in the cab included a work lights control panel and an improved heating system.

This is an automated translation. Please report any issues in the translation.

Zetor Forterra CL 100

malli

hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Rated power

Max power

Torque

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

sylinterien lukumäärä

iskutilavuus

iskusuhde

suurin vääntömomentti, nm

suurin vääntömomentti, r/min

vääntömomentin nousu

polttonesteen kulutus suurimman tehon pisteessä

kytkimen tyyppi

ajovoimanotto

nopeus eteenpäin moottorin nimellisnopeudella, pienin

nopeus eteenpäin moottorin nimellisnopeudella, suurin

jarrut

hydrauliikan suurin paine

hydrauliikan suurin tuotto

nostolaitehydrauliikan hallinta

ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

nostovoima (kn=100 kg)

hydrauliikan tyyppi

kääntöympyrän halkaisija ilman ohjausjarrua

eturenkaat

takarenkaat

kokonaismassa säiliöt täynnä vakiovarustein

etuakselipaino

taka-akselipaino

suurin korkeus (ohjaamon ylimpään kohtaan)

kokonaispituus

akseliväli

maavara, pienin

polttoainesäiliön tilavuus

korkein melutaso

etuakselin tasauspyörästön lukko

etunostolaite

etulokasuojat

ilmastointilaite

perävaunun jarruventtiili

ilmaistuin

ohjauksen tyyppi

Zetor Forterra CL 110

Zetor Forterra CL 120

Zetor Forterra CL 130

Zetor Forterra CL 140

Zetor Forterra CL 100-140

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Zetor Forterra CL 100	Zetor Forterra CL 110	Zetor Forterra CL 120	Zetor Forterra CL 130	Zetor Forterra CL 140
Manufacturer name	Zetor Forterra	Zetor Forterra	Zetor Forterra	Zetor Forterra	Zetor Forterra
Imported to Finland	No	No	No	No	Yes
Years	2020-	2020-	2020-	2020-	2020-
Engine model	1017	1317	1417	1517	1617
Cyl/Turbo/Intercooler	4TI	4TI	4TI	4TI	4TI
Displacement	4156 cm³	4156 cm³	4156 cm³	4156 cm³	4156 cm³
Bore x stroke	105×120 mm	105×120 mm	105×120 mm	105×120 mm	105×120 mm
Rated power	-	-	-	-	-
Torque	-	-	-	-	-
Gears	24+18	24+18	24+18	24+18	24+18
Synchronized gears	24+18	24+18	24+18	24+18	24+18
Powershift gears	3-step	3-step	3-step	3-step	3-step
Reverser	mech.	mech.	mech.	mech.	mech.
Speeds in km/h	1,9-37,9	1,9-37,9	1,9-37,9	1,9-37,9	1,9-37,9
Max. speed	40 km/h	40 km/h	40 km/h	40 km/h	40 km/h
Hydr. flow l/min	70 l/min	70 l/min	70 l/min	70 l/min	70 l/min
Hydraulic pressure	200 bar	200 bar	200 bar	200 bar	200 bar
Lift controls	elec.	elec.	elec.	elec.	elec.
Lift capacity	7700 kg	7700 kg	7700 kg	7700 kg	7700 kg
PTO speeds	540/750/1000/1250	540/750/1000/1250	540/750/1000/1250	540/750/1000/1250	540/750/1000/1250
Brakes	wet disc	wet disc	wet disc	wet disc	wet disc
Steering	hydrost.	hydrost.	hydrost.	hydrost.	hydrost.
Turning circle m 4WD	9.6	9.6	9.6	9.6	9.6
Front tyres 4WD	380/85R24	380/85R24	380/85R24	380/85R24	380/85R24
Rear tyres 4WD	460/85R34	460/85R34	460/85R34	460/85R34	460/85R34
Weight 4WD	4800 kg	4800 kg	4800 kg	4800 kg	4800 kg
Height with cab	295 cm	295 cm	295 cm	295 cm	295 cm
Length (2WD/4WD)	467 cm	467 cm	467 cm	467 cm	467 cm
Wheelbase (2WD/4WD)	249 cm	249 cm	249 cm	249 cm	249 cm
Fuel tank	230+AB28 l	230+AB28 l	230+AB28 l	230+AB28 l	230+AB28 l
Cab noise level	76 dB	76 dB	76 dB	76 dB	76 dB
Solid cab	x	x	x	x	x
Diff. lock	friction lock	friction lock	friction lock	friction lock	friction lock
Creeper gear	opt.	opt.	opt.	opt.	opt.
