Siirry sivupalkkiinSiirry alaosaanZetor Forterra 8641-11641

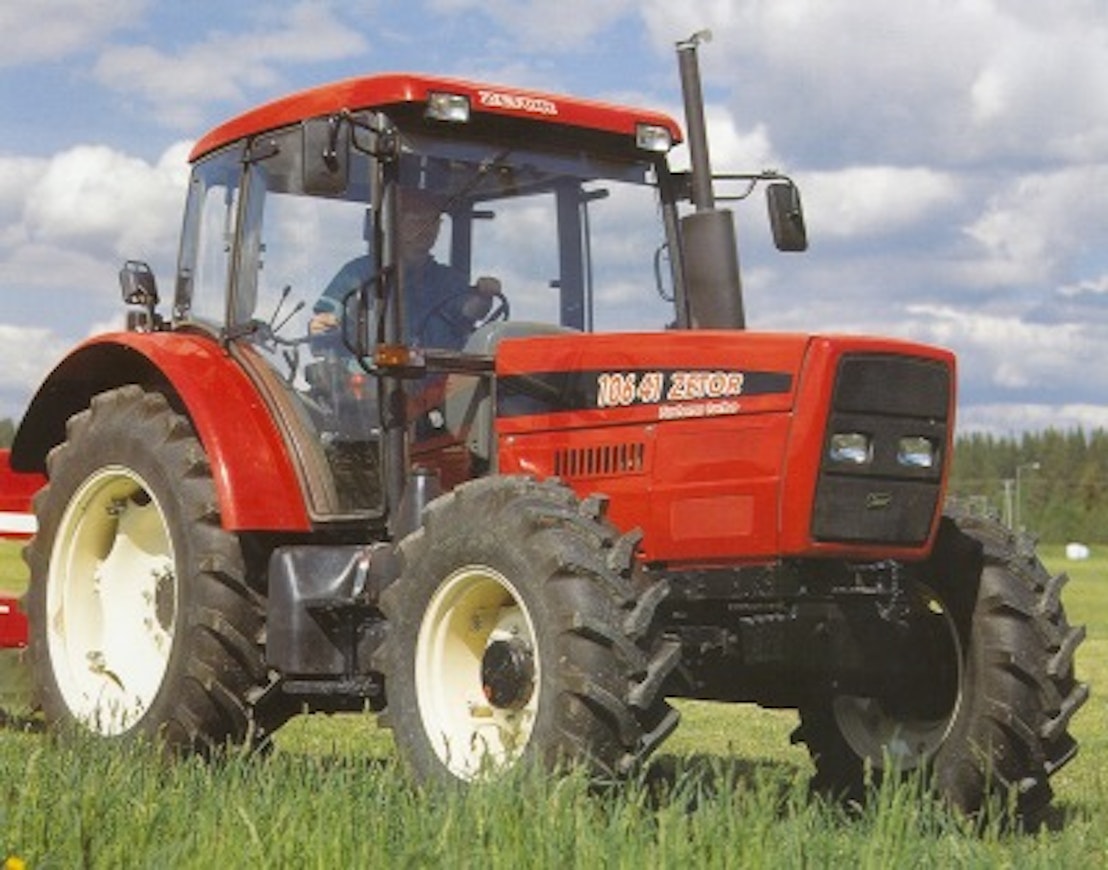

At the beginning of 1999, the 40-series, which was introduced in 1992, was updated. The new model series was named Forterra. Alongside the previous three turbocharged four-cylinder engines, a naturally aspirated six-cylinder engine purchased from Same/Lamborghini was introduced in the 11641 model (110 hp). The six-cylinder featured an electronic injection pump. The transmission was upgraded, now offering 24+18 gears, and the direction reverser was synchronized. The power shift was still a three-stage hydraulic system. Hydraulic output was now always 60 l/min in the four-cylinder models and 70 l/min in the six-cylinder model. Lifting capacity was increased from before. Bosch electric lift was standard on the six-cylinder and optional on the four-cylinder models.
The appearance was almost unchanged. The cab had curved glass and a redesigned, sleeker dashboard and instrument panel. Like Lamborghini, the 11641 had memory for two electronic hand throttle positions. Noise level was reduced to 79 decibels. The cab could still be ordered with forestry equipment. Forterra sales in Finland remained low as factory difficulties began, eventually leading to Kesko ceasing imports.
In 2000, the six-cylinder was equipped with a turbocharger, increasing power to 116 horsepower.
In 2002, a renewal took place, focusing mainly on streamlining the exterior appearance.
This is an automated translation. Please report any issues in the translation.
| Model | Zetor Forterra 8641 | Zetor Forterra 9641 | Zetor Forterra 10641 | Zetor Forterra 11641 | Zetor Forterra 11641 |
|---|---|---|---|---|---|
| Manufacturer name | Zetor Forterra | Zetor Forterra | Zetor Forterra | Zetor Forterra | Zetor Forterra |
| Imported to Finland | Yes | Yes | Yes | Yes | No |
| Years | 1999-02 | 1999-02 | 1999-02 | 1999-00 | 2000-02 |
| Engine model | 1203 | 1003 | 1303 | 1006.6W | 1006.6W2T |
| Cyl/Turbo/Intercooler | 4T | 4T | 4TI | 6 | 6T |
| Displacement | 4156 cm³ | 4156 cm³ | 4156 cm³ | 6000 cm³ | 6000 cm³ |
| Bore x stroke | 105×120 mm | 105×120 mm | 105×120 mm | 105×115,5 mm | 105×115,5 mm |
| Rated power | 85/2200 hp DIN/rpm | 95/2200 hp DIN/rpm | 105/2200 hp DIN/rpm | 110/2200 hp DIN/rpm | 116/2350 hp DIN/rpm |
| Torque | - | - | - | - | - |
| Gears | 24+18 | 24+18 | 24+18 | 24+18 | 24+18 |
| Synchronized gears | 24+18 | 24+18 | 24+18 | 24+18 | 24+18 |
| Powershift gears | 3-step | 3-step | 3-step | 3-step | 3-step |
| Reverser | mech. | mech. | mech. | mech. | mech. |
| Speeds in km/h | 1,9-36 | 1,9-37 | 1,9-37 | 1,9-38 | 1,9-38 |
| Hydr. flow l/min | 60 l/min | 60 l/min | 60 l/min | 70 l/min | 70 l/min |
| Hydraulic pressure | 175 bar | 175 bar | 175 bar | 175 bar | 175 bar |
| Lift controls | mech. (elec.) | mech. (elec.) | mech. (elec.) | elec. | elec. |
| Lift capacity | 4800 kg | 4800 kg | 4800 kg | 5800 kg | 5800 kg |
| PTO speeds | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 9.9 | 9.9 | 9.9 | 10.9 | 10.9 |
| Front tyres 4WD | 13.6-24 | 14.9-24 | 14.9R24 | 420/70R24 | 420/70R24 |
| Rear tyres 4WD | 18.4-34 | 16.9-38 | 16.9R38 | 520/70R38 | 520/70R38 |
| Weight 4WD | 3950 kg | 3950 kg | 4100 kg | 4450 kg | 4450 kg |
| Height with cab | 267 cm | 271 cm | 271 cm | 271 cm | 271 cm |
| Length (2WD/4WD) | 437 cm | 437 cm | 437 cm | 464 cm | 464 cm |
| Wheelbase (2WD/4WD) | 238 cm | 238 cm | 238 cm | 265 cm | 265 cm |
| Fuel tank | 180 l | 180 l | 180 l | 180 l | 180 l |
| Cab noise level | 79 dB | 79 dB | 79 dB | 79 dB | 78.5 dB |
| Solid cab | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Creeper gear | opt. | opt. | opt. | opt. | opt. |
