Siirry sivupalkkiinSiirry alaosaanVolvo BM 2200 – 2254

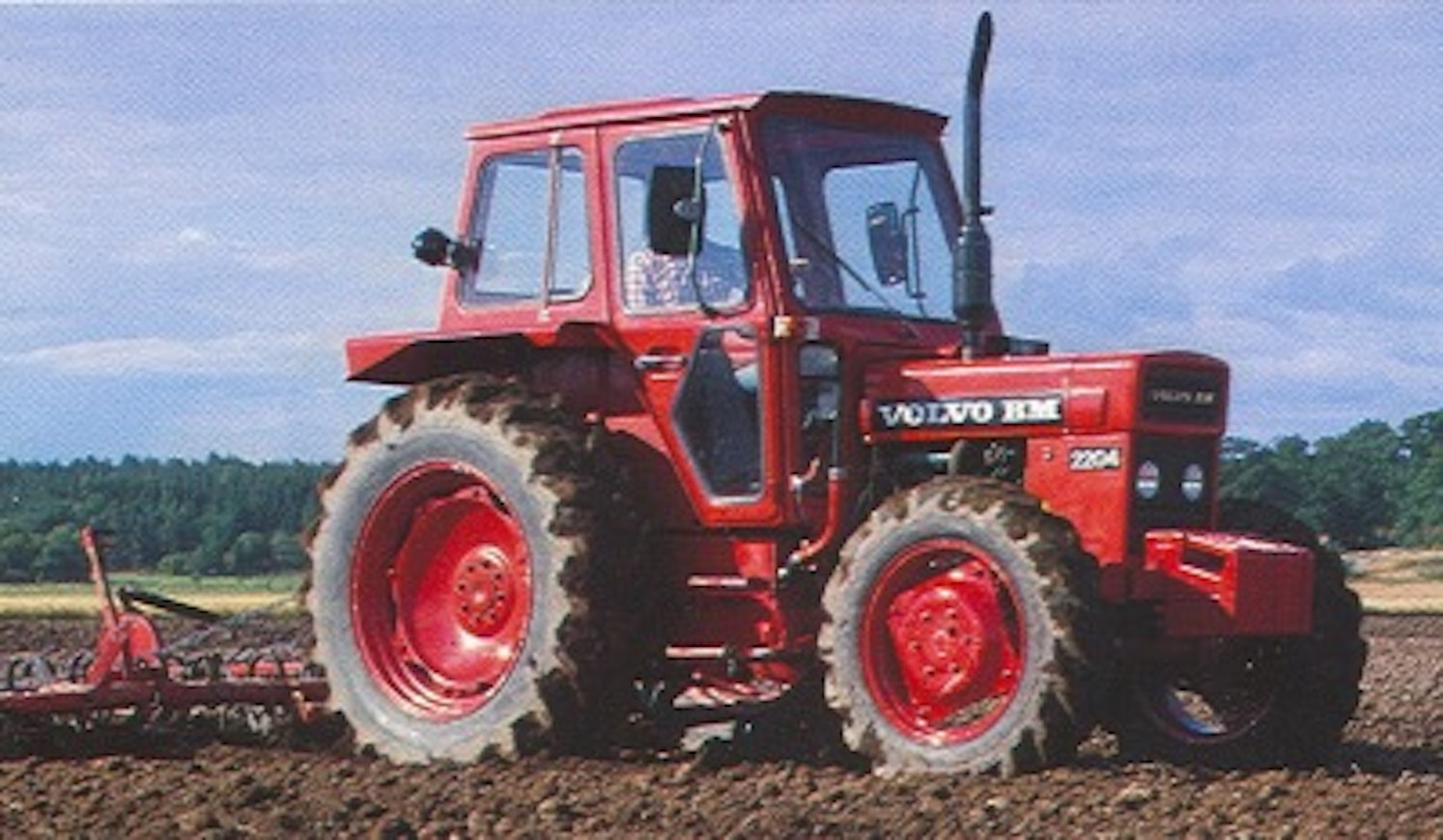

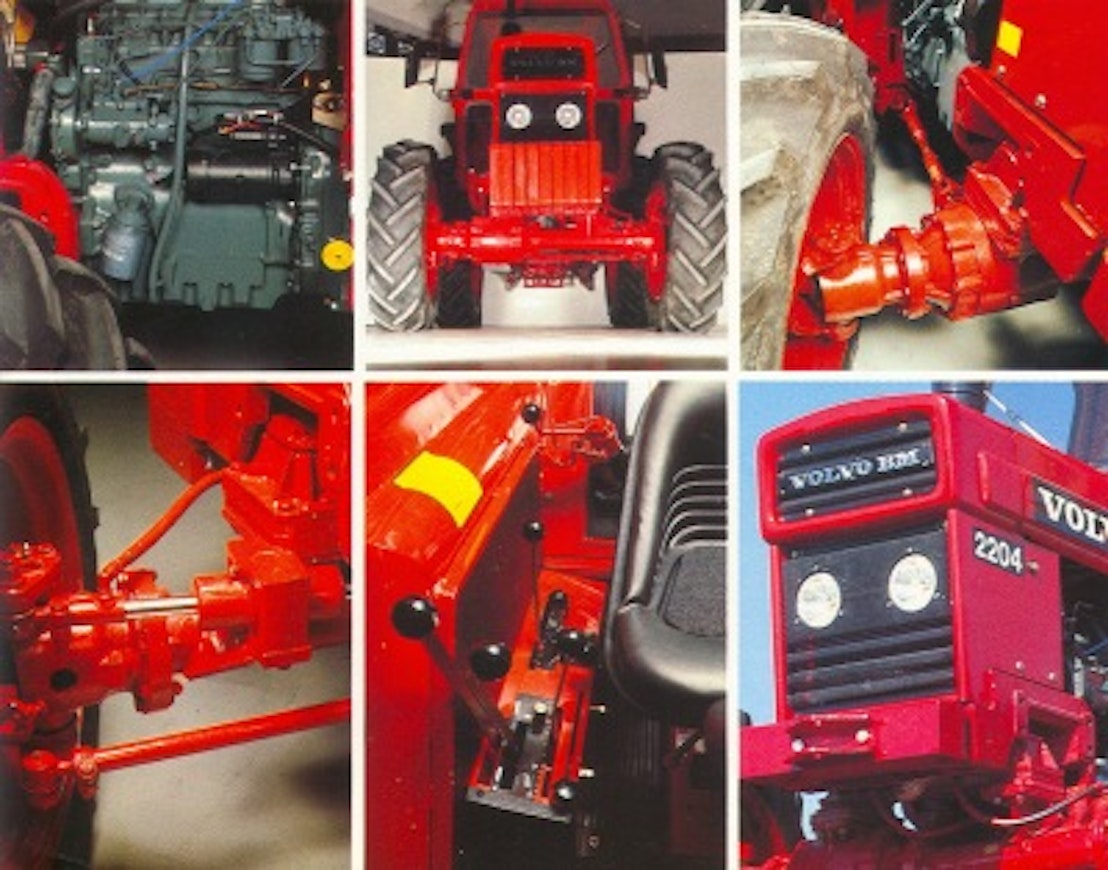

The T 500 was replaced by the renewed 2200-series models at the end of 1978. Now, two power classes were available: 56 and 68 hp. Also new was a four-wheel-drive model, which featured a Japanese Kimco front axle. The four-wheel drive was engaged electro-hydraulically. The cab was similar to that of the T 500, the engine was Perkins, and the transmission and rear axle were from International. The gearbox was synchronized except for the range selector, and the layout of the gear lever was British-style, i.e., positioned on the left side. The 11" clutch in the 2200 had 4 sintered friction plates, while the 2250 had six. The brakes now had oil separate from the hydraulic fluid, which reduced previous problems. Draft sensing was done through the draft arms. Surprisingly, in a test of 10 tractors by the Swedish National Machinery Testing Institute, the heater of the 2250 was the weakest performer in the test.
This is an automated translation. Please report any issues in the translation.
| Model | Volvo BM 2200/2204 | Volvo BM 2250/2254 |
|---|---|---|
| Manufacturer name | Volvo BM | Volvo BM |
| Imported to Finland | Yes | Yes |
| Years | 1978-84 | 1978-83 |
| Engine model | D39 Perkins | D39 T Perkins |
| Cyl/Turbo/Intercooler | 4 | 4 |
| Displacement | 3860 cm³ | 3860 cm³ |
| Bore x stroke | 98,4×127 mm | 98,4×127 mm |
| Rated power | 56/2200 hp DIN/rpm | 68/2200 hp DIN/rpm |
| Torque | - | - |
| Gears | 8+4 | 8+4 |
| Synchronized gears | 8+4 | 8+4 |
| Powershift gears | opt. | opt. |
| Speeds in km/h | 2,9-25,2 | 2,9-25,2 |
| Max. speed | 28.5 km/h | 28.5 km/h |
| Hydr. flow l/min | 45 l/min | 45 l/min |
| Hydraulic pressure | 172 bar | 172 bar |
| Lift controls | mech. | mech. |
| Lift capacity | 1850 kg | 2220 kg |
| PTO speeds | 540 | 540 |
| Brakes | wet disc | wet disc |
| Steering | hydrost. | hydrost. |
| Turning circle m 2WD | 8.2 | 8.2 |
| Turning circle m 4WD | 10.1 | 10.1 |
| Front tyres 2WD | 10,00-16 | 10,00-16 |
| Front tyres 4WD | 11.2-24 | 11.2-24 |
| Rear tyres 2WD | 13,6-38 | 13,6-38 |
| Rear tyres 4WD | 13.6-38 | 13.6-38 |
| Weight 2WD | 2945 kg | 3130 kg |
| Weight 4WD | 3400 kg | 3400 kg |
| Height with cab | 255 cm | 255 cm |
| Length (2WD/4WD) | 368/370 cm | 368/370 cm |
| Wheelbase (2WD/4WD) | 217 cm | 217 cm |
| Fuel tank | 88 l | 88 l |
| Cab noise level | 85 dB | 85 dB |
| Solid cab | x | x |
