Here is the translation to English:

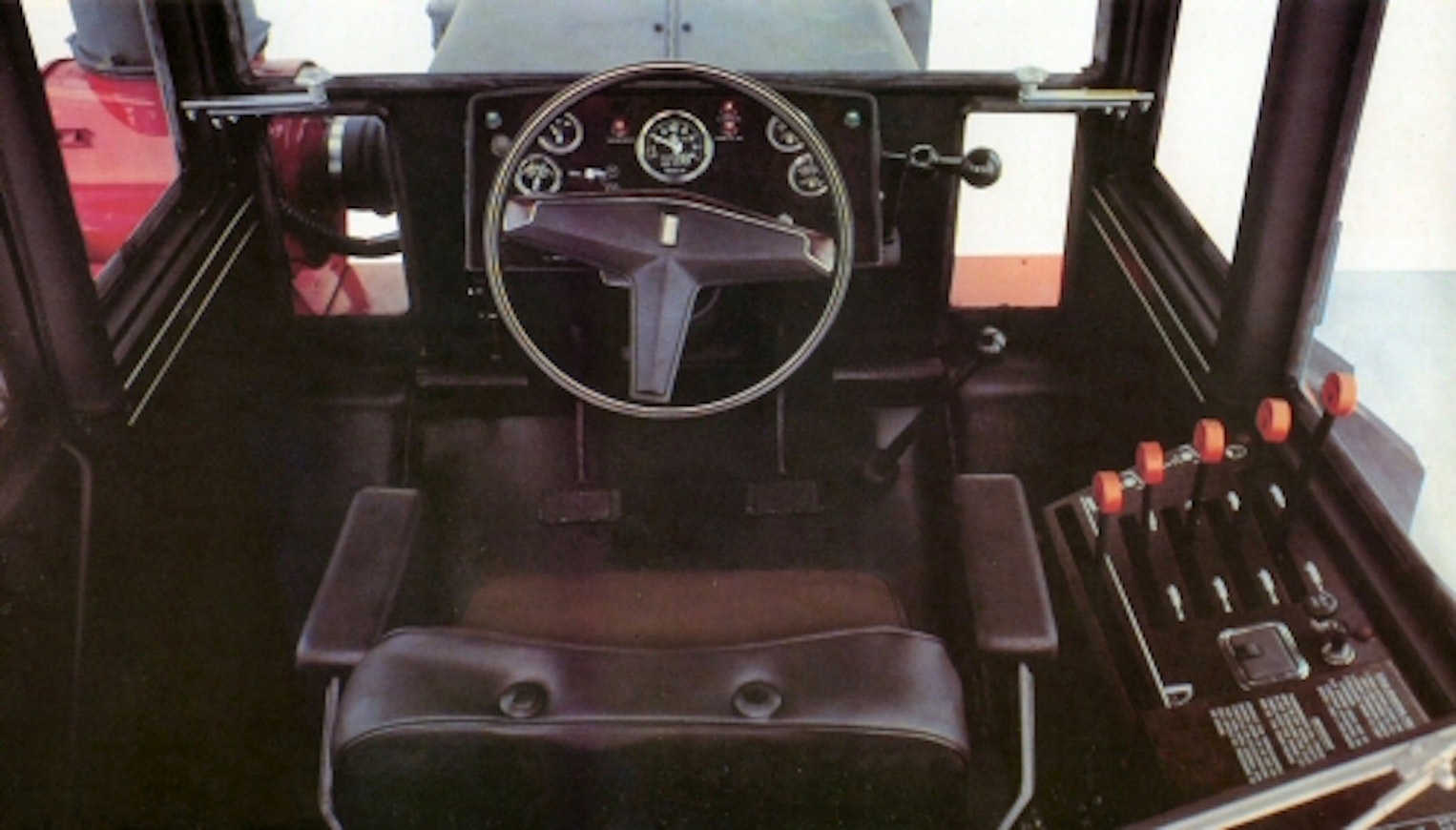

The Versatile models introduced in 1978 were almost identical in appearance to the previous ones. All engines were turbocharged, and the engines had a constant power range of about 400 RPM. Still, the mid-range models had significantly higher torque figures than the largest models. The transmission was the same mechanical 12+4 as before. Air conditioning was now standard equipment. For the first time, the seat had a fabric cover.
The successor to the smallest 500 model was the 555. Its engine was now also turbocharged, and the power had increased to 210 horsepower. The 555 had a 43-degree turning angle in both directions, making it significantly more maneuverable than its predecessor. The 555 was especially popular in Australia.
This is an automated translation. Please report any issues in the translation.
| Model | Versatile 555 | Versatile 835 | Versatile 855 | Versatile 875 | Versatile 895 | Versatile 935 | Versatile 950 |
|---|---|---|---|---|---|---|---|
| Manufacturer name | Versatile | Versatile | Versatile | Versatile | Versatile | Versatile | Versatile |
| Imported to Finland | No | No | No | No | No | No | No |
| Years | 1980-84 | 1978-82 | 1978-82 | 1978-82 | 1980-82 | 1978-82 | 1978-82 |
| Engine model | Cummins VT555-C | Cummins NT855-C230 | Cummins NT855-C250 | Cummins NT855-C280 | Cummins NTA855-C310 | Cummins VT-903-C330 | Cummins VT-903-C350 |
| Cyl/Turbo/Intercooler | V8T | 6T | 6T | 6T | 6TA | V8T | V8T |
| Displacement | 9085 cm³ | 14016 cm³ | 14016 cm³ | 14016 cm³ | 14016 cm³ | 14794 cm³ | 14794 cm³ |
| Bore x stroke | 117,5×104,8 mm | 139,7×152,4 mm | 139,7×152,4 mm | 139,7×152,4 mm | 139,7×152,4 mm | 139,7×120,65 mm | 139,7×120,65 mm |
| Rated power | 210/2850 hp DIN/rpm | 230/2100 hp DIN/rpm | 250/2100 hp DIN/rpm | 280/2100 hp DIN/rpm | 310/2100 hp DIN/rpm | 330/2600 hp DIN/rpm | 350/2400 hp DIN/rpm |
| Torque | - | - | - | - | - | - | - |
| Gears | 15+5 | 12+4 | 12+4 | 12+4 | 12+4 | 12+4 | 12+4 |
| Speeds in km/h | 3,1-27,6 | 4,2-23,0 | 4,2-23,0 | 4,2-23,0 | 4,2-23,0 | 4,3-24,5 | 4,2-23,0 |
| Hydr. flow l/min | 87.8 l/min | 89.4 l/min | 89.4 l/min | 89.4 l/min | 89.4 l/min | 101.4 l/min | 101.4 l/min |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 4490 kg | 5425 kg | 5425 kg | 5425 kg | 5425 kg | 5425 kg | 5425 kg |
| PTO speeds | 1000 | - | - | - | - | - | - |
| Brakes | disc brakes | disc brakes | disc brakes | disc brakes | disc brakes | disc brakes | disc brakes |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 7.72 | 11.28 | 11.28 | 11.28 | 11.28 | 11.28 | 11.28 |
| Front tyres 4WD | 18.4-38 | 24.5-32 | 24.5-32 | 24.5-32 | 24.5-32 | 24.5-32 | 24.5-32 |
| Rear tyres 4WD | 18.4-38 | 24.5-32 | 24.5-32 | 24.5-32 | 24.5-32 | 24.5-32 | 24.5-32 |
| Weight 4WD | 7620 kg | 8209 kg | 8336 kg | 8336 kg | 8336 kg | 8164 kg | 8164 kg |
| Height with cab | 315 cm | 330 cm | 330 cm | 330 cm | 330 cm | 330 cm | 330 cm |
| Length (2WD/4WD) | 640 cm | 643 cm | 643 cm | 643 cm | 643 cm | 643 cm | 643 cm |
| Wheelbase (2WD/4WD) | 305 cm | 330 cm | 330 cm | 330 cm | 330 cm | 330 cm | 330 cm |
| Fuel tank | 454 l | 700 l | 700 l | 700 l | 700 l | 700 l | 700 l |
| Cab noise level | 82.5 dB | 83 dB | - | 84.5 dB | 84 dB | - | - |
| Solid cab | x | x | x | x | x | x | x |
| Diff. lock | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
| Air conditioning | x | x | x | x | x | x | x |
