Versatile 350 – 400

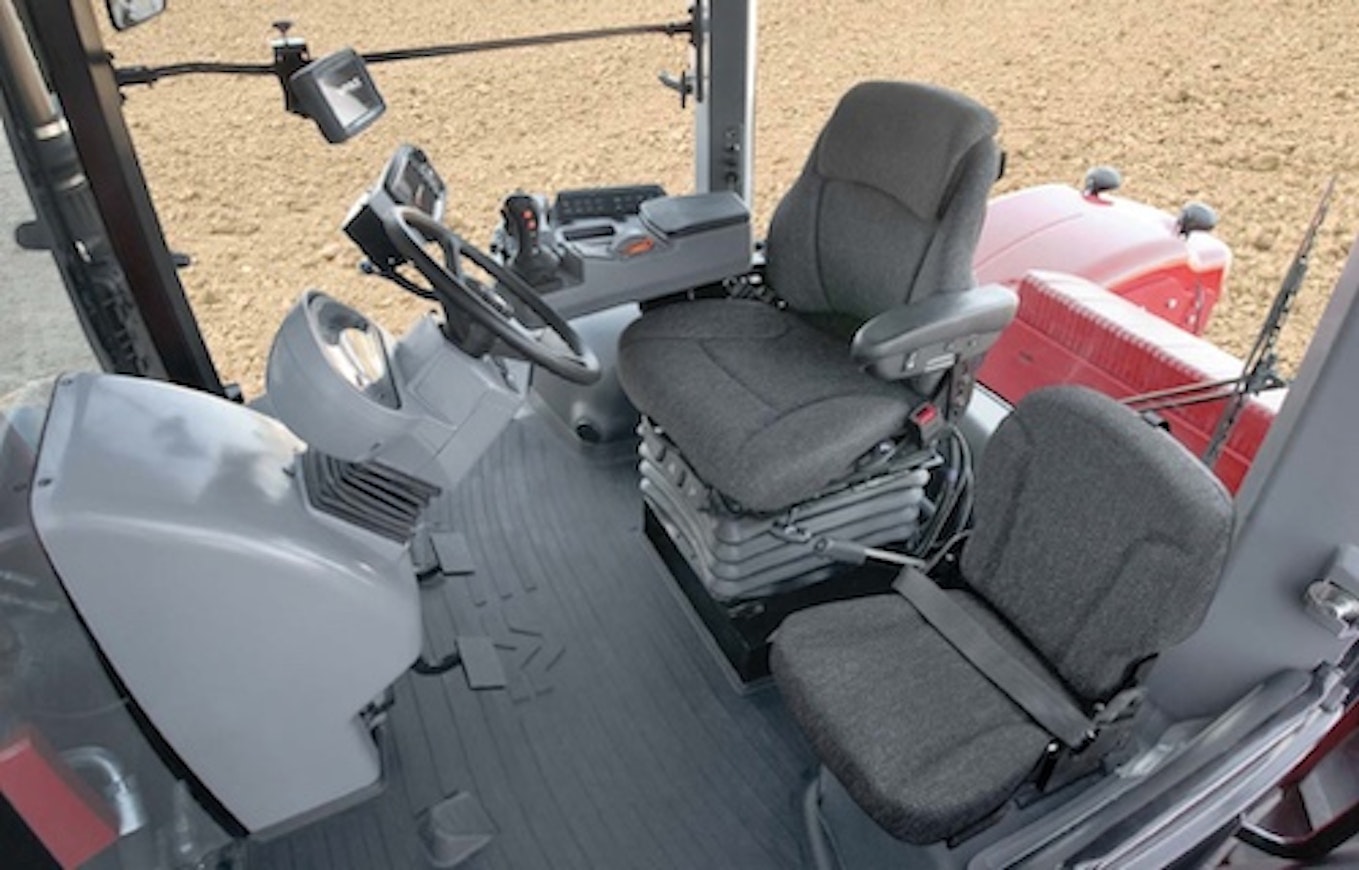

The Versatile 350, 375, and 400 models introduced in 2012 featured Cummins' new 11.9-liter engine. The smallest model had as much torque as the largest model in the previous lineup. Tier 4 emission requirements were met without urea, using exhaust gas recirculation, a particulate filter, and a variable geometry turbocharger. The basic transmission was still a mechanical 12+4. As an option, the larger models offered a lightweight version of the previously used Caterpillar 16+4 full powershift. An optional 428-liter pump and electric valves were available for the hydraulics. The control devices in the cab were completely redesigned. Almost all functions were now operated from the armrest. A 7″ monitor came with the optional hydraulic electric valves.
This is an automated translation. Please report any issues in the translation.
| Model | Versatile 350 | Versatile 375 | Versatile 400 |
|---|---|---|---|
| Options | |||
| Manufacturer name | Versatile | Versatile | Versatile |
| Imported to Finland | No | No | No |
| Years | 2012-2017 | 2012-2017 | 2012-2017 |
| First year sold | 2012 | 2012 | 2012 |
| Last year sold | 2017 | 2017 | 2017 |
| Engine model | Cummins QSX11.9 | Cummins QSX11.9 | Cummins QSX11.9 |
| Cyl/Turbo/Intercooler | 6TA | 6TA | 6TA |
| Displacement | 11900 cm³ | 11900 cm³ | 11900 cm³ |
| Bore x stroke | 132,1×143,8 mm | 132,1×143,8 mm | 132,1×143,8 mm |
| Rated power hp/rpm DIN | 350/2100 | 375/2100 | 400/2100 |
| Rated power | 350 | 375 | 400 |
| Rated speed | 2100 | 2100 | 2100 |
| Max power hp/rpm DIN | 385/1800 | 415/1800 | 450/1800 |
| Max power | 385 | 415 | 450 |
| Max speed | 1800 | 1800 | 1800 |
| Torque Nm/rpm DIN | 1830/1400 | 1966/1400 | 2169/1400 |
| Gears | 12+4/16+4 | 12+4/16+4 | 12+4/16+4 |
| Synchronized gears | 12+4/powershift | 12+4/powershift | 12+4/powershift |
| Powershift gears | -/powershift | -/powershift | -/powershift |
| Reverser | -/hydr. | -/hydr. | -/hydr. |
| Max. speed | 35 km/h | 35 km/h | 35 km/h |
| Hydr. flow l/min | 220 (428) l/min | 220 (428) l/min | 220 (428) l/min |
| Lift controls | mech. | mech. | mech. |
| Lift capacity | 5966 kg | 5966 kg | 5966 kg |
| PTO speeds | 1000 | 1000 | 1000 |
| Brakes | disc brakes | disc brakes | disc brakes |
| Steering | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 9.72 | 9.72 | 9.72 |
| Front tyres 4WD | 710/70R38 | 710/70R38 | 710/70R38 |
| Rear tyres 4WD | 710/70R38 | 710/70R38 | 710/70R38 |
| Weight 4WD | 14228 kg | 14228 kg | 14228 kg |
| Wheelbase (2WD/4WD) | 343 cm | 343 cm | 343 cm |
| Fuel tank | 1335 l | 1335 l | 1335 l |
| Solid cab | x | x | x |
| Diff. lock | opt. | opt. | opt. |
| Air suspension seat | x | x | x |
| Air conditioning | x | x | x |
| Trip computer | Deluxe | Deluxe | Deluxe |
