Schlüter Super 1050-1400 Super-Silence

89SchluterSuper1250
75SchluterSuper1250VL
82SchluterSuperOhjaamo
89SchluterSuper1250
75SchluterSuper1250VL
82SchluterSuperOhjaamo
Manufacturer
Models
Schlüter Super 1050 V, Schlüter Super 1050 V, Schlüter Super 1050 V Special, Schlüter Super 1250 V, Schlüter Super 1250 V, Schlüter Super 1250 VL, Schlüter Super 1250 VL, Schlüter Super 1250 VL, Schlüter Super 1250 VL Special, Schlüter Super 1250 VL Special, Schlüter Super 1400 LS
Years
1974-93
Info

The Schlüters of the Super series remained in production with minor changes until the 1990s. Their appearance dated back to the early 1960s, but this did not harm the brand’s position as the most esteemed brand on the market. However, sales figures gradually declined year by year. Compared to the sales volume, there was an impressive range of model options and equipment possibilities. For example, more lifting power was often available at an extra cost, and the turbine clutch was either standard or optional depending on the model. The 1050 came standard with push-arm sensing and had pull-arm sensing as an option, which was standard on larger models.

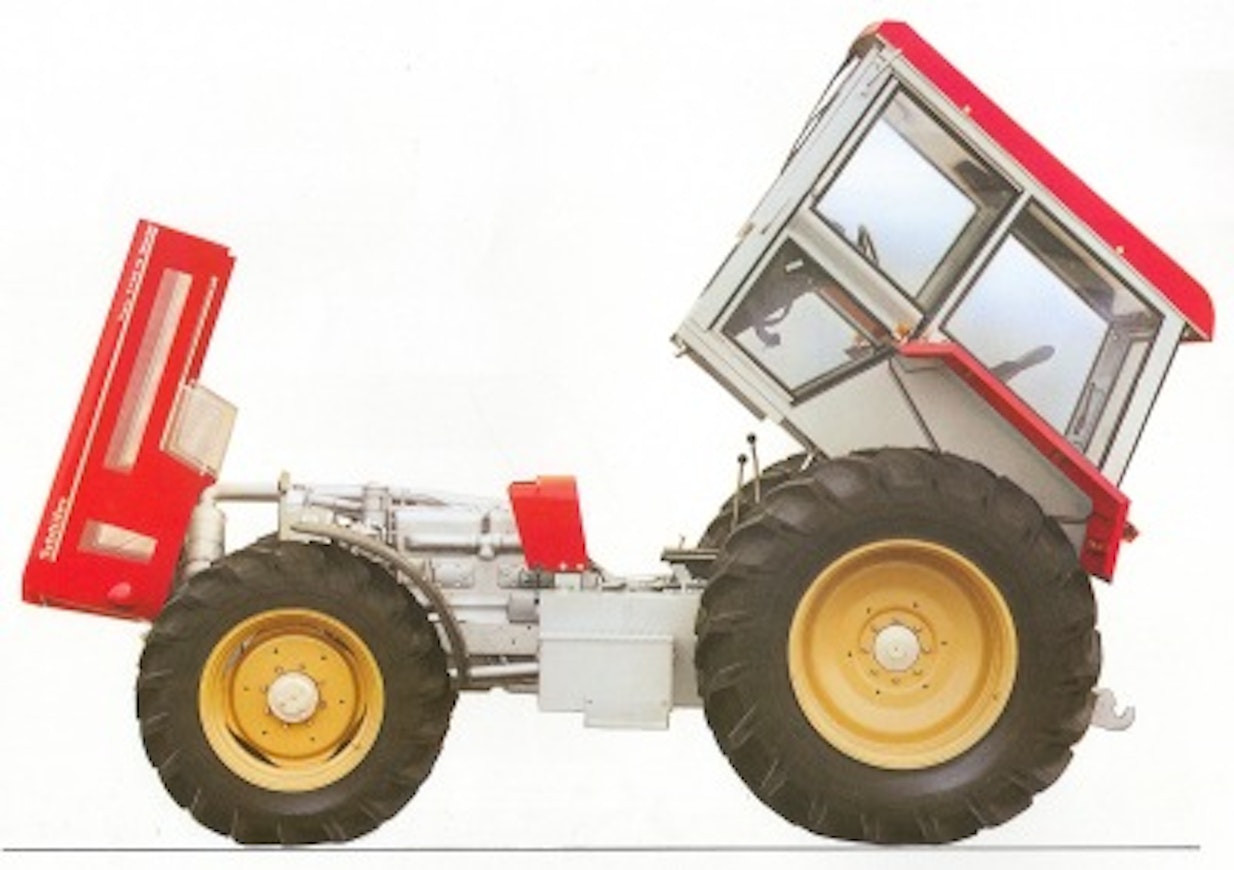

In spring 1974, a hydraulically tiltable Super-Silence cab was introduced for the 1250 V model. It wasn't available for the 1050 until 1978. The gear levers were moved to the side, and the controls were otherwise updated. In 1978, the cab was widened. In 1981, a 40 km/h transmission and a new front axle equipped with a lock were introduced. The 1250 VL had a friction lock as standard since 1974. In 1981, the 130-horsepower 1250 VL Special was launched, and a year later, the 110-horsepower 1050 V Special followed. In 1986, a 50 km/h version with 24+10 gears became available. A power lift with electrical control was available as an optional extra from 1988 onwards. In 1990, the wheelbase was extended.

In 1989, the Super 1250 VL-LS and the corresponding Special model were introduced. These featured a 24+12 transmission with a 2-speed quick-shift taken from the larger model range, available in both 40 km/h and 50 km/h versions.

Between 1991 and 1993, 5 units of the Super 1300 fitted with MAN engines (130 hp) were produced, and in 1993, 6 units of the Super 1400 (135 hp) were manufactured. These models had a turbocharged 6.9-liter engine. The rest of the technology was consistent with the Super 1250.

In the 1980s, the Schlüters of the Super series were only slightly more expensive than “ordinary” tractors of the same power class and clearly cheaper than Fendt Favorites.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelSchlüter Super 1050 VSchlüter Super 1050 VSchlüter Super 1050 V SpecialSchlüter Super 1250 VSchlüter Super 1250 VSchlüter Super 1250 VLSchlüter Super 1250 VLSchlüter Super 1250 VLSchlüter Super 1250 VL SpecialSchlüter Super 1250 VL SpecialSchlüter Super 1400 LS
Manufacturer nameSchlüterSchlüterSchlüterSchlüterSchlüterSchlüterSchlüterSchlüterSchlüterSchlüterSchlüter
Imported to FinlandNoNoNoNoNoNoNoNoNoNoNo
Years1978-821982-861982-871974-761976-811974-761976-841984-911981-841984-931993
Engine modelSDM 108 W 6SDM 110 W 6SDM 110 W 6SDM 110 W 6SDM 110 W 6SDM 110 W 6SDM 110 W 6SDM 112 W 6SDM 112 W 6SDM 112 W 6MAN D 0826 TE 501
Cyl/Turbo/Intercooler66666666666T
Displacement6871 cm³7127 cm³7127 cm³7127 cm³7127 cm³7127 cm³7127 cm³7389 cm³7389 cm³7389 cm³6871 cm³
Bore x stroke108×125 mm110×125 mm110×125 mm110×125 mm110×125 mm110×125 mm110×125 mm112×125 mm112×125 mm112×125 mm108×125 mm
Rated power105/1800 hp DIN/rpm105/1800 hp DIN/rpm110/1800 hp DIN/rpm115/1800 hp DIN/rpm115/1800 hp DIN/rpm125/2000 hp DIN/rpm125/2000 hp DIN/rpm125/2000 hp DIN/rpm130/2000 hp DIN/rpm130/2000 hp DIN/rpm135/2200 hp DIN/rpm
Torque-----------
Gears12+612+612+612+612+612+612+612+612+612+624+12
Synchronized gears12+612+612+68+412+68+412+612+612+612+624+12
Speeds in km/h2,6-32,53,0-36,93,0-36,92,5-30,22,5-30,92,7-32,02,6-32,33,3-40,33,3-40,03,3-40,33,3-41,5
Hydr. flow l/min38 l/min40 l/min40/49 l/min-40 l/min-40 l/min49 l/min40 l/min49 l/min-
Lift controlsmech.mech.mech.mech.mech.mech.mech.mech. (elec.)mech.mech. (elec.)mech. (elec.)
Lift capacity3600/4500 kg3900/6200 kg3900/6200 kg4500/5600 kg5600/6200 kg5600 kg5600/6200 kg6200/8400 kg6200/8400 kg6200/8400 kg6200/8400 kg
PTO speeds540/1000540/1000540/1000540/1000540/1000540/1000540/1000540/1000540/1000540/1000540/1000
Brakesdrum brakesdrum brakesdrum brakesdrum brakesdrum brakesdrum brakesdrum brakesdrum brakesdrum brakesdrum brakesdrum brakes
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD8,8 jarrulla8,8 jarrulla8,8 jarrulla9,2 jarrulla9,2 jarrulla9,2 jarrulla9,2 jarrulla9,2 jarrulla9,2 jarrulla9,2 jarrulla9,2 jarrulla
Front tyres 4WD12.4-2812.4R2812.4R2811.2-2811.2-2812.4-2814.9-2814.9R2814.9R2814.9R2814.9R28
Rear tyres 4WD16.9-3816.9R3816.9R3818.4-3418.4-3418.4-3818.4-3818.4R3818.4R3818.4R3818.4R38
Weight 4WD4900 kg5300 kg5300 kg5065 kg5700 kg5235 kg5780 kg6100 kg6100 kg6100 kg6100 kg
Height with cab281 cm288 cm288 cm266 cm279 (285) cm272 cm284 cm288 cm288 cm288 cm288 cm
Length (2WD/4WD)459 cm467 cm467 cm441 cm463 cm454 (463) cm463 cm467 (476) cm463 cm467 (476) cm476 cm
Wheelbase (2WD/4WD)272 cm272 cm272 cm264 cm272 cm264 (272) cm272 cm272 (281) cm272 cm272 (281) cm281 cm
Fuel tank125/260 l310 l310 l125/260 l260/310 l260 l310 l310 l310 l310 l310 l
Cab noise level84 dB84 dB84 dB---82.5 dB82.5 dB82.5 dB82.5 dB-
Solid cabxxxxxxxxxxx
Creeper gearopt.opt.opt.opt.opt.opt.opt.opt.opt.opt.opt.
Max. speed -40/50 km/h40/50 km/h---32/40 km/h40/50 km/h-40/50 km/h-
Diff. lock--/friction lock-/friction lock--/friction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lock
Powershift gears-------opt.-opt.hydr.
