Siirry sivupalkkiinSiirry alaosaanWhite Workhorse 125-195

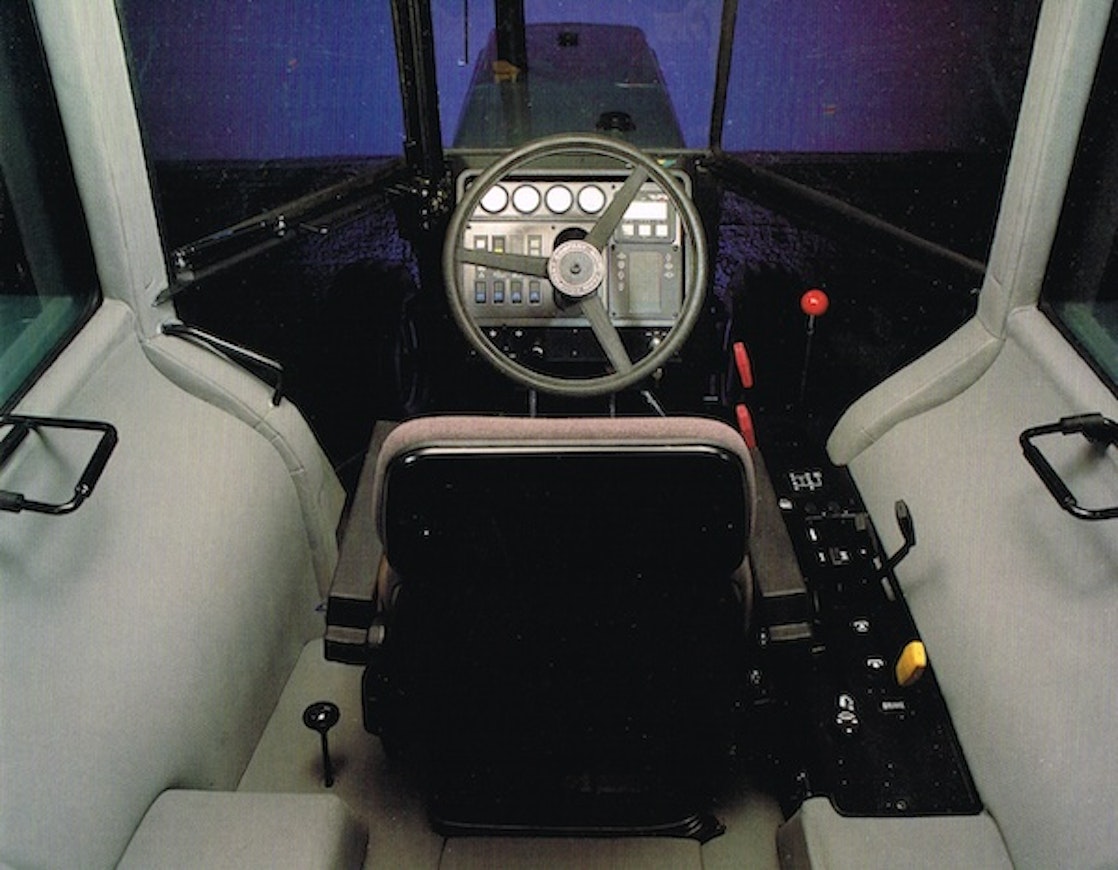

White-New Idea updated their larger tractors in 1990 to the Workhorse series. The increase in power by a couple of horsepower justified raising the model numbers. The engines were still 5.9- and 8.3-liter Cummins, and the transmission was 18+6 with a three-speed power shift and a top road speed of 30 km/h. The lifting capacity was slightly increased. Up to three hydraulic remotes were still available. Also, the largest four-wheel-drive models now had a longer wheelbase, yet despite this, they were reported to have a smaller turning radius than the smaller models. Telescopic drawbar ends were considered a noteworthy improvement. The simple cab featured a new seat and a noise level of 75.5-76.5 decibels.
In 1991, White tractors came under the ownership of Agco.
This is an automated translation. Please report any issues in the translation.
| Model | White Workhorse 125 | White Workhorse 145 | White Workhorse 170 | White Workhorse 195 |
|---|---|---|---|---|
| Manufacturer name | White Workhorse | White Workhorse | White Workhorse | White Workhorse |
| Imported to Finland | No | No | No | No |
| Years | 1990-92 | 1990-92 | 1990-92 | 1990-92 |
| Engine model | B6T-590 | B6TA-590 | C6T-830 | C6TA-830 |
| Cyl/Turbo/Intercooler | 6T | 6TA | 6T | 6TA |
| Displacement | 5883 cm³ | 5883 cm³ | 8277 cm³ | 8277 cm³ |
| Bore x stroke | 98,4×127 mm | 98,4×127 mm | 114×135,1 mm | 114×135,1 mm |
| Rated power | - | - | - | - |
| Gears | 18+6 | 18+6 | 18+6 | 18+6 |
| Powershift gears | 3-step | 3-step | 3-step | 3-step |
| Speeds in km/h | 2,7-31,5 | 2,9-30,7 | 2,9-29,3 | 2,9-29,3 |
| Hydr. flow l/min | 83.3 l/min | 83.3 l/min | 83.3 l/min | 83.3 l/min |
| Hydraulic pressure | 155 bar | 155 bar | 172 bar | 172 bar |
| Lift controls | mech. | mech. | mech. | mech. |
| Lift capacity | 3271 (3876) kg | 3271 (3876) kg | 3856 (4491) kg | 3856 (4491) kg |
| PTO speeds | 540/1000 | 540/1000 | 1000 | 1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 9.69 | 9.93 | 8.77 | 8.77 |
| Turning circle m 4WD | 12.67 | 10.97 | 10.54 | 10.54 |
| Front tyres 2WD | 10.00-16 | 11.00-16 | 11.00-16 | 14L-16 |
| Front tyres 4WD | 14.9-28 | 14.9-28 | 14.9-30 | 14.9-30 |
| Rear tyres 2WD | 18.4R38 | 18.4R38 | 20.8R38 | 20.8R38 |
| Rear tyres 4WD | 18.4R38 | 18.4R38 | 20.8R38 | 20.8R38 |
| Weight 2WD | 5557 kg | 5557 kg | 6033 kg | 6169 kg |
| Weight 4WD | 6056 kg | 6260 kg | 6985 kg | 7051 kg |
| Height with cab | 298/301 cm | 302/307 cm | 305/310 cm | 305/310 cm |
| Length (2WD/4WD) | 440 cm | 445 cm | 439 cm | 439 cm |
| Wheelbase (2WD/4WD) | 283/251 cm | 283/251 cm | 284/259 cm | 284/259 cm |
| Fuel tank | 220 l | 242 l | 280 l | 280 l |
| Cab noise level | 75.5 dB | 75.5 dB | 76.5 dB | 76.5 dB |
| Solid cab | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock |
| Air conditioning | x | x | x | x |
