Massey Ferguson 3670-3690
Manufacturer
Models
Massey Ferguson 3670, Massey Ferguson 3670, Massey Ferguson 3690, Massey Ferguson 3690, Massey Ferguson 3690
Years
1990-95
Info

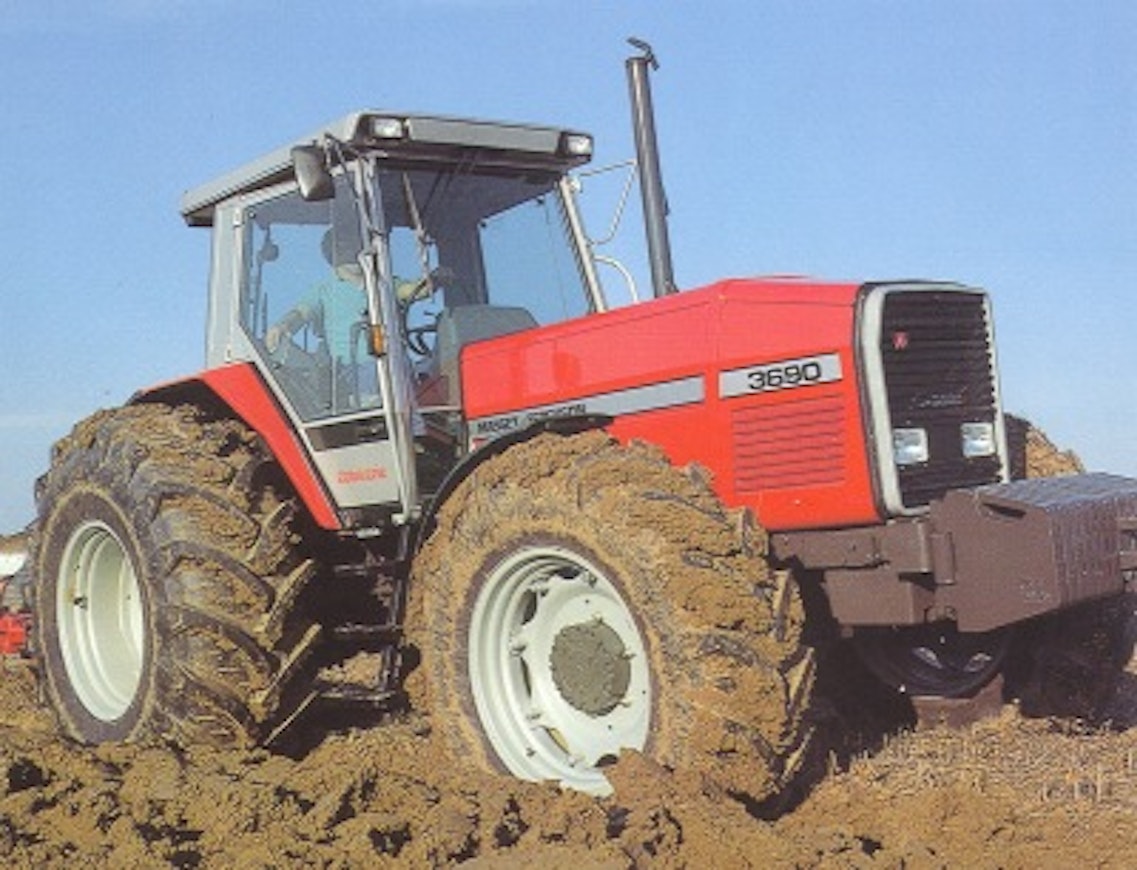

The 3680, equipped with a Valmet engine, was replaced in 1990 by the 3690, which had 10 horsepower more than its predecessor, and at the same time, the 3670, equipped with a 6.6-liter Valmet engine (170 hp), was introduced alongside it. In 1992, the transmission was changed, like in the smaller models, to a four-speed Dynashift quick-shift type. In 1994, the engine of the 3690 was updated to the newer 634DS model.
Models based on the 3670 and 3690 included the Steyr 9155-9190, Valmet 8600/8800, and Landini 17500/19500.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Massey Ferguson 3670 | Massey Ferguson 3670 | Massey Ferguson 3690 | Massey Ferguson 3690 | Massey Ferguson 3690 |
|---|---|---|---|---|---|
| Options | |||||
| Manufacturer name | Massey Ferguson | Massey Ferguson | Massey Ferguson | Massey Ferguson | Massey Ferguson |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes |
| Years | 1990-92 | 1992-95 | 1990-92 | 1992-94 | 1994-95 |
| First year sold | 1990 | 1992 | 1990 | 1992 | 1994 |
| Last year sold | 1992 | 1995 | 1992 | 1994 | 1995 |
| Engine model | 620DS | 620DS | 612DS | 612DS | 634DS |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI | 6TI |
| Displacement | 6598 cm³ | 6598 cm³ | 7368 cm³ | 7368 cm³ | 7368 cm³ |
| Bore x stroke | 108×120 mm | 108×120 mm | 108×134 mm | 108×134 mm | 108×134 mm |
| Rated power hp/rpm DIN | 170/2200 | 170/2200 | 190/2200 | 190/2200 | 190/2200 |
| Rated power | 170 | 170 | 190 | 190 | 190 |
| Rated speed | 2200 | 2200 | 2200 | 2200 | 2200 |
| Torque Nm/rpm DIN | 650/1400 | 650/1400 | 730/1400 | 730/1400 | 750/1400 |
| Gears | 16+16/32+32 | 32+32 | 16+16/32+32 | 32+32 | 32+32 |
| Synchronized gears | 16+16/32+32 | 32+32 | 16+16/32+32 | 32+32 | 32+32 |
| Powershift gears | hydr. | 4-step | hydr. | 4-step | 4-step |
| Reverser | mech. | mech. | mech. | mech. | mech. |
| Speeds in km/h | - | 2,5- | - | 2,5- | 2,5- |
| Max. speed | 37 km/h | 40 km/h | 37 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 53.3 l/min | 58.8 l/min | 53.3 l/min | 58.8 l/min | 58.8 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 7800 kg | 7800 kg | 7800 kg | 7800 kg | 7800 kg |
| PTO speeds | 540/1000 | 540/1000 | 1000 | 1000 | 1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 11.8 | 11.8 | 11.8 | 11.8 | 11.8 |
| Front tyres 4WD | 16.9R28 | 16.9R28 | 16.9R30 | 16.9R30 | 16.9R30 |
| Rear tyres 4WD | 20.8R38 | 20.8R38 | 20.8R42 | 20.8R42 | 20.8R42 |
| Weight 4WD | 6280 kg | 6280 kg | 6730 kg | 6730 kg | 6730 kg |
| Height with cab | 298 cm | 298 cm | 298 cm | 298 cm | 298 cm |
| Length (2WD/4WD) | 538 cm | 538 cm | 538 cm | 538 cm | 538 cm |
| Wheelbase (2WD/4WD) | 293 cm | 293 cm | 293 cm | 293 cm | 293 cm |
| Fuel tank | 306 l | 306 l | 306 l | 306 l | 306 l |
| Cab noise level | 75 dB | 75 dB | 76 dB | 76 dB | 75 dB |
| Solid cab | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Autom. differential locks | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x |
| Air conditioning | x | x | x | x | x |
| Trip computer | opt. | opt. | opt. | opt. | opt. |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
