Hela D 527 - D 532, D 340
Introduced in 1968, the D 532 was the successor to the D 230 model. The Hela engine was replaced by a 3-cylinder 2.2-liter MWM. The 6+2 gearbox was available in either 20 or 25 km/h versions. The same model was exported to France and Belgium with power increased to 35 horsepower.
The D 527 replaced the earlier D 225. The 2.2-liter Hela engine was replaced by a 1.5-liter high-speed MWM. The 20 km/h version had 24 hp and the 25 km/h version 27 hp.

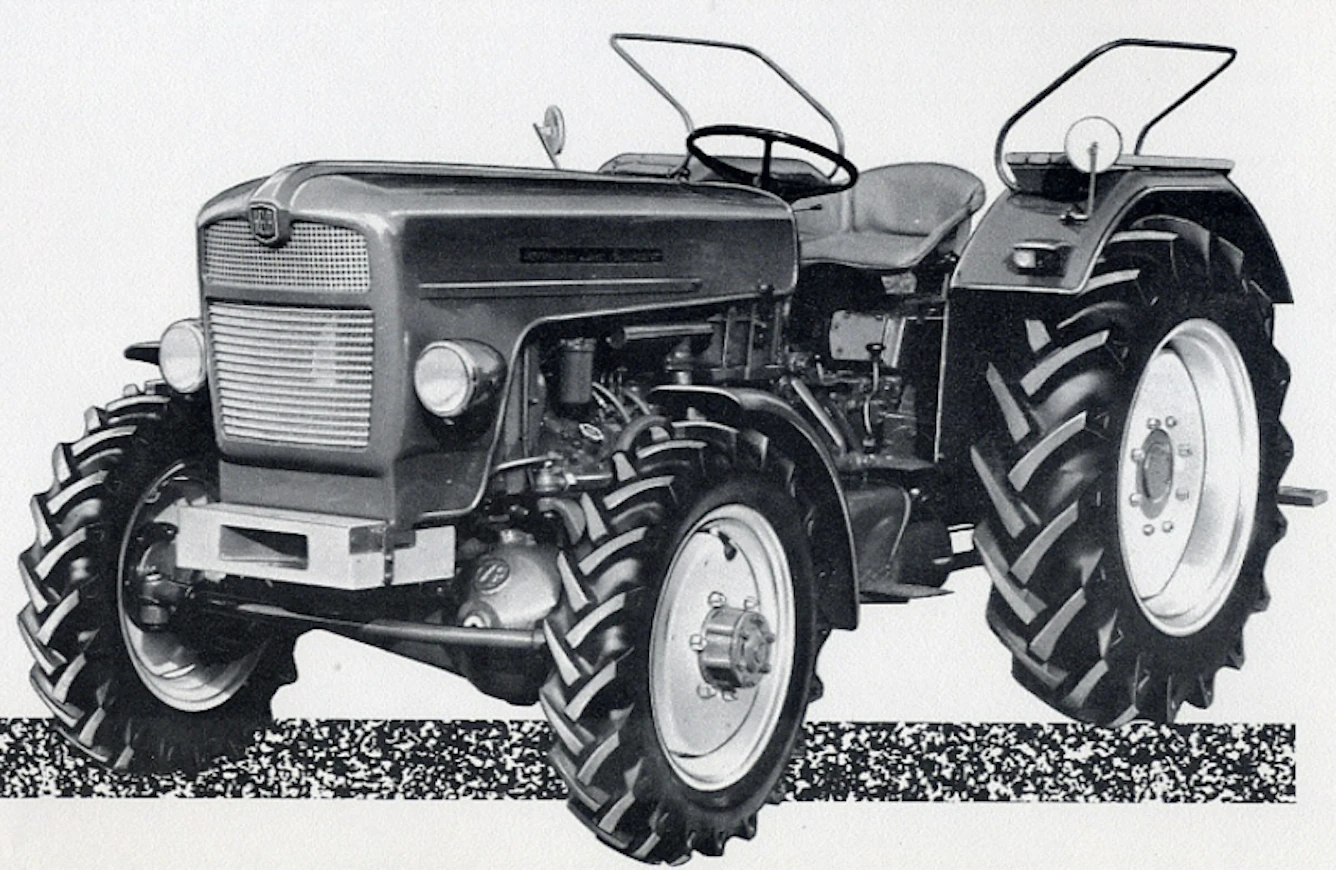

The D 340 A was a 40 hp four-wheel-drive tractor equipped with a 2.2-liter MWM. The 8+4 gearbox and front axle were produced by ZF. Power transmission to the front axle ran on the left side of the engine.
From these models onwards, Hela reported the tractor height up to the steering wheel, following the practice of other manufacturers. A selling point in advertisements was that the tractors featured powder coating, available in either red or green.
| Model | Hela D 527 | Hela D 532 | Hela D 340 |
|---|---|---|---|
| Options | |||
| Imported to Finland | No | No | No |
| Years | 1968-71 | 1968-74 | 1967-70 |
| First year sold | 1968 | 1968 | 1967 |
| Last year sold | 1971 | 1974 | 1970 |
| Engine model | MWM D 208-2 | MWM D 208-3 | MWM D 208-3 |
| Cyl/Turbo/Intercooler | 2 | 3 | 3 |
| Displacement | 1488 cm³ | 2232 cm³ | 2232 cm³ |
| Bore x stroke | 95x105 mm | 95x105 mm | 95x105 mm |
| Rated power hp/rpm DIN | 24-27/2400 | 30/2100 | 40/2100 |
| Rated power | 27 | 30 | 40 |
| Rated speed | 2400 | 2100 | 2100 |
| Gears | 6+2 | 6+2 | 8+4 |
| Speeds in km/h | 1,3-19,8 / 1,3-24,3 | 1,4-20,0 / 1,4-25,0 | 1,7-27,2 |
| Max. speed | - | 20/25 km/h | - |
| Lift controls | mek. | mek. | mek. |
| Lift capacity | 1400 kg | 1400 kg | 1500 kg |
| PTO speeds | 570 | 544/1050 | 575/1150 |
| Brakes | paisuntaj. | paisuntaj. | paisuntaj. |
| Steering | mek. | mek. | mek. (hydr.) |
| Turning circle m 2WD | - | 6,2 | - |
| Front tyres 2WD | 5.00-16 | 6.00-16 | - |
| Front tyres 4WD | - | - | 6.50-20 |
| Rear tyres 2WD | 10-28 | 10-28 | - |
| Rear tyres 4WD | - | - | 11-28 |
| Weight 2WD | (1680) kg | (1710) kg | - |
| Height with cab | (147) cm | (147) cm | (165) cm |
| Length (2WD/4WD) | 320 cm | 330 cm | 336 cm |
| Wheelbase (2WD/4WD) | 193 cm | 208 cm | 196 cm |
| Fuel tank | 35 l | 35 l | 50 l |
