Manufacturer
Models
Ford Dexta 2000, Ford Super Dexta 3000, Ford Major 4000, Ford Super Major 5000
Years
1964-68
Info

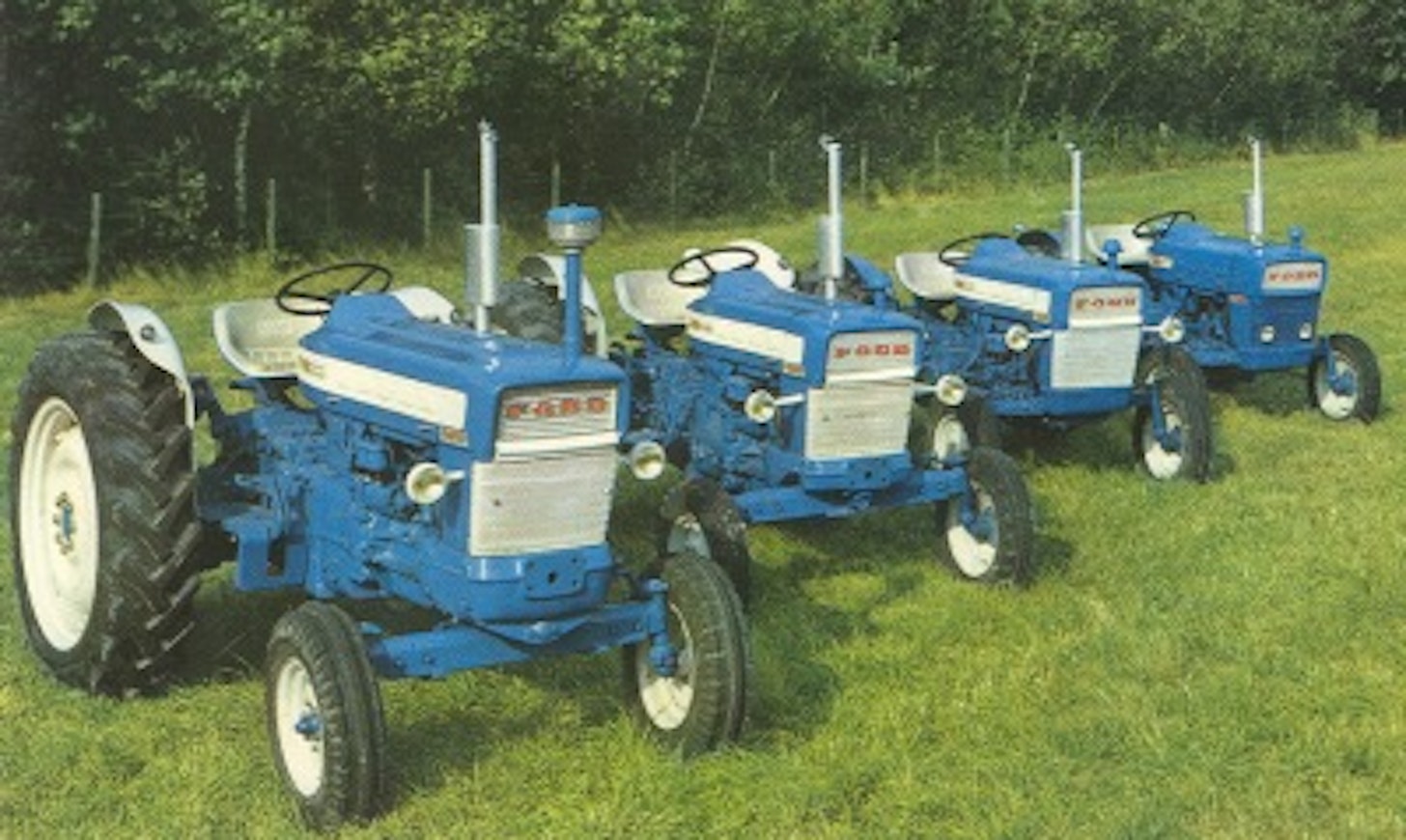

At the end of 1964, Ford introduced a new tractor series known as the 1000 series, even though the old Dexta and Major names were retained alongside the numbers in Europe. The updates compared to the old Fordson models were significant. For example, the engines were completely renewed, the gearbox consisted of 8+2 speeds except for the 2000 model, and as an optional feature, there was the advanced but problematic hydraulically selectable Select-O-Speed. It was based on three planetary gear sets, which, with servo-operated brake bands and multi-plate clutches, allowed for 10+2 gears without the use of a clutch.

The new engines were short-stroke. The 3-cylinder engines were equipped with a distributor pump, and the 4-cylinder inline engine in the 5000 model had a rotary pump. The 5000 featured a 12″ drive clutch instead of the 11″ found in other models, and an independent power take-off (PTO) was standard regardless of the drive clutch. Alongside the Select-O-Speed, all models were available with an independent 1000 rpm PTO and a road PTO. The hydraulics worked independently of the clutch in all models. Hydraulic functions included draft control, stepless position adjustment, and lift speed control. The 4000 and 5000 models had planetary final drives on the rear axle, and the brakes were oil-immersed disc brakes. Initially, the 2000 model lacked a differential lock.

Six-cylinder engines were installed in the sturdy 5000 model in many countries. The Finnish version was the OK-6, produced by the official importer Orasvuori's machine shop, with a 5.9-liter engine delivering 113 hp SAE.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelFord Dexta 2000Ford Super Dexta 3000Ford Major 4000Ford Super Major 5000
Manufacturer nameFordFordFordFord
Imported to FinlandYesYesYesYes
Years1964-681964-681964-681964-68
Cyl/Turbo/Intercooler3334
Displacement2590 cm³2868 cm³3294 cm³3819 cm³
Bore x stroke106,7×97 mm106,7×106,7 mm111,8×111,8 mm106,7×106,7 mm
Rated power34 SAE/2000 hp DIN/rpm46 SAE/2000 hp DIN/rpm54 SAE/2200 hp DIN/rpm64 SAE/2100 hp DIN/rpm
Torque----
Gears6+28+28+28+2
Powershift gearsopt.opt.opt.opt.
Speeds in km/h2,2-28,02,2-28,02,1-27,02,1-27,0
Hydr. flow l/min15.1 l/min18.2 l/min20.4 l/min22.7 l/min
Lift controlsmech.mech.mech.mech.
Lift capacity1270 kg1270 kg1450 kg1725 kg
PTO speeds540540540540
Brakesdrum brakesdrum brakeswet discwet disc
Steeringmech.mech.mech.mech.
Turning circle m 2WD5.945.945.946.1
Front tyres 2WD5,50-166,00-167,50-167,50-16
Rear tyres 2WD11,2-2812,4-2812,4-3613,6-36
Weight 2WD(1525) kg(1590) kg(1890) kg(2350) kg
Height with cab(133) cm(137) cm(146) cm(154) cm
Length (2WD/4WD)321 cm323 cm348 cm360 cm
Wheelbase (2WD/4WD)193 cm193 cm215 cm222 cm
Fuel tank49 l49 l60.4 l75.6 l
