County Super-4/6

Manufacturer
Models
County Super-4, County Super-6
Years
1961-65
Info

County, which manufactured Fordson-based crawler tractors, conducted a few wheeled tractor experiments in the 1950s. The first was the 1954 Four-Drive, a crawler tractor equipped with wheels. Usage applications were hard to find, except for the sugarcane plantations in Puerto Rico. The County Hi-Drive was a raised version of the Fordson Major, also targeted at sugar growers. The Highway Dexta was a road version of the Dexta compliant with British traffic regulations. In addition, County fitted half-track conversions to Dextas and Majors.

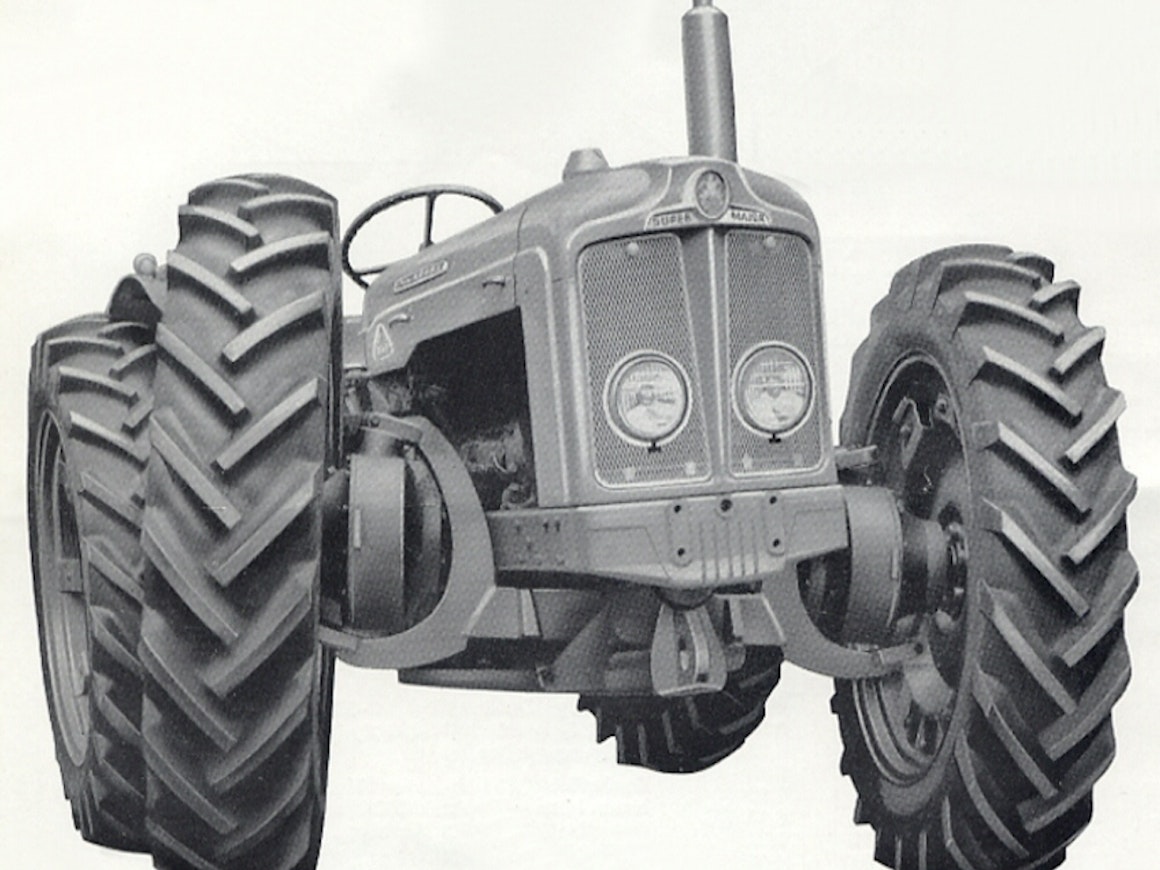

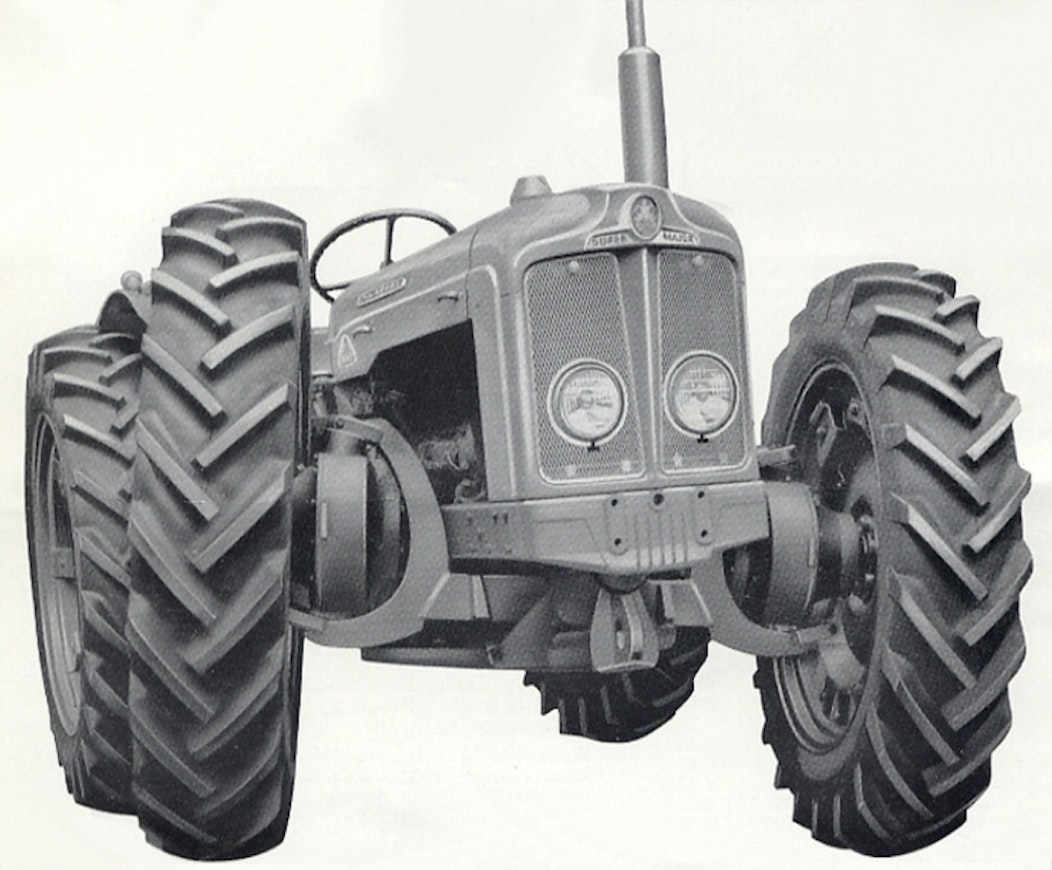

In 1961, County introduced the Super-4. This tractor, based on the Fordson Super Major, had four equally sized wheels. Power was transmitted to the front axle separately via shafts on each side of the frame. Due to this solution, the Super Major’s differential lock now affected all wheels. A downside was the large turning radius.

The front axle utilized many standard components from Fordson and the Ford Thames Trader. The engine was the standard 52-horsepower Super Major unit, and the transmission was 6+2. The wheelbase was 180 cm, over 20 cm shorter than the Major.

In 1962, the more powerful 95-horsepower Super-6 was introduced, to which County had fitted Ford's 5.4-liter 590E industrial engine. The engine hood was completely redesigned for this model.

Technical data
ModelCounty Super-4County Super-6
Manufacturer nameFordson-
Imported to FinlandYesYes
Years1961-641962-65
First year sold19611962
Last year sold19641965
Engine modelDDN-6003590E
Cyl/Turbo/Intercooler46
Displacement3610 cm³5415 cm³
Bore x stroke100×115 mm100×115 mm
Rated power hp/rpm SAE52/165095/2300
Torque Nm/rpm DIN232/1200343/1500
Gears6+26+2
Speeds in km/h2,4-19,7/2,4-25,94,3-26,2
Max. speed 20/26 km/h-
Hydr. flow l/min22.4 l/min-
Hydraulic pressure175 bar-
Lift controlsmech.mech.
Lift capacity1000 kg-
PTO speeds540540
Brakesdry discdry disc
Steeringpowerpower
Turning circle m 2WD13,1-
Front tyres 2WD12.4/11-3612.4/11-36
Rear tyres 2WD12.4/11-3612.4/11-36
Weight 4WD(2850) kg(3530) kg
Height with cab(172) cm-
Length (2WD/4WD)331 cm365 cm
Wheelbase (2WD/4WD)180 cm180 cm
Fuel tank76 l76 l
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information. There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed. Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
